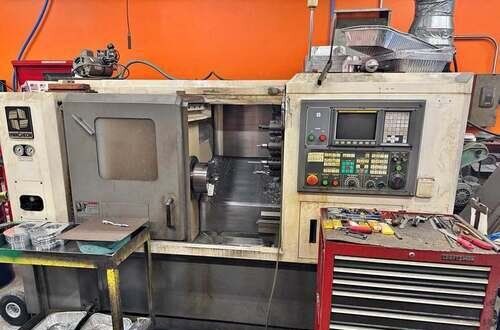

Hwacheon HI-TECH 200ai CNC Lathe


ModelHI-TECH 200AI
TypeCNC Lathes
ControlCNC (Fanuc OiTC)
ChuckSize8 inch
BarCapacity2 inch
Power20 hp
MaxRPM5000 rpm
TurningDia13.8 inch
Swing19.7 inch
MachiningLength15.7 inch
Dimensions95inchL X 67inchW X 70inchH
Weight8,500 Lbs
mpnHI-TECH 200AI
titleHwacheon HI-TECH 200ai CNC Lathe

Zero? Available Machines

Available Machine # Ez18227

  • Stock#:Ez18227
  • Price:Call
  • Year:2006
  • Region:United States
  • Condition:Used
19.7" Swing, Live Milling, Fanuc OiTC, 8" Chuck, Bar Feeder, Tailstock, 12 Pos. Turret EQUIPPED WITH: Fanuc OiTC CNC Control LNS Eco Load Magazine Barfeed 8" 3-Jaw Hydraulic Chuck Collet Chuck C-Axis Contouring on Main Spindle 12-Position Turret With Live Milling Chip Conveyor Manual Tailstock With Programmable Quill Collet Pads

Available Machine # Ez19609

  • Stock#:Ez19609
  • Price:$19,500
  • Year:2006
  • Region:Northeast
  • Condition:Used
Specifications: Swing Over Bed: 19.6" Max. Turning Diameter: 13.7" Standard Turning Diameter: 8.2" Max. Turning Length: 15.7" Spindle Nose: A2-6 Spindle Speed: 5000 RPM Max. Hole Through Spindle: 2.9" Bar Size: 2.0" Turret Stations: 12 Feed: 7.6 IPM X Max. 16.9 IPM Z Max Rapid: 1181 IPM Quill Diameter: 3.1" Quill Stroke: 3.9" Quill Taper: #3 MT Power On Hours: 23,089 Operating Time: 6,134 Hours Cutting Time: 3,836 Hours EQUIPPED WITH: 8" 3-Jaw Power Chuck Fanuc OiTC Control Tailstock Parts Catcher Foot Pedals Manuals RS-232 Flood Coolant Work Light 7/10 HP Main Motor Wired for 3 Phase, 60 Cycle, 220 Volts Overall Size: 104" L-R x 66" F-B x 75" High x 9,500 Lbs.

Available Machine # Ez19846

  • Stock#:Ez19846
  • Price:$19,500
  • Year:N/A
  • Region:Northeast
  • Condition:Used
