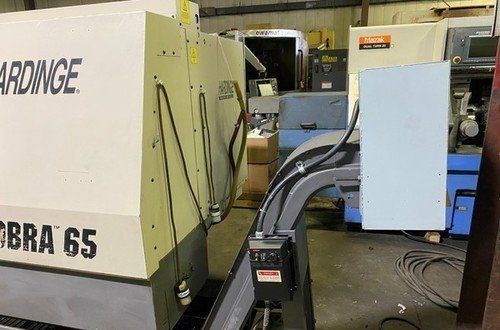

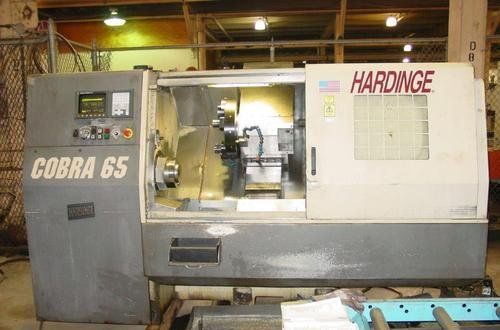

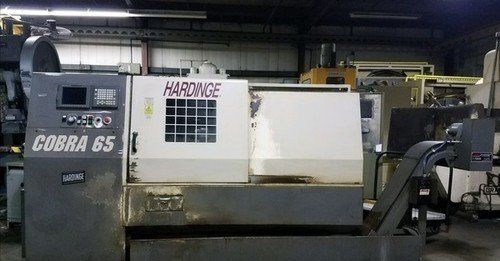

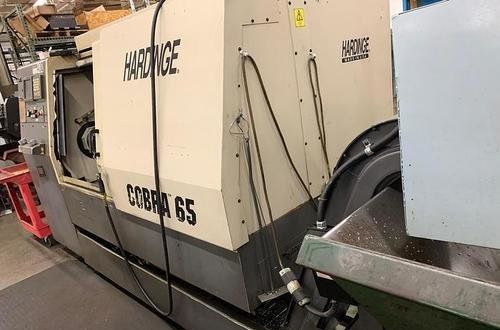

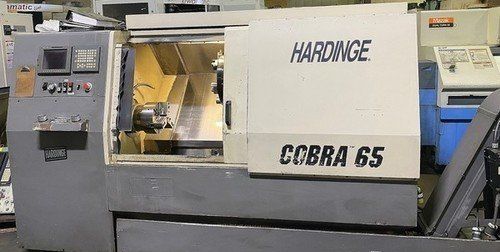

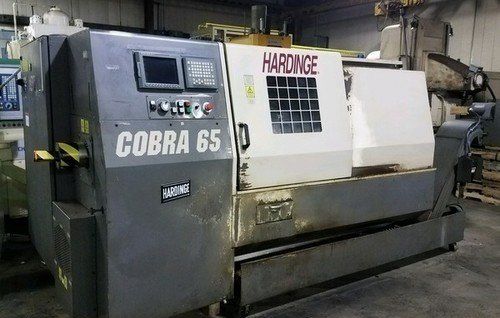

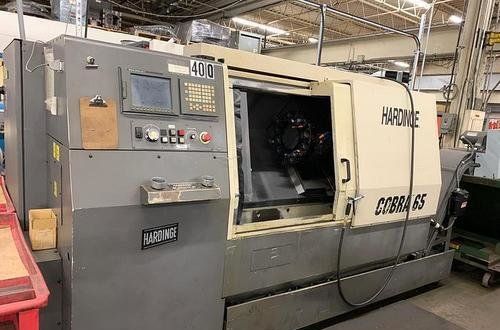

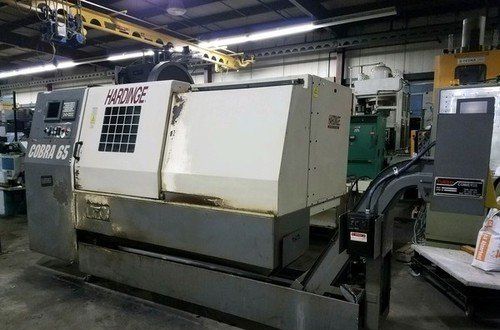

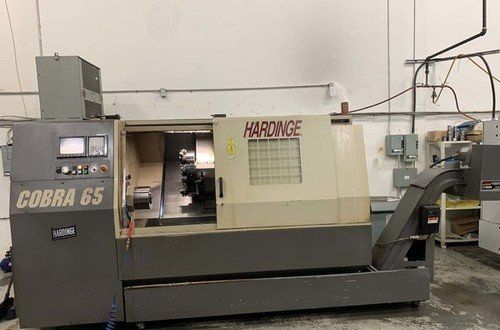

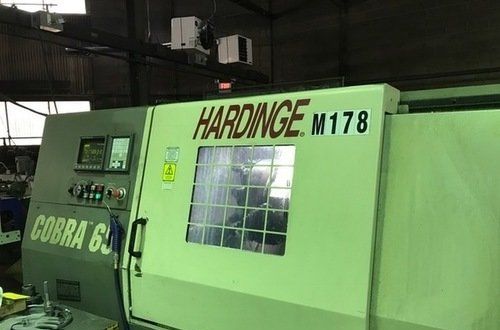

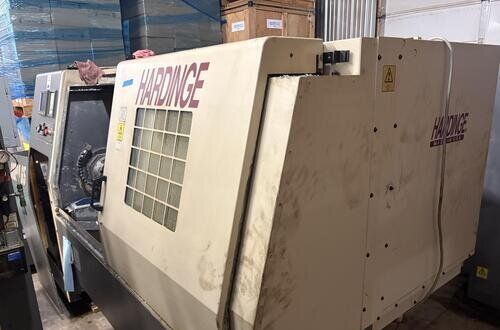

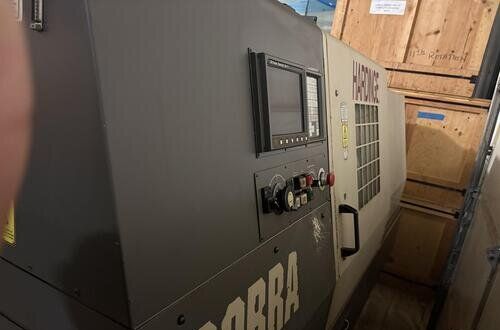

Hardinge Cobra 65 CNC Lathe

Specifications

ModelCOBRA 65
BrandHARDINGE
TypeCNC Lathes

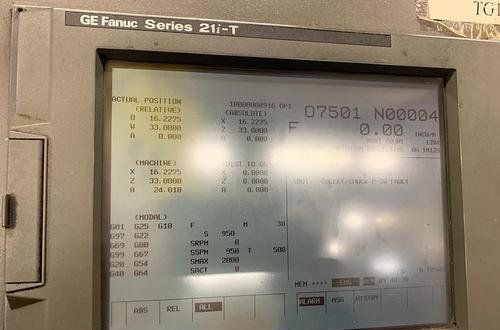

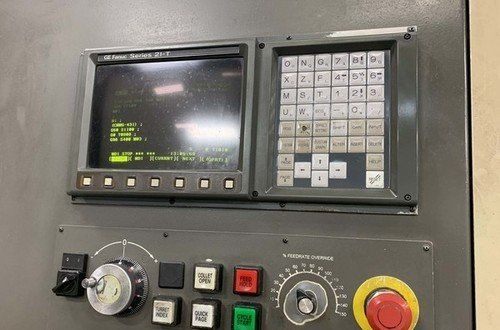

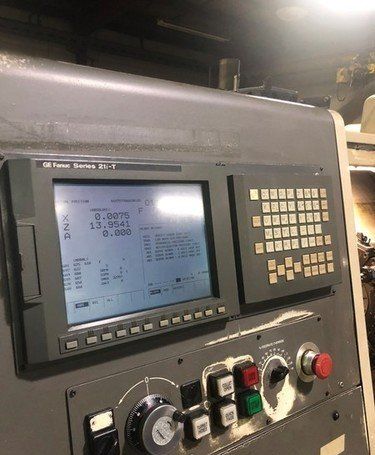

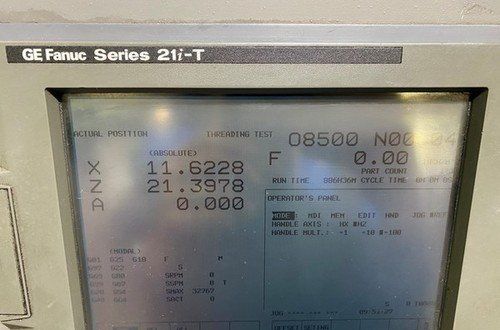

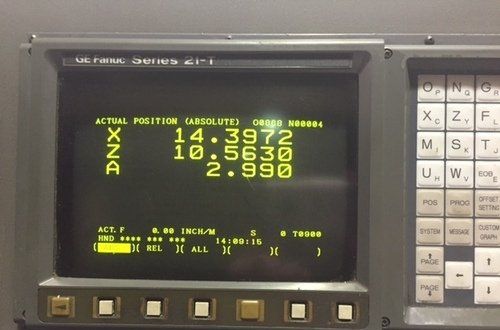

ControlCNC (FANUC 21i-T)
BarCapacity2.559 inch
Axis2
Power7.5 HP
MaxRPM4500 RPM
TurningDia10.5 inch
Swing21 inch
MachiningLength31 inch
TailstockYes
LiveToolingNo
SubSpindleNo
Dimensions125inch x 72inch x 76inch
Weight9300 lbs
catalogid1293
mfgHARDINGE
mpnCOBRA 65
titleHardinge Cobra 65 CNC Lathe

Zero? Available Machines

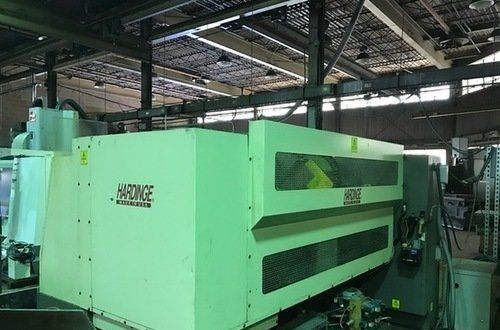

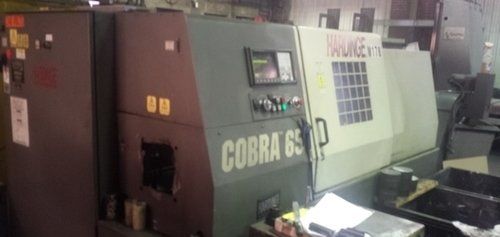

Available Machine # Ez12220

  • Stock#:Ez12220
  • Price:$16,900
  • Year:1998
  • Region:Midwest
  • Condition:Used

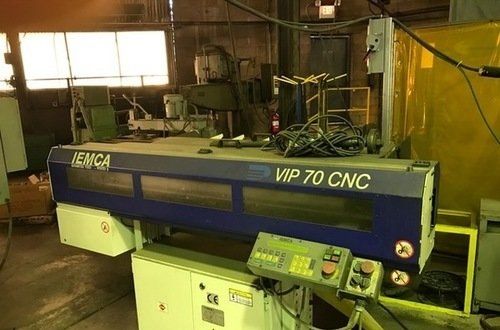

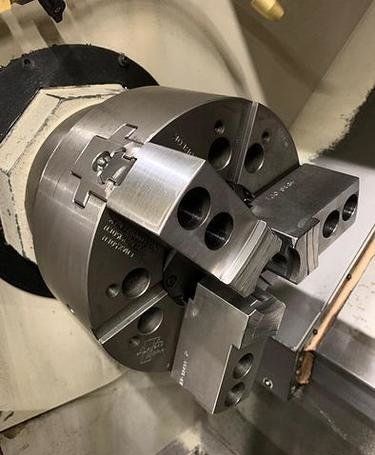

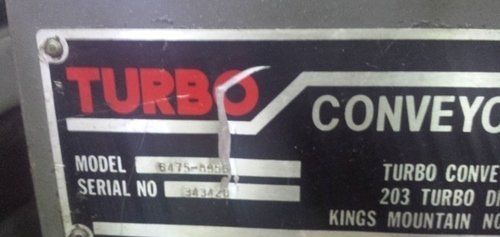

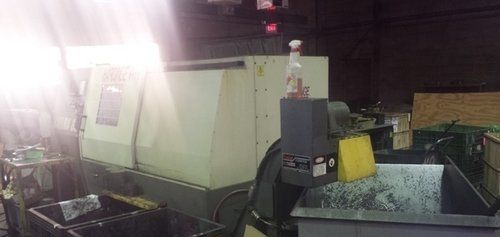

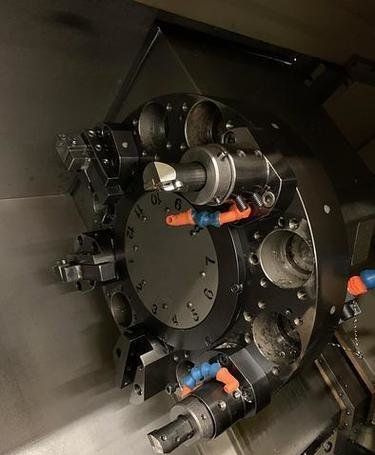

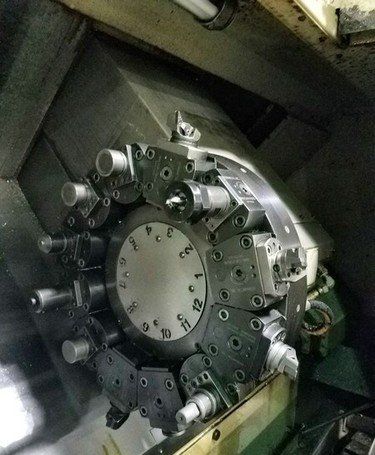

SPECS: Chuck Size 10” Bar Capacity 2.559” Spindle Configuration …......................................... ANSI A2-8 Axis…………………………………………………………..….........2 Power………………………………………………………..………..7.5HP Max RPM………………………………………………….………...4500RPM Turning Diameter……………………………………..………...10.5” X-Axis travel (maximum) ....................................... 9.57"/243.1mm Z-Axis travel (maximum) ....................................... 31.00"/787.4mm X-Axis traverse rate (maximum) ............................ 472ipm/12mpm Z-Axis traverse rate (maximum) ............................ 787ipm/20mpm Z-Axis thrust (maximum)…………………….………………. 1,900lbs./8451Nm Tailstock………………………………..…………………………..…Yes Vertical Turret (Bidirectional)…………………………….…12 Stations Equipped With: Fanuc 18T CNC Control 47 Gallon Coolant tank capacity Approximate shipping weight 9,000lbs Chip Conveyor System 1998 IEMCA VIP 70 Barfeed


Available Machine # Ez7656

  • Stock#:Ez7656
  • Price:$17,500
  • Year:1998
  • Region:Northeast
  • Condition:Used

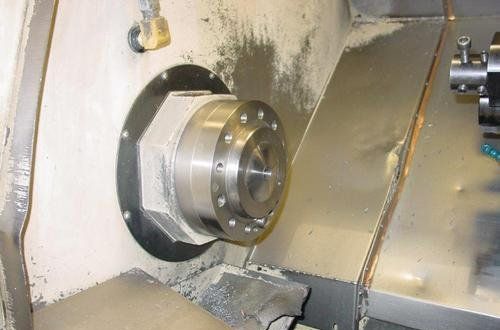

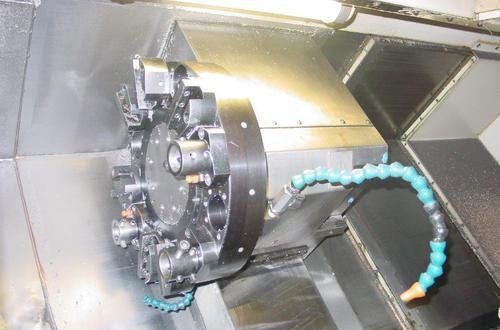

SPECIFICATIONS: Spindle configuration ................... ANSI A2-8 Draw tube type .......................... Hydraulic Round 25C collet (Through Capacity) ..... 2.559"/65mm 25C Step chuck (Gripping Capacity) ...... 8"/203mm 10" Jaw chuck (Gripping Capacity) ....... 9"/228mm Machining diameter (maximum) ............ 10.50"/266.7mm Hang weight with device and part ........ 200lbs/90kg Spindle centerline height ............... 42"/1066.8mm Operator's reach to spindle ............. 15"/381mm AC Digital Spindle Drive System: Horsepower rating (Intermittent) ........ 29.5HP/22.0kW Horsepower rating (Continuous) .......... 24.8HP/18.5kW Standard Torque rating (Intermittent) ............ 138ft-lb/187.1Nm Torque rating (Continuous) .............. 116ft-lb/157.3Nm Speed range (1-rpm steps) ............... 35 to 4,500 rpm Carriage and Cross Slide Swing diameter over upper way cover (max) 22.00"/558.8mm X-Axis travel (maximum) ................. 9.57"/243.1mm Z-Axis travel (maximum) ................. 31.00"/787.4mm X-Axis traverse rate (maximum) .......... 472ipm/12mpm Z-Axis traverse rate (maximum) .......... 787ipm/20mpm Z-Axis thrust (maximum) ................. 1,900lbs./8451Nm Vertical Turret (Bidirectional) No. of stations ......................... 12 Square shank tool size (maximum) ........ 1" 25mm Round shank tool sie (maximum) .......... 1 1/2" 40mm Tailstock (Optional) Manual positioning ...................... Hydraulic Quill Morse taper #/conter .................... MT No. 4 Travel of tailstock base ................ 33.0"/838.2mm Quill travel ............................ 6.0"/152.4mm Thrust @ 500 psi (maximum) .............. 1,500lbs/6672.2Nm Miscellaneous Compressed air requirement .............. 70 to 90 psi 5 to 6 sclm Coolant tank capacity ................... 47gal/177.9L Approximate shipping weight ............. 9,000lbs/4086kg Machine dimensions: Length................................... 123.5"/3136.9mm Add'l length with chip removal system ... 42.73"/1085.3mm Depth ................................... 68.0"/1727.2mm Height .................................. 73.0"/1854.2mm EQUIPPED WITH: - FANUC 18T CNC CONTROL - HYDRAULIC COLLET CHUCK - 12 POSITION TURRET - TAILSTOCK - CHIP CONVEYOR - IEMCA VIP 70 MAGAZINE BARFEED - ALL AVAILABLE TOOLHOLDERS AND MANUALS IN PLANT UNDER POWER, 14,000 CUTTING HOURS
