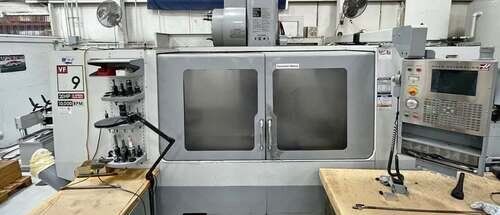

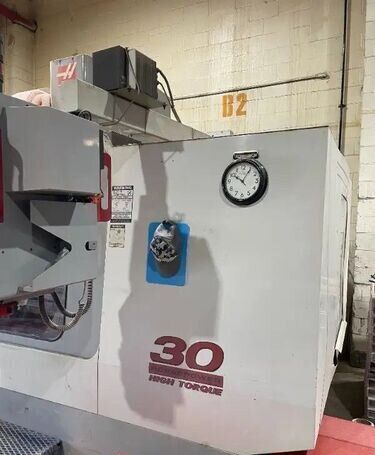

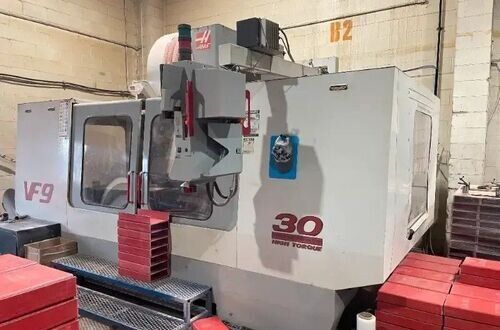

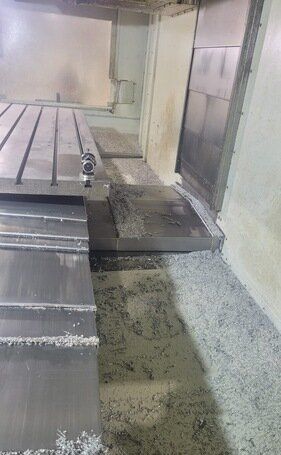

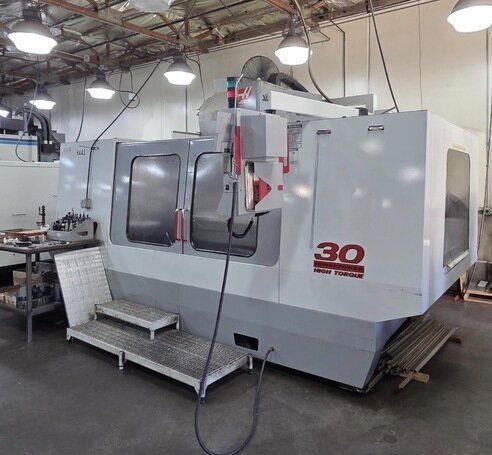

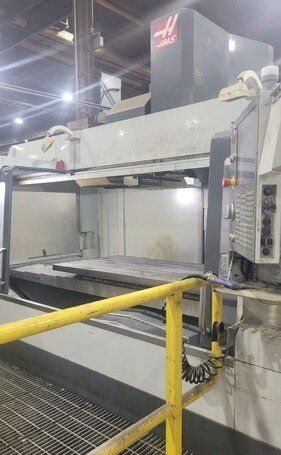

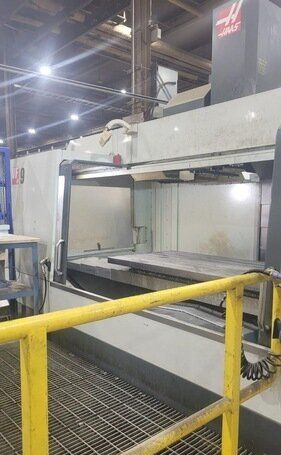

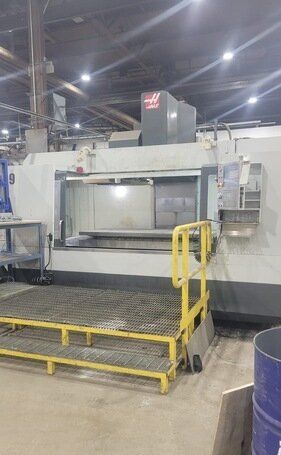

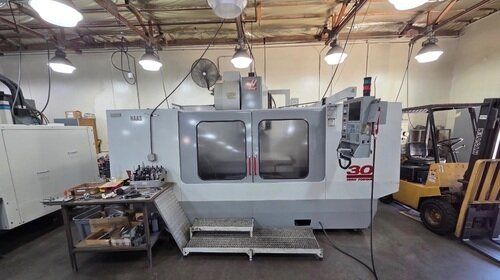

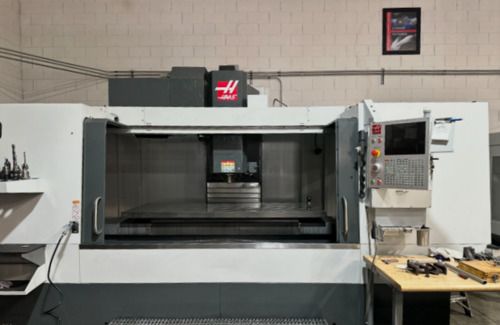

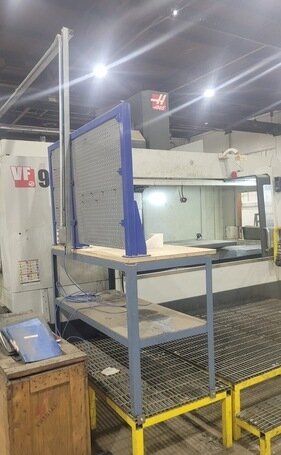

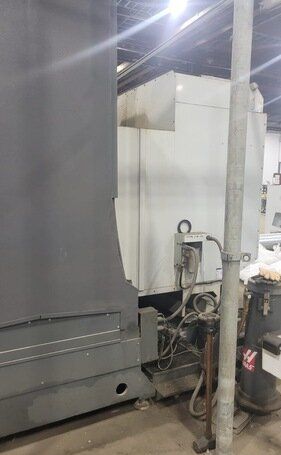

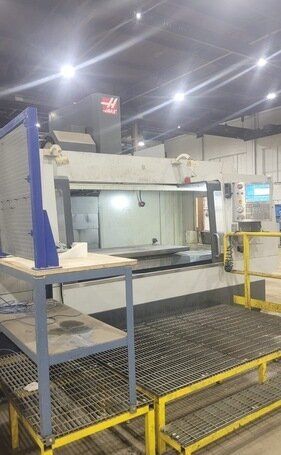

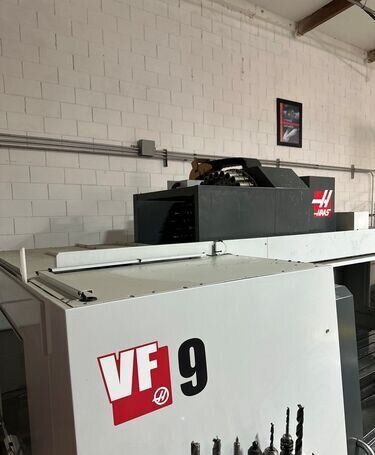

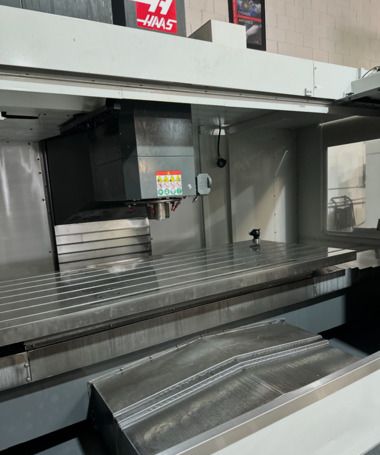

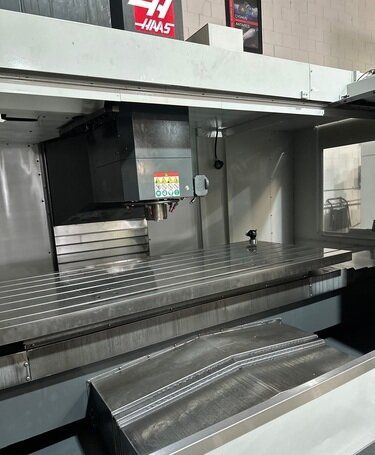

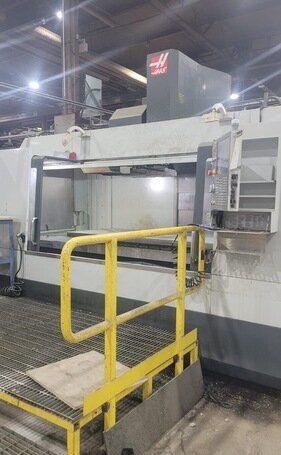

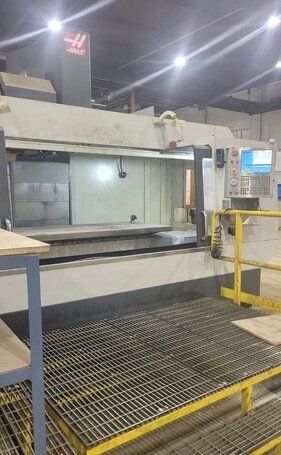

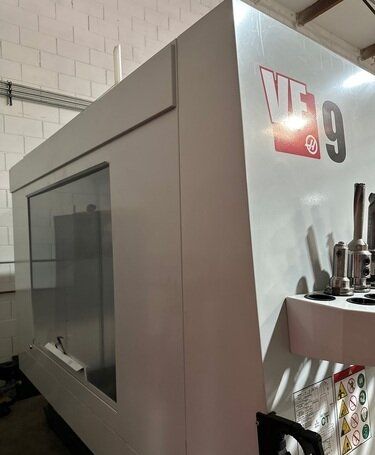

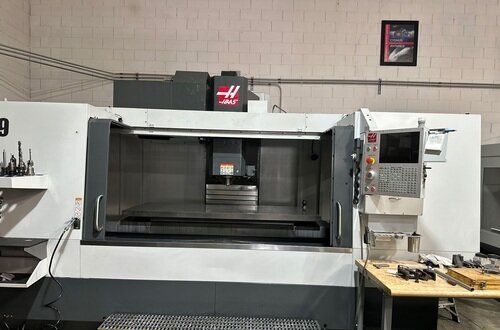

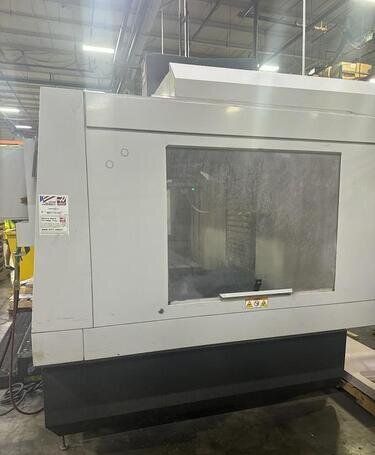

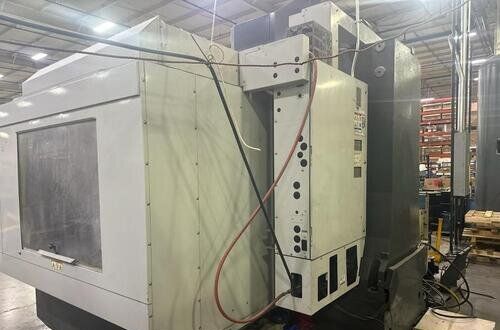

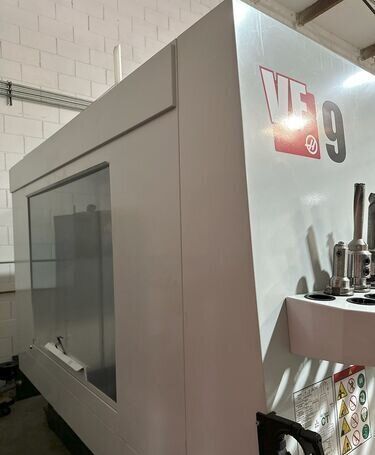

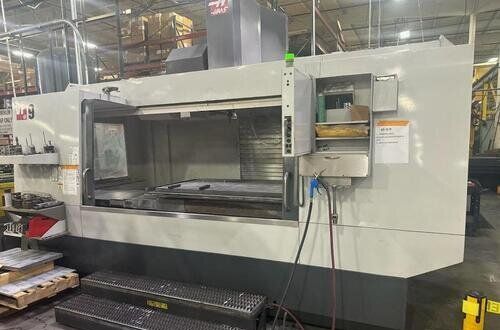

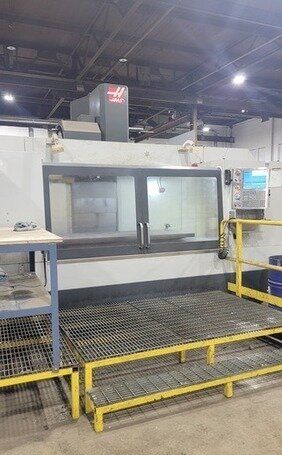

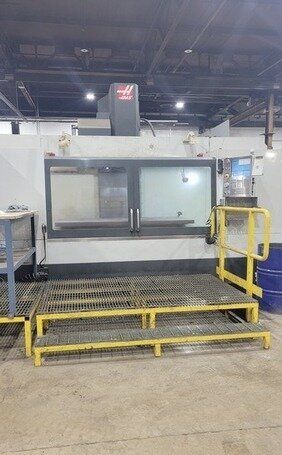

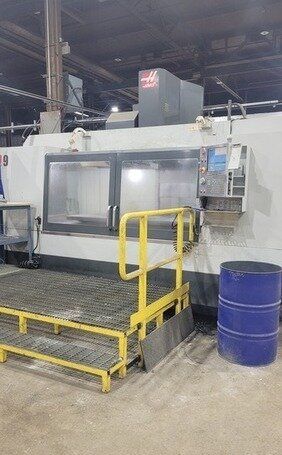

Haas VF-9/40 Vertical Machining Center

Specifications

BrandHAAS
ModelVF-9/40
TypeVertical Machining Centers

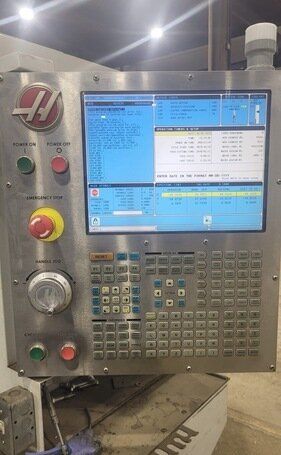

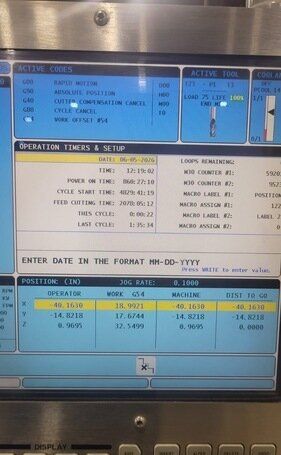

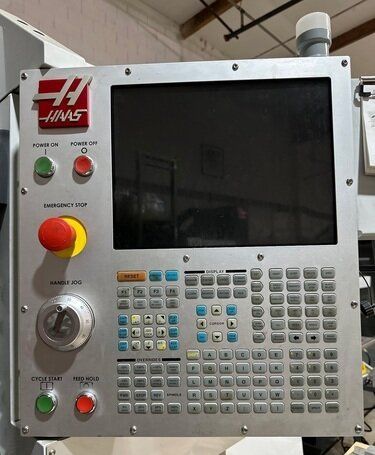

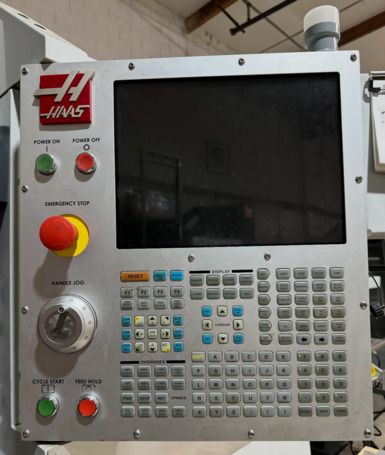

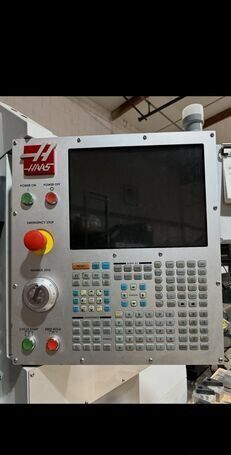

ControlCNC (Haas)
X84 inch
Y40 inch
Z30 inch
Power30 hp
RPM8100 rpm
ATC25

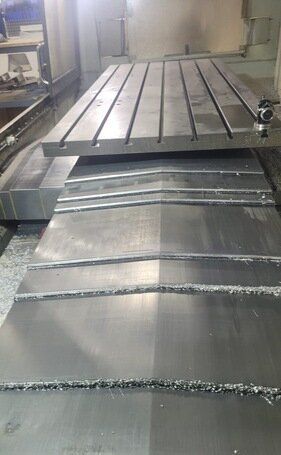

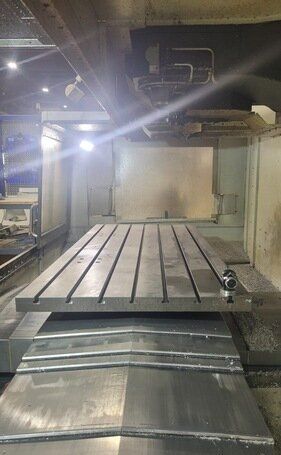

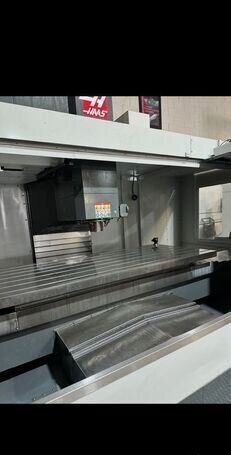

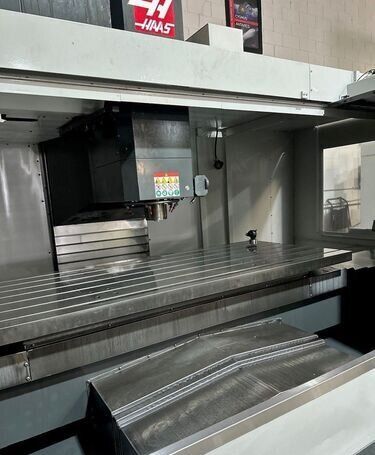

TableW36 inch
TableL84 inch
TaperCT 40
Axis3
Dimensions214inch x 120inch x 127inch
Weight25000 Lbs
Length183 inch
Width139 inch
Height105 inch
catalogid2654
mfgHAAS
mpnVF-9/40
titleHaas VF-9/40 Vertical Machining Center

Zero? Available Machines

Available Machine # Ez19779

  • Stock#:Ez19779
  • Price:Call
  • Year:1998
  • Region:Midwest
  • Condition:Used



Available Machine # Ez21488

  • Stock#:Ez21488
  • Price:$50,001
  • Year:2012
  • Region:West
  • Condition:Used



Available Machine # Ez19574

  • Stock#:Ez19574
  • Price:$35,000
  • Year:N/A
  • Region:West
  • Condition:Used
Travels: X-Axis: 84″ Y-Axis: 40″ Z-Axis: 30″ Spindle Nose to Table (Min.- Max.): 4″ – 34″ Table: Length: 84″ Width: 36″ Max Weight on Table: 4000 lbs Spindle: Taper Size: No. 40 Speed Range: 60 – 7500 RPM Spindle Power: 22 HP Automatic Tool Changer: Capacity: 32 Max Tool Weight: 12 lbs Max Tool Length: 16″ Tool-to-Tool(avg.): 2.8 seconds Chip to Chip(avg.): 4.7 seconds General: Air Required: 100 psi, 4 scfm Power: 220v / 66FLA / 3-Phase Overall Dimensions: 181″ x 114″ x 105″ High Weight: 26,000 lbs
