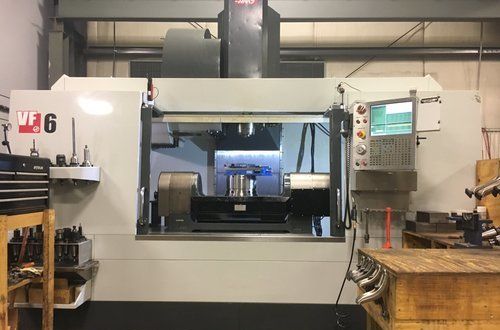

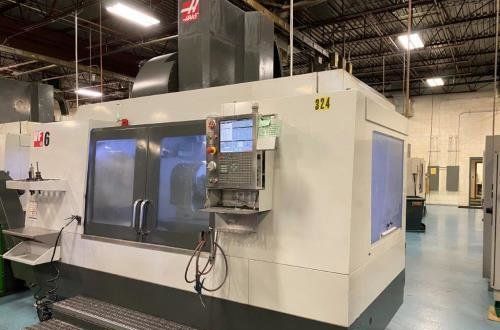

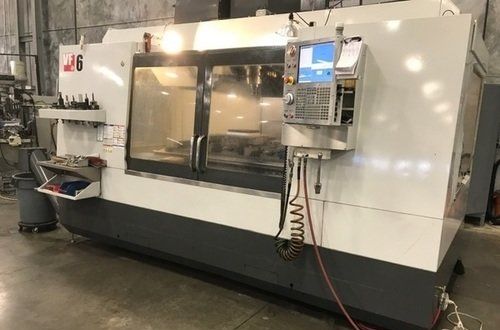

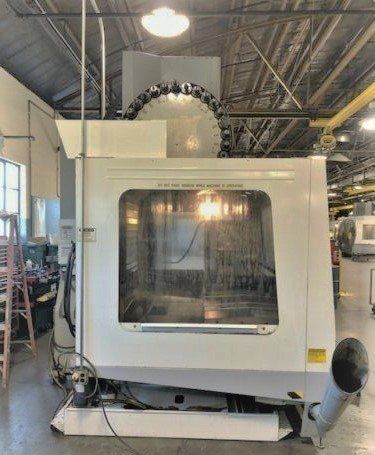

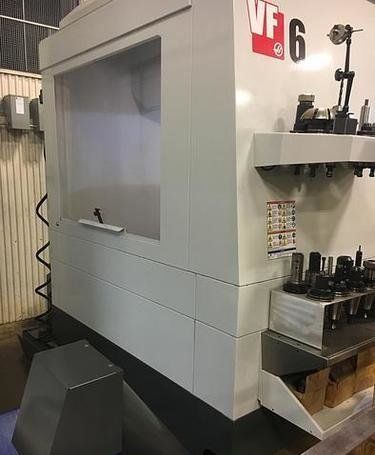

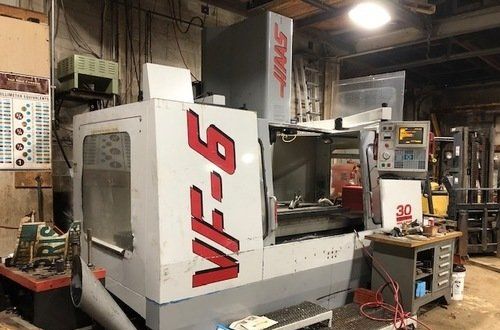

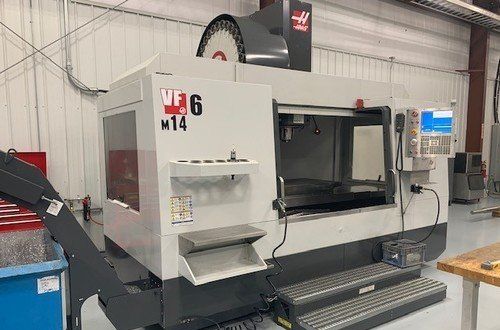

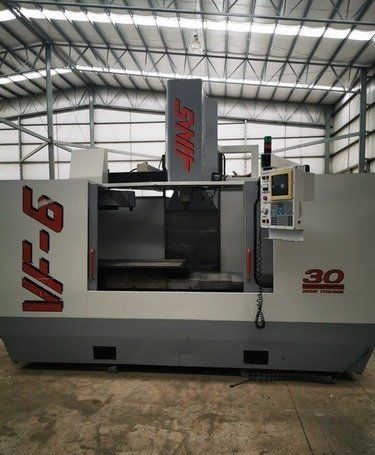

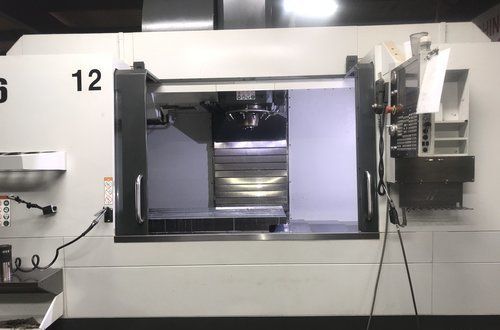

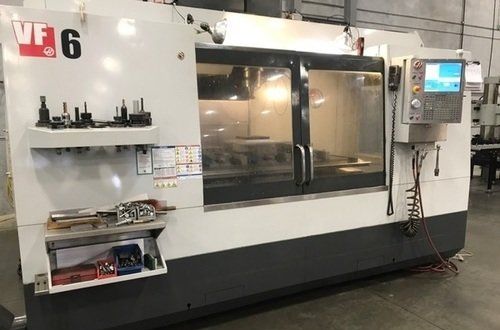

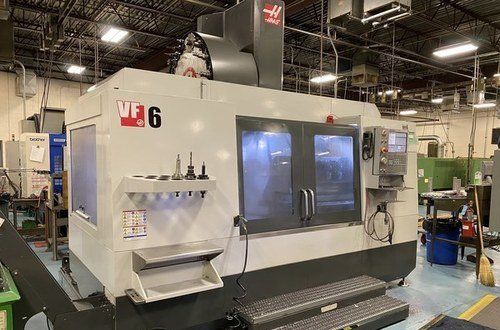

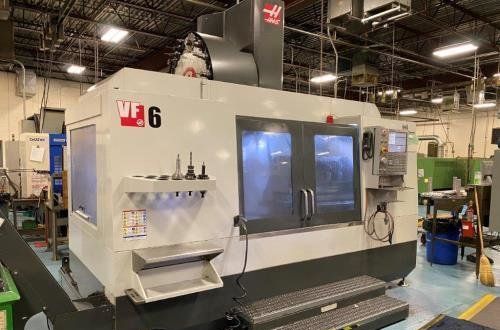

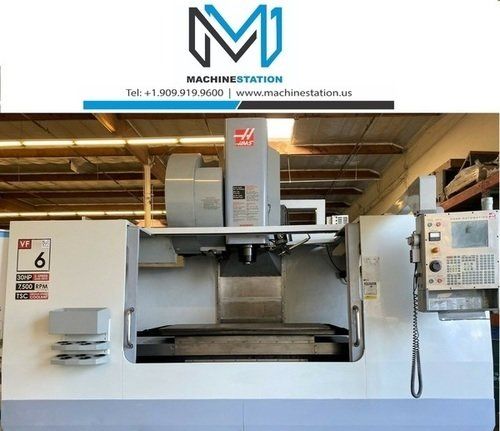

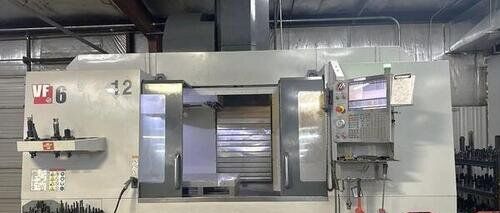

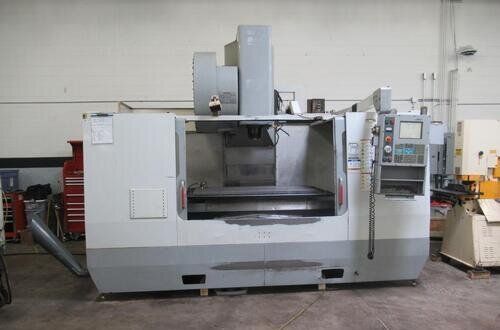

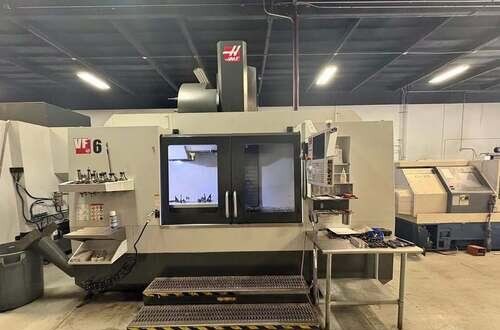

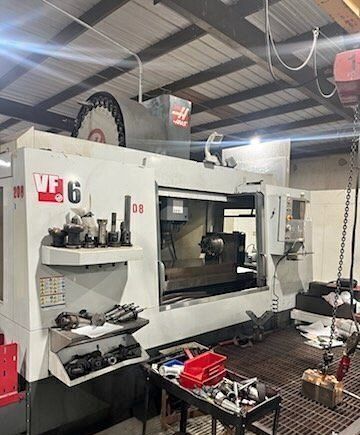

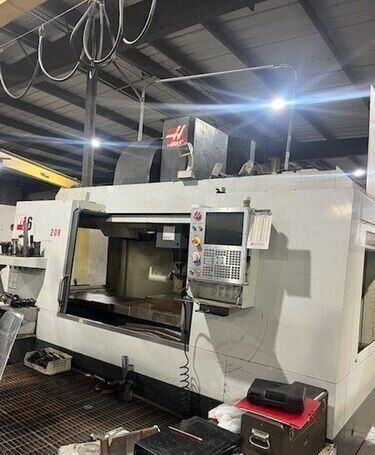

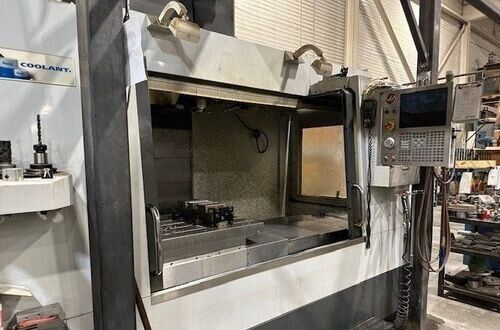

Haas VF-6/50 Vertical Machining Center

Specifications

ModelVF-6/50
BrandHAAS
TypeVertical Machining Centers
ControlCNC (HAAS)
X64 inch
Y32 inch
Z30 inch
Power30 HP
RPM10000 RPM
ATC30
TableW28 inch
TableL64 inch
TaperCT50
Weight22500 lbs
Axis3
Length195 inches
Width102 inches
Height131 inches
catalogid146
mfgHAAS
mpnVF-6/50
titleHaas VF-6/50 Vertical Machining Center

Zero? Available Machines

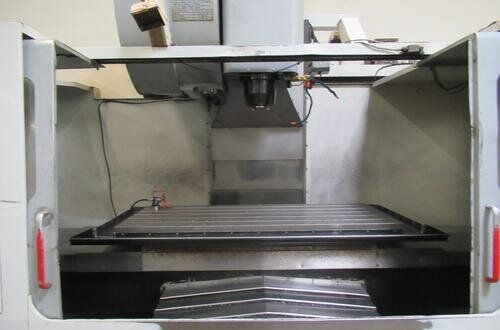

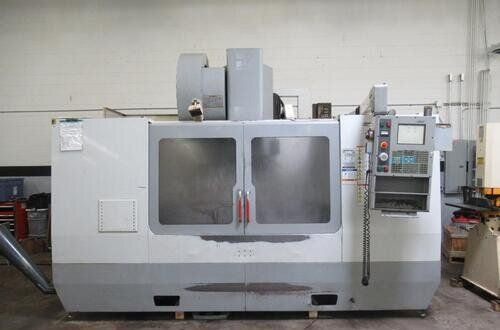

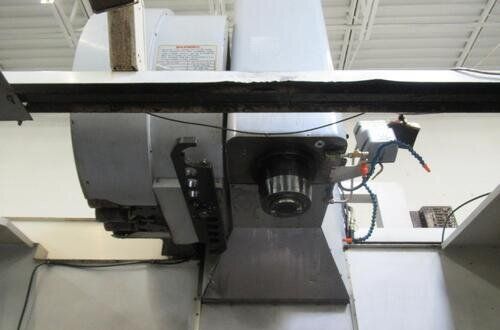

Available Machine # Ez12680

  • Stock#:Ez12680
  • Price:Call
  • Year:1998
  • Region:Midwest
  • Condition:Used
Year: 1998 64 x 32 Specifications: Table Length 64" Width 28" Max Table Load 4000 lbs Spindle Taper CAT 50 Spindle Nose to Table Top 5" - 35" X-Cross/Long 64" Y-Saddle 32" Z-Spindle/Vert 30" Rapid Traverse Rates X/ Y & Z 500 IPM Positions 20 ATC Spindle Speed 7,500 RPM Main Motor 30 hp Machine Weight 20,000 Lbs Appprox Dime 156" x 123" x 124" High Equipped With: Haas Control Remote Jog 4th Axis Drive Programmable Coolant Thru Spindle Coolant Geared Headstock Chip Auger Built In Transformer Chip Augur


Available Machine # Ez11128

  • Stock#:Ez11128
  • Price:Call
  • Year:1998
  • Region:West
  • Condition:Used

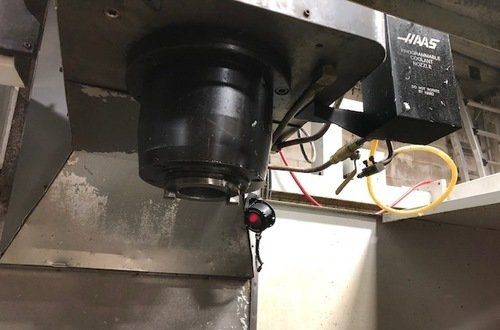

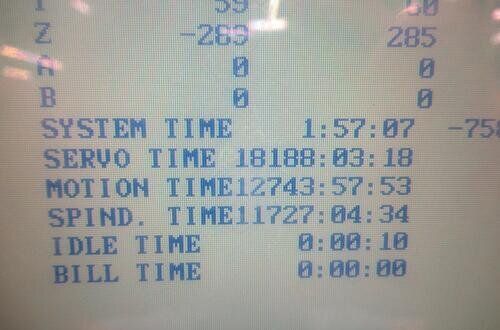

TRAVELS: --X: 64" --Y: 30" --Z: 30" TOOLS: 30 ATC SPEED: 5000 RPM TAPER: CAT 50 MOTOR: 30 HP GEARED HEAD CHIP AUGER PROGRAMMABLE COOLANT NOZZLE RIGID TAPPING 4TH AXIS READY (BRUSH) FLOPPY DRIVE 1 MB MEMORY 150 PSI, THROUGH SPINDLE COOLANT REMOTE JOG HANDLE MOTION HOURS: 11,508 SPINDLE HOURS: 11,520


Available Machine # Ez13846

  • Stock#:Ez13846
  • Price:Call
  • Year:2006
  • Region:West
  • Condition:Used
Specifications: Travels: X-Axis: 64" Y-Axis: 32" Z-Axis: 30" Rapid Traverse Rates: 600 Inch Per Minute Cutting Feed Rates: 500 Inch Per Minute Spindle Nose to Table (Min.- Max.): 5" - 35" Table: Length: 64" Width: 28" Number of Std T-Slots: 5 T-Slot Width: 5/8" Max Weight on Table: 4000 lbs Spindle: Taper Size: CAT 50 Speed Range: 0 - 10,000 RPM Geared Head Spindle Power: 30 HP Vector Dual Drive Max Torque: 90ft-lb @ 2000RPM Automatic Tool Changer: Capacity: 30 + 1 Max Tool Weight: 12 lbs Max Tool Dia: 6" Max Tool Length: 16" Tool Changing Time: 4.2 Seconds General: Air Required: 100 psi, 4 scfm Power: 220v / 66FLA / 3-Phase Overall Dimensions: 158" x 98" x 118" High Weight: 22000 lbs HAAS VF-6/50 VERTICAL MACHINING CENTER Features: 30HP High Torque Spindle Motor 4th Axis Ready ( drives and wiring installed ) 10,000 RPM Geared Head Spindle 30 + 1 automatic 50 Taper Side Mount tool changer Remote Jog Handle Rigid Tapping High Speed Machining Advanced Tool Management Power Failure Detection Module User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling Brush-type servo drive motors on all axis Programmable coolant Telescopic way covers Chip auger Floppy Drive Flood Coolant system


Available Machine # Ez14974

  • Stock#:Ez14974
  • Price:Call
  • Year:2010
  • Region:Canada
  • Condition:Used

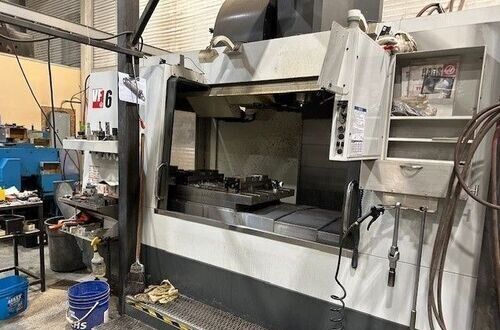

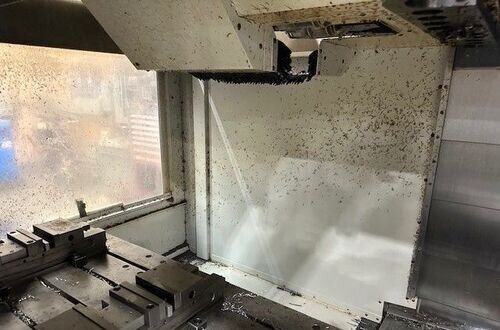

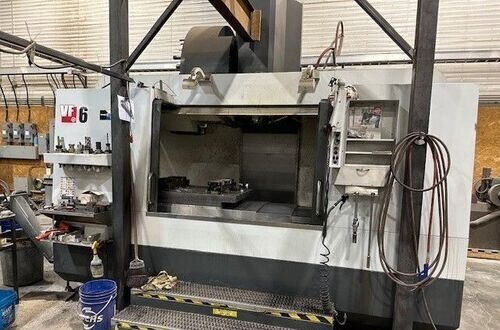

Available Machine # Ez14349

  • Stock#:Ez14349
  • Price:$87,500
  • Year:2010
  • Region:South
  • Condition:Used

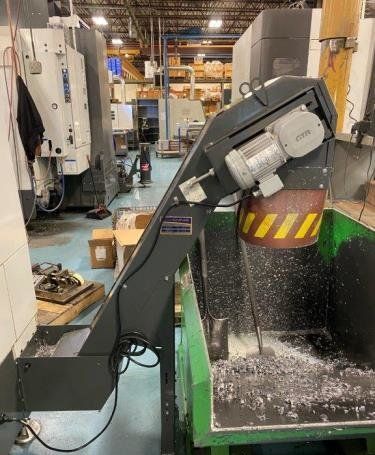

X 64 " Y 32 " Z 30 " Power 30 HP RPM 7500 RPM # ATC 30 Table-W 28 " Table-L 64 " Taper CT or BT 50 # Axis 3 Weight 25500 Control CNC (HAAS) Options include: Through Spindle Coolant, Auto Air Gun, Multi-Auger Conveyor, Programmable Coolant, High Speed Machining, Remote Jog Handle, Rigid Tap, Wireless Probing System


Available Machine # Ez14163

  • Stock#:Ez14163
  • Price:Call
  • Year:2011
  • Region:Canada
  • Condition:Used

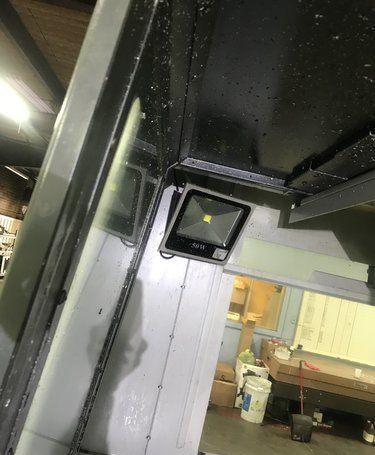

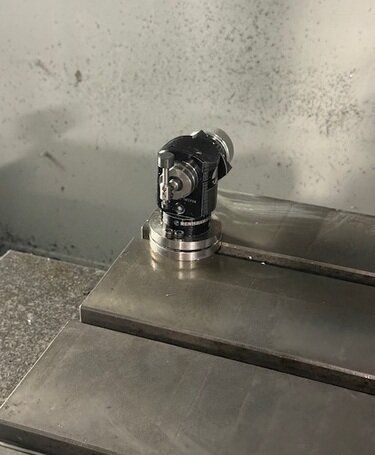

MFG DATE 2011 - Approx. 1100 hours of spindle on time TABLE SIZE 64" x 28" MAXIMUM TABLE LOAD 4,000 LBS SPINDLE NOSE TO TABLE TOP 5" - 35" X AXIS TRAVEL 64" Y AXIS TRAVEL 32" Z AXIS TRAVEL30" RAPID TRAVERSE RATE X AXIS 540 IPM RAPID TRAVERSE RATE Y & Z AXES 600 IPM SPINDLE SPEEDS (2 SPEED GEARED) 0 - 7,500 RPM SPINDLE TAPER CAT 50 SPINDLE MOTOR 30 HP CUTTING FEED RATE 0.1 - 500 IPM TOOL CHANGER CAPACITY30 + 1 SIDE MOUNT ATC TOOL CHANGE TIME (TOOL-TO-TOOL) 4.2 SECONDS TOOL CHANGE TIME (CHIP-TO-CHIP) 6.3 SECONDS MAXIMUM TOOL WEIGHT 30 LBS WEIGHT, APPROX. 24,600 LBS DIMENSIONS, APPROX. 160"L x 101"W x 132"H Equipped With: Haas CNC Control w/15" Color LCD Monitor Expanded Memory to 250MB Ethernet Interface Renishaw Wireless Work Offset Probe & Wireless Tool-Setting Probe Macros Spindle Orientation Coordinate Rotation & Scaling High-Speed Machining & Look Ahead 4th Axis Drive & Wiring Only for Brushless Rotary Table not Included 5th Axis Drive & Wiring Only for Brushless Type Rotary Table not Included Memory Lock Switch Thru Spindle Coolant (300 PSI, 21 Bar) Automatic Air Gun Dual Halogen External High-Intensity Lighting w/Door Switch USB Port Rigid Tapping Flood Coolant System (95 Gal) Auxiliary Coolant Filter System (25-Micron Filter) Mini-Auger Chip Conveyor System TSC1000 Retrofit Kit Isolation Transformer 30+1 Side Mount ATC
