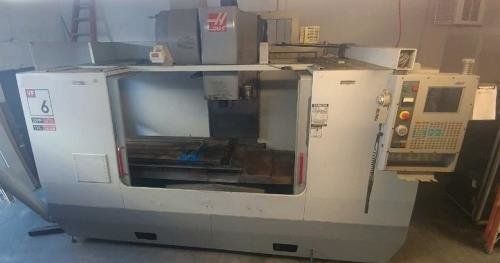

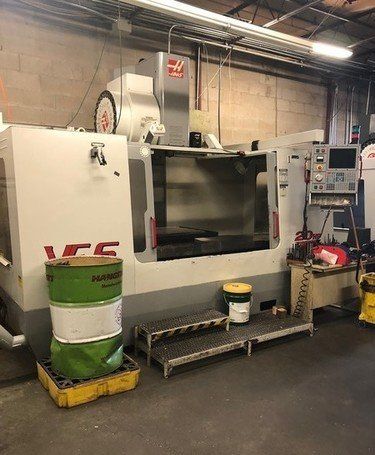

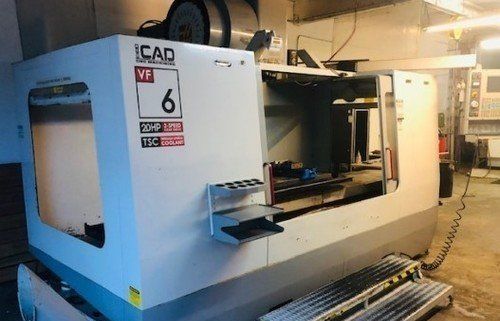

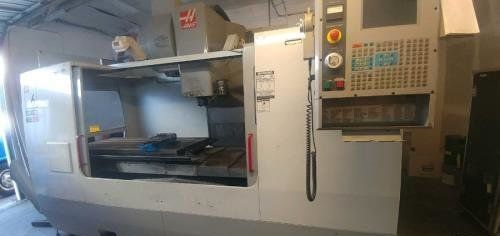

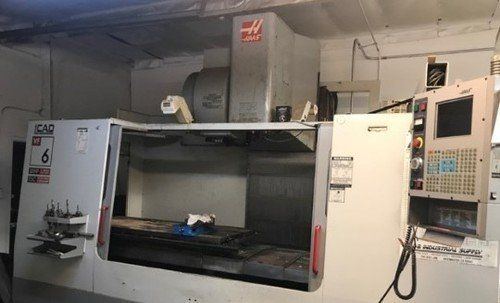

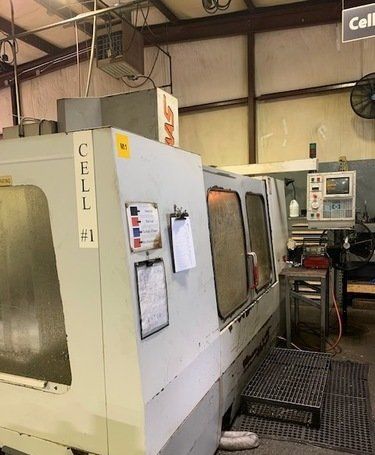

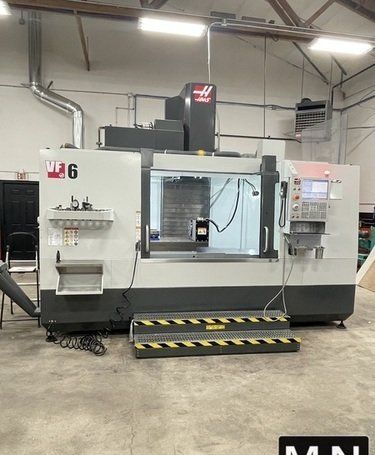

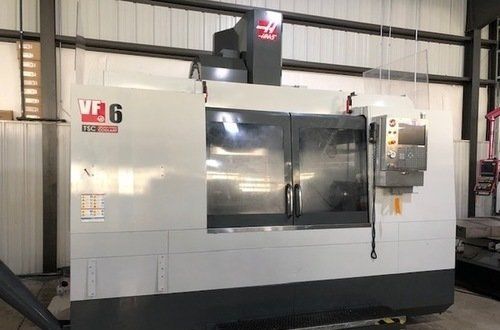

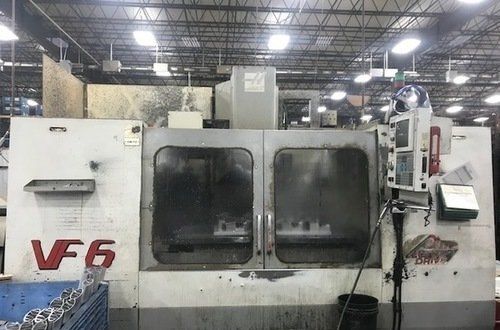

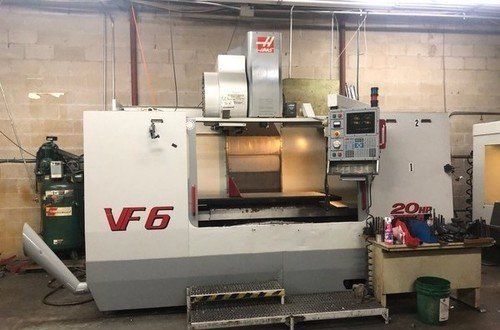

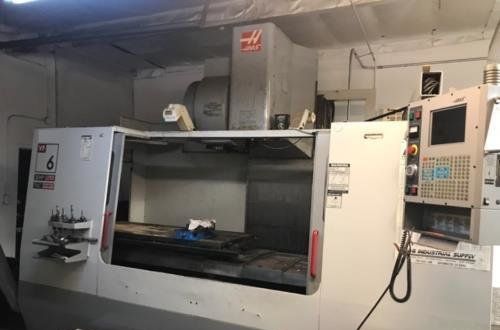

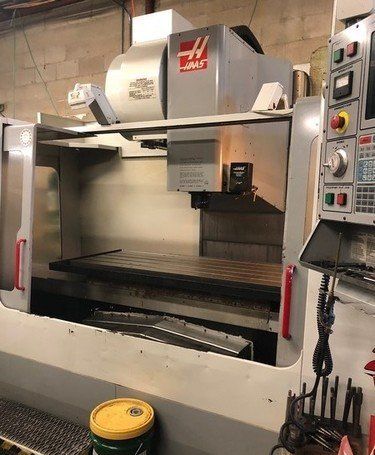

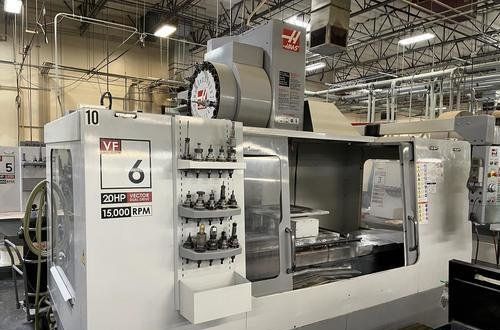

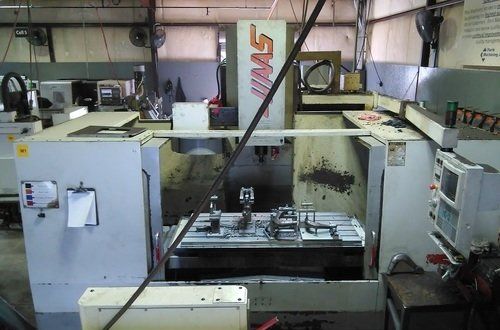

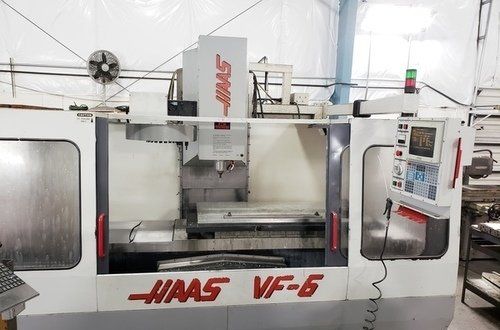

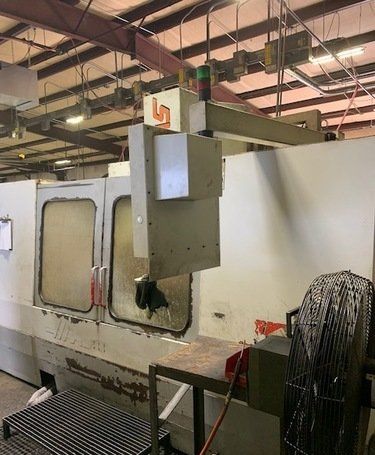

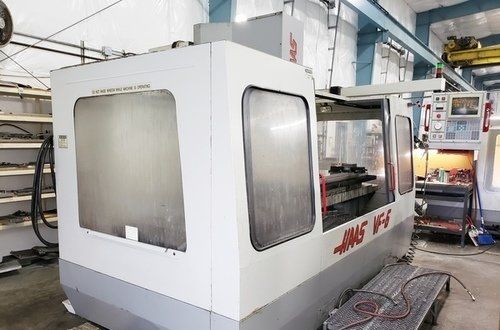

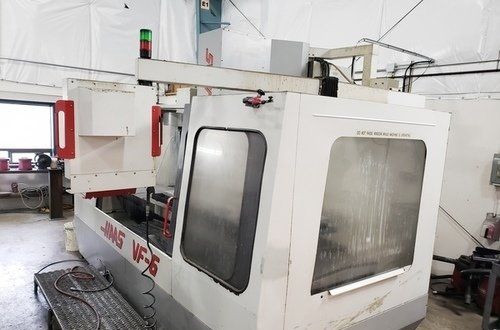

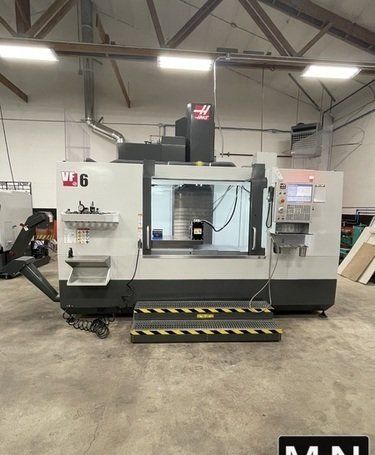

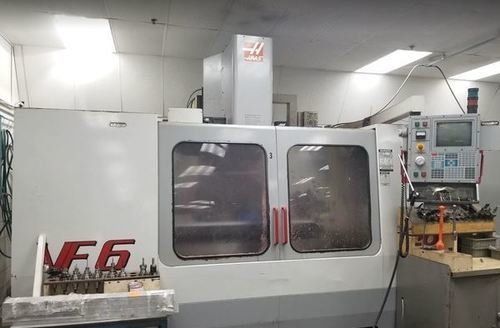

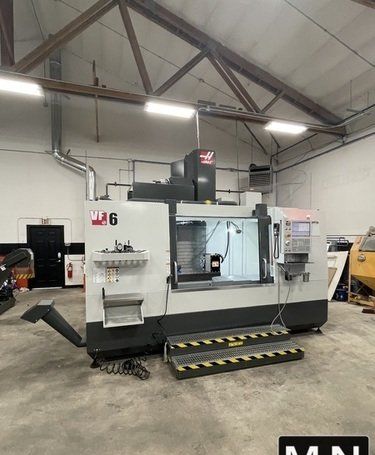

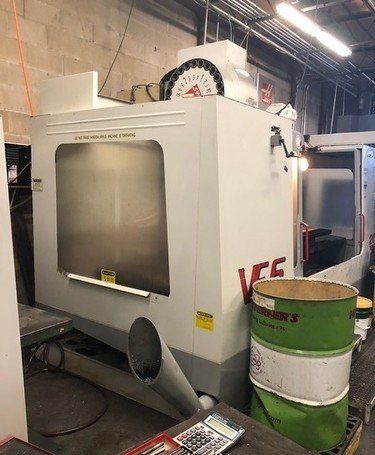

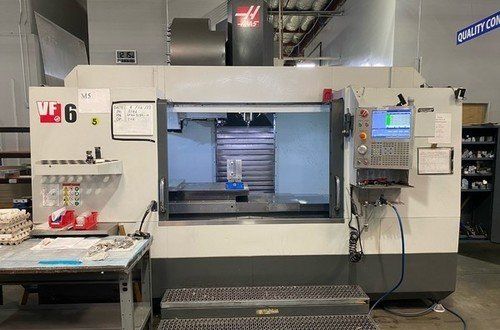

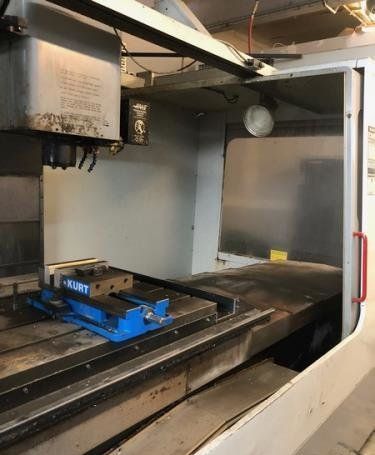

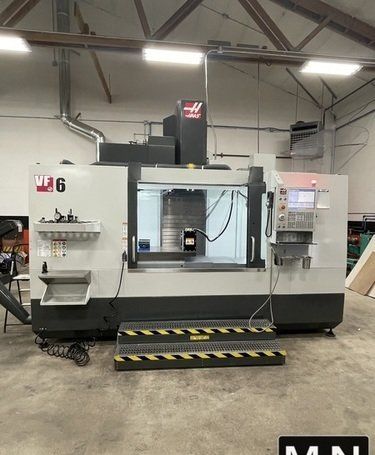

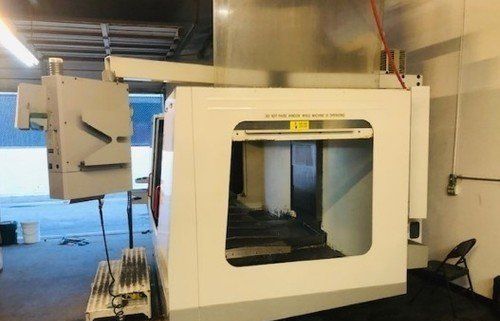

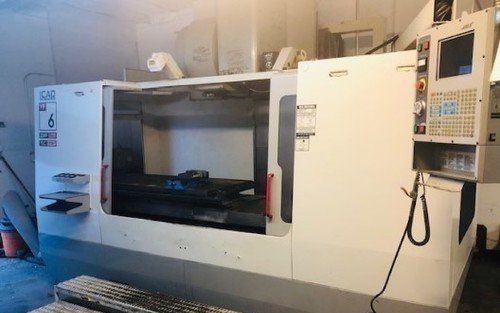

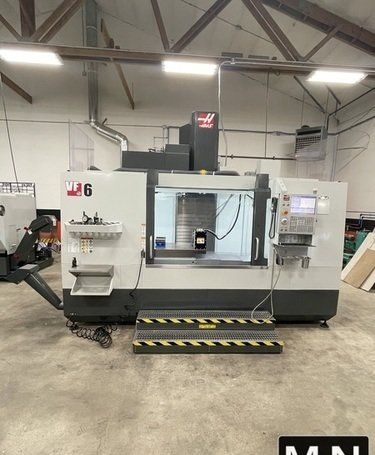

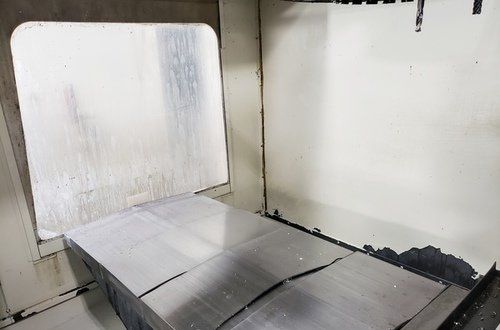

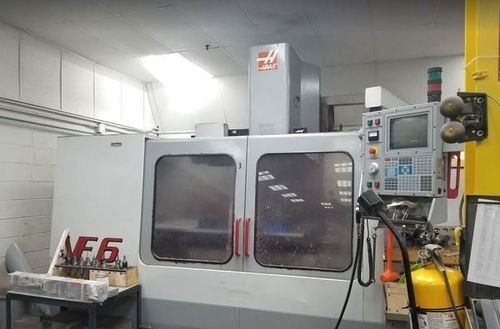

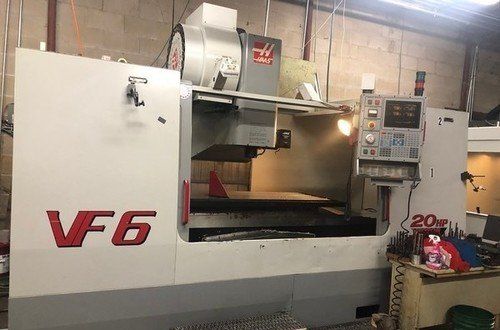

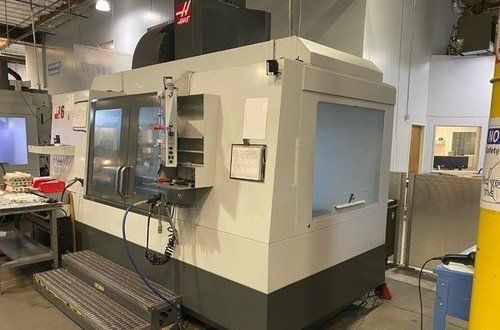

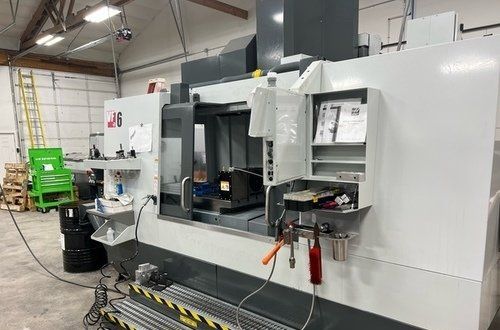

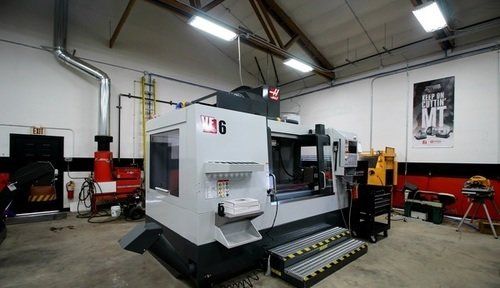

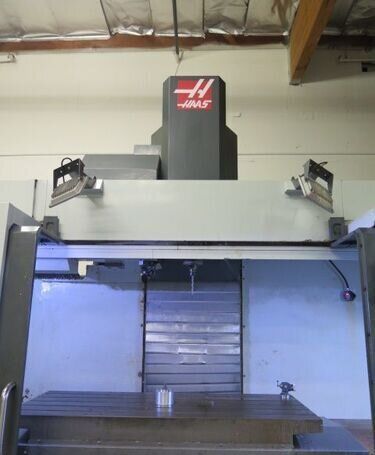

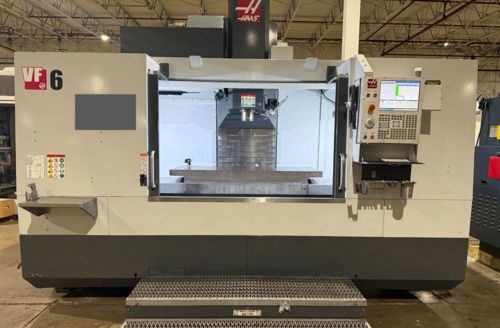

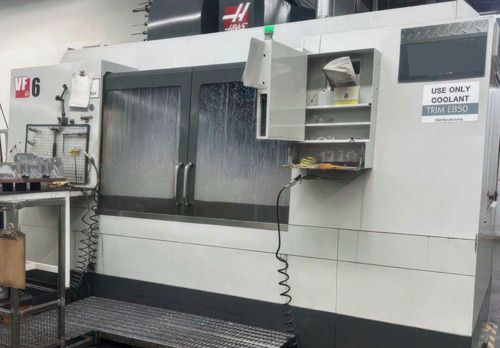

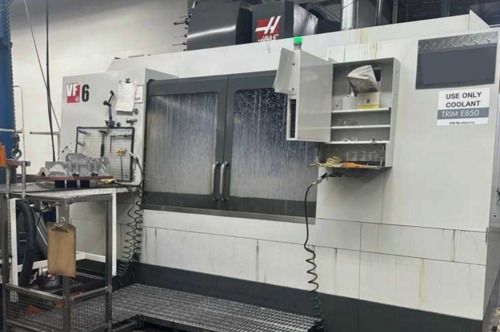

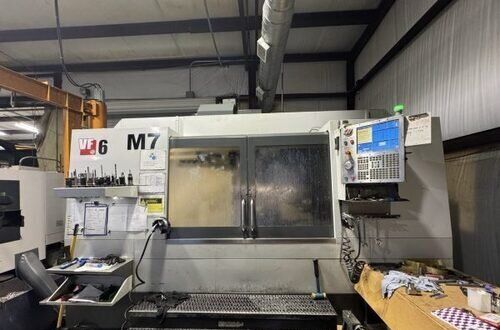

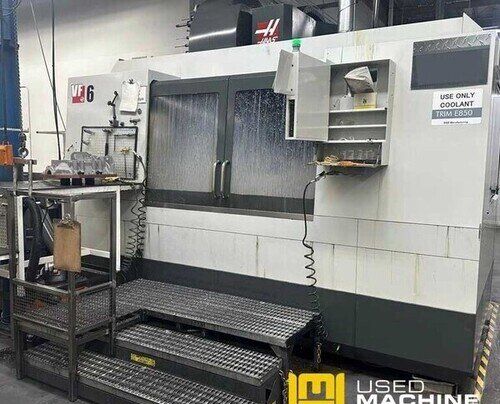

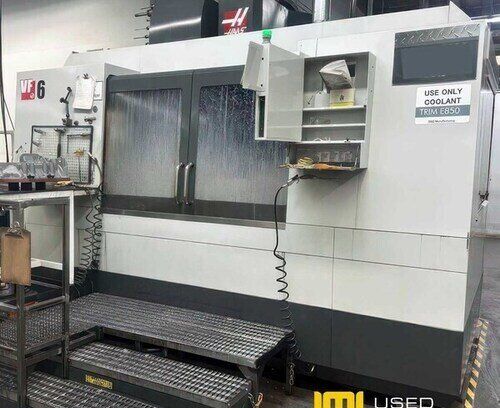

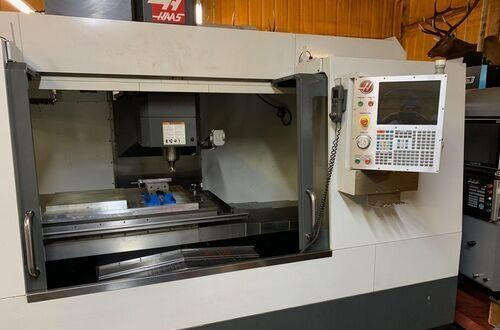

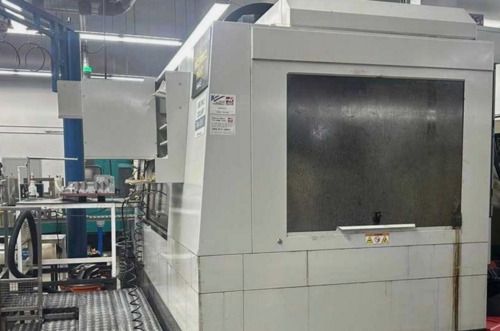

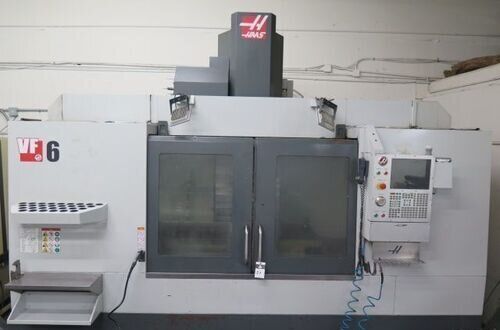

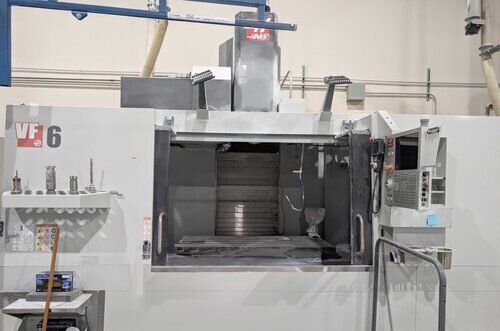

Haas VF-6/40 Vertical Machining Centers

Specifications

ModelVF-6/40
BrandHAAS
TypeVertical Machining Centers
ControlCNC (Haas 32-Bit)
X64 inch
Y32 inch
Z30 inch
Power30 HP
RPM8100 RPM
ATC20
TableW64 inch
TableL28 inch
TaperCT or BT 40
Axis3
Weight22,500 LBS
Length156"
Width94"
Height129"
catalogid2067
mfgHAAS
mpnVF-6/40
titleHaas VF-6/40 Vertical Machining Centers

Zero? Available Machines

Available Machine # Ez12639

  • Stock#:Ez12639
  • Price:Call
  • Year:2004
  • Region:Midwest
  • Condition:Used

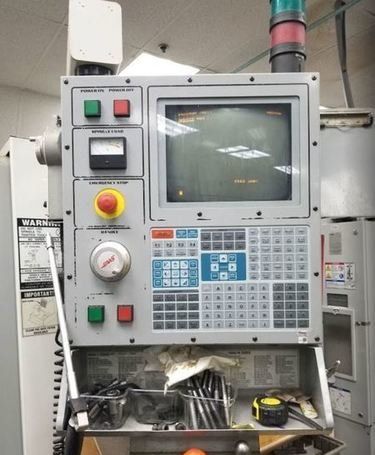

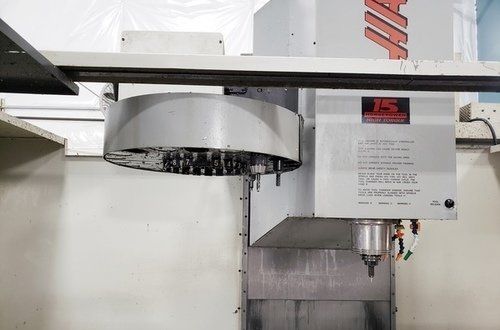

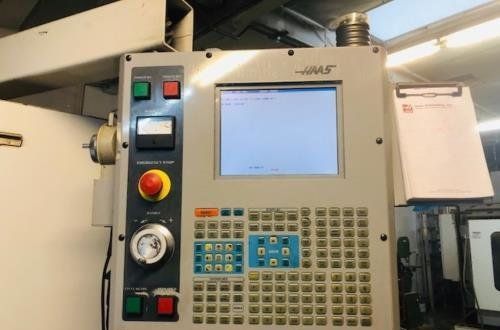

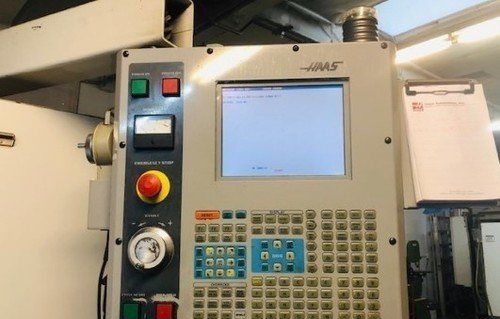

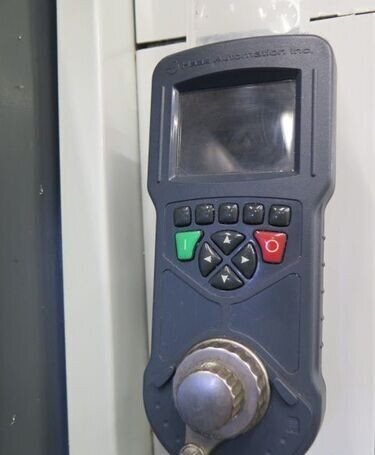

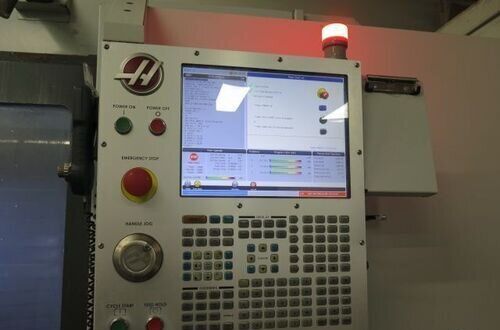

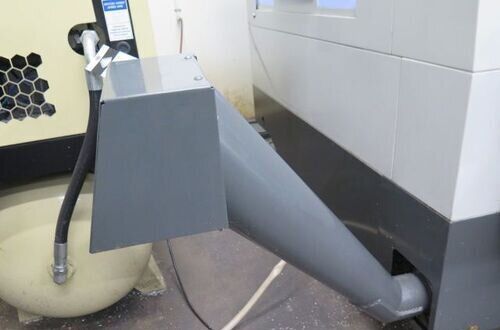

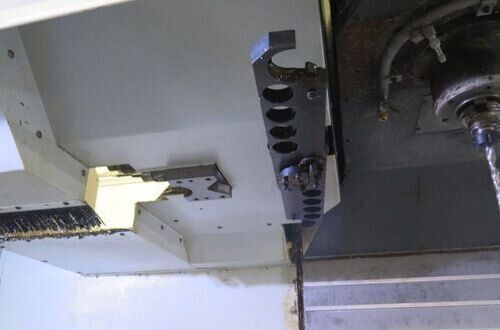

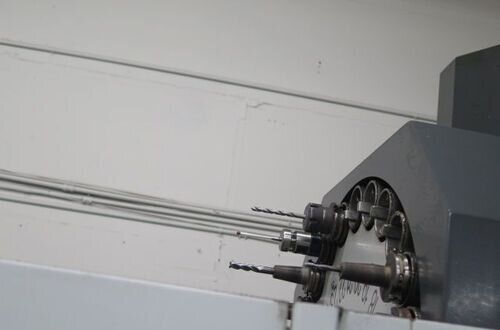

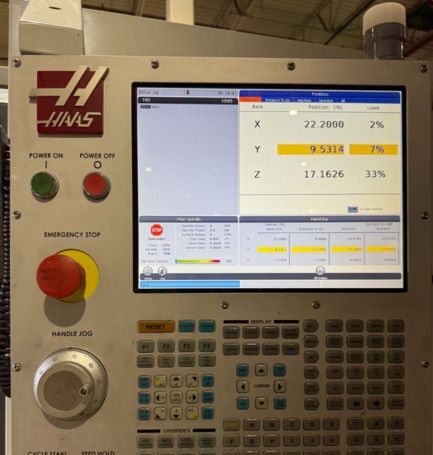

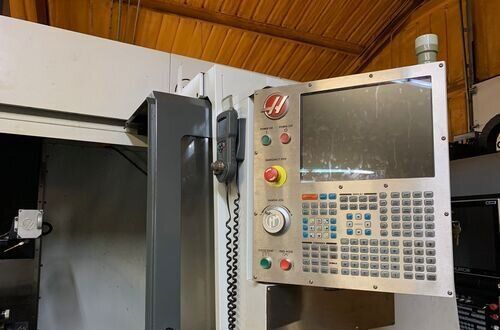

HAAS 32-BIT CNC CONTROL WITH 10" LCD SCREEN RS-232C PORT INTERFACE FOR DNC OPERATION 24+1 POSITION SIDE MOUNT TOOL CHANGER COOLANT THROUGH THE SPINDLE (STD PRESSURE) REMOTE JOG HANDLE / REMOTE PULSE GENERATOR WIRED FOR HAAS 4TH AXIS, CHIP REMOVAL AUGER FULLY ENCLOSED SPLASH & SAFETY GUARDING STANDARD COOLANT SYSTEM WITH TANK & PUMP 1200 IPM OPTIONAL RAPIDS, ALL AVAILABLE MANUALS


Available Machine # Ez14615

  • Stock#:Ez14615
  • Price:Call
  • Year:2004
  • Region:(Ontario )?
  • Condition:Used

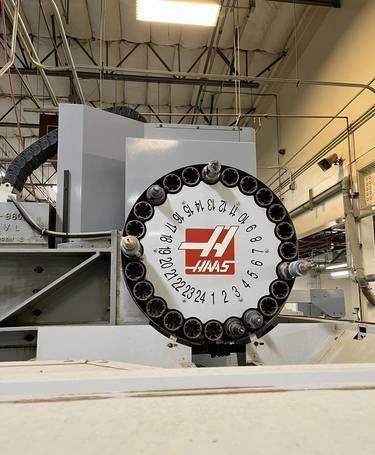

X: 64 " Y: 32 " Z: 30 " Power: 20 hp RPM: 7500 rpm # ATC: 24 Table-W: 64 " Table-L: 28 " Taper: CAT 40 # Axis: 3 Dimensions: 178" L x 123" D x 124" H Weight: 21000 lbs. Control: CNC (Haas 32-Bit) Machine c/w 2- speed gearbox, 1 MB memory, platform step, chip auger, coolant chip sweep system, floppy drive, high intensity lighting, p- cool, quickcode programming, remote MPG, side- mount toolchanger, macro, co-ordinate rotation & scaling, spindle orientation, rigid tapping, brushless 4th axis option, auto. air gun. 6314 spindle hours!


Available Machine # Ez14198

  • Stock#:Ez14198
  • Price:Call
  • Year:2009
  • Region:Northeast
  • Condition:Used

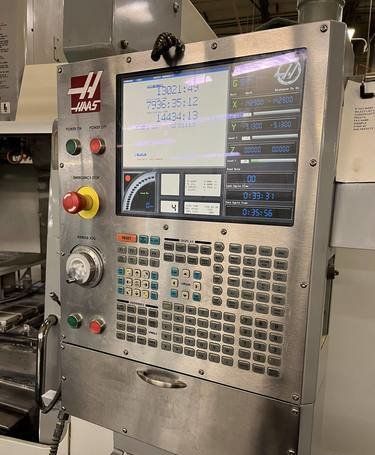

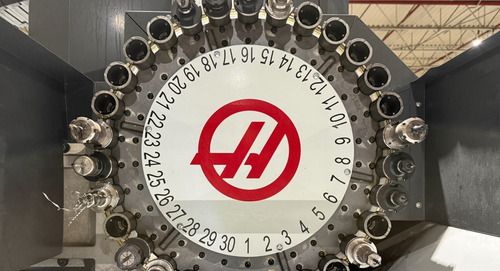

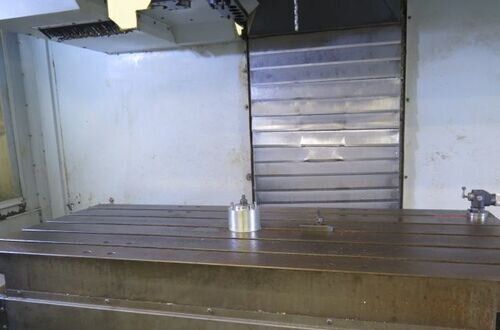

X-AXIS TRAVEL 64" Y-AXIS TRAVEL 32" Z-AXIS TRAVEL 30" SPINDLE NOSE TO TABLE 4" TO 34" TABLE SIZE 64" X 28" MAXIMUM WEIGHT ON TABLE 4,000 LBS SPINDLE SPEEDS (2 SPEED GEARED HEAD) 7,500 RPM SPINDLE MOTOR 20 HP SIDE MOUNT TOOL CHANGER 40 POSITIONS SPINDLE TAPER CAT 40 APPROXIMATE MACHINE SIZE: 195" X 102" X 130" APPROXIMATE MACHINE WEIGHT: 23,000 LBS EQUIPPED WITH: * HAAS CNC CONTROL with 16 MB EXPANDED MEMORY * CHIP AUGER * PROGRAMMABLE COOLANT * REMOTE JOG HANGLE WITH COLOR LCD * RIGID TAPPING OPTIONS: * LINEAR SCALES FOR X,Y AND Z AXIS * 40 POSITION SIDE MOUNT TOOL CHANGER * 20 HP GEARED HEAD * SQUARE D 480 VOLT TRANSFORMER (MACHINE IS 220 VOLT) * HIGH SPEED MACHINING * 16 MB EXPANDED MEMORY * USB PORT AND EITHERNET * AIR BLAST


Available Machine # Ez14236

  • Stock#:Ez14236
  • Price:Call
  • Year:2009
  • Region:Northeast
  • Condition:Used
64" X Axis 32" Y Axis Haas VF6/40 VERTICAL MACHINING CENTER, Haas Cntrl, CT40, 40 ATC,Linear Scales,20 HP Geare
