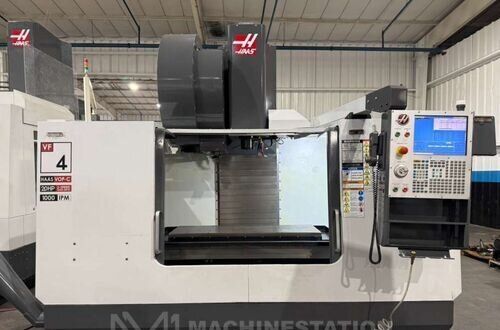

Haas VF-4B Vertical Machining Centers

Specifications

ModelVF-4B
BrandHAAS
TypeVertical Machining Centers
ControlCNC (Haas 32 BIT)
X50 inch
Y20 inch
Z25 inch
Power20 HP
RPM7500 RPM
ATC20
TableW18 inch
TableL52 inch
TaperCAT 40
Axis4
Weight13,300 Lbs
Length122 inch
Width102 inch
Height100 inch
catalogid140
mfgHAAS
mpnVF-4B
titleHaas VF-4B Vertical Machining Centers

Zero? Available Machines

Available Machine # Ez13643

  • Stock#:Ez13643
  • Price:$27,000
  • Year:2000
  • Region:West
  • Condition:Used

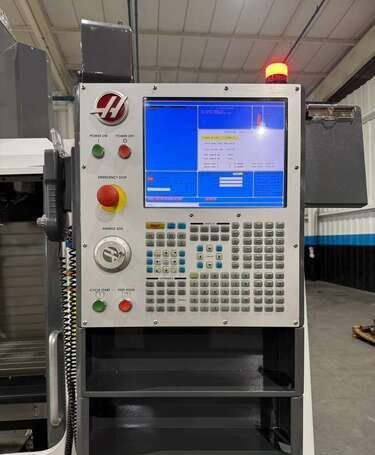

X-Axis 50" Y-Axis 20" Z-Axis 25" RPM 7,500 HP 20 Tools 20 Complete with: Haas 32 Bit Controller 9" CRT 3.5" Floppy Drive Programmable Coolant Nozzle AC Brushless Servo Motors Remote Jog Handles Rigid Tapping Chip Augers 20 HP Vector Drive


Available Machine # Ez14909

  • Stock#:Ez14909
  • Price:Call
  • Year:2005
  • Region:Northeast
  • Condition:Used

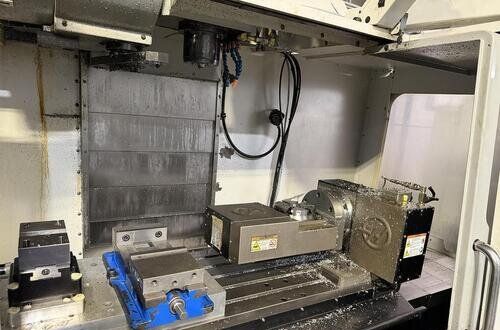

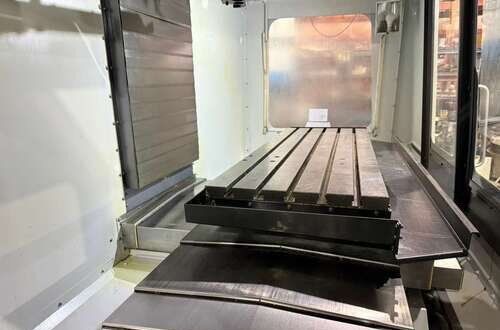

Age: 2005 Model: VF-4B CAPACITIES: X-Axis Travel ......................... 50" Y-Axis Travel ......................... 20" Z-Axis Travel ......................... 25" Table Size ............................ 52" x 18" Table Load Capacity ................... 3500 lbs Distance, Spindle Nose to Table ....... 4"-29" Spindle Speeds ........................ 7,500 RPM Spindle Taper ......................... CAT #40 Spindle Drive Motor ................... 20 HP AC Tool Changer .......................... 20 ATC Dimensions ............................ 126" x 104" Machine Height ........................ 115" Approx. Weight ........................ 14,600 Lbs. EQUIPPED WITH: Haas CNC Control 1 MB Extended Memory Coordinate Rotation & Scaling 20 Station Automatic Tool Changer Programmable Coolant Nozzle Spindle Orientation Visual Quick Code 20 HP Vector Drive Brushless 4th Axis Drive Chip Auger HOURS: On Time: 17,103 Spindle Time: 8,507


Available Machine # Ez14322

  • Stock#:Ez14322
  • Price:Call
  • Year:2009
  • Region:West
  • Condition:Used

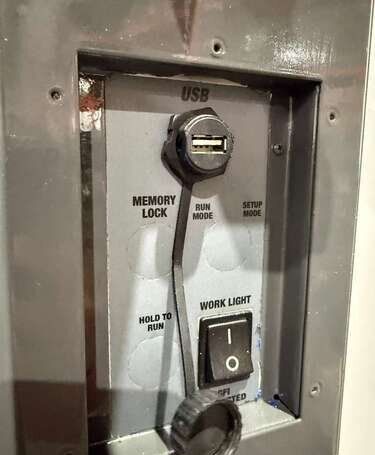

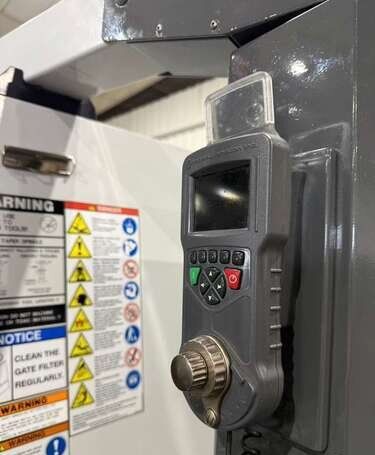

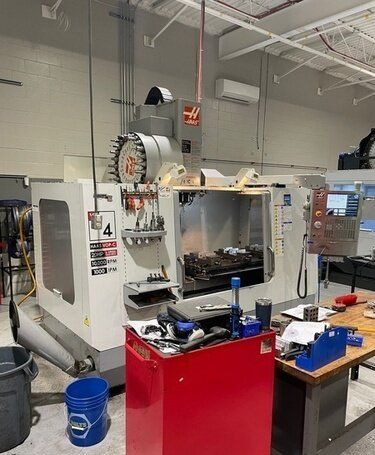

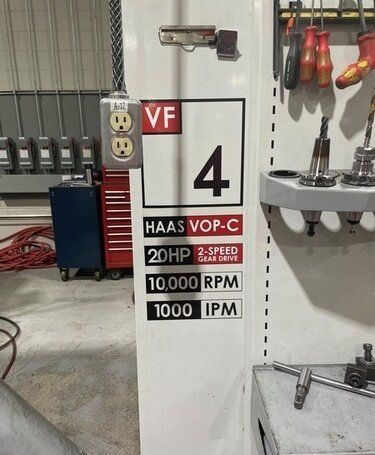

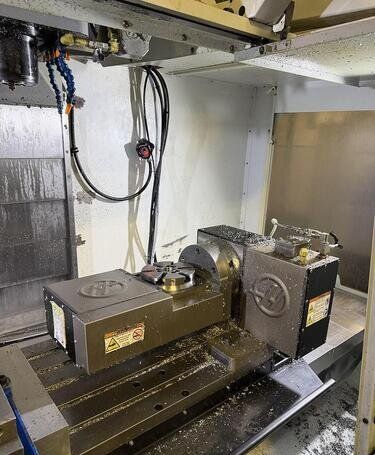

2009 Haas VF-4B w/4th Axis, Chip Auger, P-Cool Rigid Tap, USB Port, 55 Gallon Coolant Tank Jog Handle, 2-speed Gear Drive, 1000 IPM Rapids
