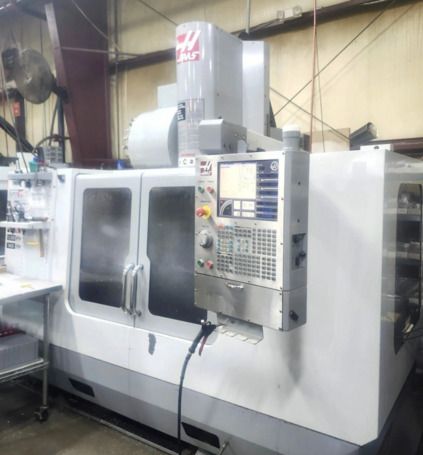

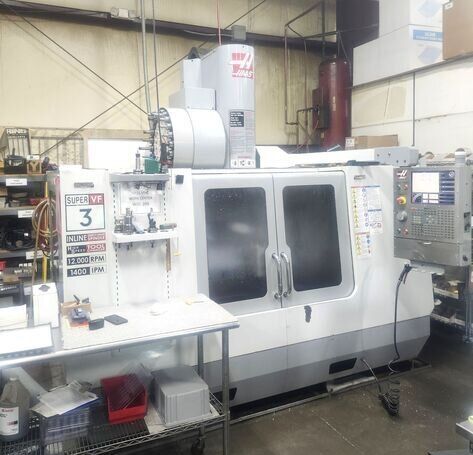

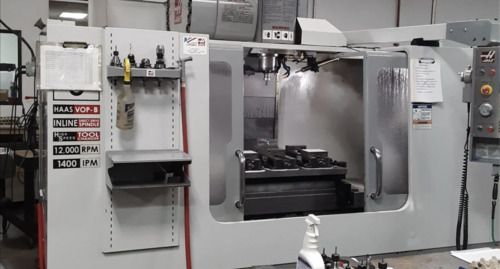

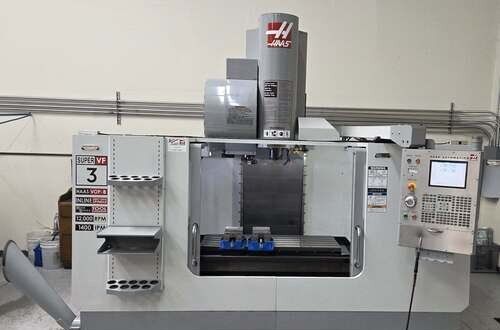

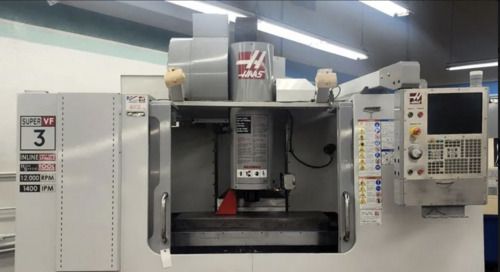

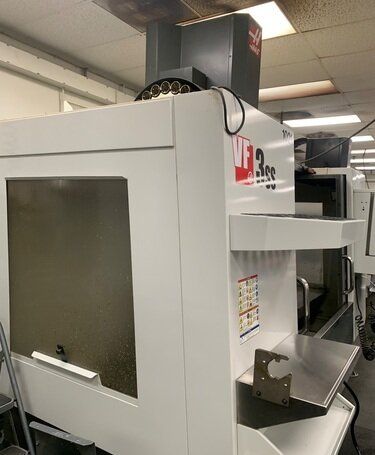

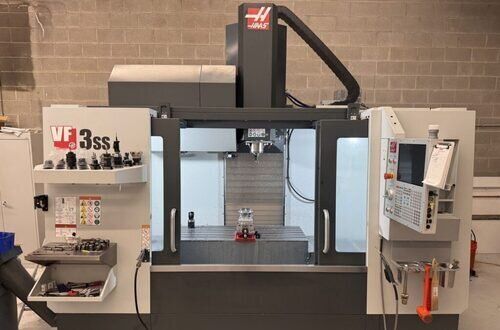

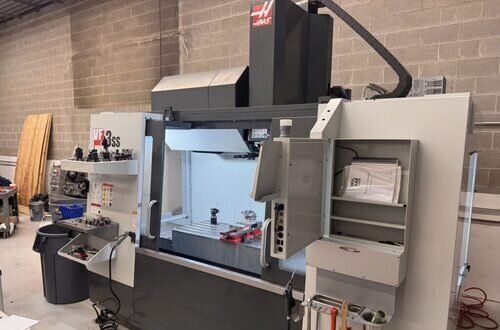

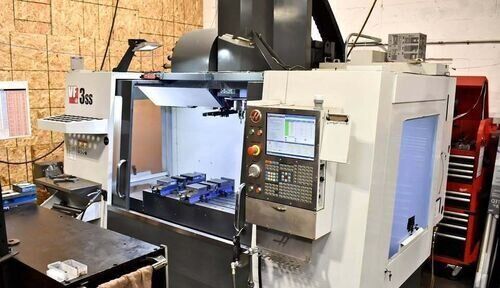

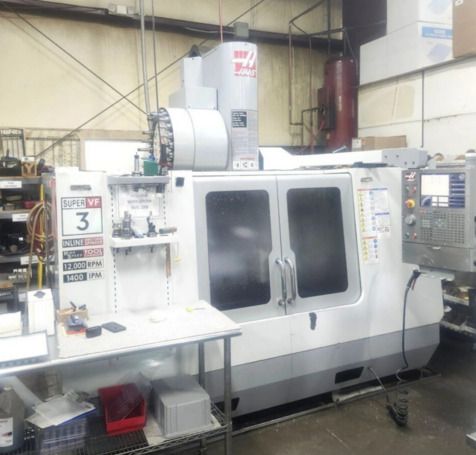

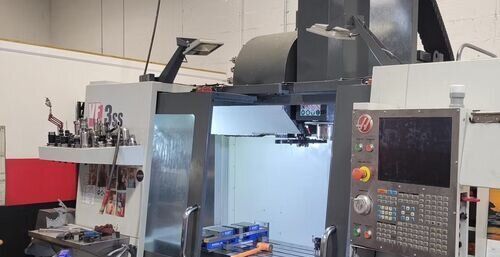

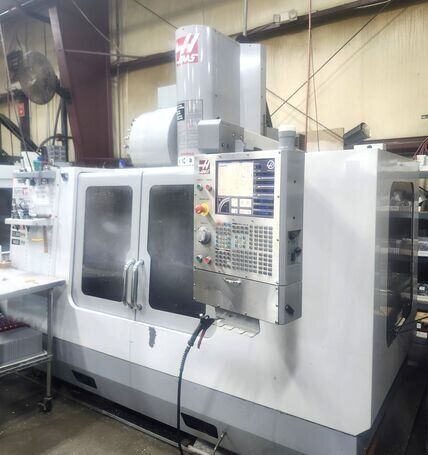

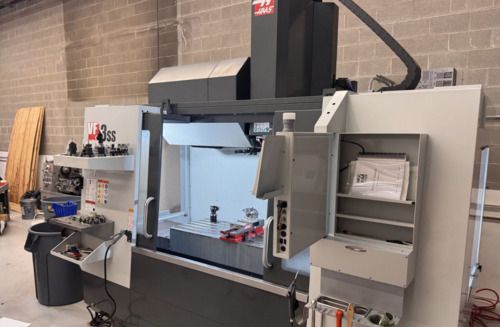

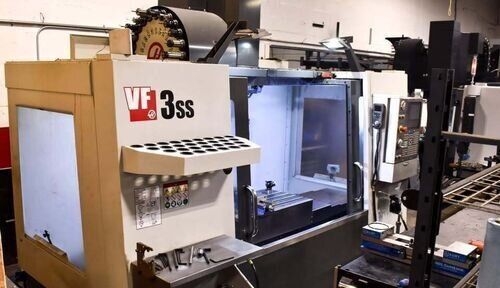

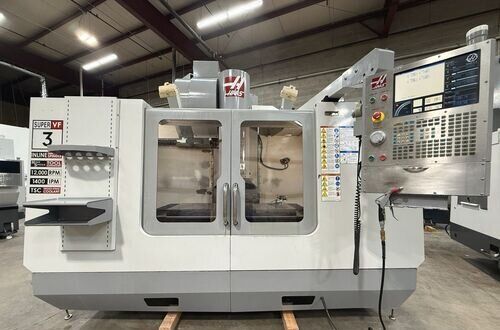

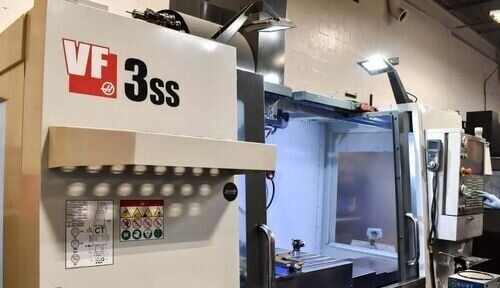

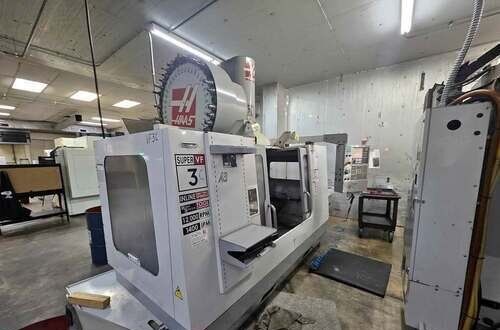

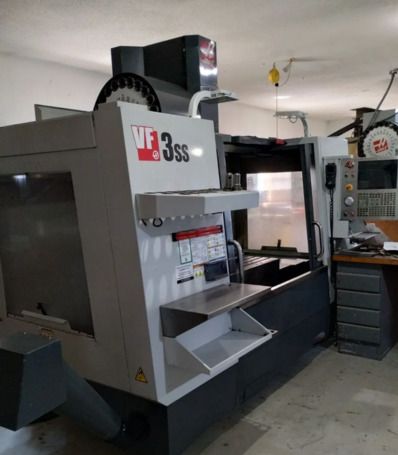

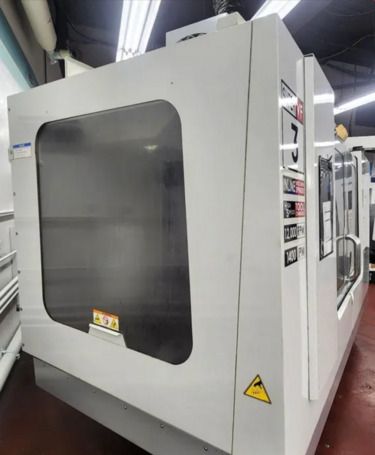

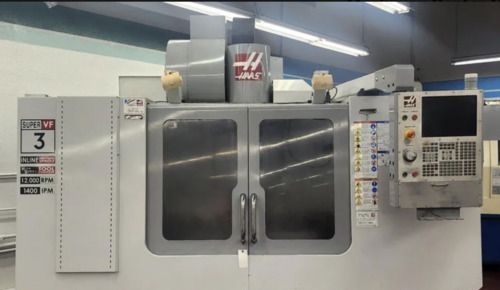

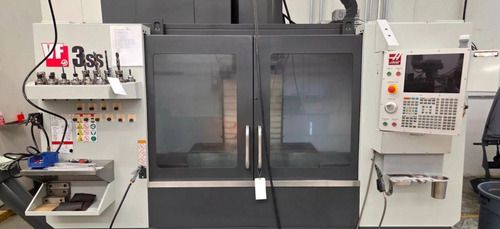

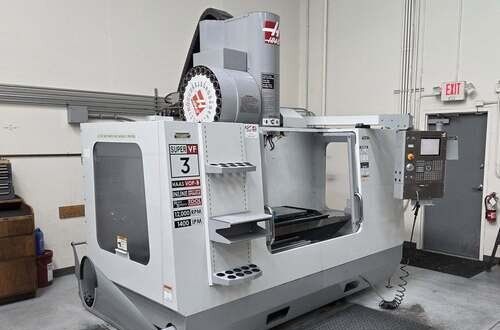

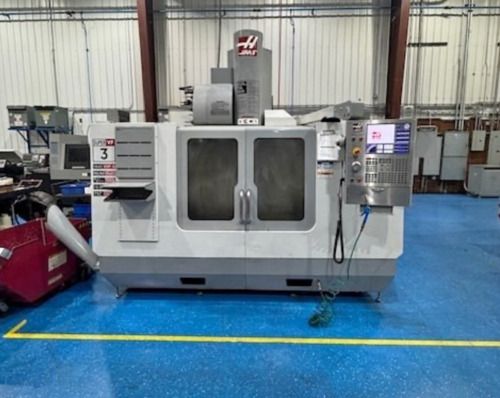

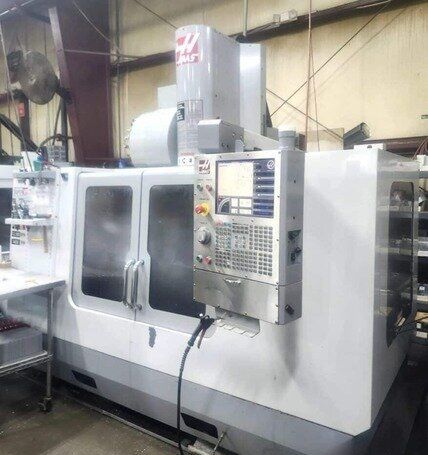

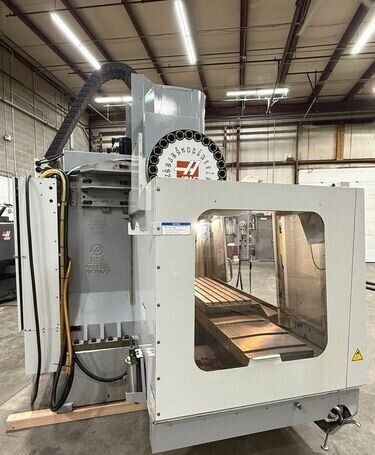

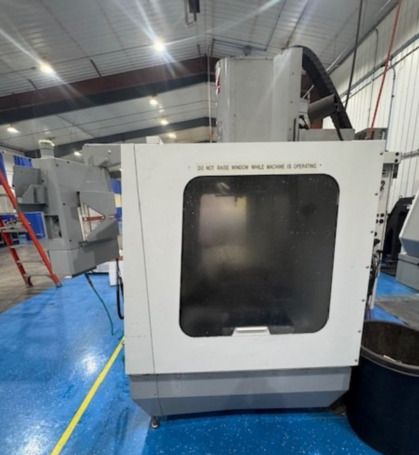

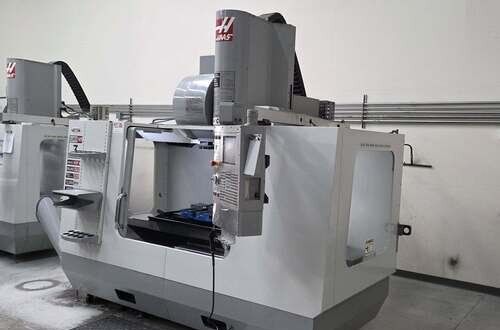

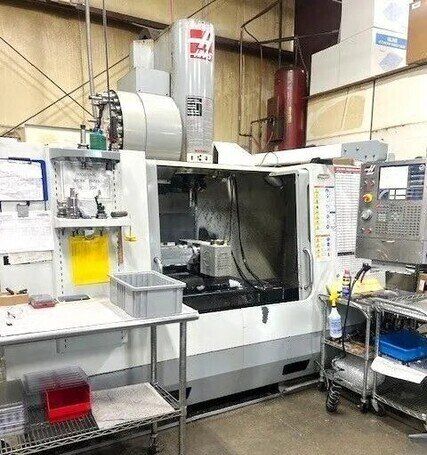

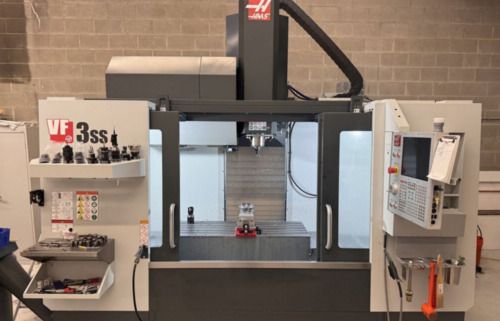

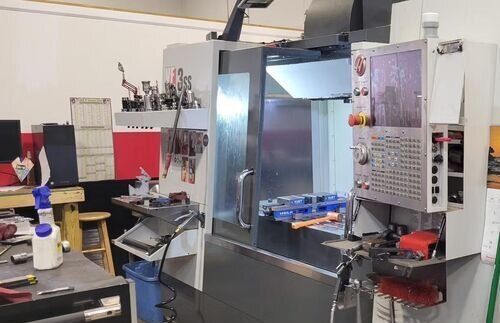

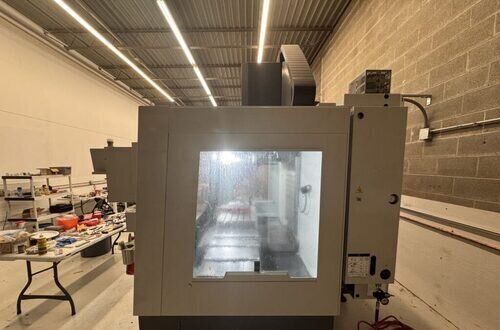

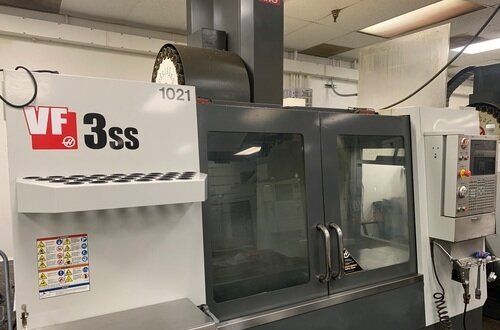

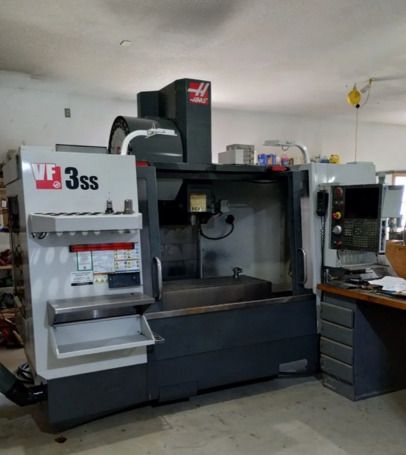

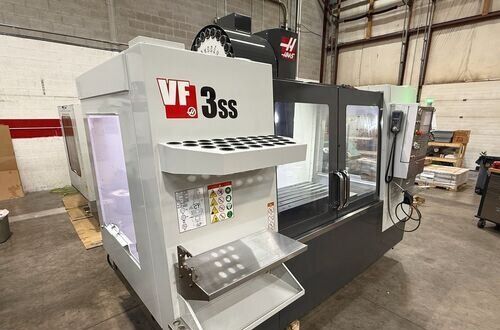

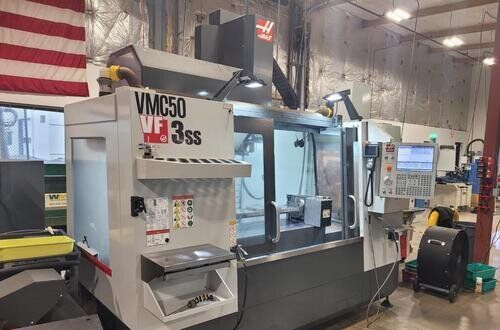

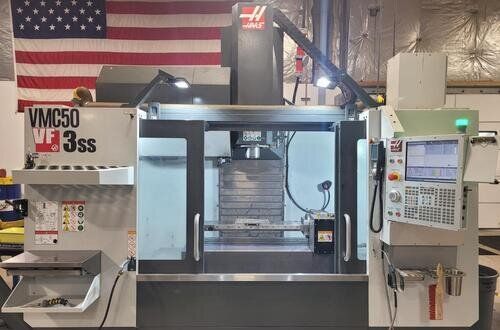

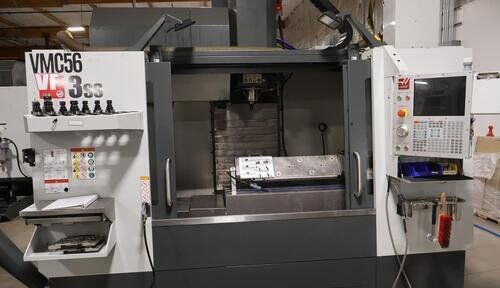

Haas VF-3SS Vertical Machining Center

Specifications

ModelVF-3SS
BrandHAAS
TypeVertical Machining Centers
ControlCNC (Haas CNC)
X40 inch
Y20 inch
Z25 inch
Power30 HP
RPM12,000 RPM
ATC24

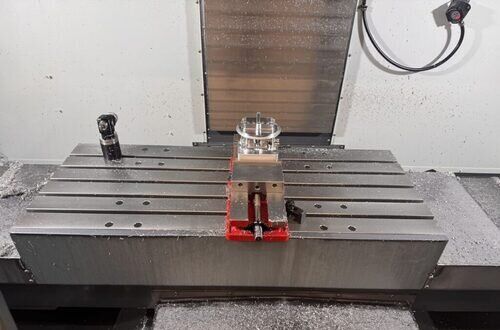

TableW18 inch
TableL48 inch
TaperCT 40
Axis3
Weight14,000 Lbs
Length88 inch
Width93 inch
Height106 inch
catalogid135
mfgHAAS
mpnVF-3SS
titleHaas VF-3SS Vertical Machining Center

Zero? Available Machines

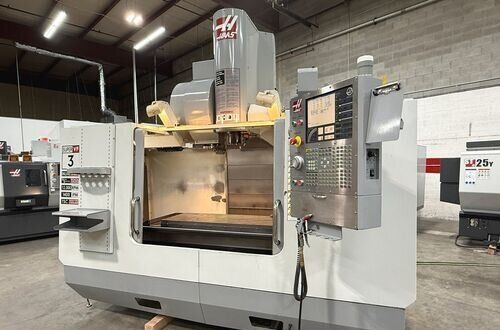

Available Machine # Ez19539

  • Stock#:Ez19539
  • Price:Call
  • Year:2006
  • Region:South
  • Condition:Used

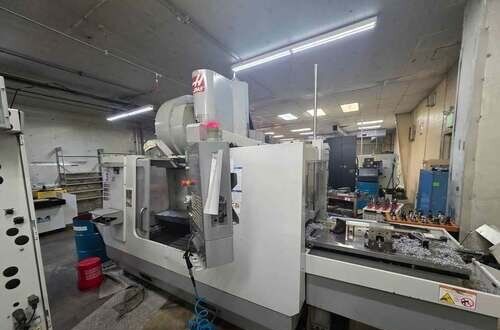

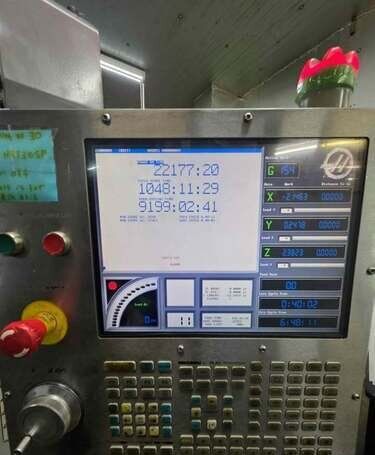

Available Machine # Ez19865

  • Stock#:Ez19865
  • Price:$52,500
  • Year:2009
  • Region:South
  • Condition:Used

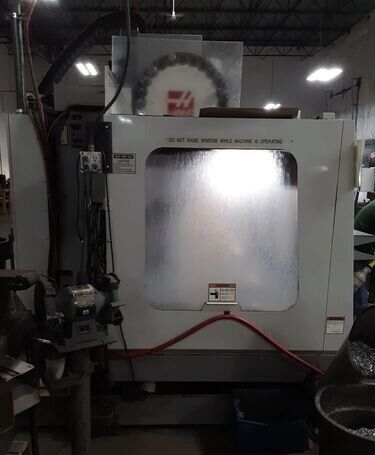

Available Machine # Ez19324

  • Stock#:Ez19324
  • Price:$69,500
  • Year:2010
  • Region:Midwest
  • Condition:Used

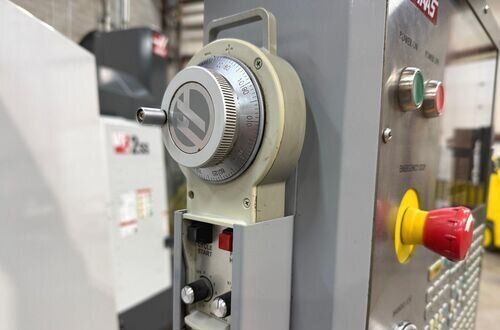

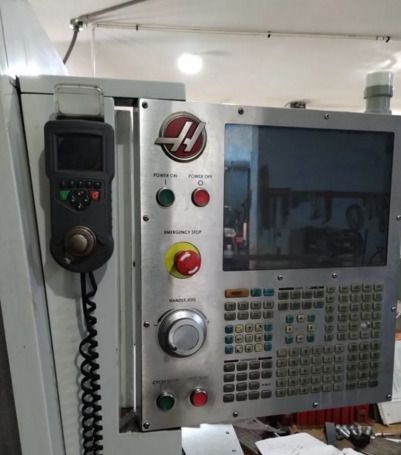

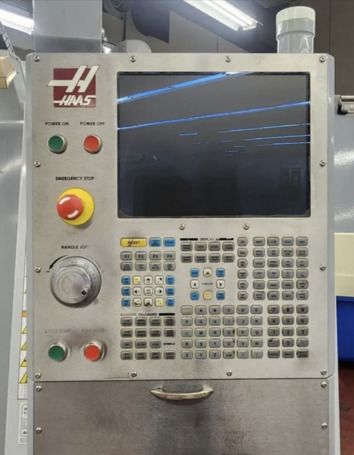

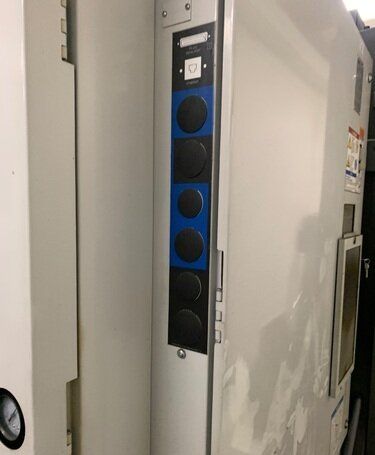

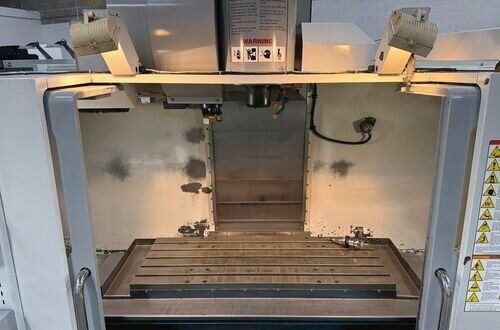

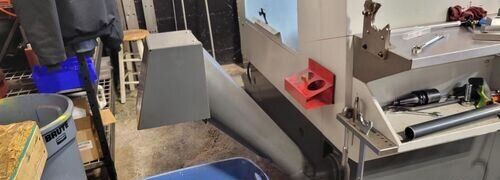

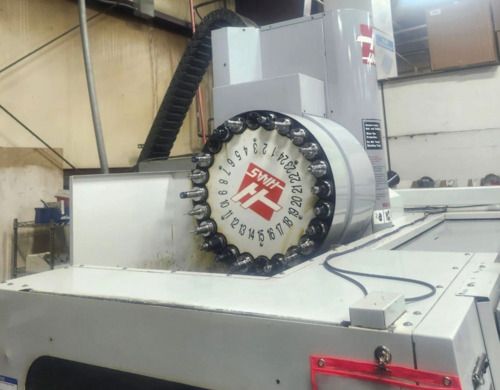

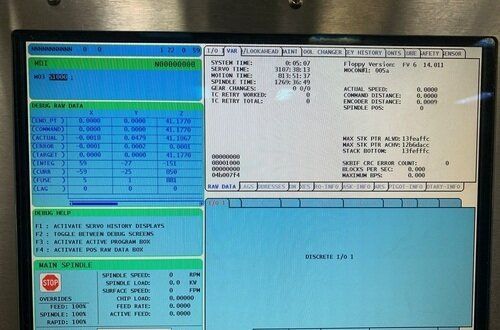

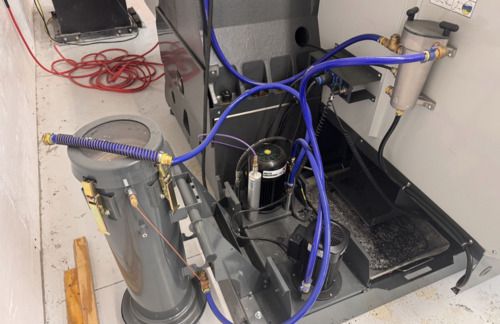

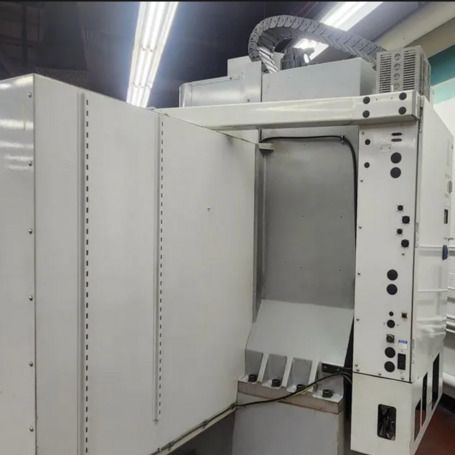

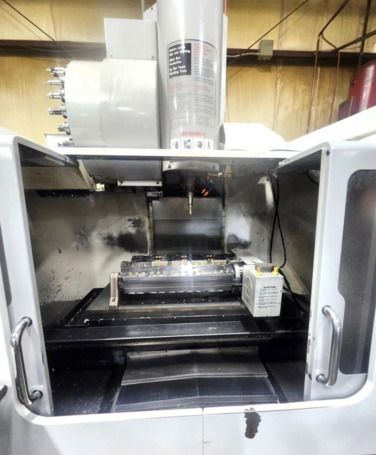

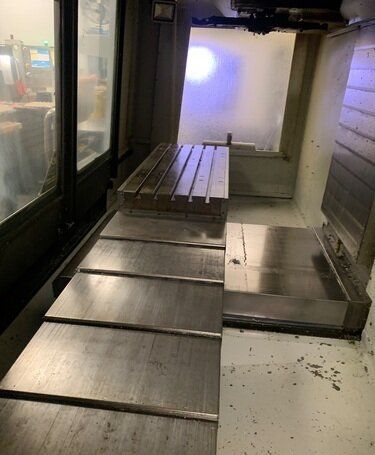

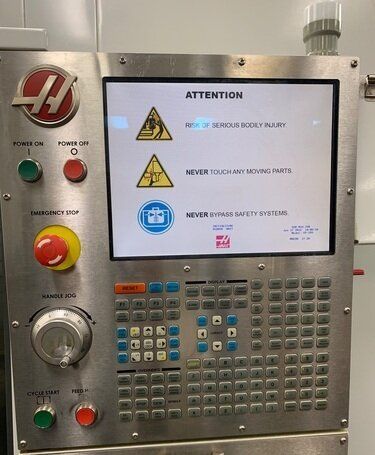

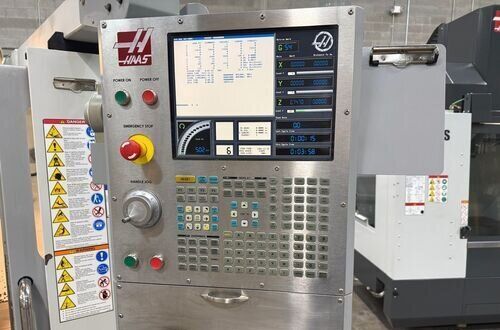

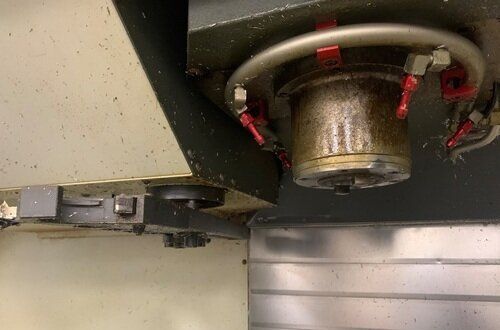

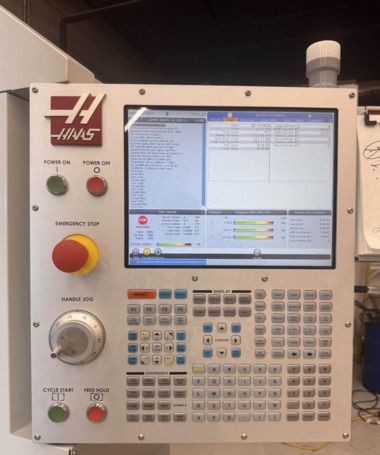

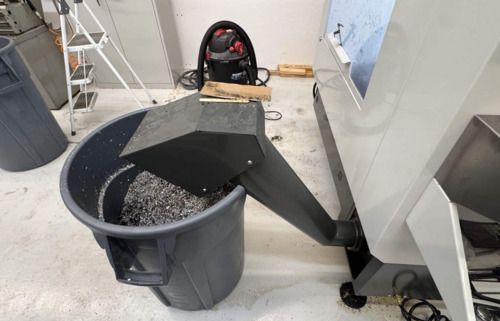

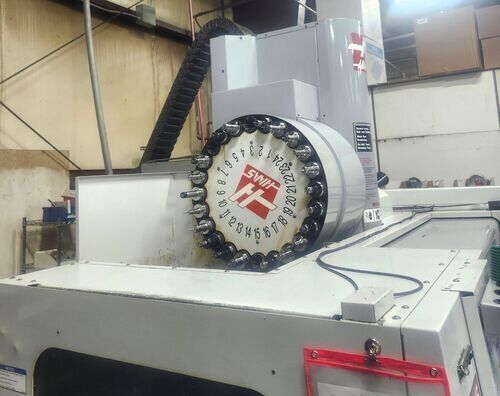

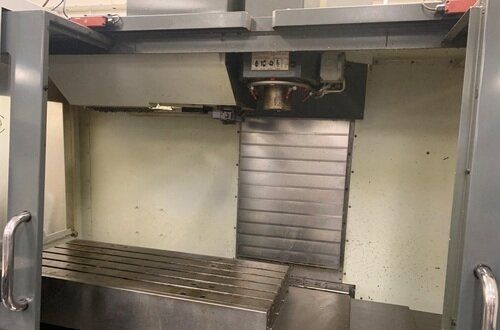

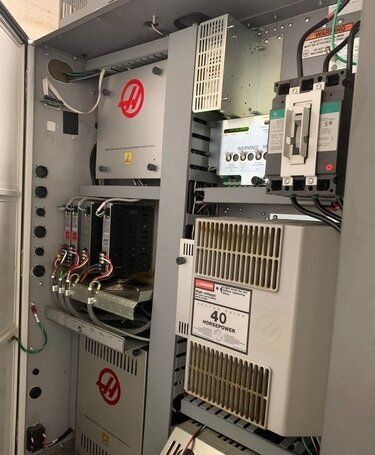

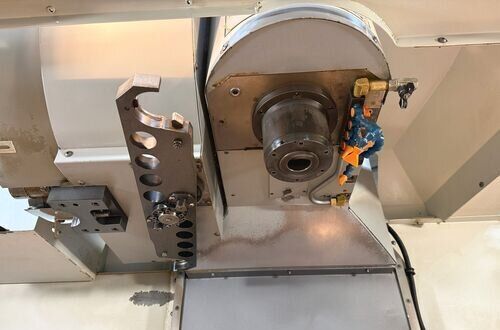

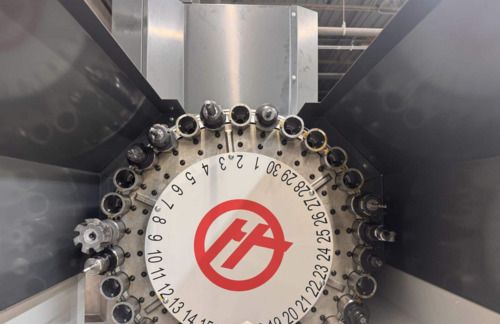

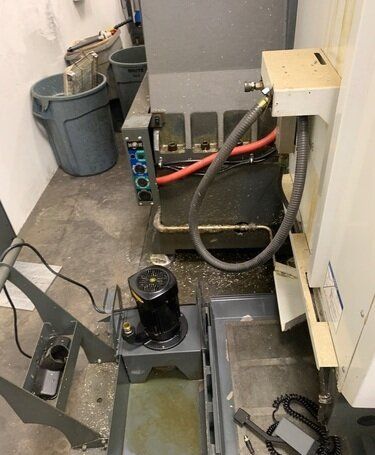

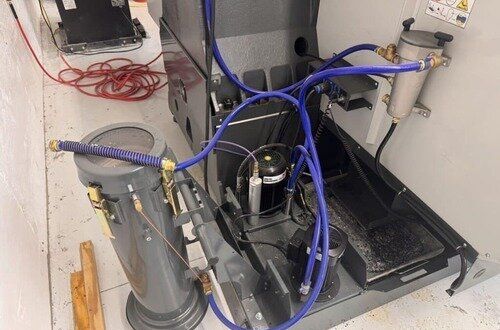

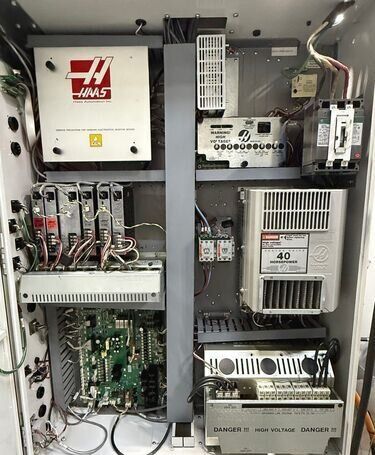

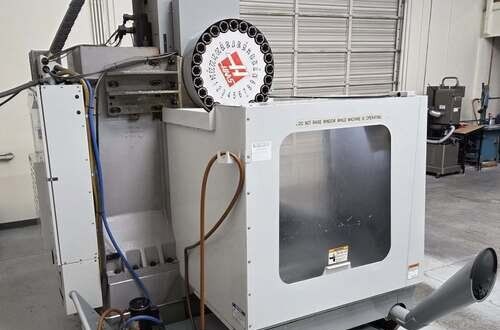

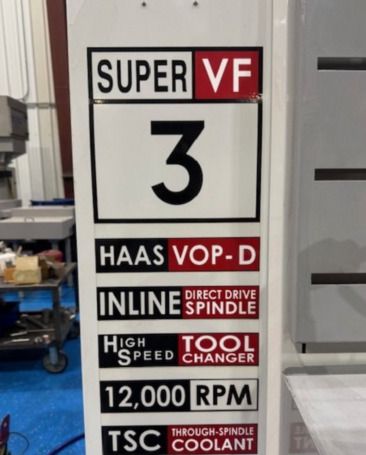

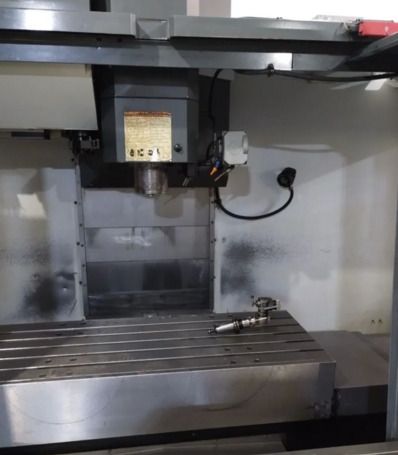

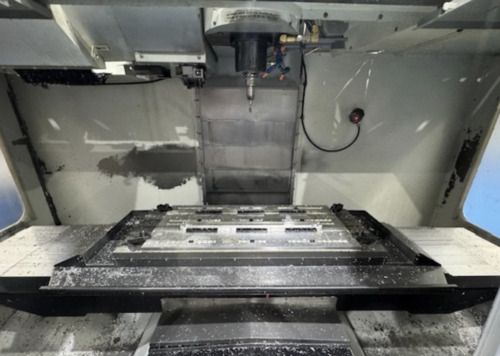

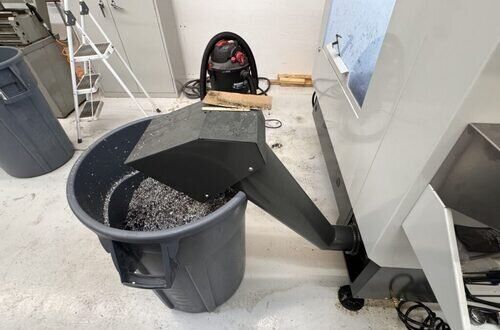

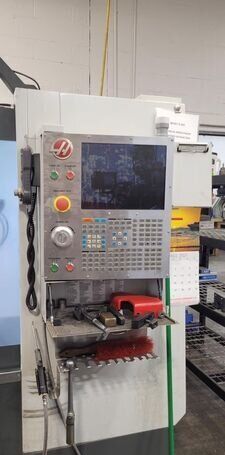

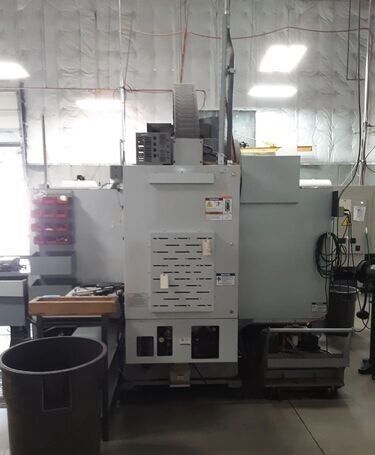

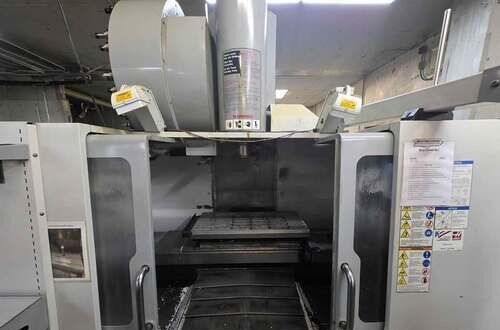

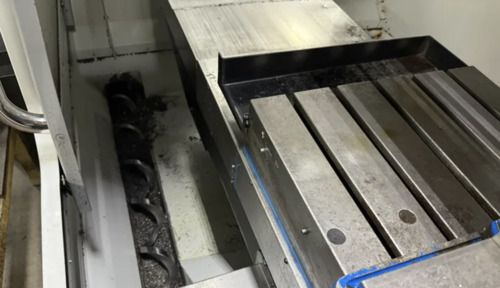

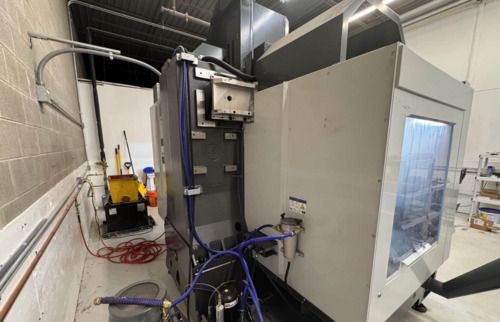

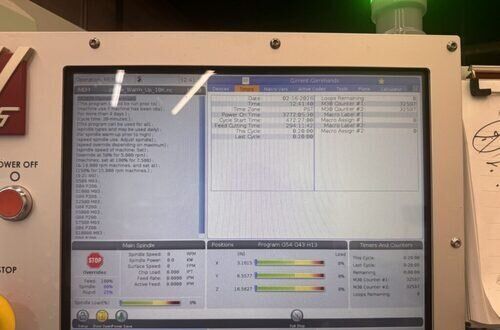

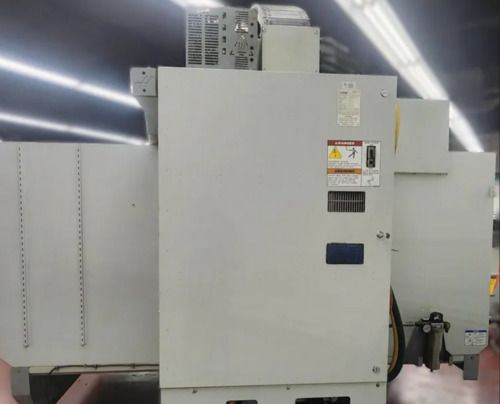

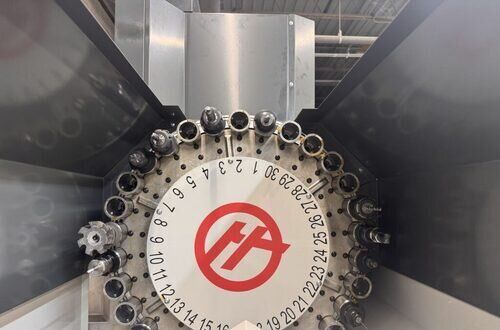

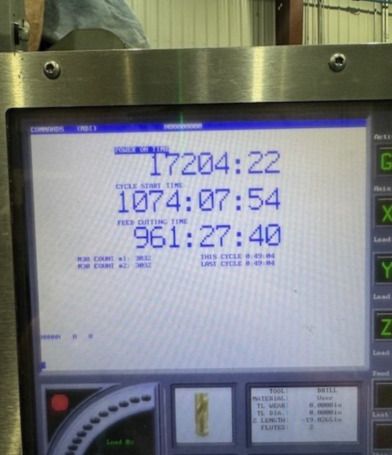

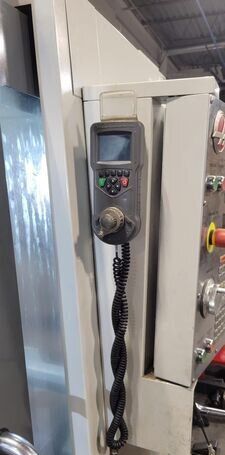

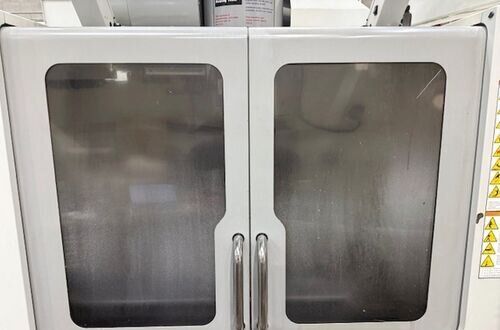

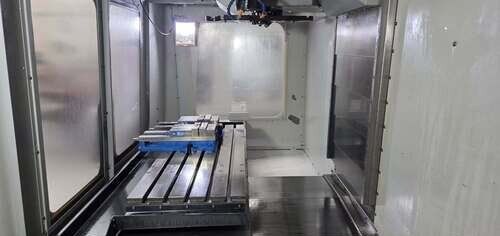

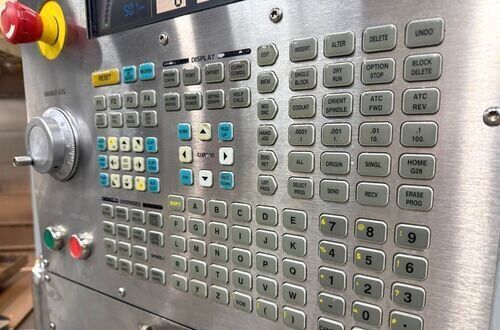

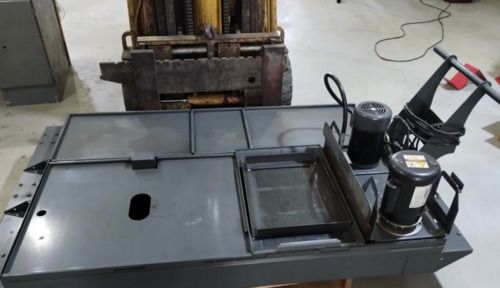

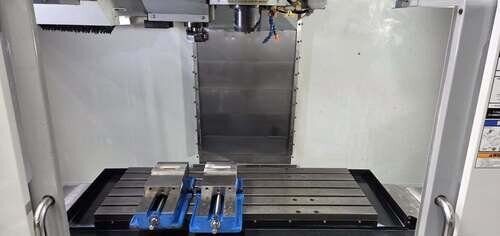

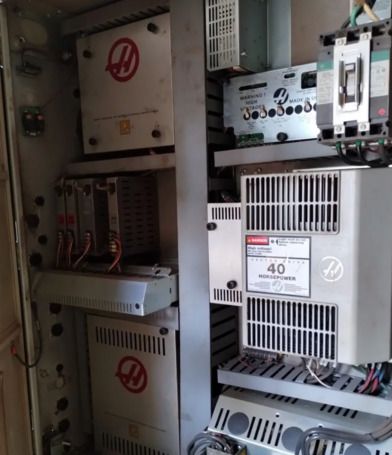

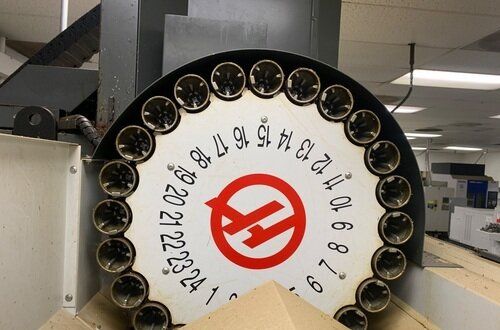

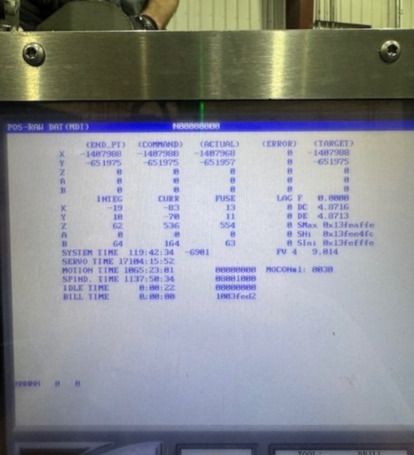

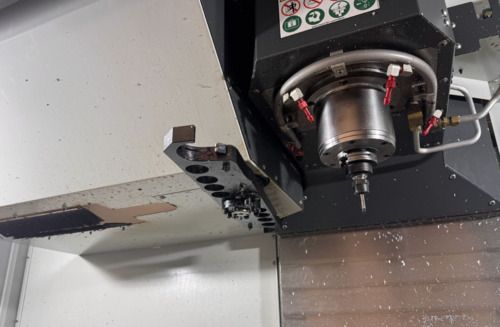

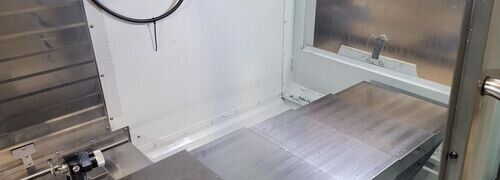

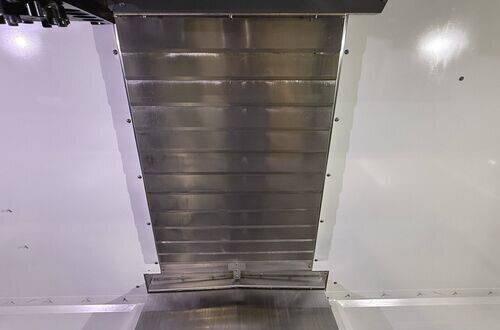

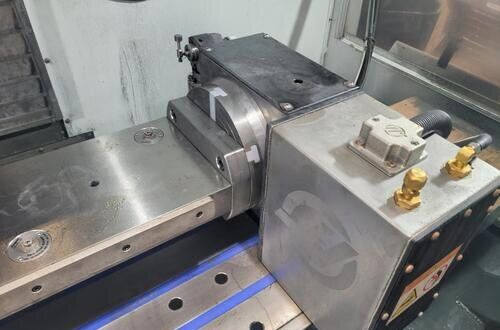

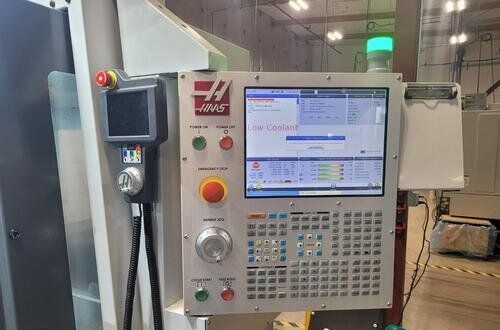

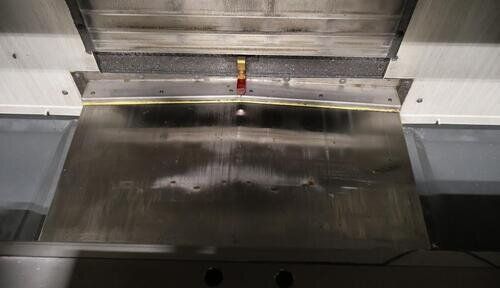

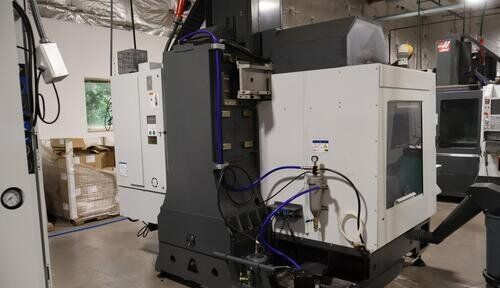

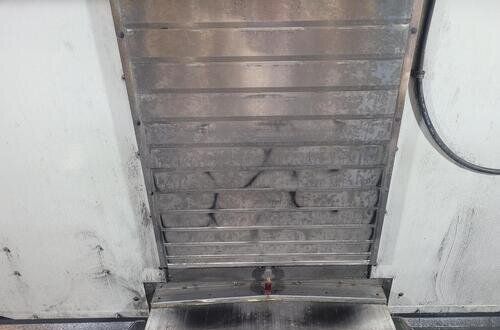

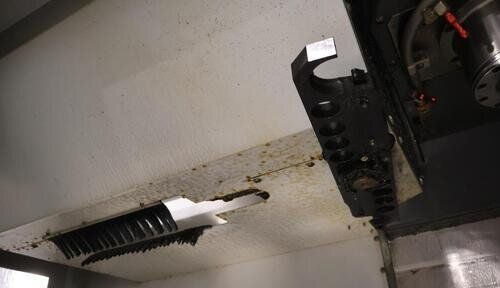

Under Power MFG date-05/2010 Minimal noise from spindle present. Spindle and bearingless coolant union were replaced in Nov. 2017. SMTC cambox was replaced in March 2018. Tool changes were performed with no issues. *Drawbar force was tested at 1900 lbs. *Spindle runout was tested using 10” 40T test bar in spindle. .0006” runout at end of test bar. .0002” runout at top of test bar. .0006” runout while sweeping test bar in Z-axis with indicator parallel to X-axis. .0002” runout while sweeping test bar in Z-axis with indicator parallel to Y-axis. *Axis backlash was tested using .0001” increment dial indicator. Indicator zeroed before test. .001” backlash in X-axis while pushing and pulling table. .0002” backlash in Y-axis while pushing and pulling table. .0001” backlash in Z-axis while prying up on axis. Photos were taken of the outer machine cabinet, electrical cabinet, inner machine cabinet, control pendant, tool carousel, coolant tank, and chip chute. EQUIPPED WITH: THROUGH-SPINDLE COOLANT 4TH AXIS DRIVE & WIRING 12,000 RPM SPINDLE HIGH-SPEED MACHINING AUTO DOOR 40 ATC CHIP CONVEYOR

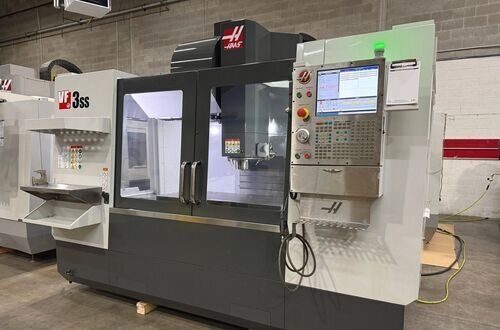

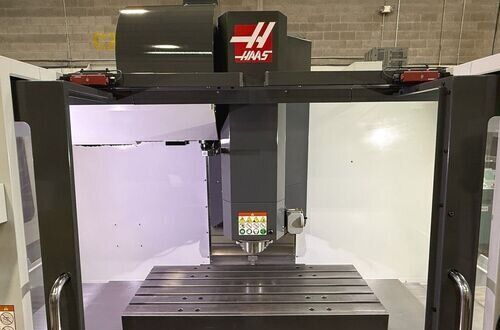

Available Machine # Ez20025

  • Stock#:Ez20025
  • Price:Call
  • Year:2017
  • Region:United States
  • Condition:Used
