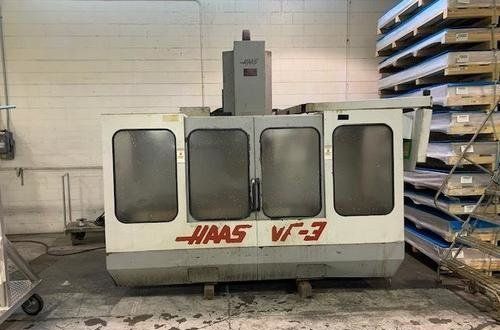

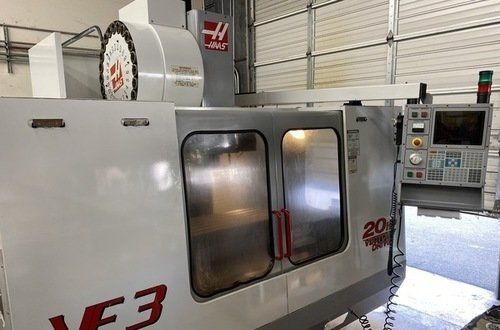

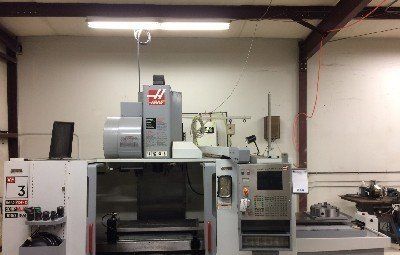

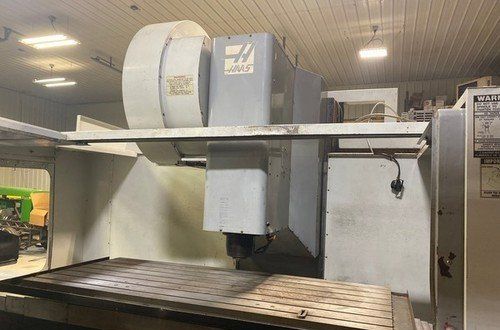

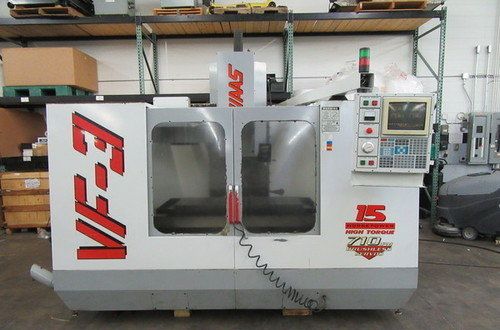

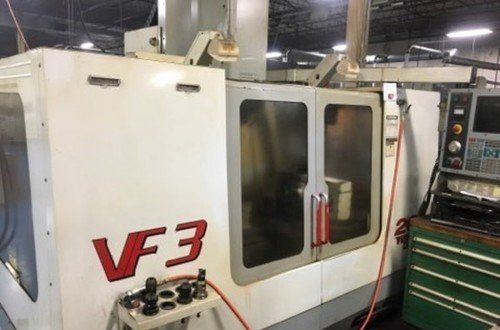

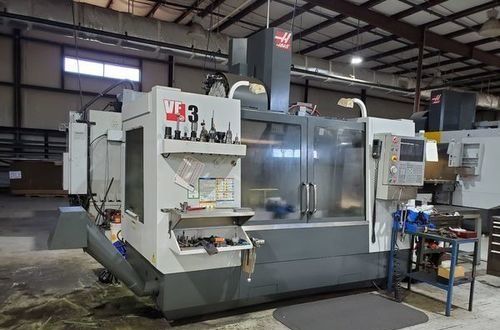

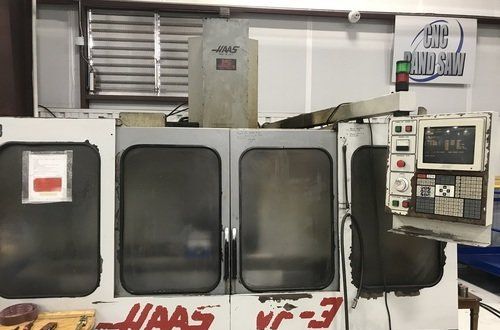

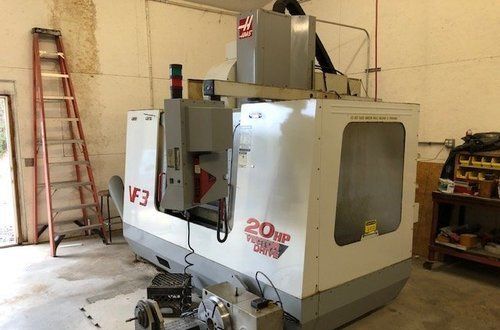

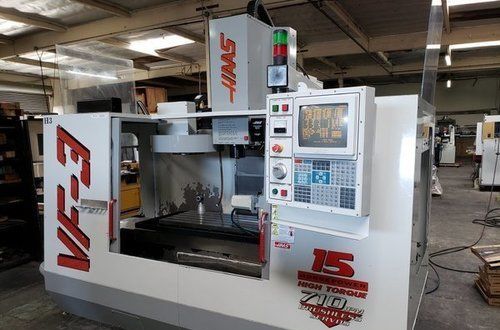

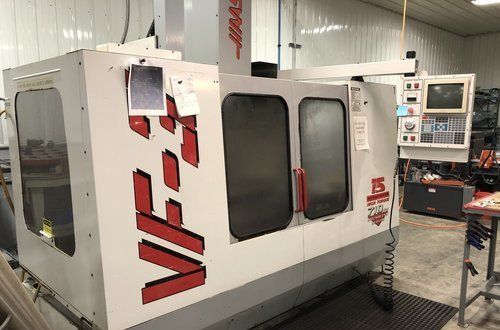

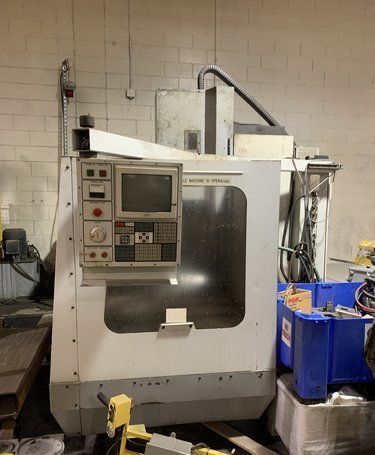

Haas VF-3 Vertical Machining Center

Specifications

ModelVF-3
BrandHAAS
TypeVertical Machining Centers
ControlCNC (HAAS)
X40 inch
Y20 inch
Z25 inch
Power30 HP
RPM10K RPM
ATC20
TableW18 inch
TableL48 inch
TaperCT or BT 40
Axis3
Weight12,500 lbs.
Length118 inch
Width110 inch
Height119.5 inch
catalogid131
mfgHAAS
mpnVF-3
titleHaas VF-3 Vertical Machining Center

Zero? Available Machines

Available Machine # Ez7595

  • Stock#:Ez7595
  • Price:$19,900
  • Year:1996
  • Region:Midwest
  • Condition:Used

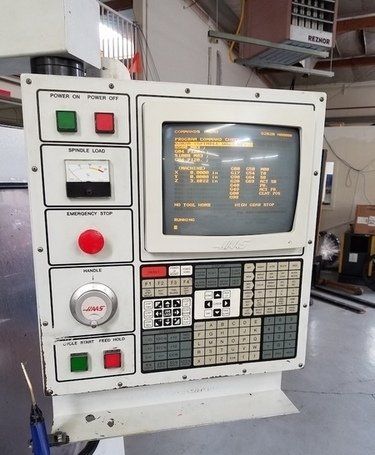

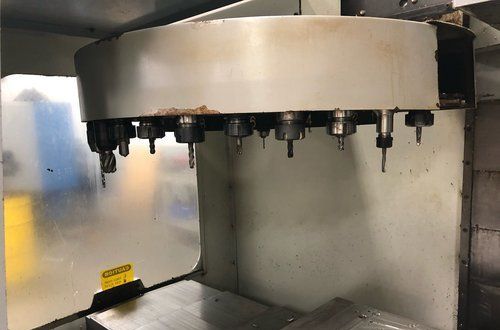

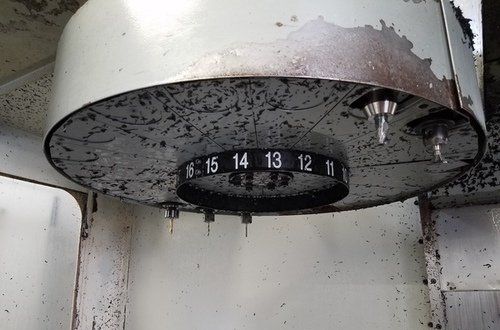

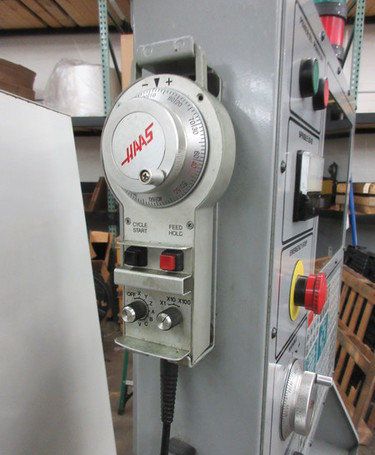

Specifications: Control Haas Table Size 48" x 18" Max Table Load 3,500 lbs X-Axis Travel 40" Y-Axis Travel 20" Z-Axis Travel 25" Rapid Traverse 1,000 IPM Spindle Nose to Table Top 4" – 29" Spindle Taper CAT 40 Spindle Speed 7,500 RPM Spindle Motor (High Torque) 15 HP Tool Changer Positions / Style 20 + 1 / Umbrella Machine Weight 12,500 lbs Machine Dimensions See Brochure Equipped With: Haas 32-Bit CNC Control 2-Speed Gear Box Programmable Coolant Nozzle (not functional) 15 HP High Torque Motor Manual Pulse Generator Under Power!!


Available Machine # Ez13767

  • Stock#:Ez13767
  • Price:$18,500
  • Year:1997
  • Region:Midwest
  • Condition:Used

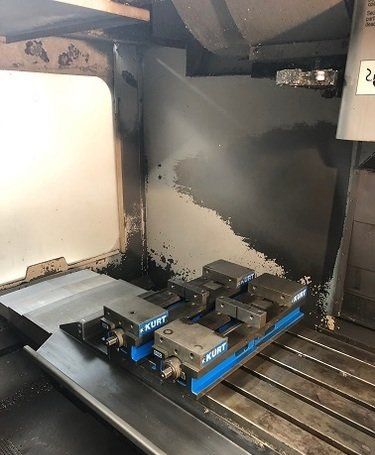

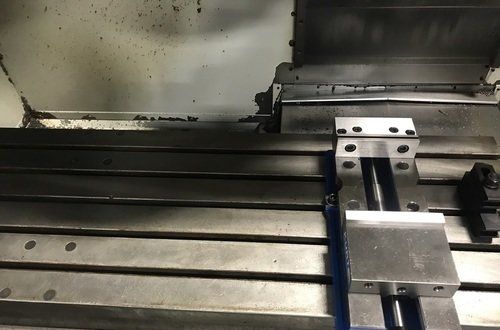

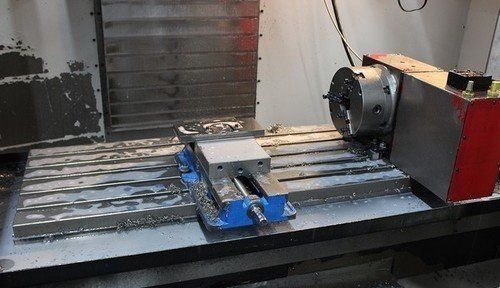

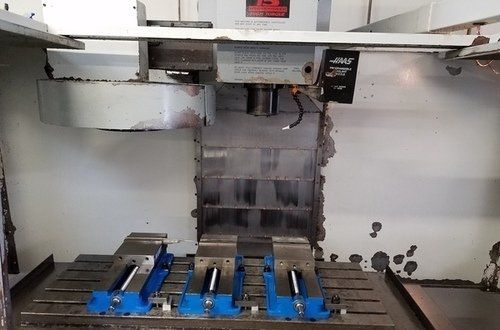

Specifications: Control Haas Table Size 48" x 18" Max Table Load 3,500 lbs X-Axis Travel 40" Y-Axis Travel 20" Z-Axis Travel 25" Spindle Taper CT 40 Spindle Motor......... 15 HP Spindle Speed 7,500 RPM Tool Changer 20 Position Machine Weight 12,500 lbs Equipped With: Bolt Hole Pattern Table 2-Speed Gearbox 3.5” Floppy Drive Chip Auger 1 MB Extended Memory 1000 Blocks/Second Processing Quick Code Programming 4th Axis Pre-Wire Rigid Tap Custom Macros Coordinate Rotation & Scaling **480 Volt Machine** ****Vices pictured are NOT included**


Available Machine # Ez13170

  • Stock#:Ez13170
  • Price:$21,500
  • Year:1997
  • Region:Midwest
  • Condition:Used
Table Size: 48” X 18” X Axis Travel: 40” Y Axis Travel: 20” Z Axis Travel: 25” Spindle Horsepower: 15 HP Spindle Speed: 7,500 RPM Spindle Taper: CT40 Rapid Traverse Rate: 710 IPM Automatic Toolchanger: 20+1 Machine Dimensions: 118"L x 110"W x 117"H

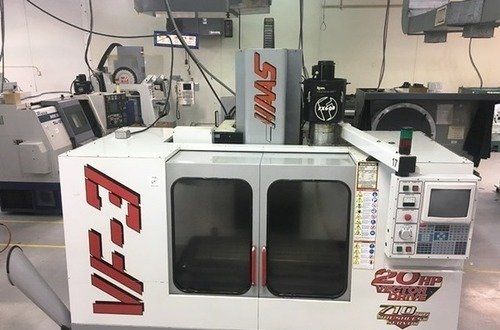

Available Machine # Ez13388

  • Stock#:Ez13388
  • Price:Call
  • Year:1997
  • Region:United States
  • Condition:Used

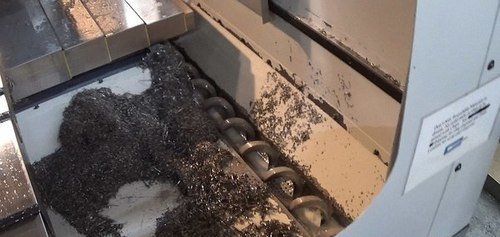

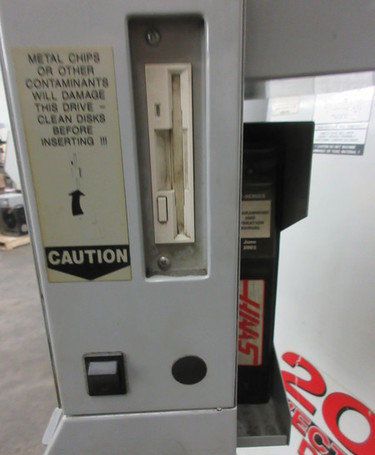

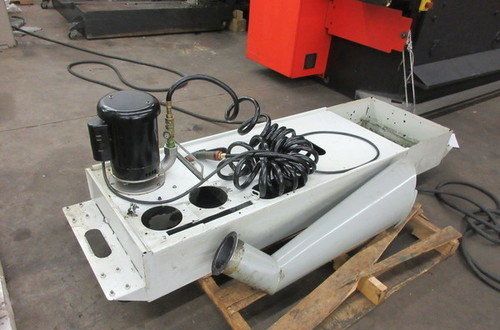

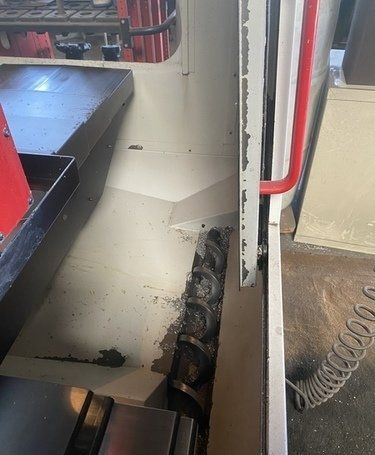

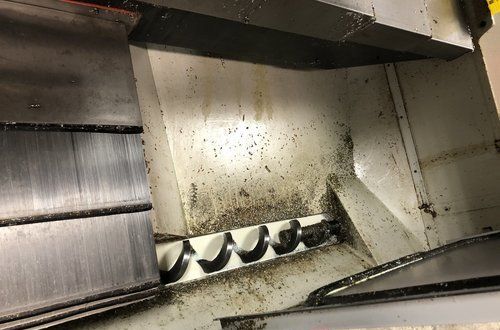

4th Pre-wired,P-cool, 4th Axis Ready 4th Axis Pre-Wire (Brush) Programmable Coolant Nozzle Chip Auger 3.5" Floppy Drive Rigid tap Royal Mist Collector


Available Machine # Ez7762

  • Stock#:Ez7762
  • Price:Call
  • Year:1997
  • Region:West
  • Condition:Used

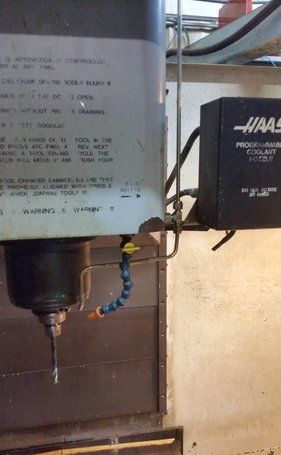

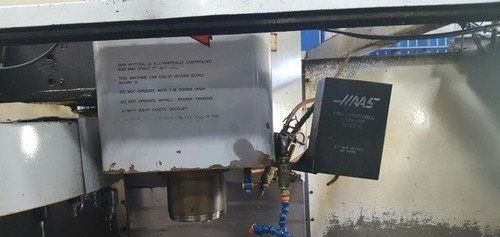

4th Axis Pre-Wire (Brush) Programmable Coolant Nozzle Chip Auger 3.5" Floppy Drive Rigid tap


Available Machine # Ez13964

  • Stock#:Ez13964
  • Price:$19,900
  • Year:1999
  • Region:Midwest
  • Condition:Used
Specifications: Control Haas Table Size 48" x 18" Max Table Load 3,500 lbs X-Axis Travel 40" Y-Axis Travel 20" Z-Axis Travel 25" Spindle Taper CT 40 Spindle Motor......... 20 HP Spindle Speed 7,500 RPM Tool Changer 32 Position Machine Weight 12,500 lbs Equipped With: 32 Position ATC Chip Auger 3.5” Floppy Drive Programmable Coolant Nozzle Remote Jog Handle Rigid Tap 480 Volt


Available Machine # Ez14116

  • Stock#:Ez14116
  • Price:Call
  • Year:1999
  • Region:Midwest
  • Condition:Used

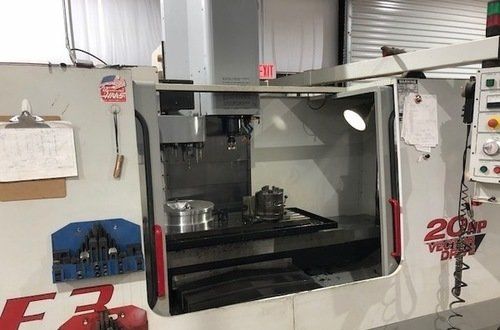

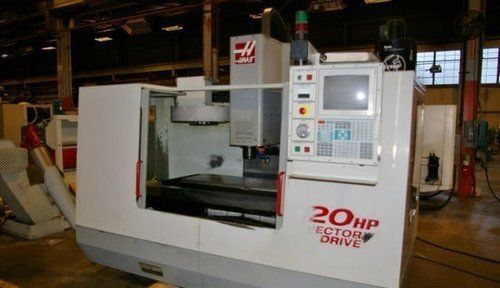

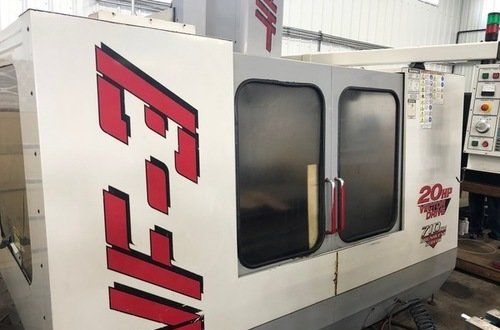

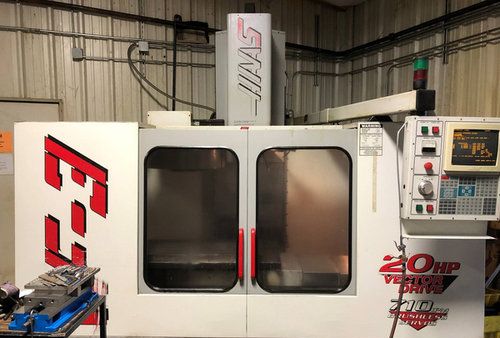

40 Taper, 20 HP Vector Drive, Brushless Servos, Haas CNC Specifications and Equipment Table Working Surface: 48" X 18" X-Axis Travel: 40" Y-Axis Travel: 20" Z-Axis Travel: 25" Spindle Taper: 40 Spindle Speeds: 7500 RPM Rapid Traverse Rate: 710 IPM Main Motor Drive: 20 HP Tool Changer Positions: 20 Equipped With: Haas CNC, Brushless Servos, Programmable Coolant Nozzle


Available Machine # Ez13768

  • Stock#:Ez13768
  • Price:Call
  • Year:1999
  • Region:Midwest
  • Condition:Used
Specifications: X-AXIS TRAVELS 40" Y-AXIS TRAVELS 20" Z-AXIS TRAVELS 25" SPINDLE MOTOR 20 HP SPINDLE SPEED 7,500 RPM TOOL POSITIONS 20 SPINDLE TAPER CT40 TABLE SIZE 18" x 48" MACHINE DIMENSIONS 118" x 98" x 117" MACHINE WEIGHT 13,100 LBS. Equipped With HAAS CNC CONTROL REMOTE JOG WHEEL QUICK CODE PROGRAMMING PROGRAMMABLE COOLANT ALL AVAILABLE MANUALS


Available Machine # Ez14281

  • Stock#:Ez14281
  • Price:$27,500
  • Year:2000
  • Region:Northeast
  • Condition:Used

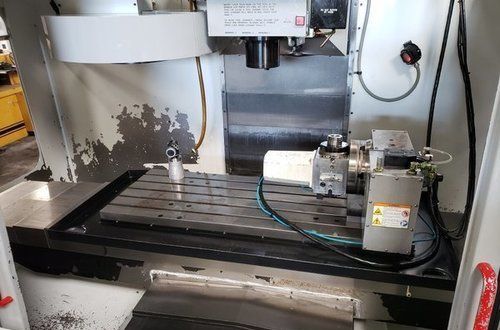

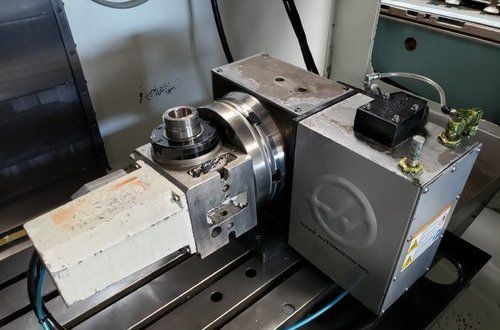

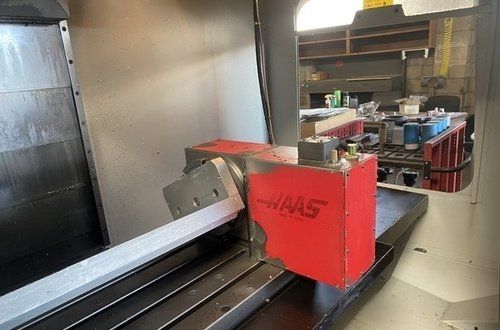

-Axis Travel ......................... 40" Y-Axis ................................ 20" Z-Axis ................................ 25" Table Size ............................ 52" x 18" Table Load Capacity ................... 3500 lbs Spindle Speeds ........................ 10,000 RPM Spindle Taper ......................... CAT 40 Spindle To Table ...................... 4"-29" Spindle Torque ........................ 230 ft lbs Rapid Traverse ........................ 710 IPM Chip-To-Chip Time ..................... 6 Seconds Max Tool Weight ....................... 12 lbs Max Tool Diameter...................... 3.5" Dimensions ............................ 110" x 118" Approx. Machine Weight ................ 12,500 lbs EQUIPPED WITH: Haas 32-Bit CNC Control, 12" CRT, 2 RS-232 Ports 1MB Extra Memory, DNC-Interface, Quick-Code Progamming 3.5" Floppy Disk Drive 20-Position Automatic Tool Changer 8" Haas HRT-210-CNC Rotary Table HTS6 Rotary Tailstock Through Spindle Coolant Spindle Orientation Coordinate Rotation & Scaling Programmable Coolant Rigid Tapping 2-Speed Gear Driven Transmission Chip Auger System Remote Jog Handle HOURS: 6,500


Available Machine # Ez13723

  • Stock#:Ez13723
  • Price:$28,500
  • Year:2000
  • Region:Midwest
  • Condition:Used
X 40 " Y 20 " Z 25 " Power 20 hp RPM 7500 rpm # ATC 20 Table-W 18 " Table-L 48 " Taper CT 40 # Axis 3 Weight 12,500 Lbs Control CNC (HAAS)


Available Machine # Ez13390

  • Stock#:Ez13390
  • Price:Call
  • Year:2000
  • Region:West
  • Condition:Used
Control: Haas Table Size: 48" x 18" Max Table Load: 3,500 lbs Travel: X-Axis Travel: 40" Y-Axis Travel: 20" Z-Axis Travel: 25" Spindle Nose to Table Top: . 4" - 29" Spindle Taper: CAT 40 Spindle Speed: 7,500 RPM Spindle Motor: 20 HP Rapid Traverse Rates: 710 IPM Machine Weight (approx.): 12,500 lbs Equipped With (must be verified by buyer): 4th Axis Pre-Wire (Brush) Programmable Coolant Nozzle Chip Auger 3.5" Floppy Drive Rigid tap 2 Speed Gearbox Remote Jog Handle High Intensity Lighting Machine: 122" x 111" x 101" 12,500 lbs Chip/Coolant Pan: 73" x 21" x 20" 150 lbs 4th Axis: 18" x 10" x 11" 150 lbs


Available Machine # Ez10605

  • Stock#:Ez10605
  • Price:$27,500
  • Year:2000
  • Region:South
  • Condition:Used
HAAS CNC CONTROL Serial Number 21301 12" Monochrome CRT 3.5" Floppy Disc Drive Through Spindle Coolant 24 Position Side Mount Tool Changer 10000 RPM Spindle with Two Speed Gearbox Fourth Axis Interface (Brush Type) Spindle Orientation Programmable Coolant Nozzles Chip Auger Rigid Tapping Coordinate Rotation & Scaling User Definable Macros 20 HP Vector Drive Spindle Remote Jog Handle AC Brushless Servos


Available Machine # Ez14196

  • Stock#:Ez14196
  • Price:Call
  • Year:2002
  • Region:Midwest
  • Condition:Used

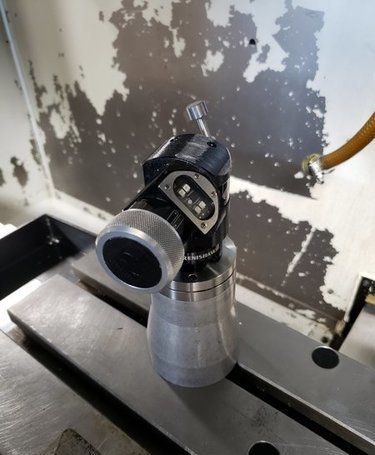

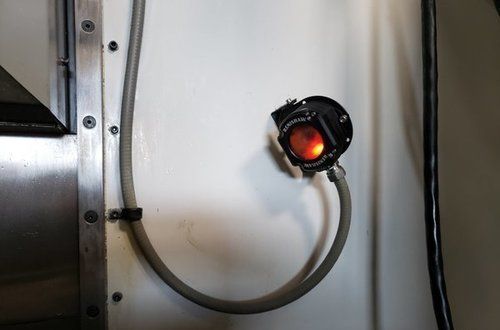

Specs: Year 2002 Control Haas Number of Axes 3 Table Size 48" x 18" Max Table Load 3,500 lbs Travels (X) 40" Travels (Y) 20" Travels (Z) 25" Rapid Traverse (X,Y,Z) 1,000 IPM Spindle Taper CAT 40 Spindle Motor 20 HP Spindle Speed 7,500 RPM ATC 24 Machine Dimensions 127" x 91" x 108" Machine Weight 13,000 lbs Request Quote Equipped With: - Haas CNC Control - Rigid Tapping - Handheld Remote MPG - Programmable Coolant Nozzle - Chip Auger - 2 Speed Gear Box - Macro - Scaling - High Intensity Lighting - Renishaw Probing (Receiver only)


Available Machine # Ez15188

  • Stock#:Ez15188
  • Price:$38,000
  • Year:2003
  • Region:West
  • Condition:Used
Specifications: Table Size 48″ x 18″ Table Load (Max) 3,500 Lbs X-Axis Travels 40″ Y-Axis Travels 20″ Z-Axis Travels 25″ Spindle Nose to Table Top 4″ – 29″ Spindle Speed 10,000 RPM Spindle Taper CAT 40 Spindle Motor 20 HP Tool Changer Style Sidemount Tool Changer Positions 24 + 1 Station Machine Dimensions (Length x Width x Height) 122″ x 93″ x 98.3″ Equipped With: Rigid Tap High Intensity Lighting Programmable Coolant Macros Rotational Scaling 4th Enabled
