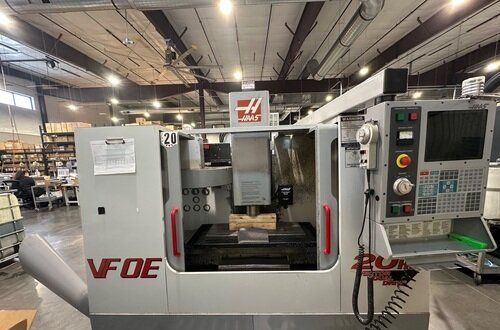

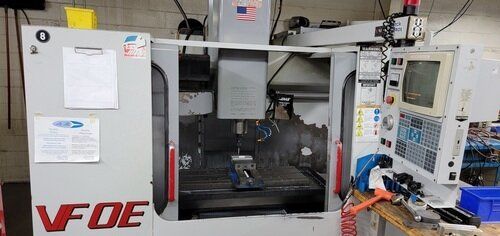

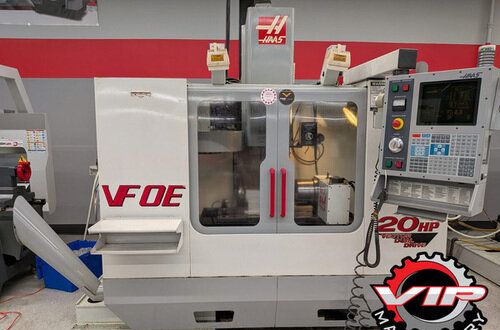

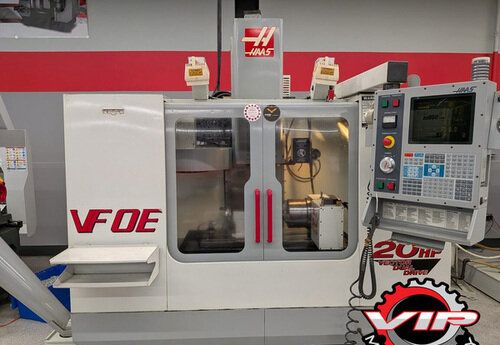

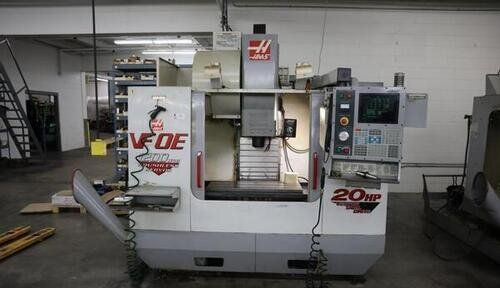

Haas VF-0E Vertical Machining Centers

Specifications

ModelVF-0E
BrandHAAS
TypeVertical Machining Centers
ControlCNC (HAAS 32BIT)
X30 inch
Y16 inch
Z20 inch
Power20 hp
RPM7500 rpm
ATC20
TableW14 inch
TableL36 inch
TaperCAT-40
Axis3
Weight8,500 lbs
Length110 inch
Width92.8 inch
Height107 inch
catalogid118
mfgHAAS
mpnVF-0E
titleHaas VF-0E Vertical Machining Centers

Zero? Available Machines

Available Machine # Ez6245

  • Stock#:Ez6245
  • Price:$19,500
  • Year:1995
  • Region:South
  • Condition:Used

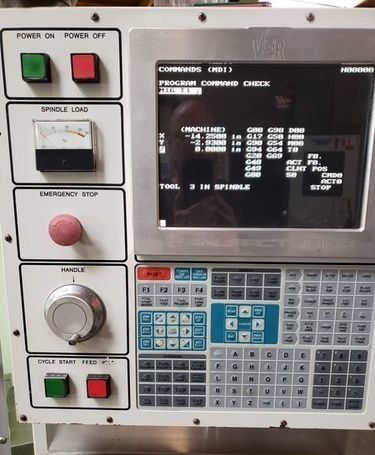

1995 HAAS VF-0E Travel: X-Axis 30" Y-Axis 16" Z-Axis 20" Table Size 36" x 14" Spindle Speed 10,000 RPM Spindle Taper Cat 40 Spindle Nose to Table Top 4" - 24" Spindle Motor 7.5 HP Tools 20 Table Load Capacity 3000 lbs. Rapid Traverse Rates 710 IPM Tool Change Time (T - T / C - C) 4.0 / 5.4 Seconds Max Tool Diameter 3.5" Max Tool Weight 12 lbs. Machine Dimensions (L x W x H) 107" x 92.8" x 88" Machine Weight 7900 lbs. FEATURES: HAAS CNC CONTROL 12" Monochrome CRT 3.5" Floppy Disc Drive Fourth Axis Interface Rigid Tapping Programmable Coolant Nozzles Chip Auger 10,000 RPM Spindle Speed Two Color Tower Light Mfg Date December 1995


Available Machine # Ez20532

  • Stock#:Ez20532
  • Price:Call
  • Year:1996
  • Region:South
  • Condition:Used

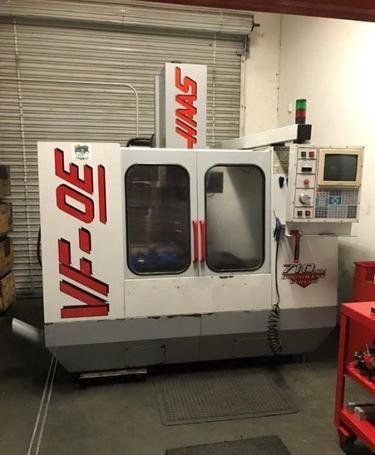

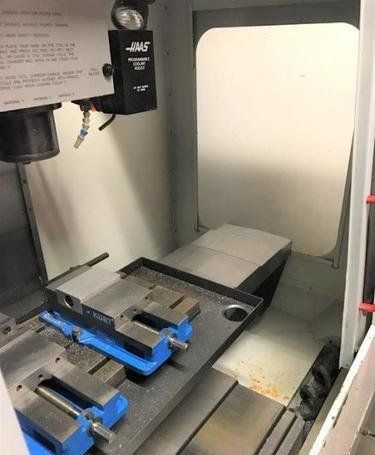

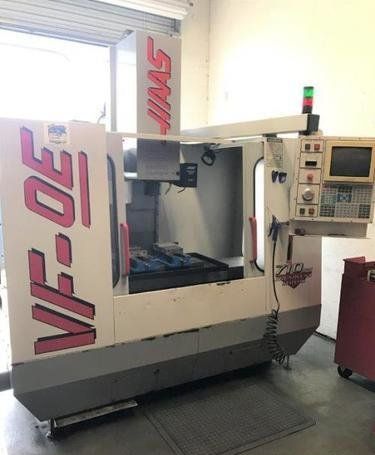

Available Machine # Ez11117

  • Stock#:Ez11117
  • Price:Call
  • Year:1997
  • Region:United States
  • Condition:Used



Available Machine # Ez19777

  • Stock#:Ez19777
  • Price:$10,001
  • Year:1997
  • Region:South
  • Condition:Used



Available Machine # Ez19576

  • Stock#:Ez19576
  • Price:$15,750
  • Year:1999
  • Region:West
  • Condition:Used
TABLE DIMENSIONS: 36" X 14" X-AXIS TRAVEL: 30" Y-AXIS TRAVEL: 16" Z-AXIS TRAVEL: 20" SPINDLE MOTOR: 20 HP SPINDLE SPEED: 10,000 RPM SPINDLE TAPER: CT 40 TOOL CAPACITY: 20 ATC EQUIPPED WITH: REMOTE JOG 4TH AXIS DRIVE & WIRING THROUGH SPINDLE COOLANT READY with PUMP BRUSHLESS SERVOS CHIP CONVEYOR PROGRAMMABLE COOLANT RIGID TAPPING QUICK CODE MACROS COORDINATE ROTATION & SCALING 1 MB EXTENDED MEMORY


Available Machine # Ez19132

  • Stock#:Ez19132
  • Price:$15,000
  • Year:1999
  • Region:Northeast
  • Condition:Used



Available Machine # Ez7642

  • Stock#:Ez7642
  • Price:$19,900
  • Year:1999
  • Region:Midwest
  • Condition:Used
4th and 5th Axis Brushless Drives 16 MB Extended Memory Rigid Tapping Chip Auger

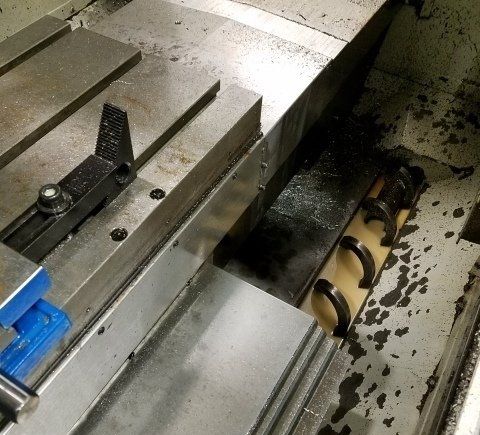

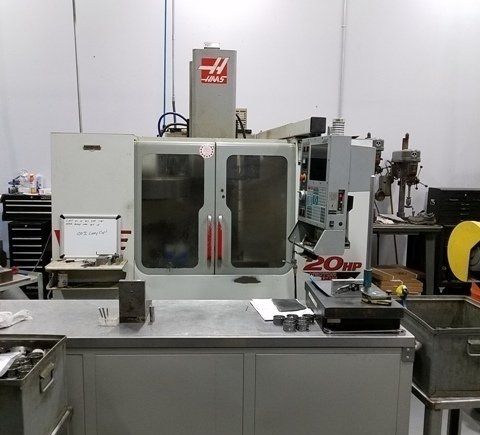

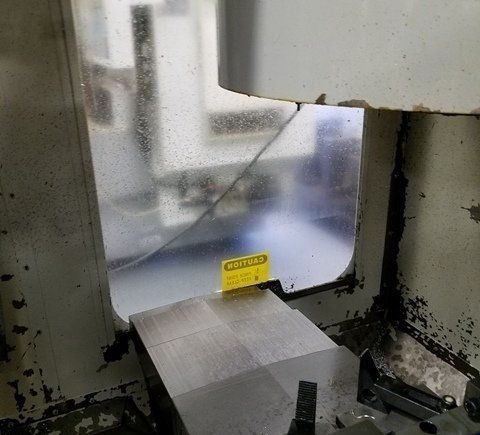

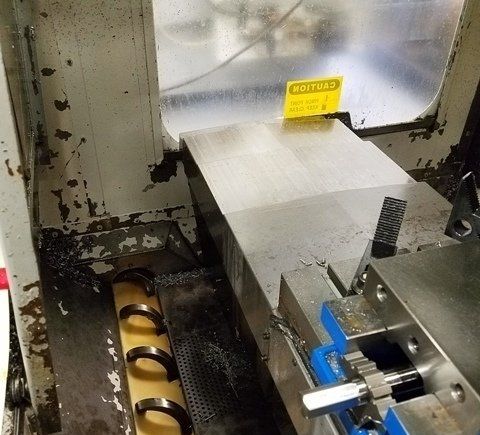

Available Machine # Ez13263

  • Stock#:Ez13263
  • Price:Call
  • Year:2001
  • Region:South
  • Condition:Used
Travel: X-Axis 30" Y-Axis 16" Z-Axis 20" Table Size 36" x 14" Spindle Speed 7500 RPM Main Motor 20 / 15 HP Spindle Taper Cat 40 Tools 20 Spindle Nose to Table Top 4" - 29" Table Load Capacity 3,000 lbs. Rapid Traverse Rates 710 IPM Max Tool Diameter 3.5" Max Tool Weight 12 lbs. Machine Dimensions (L x W x H) 107" x 93" x 105" Machine Weight 8,000 lbs. FEATURES: HAAS 32-BIT CNC CONTROL 12" Monochrome CRT 1 MB Extended Memory Rigid Tapping Fourth Axis Interface (Brush Type) Programmable Coolant Nozzle Quick Code Programming Coordinate Rotation & Scaling AC Brushless Servos 30" Extended X-Axis Travel Chip Auger Manufacture Date October 2001
