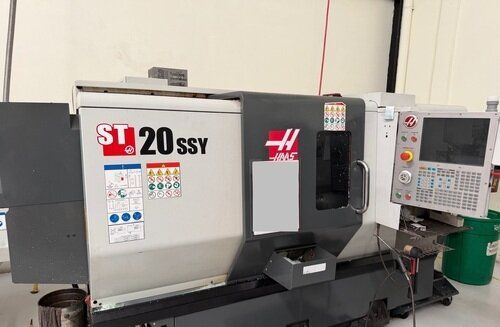

Haas ST-20SSY CNC Lathes

Specifications

ModelST-20SSY
BrandHAAS
TypeCNC Lathes

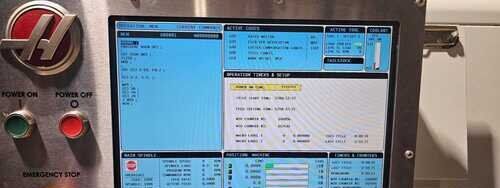

ControlCNC (Haas)
ChuckSize8.3 inch
BarCapacity2 inch
Power30 HP
MaxRPM5000 RPM
TurningDia10 inch
Swing31.75 inch
MachiningLength21 inch
TailstockNo
LiveToolingYes
Dimensions142inch x 90inch x 89inch
Weight12,300 lbs.
catalogid2174
mfgHAAS
mpnST-20SSY
titleHaas ST-20SSY CNC Lathes

Zero? Available Machines

Available Machine # Ez14432

  • Stock#:Ez14432
  • Price:$76,000
  • Year:2011
  • Region:West
  • Condition:Used
SWING DIAMETER S.A.E. / Metric Over Front Apron: 31.75 “ / 806 mm Over Cross Slide: 20.75 “ / 527 mm CAPACITIES S.A.E. / Metric Chuck Size: 8.3 “/210 mm Max Cutting Diameter: 10.0 “/254 mm Max Cutting Length: 21 “/533 mm Bar Capacity: 2.0 “/51 mm TRAVELS & FEEDRATES S.A.E. / Metric X Axis: 9.3 “/236 mm Y Axis: ±2 “/±50.8 mm Z Axis: 21.0 “/533 mm Rapids on X: 472 in/min / 12 m/min Rapids on Y: 472 in/min / 12 m/min Rapids on Z: 1200 in/min / 30.5 m/min Max Thrust X: 4100 lb / 18238 N Max Thrust Y: 2300 lb / 10231 N Max Thrust Z: 4050 lb / 18015 N SPINDLE S.A.E. Metric Max Rating: 30 hp / 22.4 kW Max Speed: 5000 rpm / 5000 rpm Max Torque: 140 ft-lb @ 1450 rpm / 190 Nm @ 1450 rpm Spindle Nose: A2-6 / A2-6 MAIN SPINDLE C AXIS S.A.E. / Metric Max Rating: 5 hp / 3.7 kW Positioning: (±)0.01 ° / 0.01 ° Brake Clamp Force: 1000 lb / 4448 Nm Brake Diameter: 14.4 " / 366 mm Control Type: Interpolated Motion and Control Interpolated Motion and Control TURRET S.A.E. Metric Number of Tools: 24 Stations / 24 Stations OD vs ID Tools: Hybrid 12 BOT/12 VDI / Hybrid 12 BOT/12 VDI Boring Bar Rear Clearance (from back of turret ): 4.0 " / 102 mm LIVE TOOLING S.A.E. M / etric Max Speed: 0-3000 rpm / 0-3000 rpm Torque (peak: 195 in-lb / 22.03 Nm Torque (continuous): 75 in-lb / 8.47 Nm Tooling: VDI40 / VDI40 GENERAL S.A.E. Metric Air Required: 4 scfm, 100 psi / 113 L/min, 6.9 bar Coolant Capacity: 48 gal / 182 L Machine Weight: 9000 lb / 4082 kg 5C Collet Nose 3 Jaw Chuck Airblast Gun Machine C/W 24 Station Hybrid Bot/Vdi Turret High Torque Live Tooling W/ C- Axis Y- Axis (Travel +/ - 2") 15" Color Lcd Monitor Memory Lock Keyswitch Spindle Orientation Usb Port, Rigid Tapping Belt- Type Chip Conveyor High Intensity Lighting Parts Catcher
