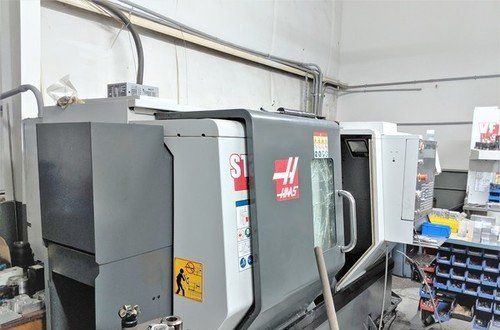

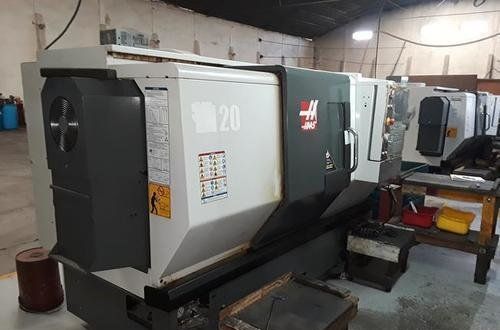

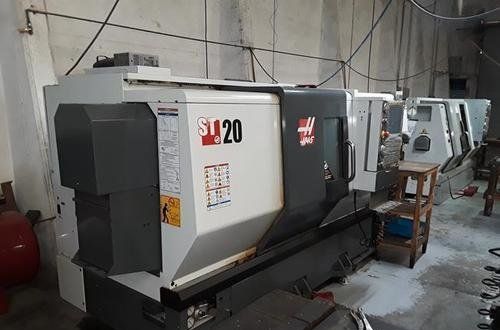

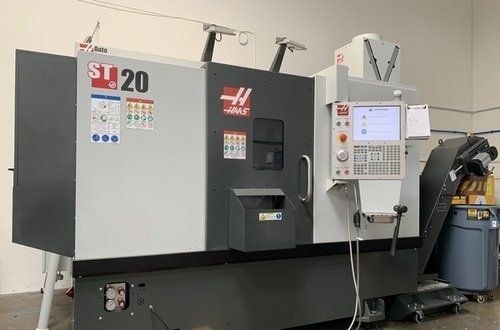

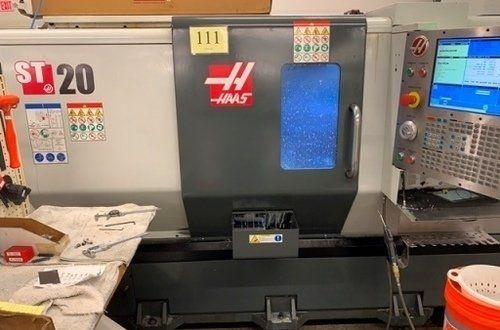

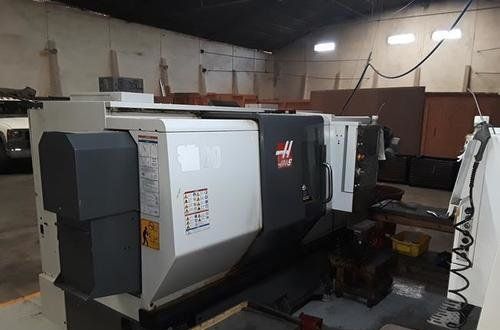

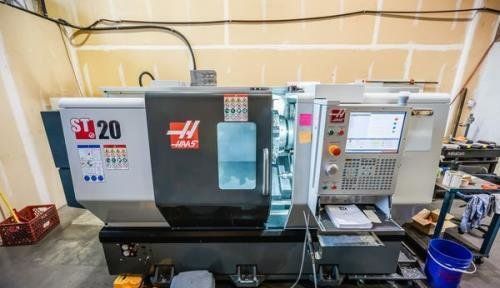

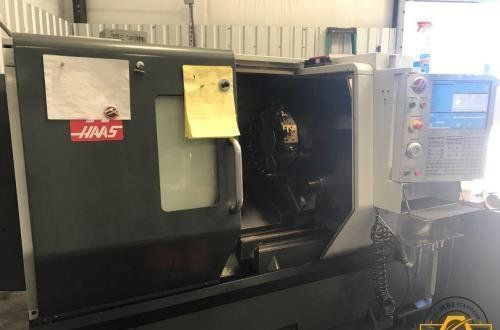

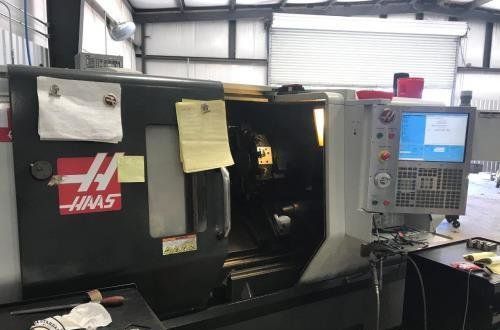

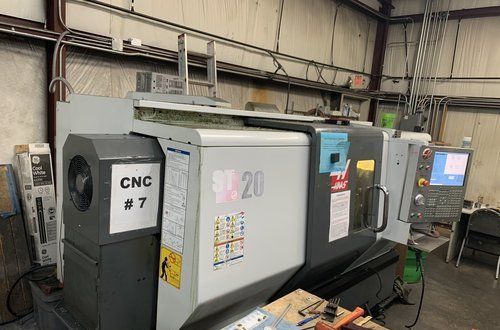

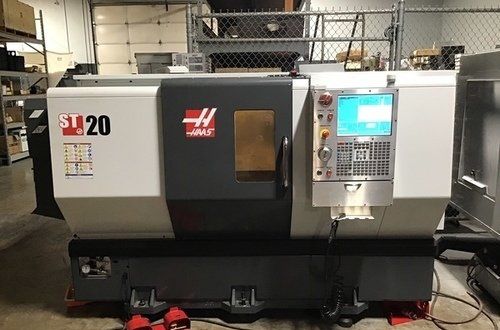

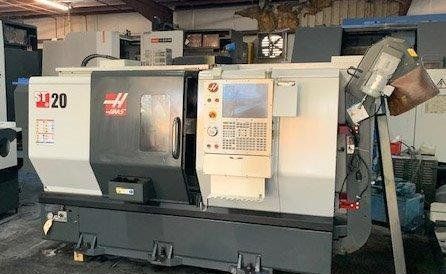

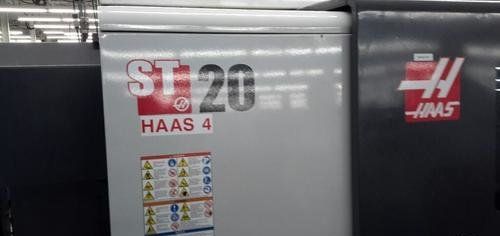

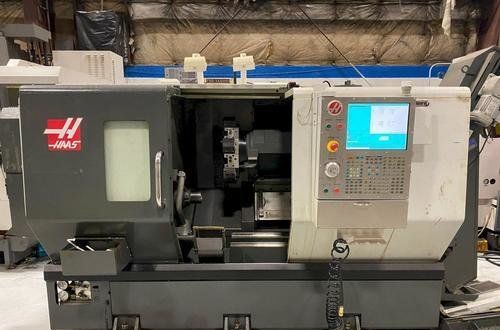

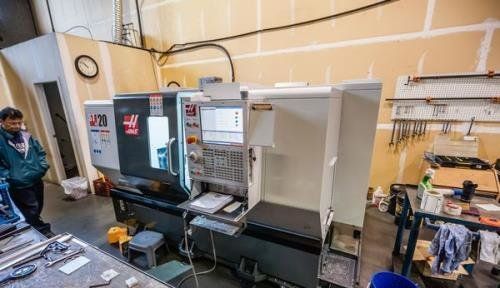

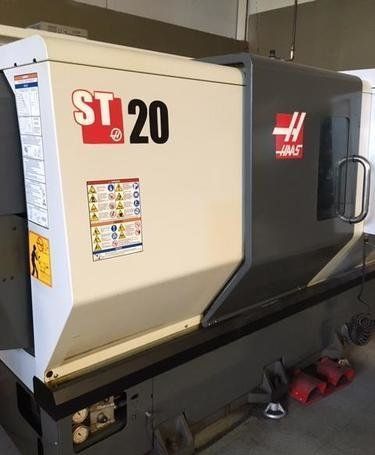

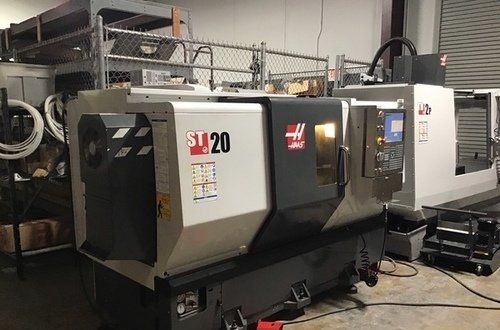

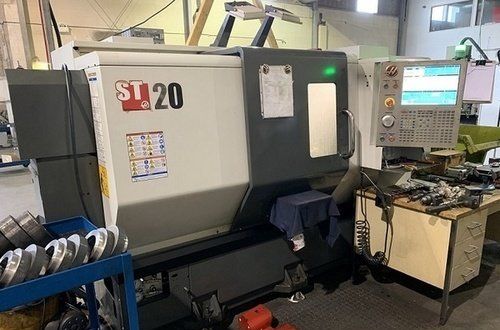

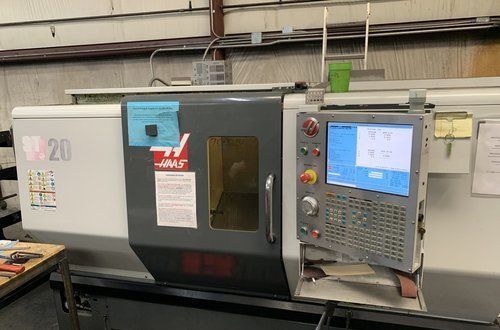

Haas ST-20 CNC Lathes

Specifications

ModelST-20
BrandHAAS
TypeCNC Lathes
ControlCNC (Haas)
ChuckSize8 inch
BarCapacity2 inch
Axis2
Power20 HP
MaxRPM4000 RPM
TurningDia15 inch
Swing31.75 inch
MachiningLength21 inch
TailstockNo
LiveToolingNo
SubSpindleNo
Dimensions140inchL X 77inchW X 74inchH
Weight12,500 Lbs
Length142 inch
Width90 inch
Height89 inch
catalogid1273
mfgHAAS
mpnST-20
titleHaas ST-20 CNC Lathes

Zero? Available Machines

Available Machine # Ez14427

  • Stock#:Ez14427
  • Price:$49,500
  • Year:2010
  • Region:West
  • Condition:Used

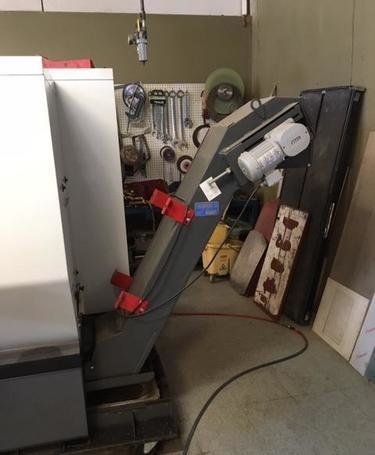

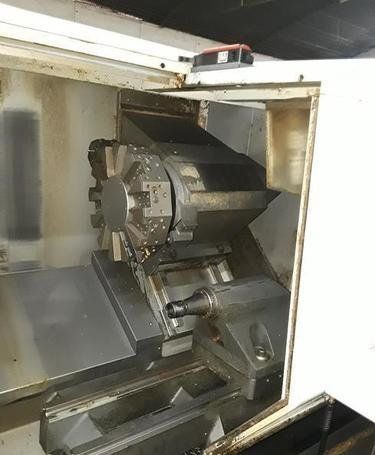

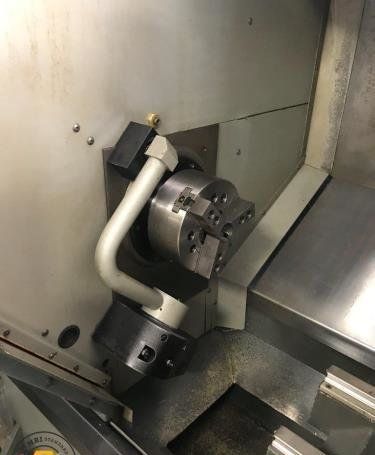

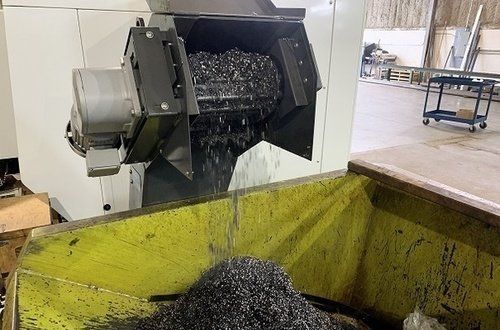

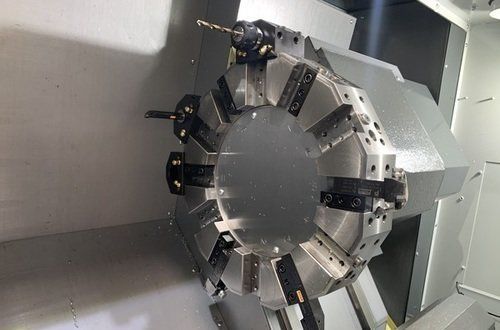

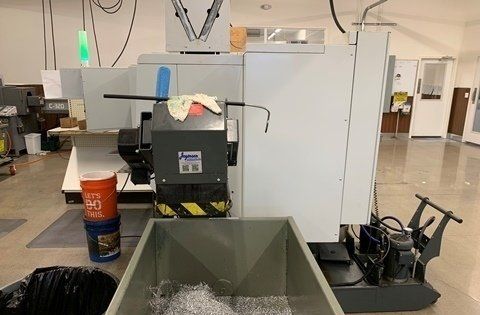

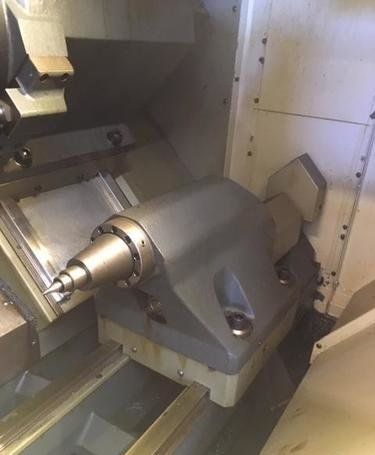

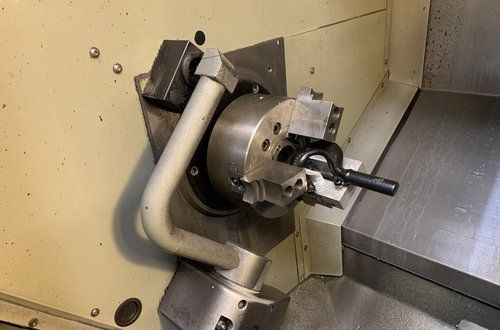

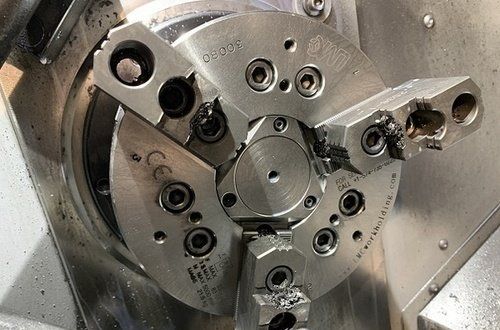

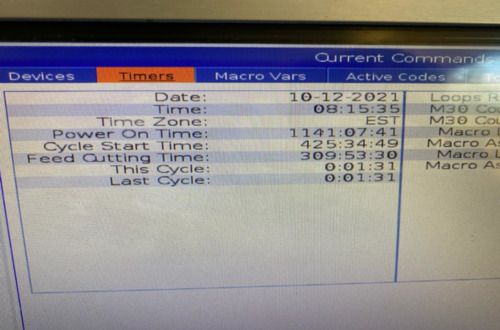

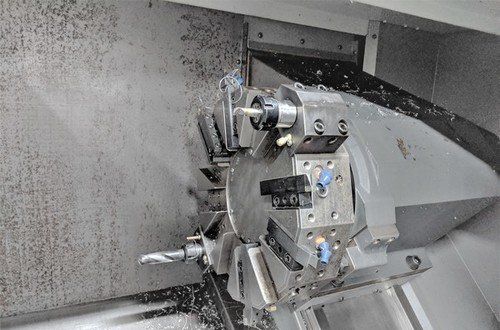

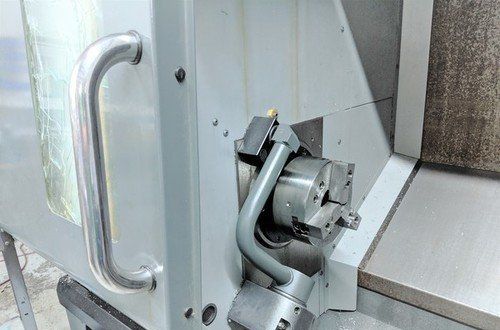

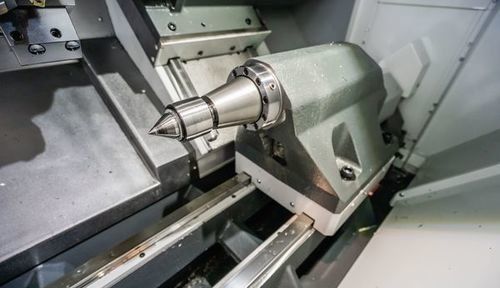

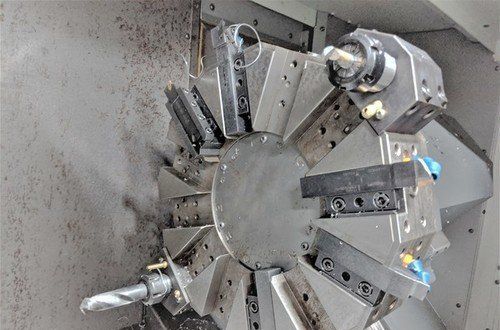

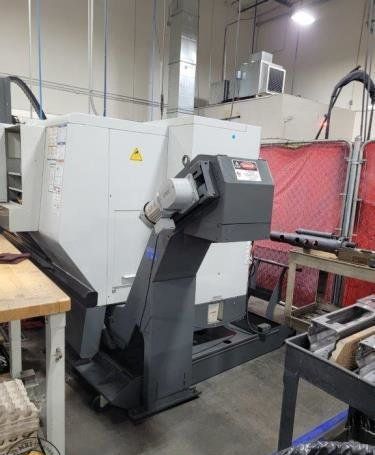

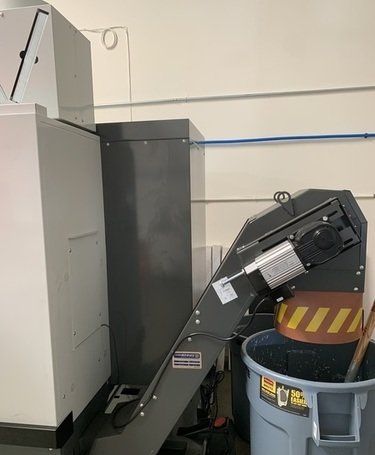

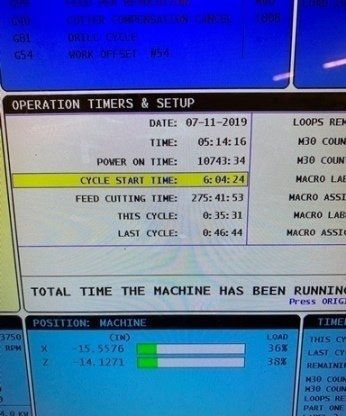

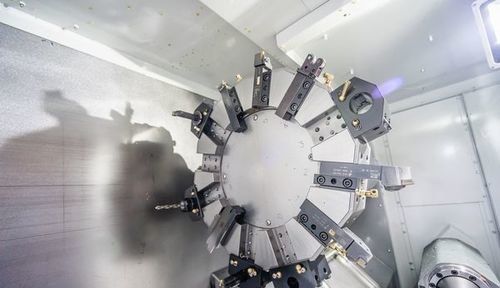

Over Front Apron: 31.75 " / 806 mm Over Cross Slide: 20.75 " / 527 mm Over Tailstock: 23.0 " / 584 mm CAPACITIES S.A.E./METRIC Chuck Size: 8.3 " / 210 mm Max Cutting Diameter (varies with turret): 15.0 " / 381 mm Max Cutting Length (without workholding): 21 " / 533 mm Bar Capacity: 2.0 " / 51 mm TRAVELS & FEEDRATES S.A.E. / METRIC X Axis: 9.3 " / 236 mm Z Axis: 21.0 " / 533 mm Rapids on X: 945 in/min / 24.0 m/min Rapids on Z: 945 in/min / 24.0 m/min Max Thrust X: 4100 lb / 18238 N Max Thrust Z: 5100 lb / 22686 N SPINDLE S.A.E. / METRIC Max Rating: 20 hp / 14.9 kW Max Speed: 4000 rpm / 4000 rpm Max Torque: 150 ft-lb @ 500 rpm / 203 Nm @ 500 rpm Spindle Nose: A2-6 / A2-6 Spindle Bore: 3.50 " / 88.9 mm TURRET S.A.E. / METRIC Number of Tools: 12 Stations Boring Bar Rear Clearance (from back of turret ): 4.0 " / 102 mm GENERAL S.A.E. / METRIC Air Required: 4 scfm, 100 psi / 113 L/min, 6.9 bar Coolant Capacity: 55 gal / 208 L Complete with: 8” 3 Jaw CHuck Programable Tailstock Automatic Tool Presseter Parts Catcher Chip Conveyor IPS Programming Spindle Liner Package Very Low Hours *Tooling not included Servo Time: 543 Motion Time: 160 Spindle Time: 211


Available Machine # Ez12529

  • Stock#:Ez12529
  • Price:Call
  • Year:2013
  • Region:Midwest
  • Condition:Used

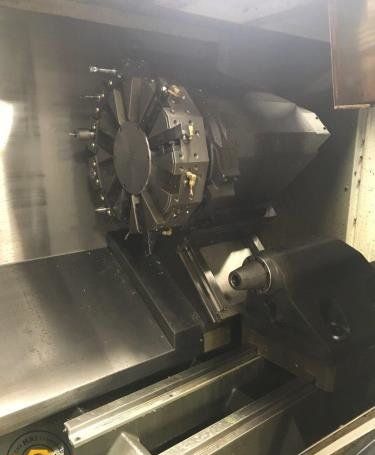

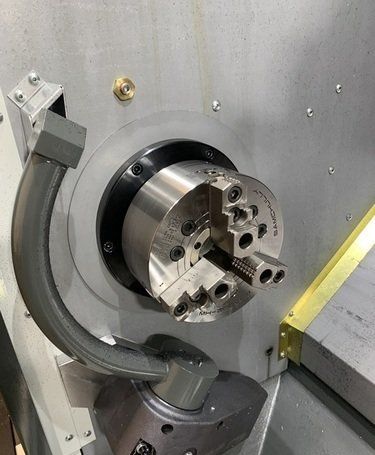

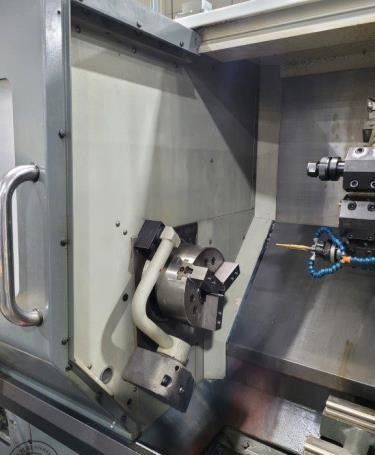

8" chuck Haas Model ST20 2 Axis Slant Bed CNC Lathe (2013) Max Cutting Diameter: 10.3 Max Cutting Length: 20" Bar Capacity: 2" Swing Over Bed: 20" Turret Positions: 12 Station BOT/VDI Spindle Speed: 4000 RPM Spindle Motor: 20 hp Spindle Nose: A2-6 Rapid Traverse Rates: 710 IPM Equipped With: Haas CNC, 8" Chuck, No Tailstock


Available Machine # Ez14987

  • Stock#:Ez14987
  • Price:Call
  • Year:2014
  • Region:Northeast
  • Condition:Used
