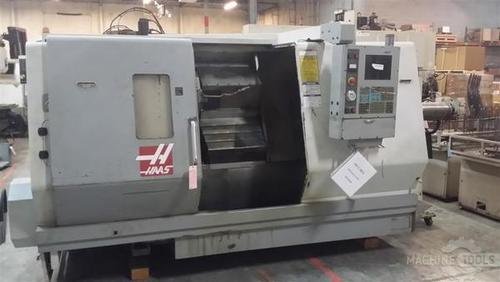

Haas SL-30 CNC Lathe

Specifications

ModelSL-30T
BrandHAAS
TypeCNC Lathes
ControlCNC (HAAS)
ChuckSize10 inch
BarCapacity3 inch
Axis2
Power30 HP
MaxRPM3,400 RPM
TurningDia17 inch
Swing30 inch
MachiningLength39 inch
TailstockYes
Dimensions162inchx77inchx74inch
Weight16,000 lbs
Length150 inch
Width77 inch
Height74 inch
catalogid1266
mfgHAAS
mpnSL-30T
titleHaas SL-30 CNC Lathe

Zero? Available Machines

Available Machine # Ez18223

  • Stock#:Ez18223
  • Price:$27,500
  • Year:1999
  • Region:West
  • Condition:Used



Available Machine # Ez1825

  • Stock#:Ez1825
  • Price:Call
  • Year:2003
  • Region:Northeast
  • Condition:Used
SWING OVER FRONT APRON 30" SWING OVER CROSS SLIDE 14.5" CHUCK SIZE 10" STANDARD BORE / BAR CAPACITY 3.5"/ 3" DISTANCE BETWEEN CENTERS 39" MAXIMUM CUTTING DIAMETER X LENGTH 17" X 34" SPINDLE MOTOR 20 HP SPINDLE NOSE A2-6 TURRET 12 POS RAPID TRAVERSE 710 IPM MACHINE WEIGHT 16,000 LBS APPROX. DIMS W/ CHIP CONVEYOR 162"x77"x74"


Available Machine # Ez1831

  • Stock#:Ez1831
  • Price:$44,500
  • Year:2004
  • Region:Midwest
  • Condition:Used
Specifications: Control Haas Max Swing Over Apron 30" Max Turning Dia 17" Max Turning Length 34" Distance Between Centers 39" X-Axis Travel 11.3" Z-Axis Travel 34" Rapid Traverse Rates 710 IPM Max Bar Capacity 3" Spindle Bore 3.5" Spindle Nose A2-6 Spindle Speeds 0 to 3,400 RPM Max Torque 300 ft-lb @ 700 RPM Spindle Motor 30 HP Turret Stations 12 Machine Weight 16,000 lbs Machine Dimensions 150"L x 77"W x 74"H Equipped With: Programmable Tailstock 3.5" Floppy Drive Rigid Tap Internal High Voltage Transformer (480 volts) Tool Holders Not included


Available Machine # Ez6461

  • Stock#:Ez6461
  • Price:Call
  • Year:2013
  • Region:Northeast
  • Condition:Used
EQUIPPED WITH: Haas CNC Control w/ 15" Color LCD Monitor 10" 3-Jaw Chuck Programmable Tailstock Belt-Type Chip Conveyor Automatic Tool Pre-Setter
