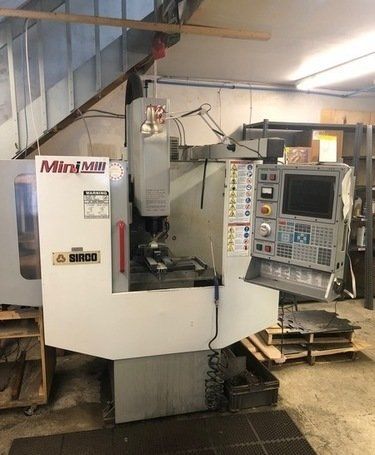

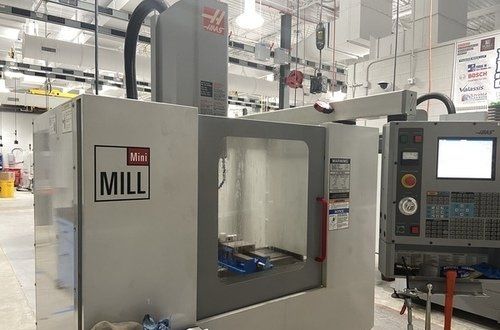

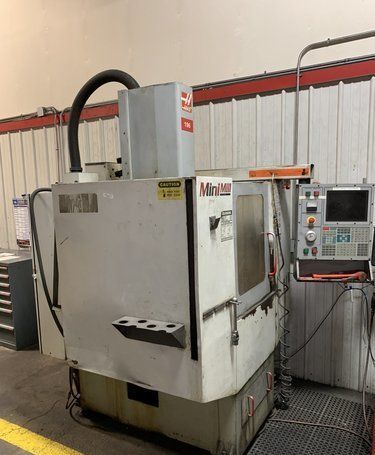

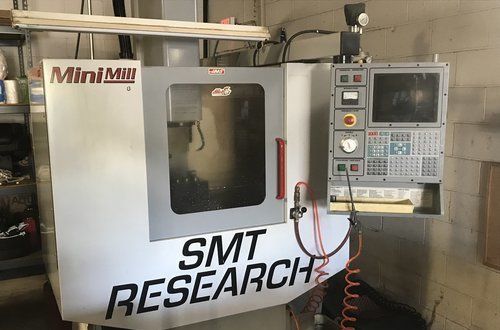

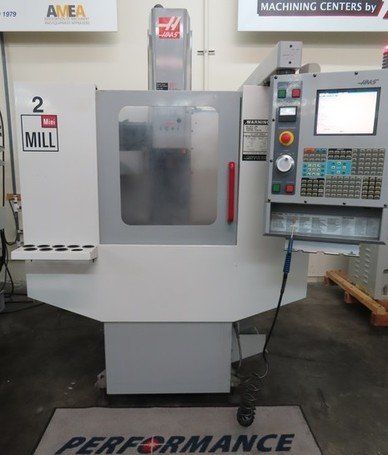

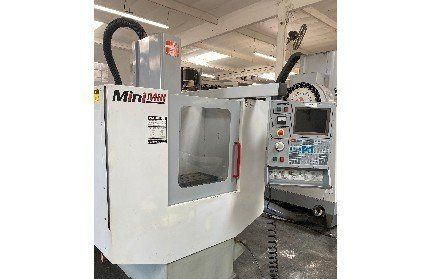

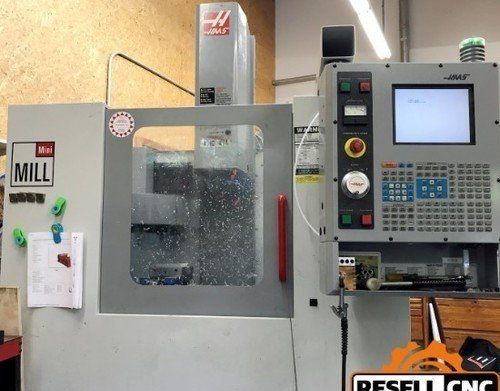

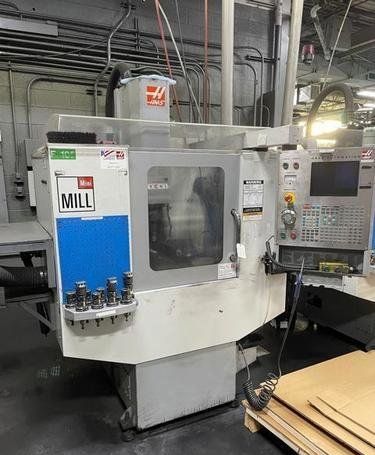

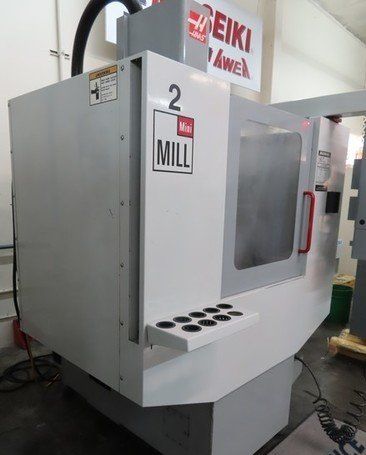

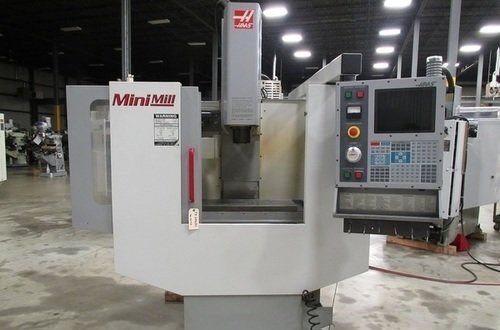

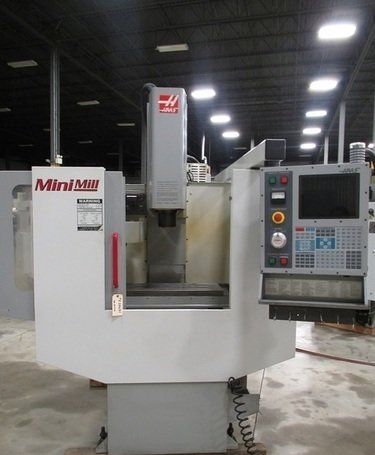

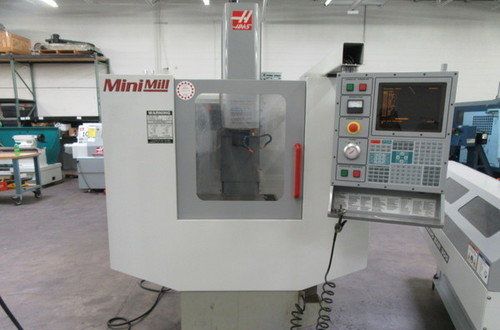

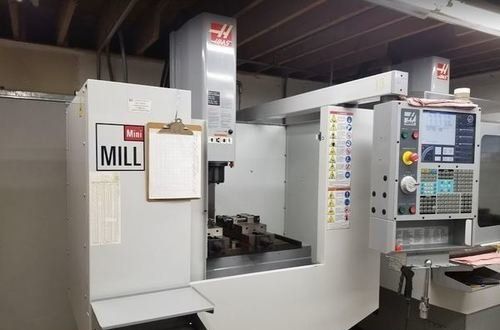

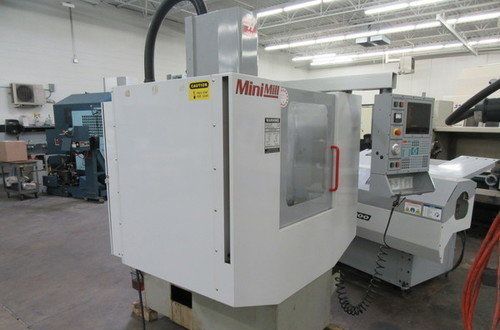

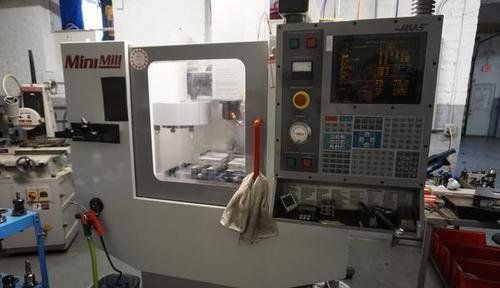

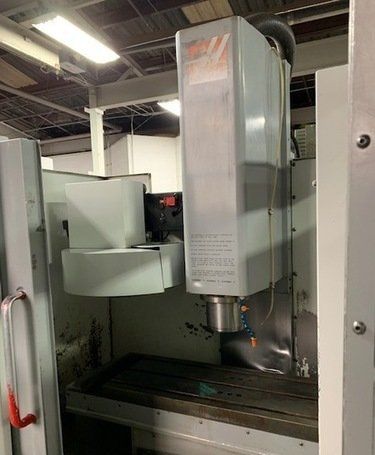

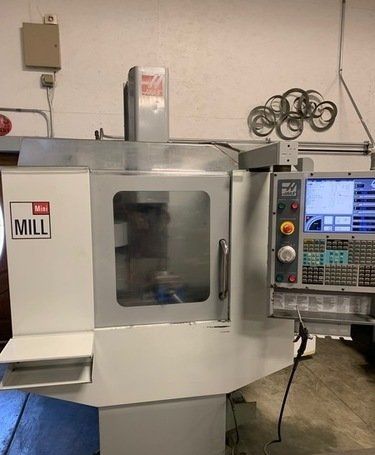

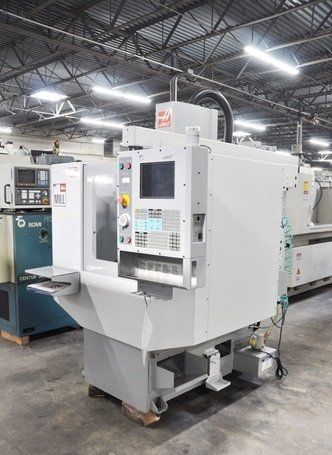

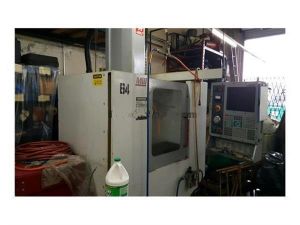

Haas Mini Mill Vertical Machining Center

Specifications

ModelMINI MILL
BrandHAAS
TypeVertical Machining Centers

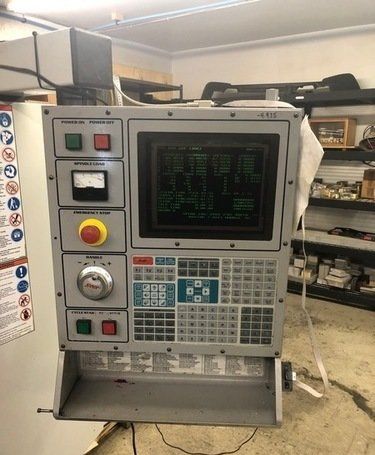

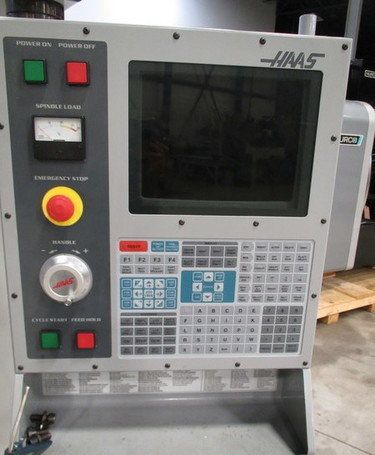

ControlCNC (HAAS CONTROL)
X16 inch
Y12 inch
Z10 inch
Power7.5 HP
RPM6,000 RPM
ATC10
TableW12 inch
TableL36 inch
TaperCAT-40
Axis3
Weight4,000 lbs
Length84 inch
Width71 inch
Height102 inch
catalogid110
mfgHAAS
mpnMINI MILL
titleHaas Mini Mill Vertical Machining Center

Zero? Available Machines

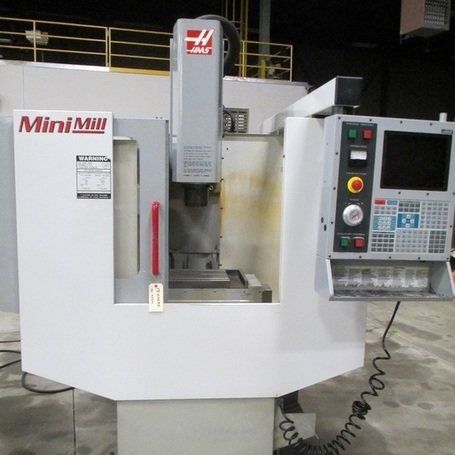

Available Machine # Ez12551

  • Stock#:Ez12551
  • Price:Call
  • Year:2000
  • Region:Northeast
  • Condition:Used

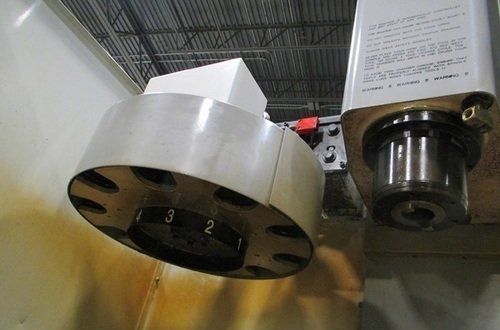

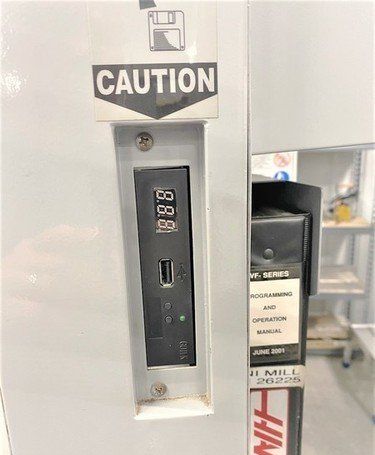

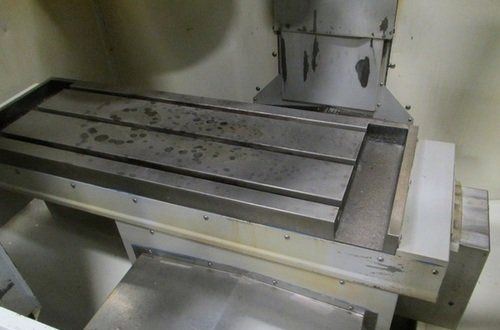

TRAVELS X-AXIS: 16" Y-AXIS: 12" Z-AXIS: 10" TABLE LENGTH (TOTAL): 36" LENGTH (WORK SURFACE): 28.75" WIDTH: 12" MAXIMUM WEIGHT ON TABLE: 500 LBS T-SLOTS T-SLOT WIDTH: .625" NUMBER OF T-SLOTS: 3 CENTER DISTANCE: 4.92" SPINDLE TAPER SIZE: # 40 TAPER SPEED: 0 – 6,000 RPM TRANSMISSION: BELT-DRIVE TORQUE (FT-LB @ RPM): 33 FT-LB @ 1,200 RPM SPINDLE MOTOR MAXIMUM RATING: 7.5 HP SPINDLE NOSE TO TABLE TOP: 4 – 14" FEEDRATES RAPIDS: 650 IPM CUTTING: 500 IPM TOOLCHANGER CAPACITY: 10 TYPE: CT-40 TOOL DIAMETER: 3.5" TOOL WEIGHT: 12 LBS GENERAL DOOR OPENING WIDTH: 24" MACHINE WEIGHT 3,400 LBS AIR REQUIRED: 4 SCFM, 100 PSI FOOTPRINT: 78" X 80" X 98" H ELECTRICS: 208 VOLTS, 3 PH, 60 CYC EQUIPPED WITH HAAS CONTROL WITH FLOPPY DISC DRIVE RIGID TAP COOLANT PUMP

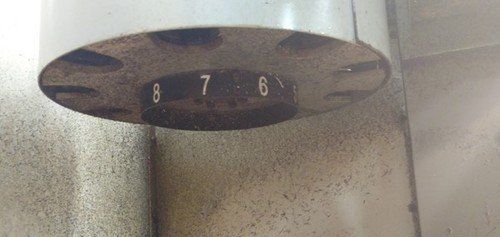

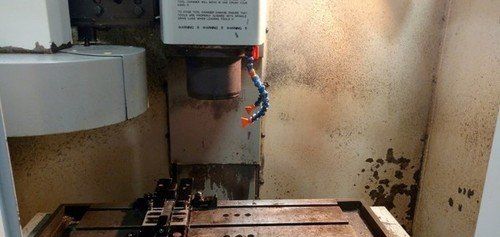

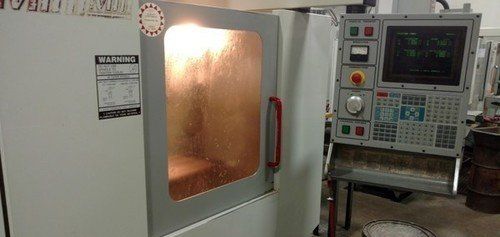

Available Machine # Ez13167

  • Stock#:Ez13167
  • Price:$17,500
  • Year:2000
  • Region:Midwest
  • Condition:Used

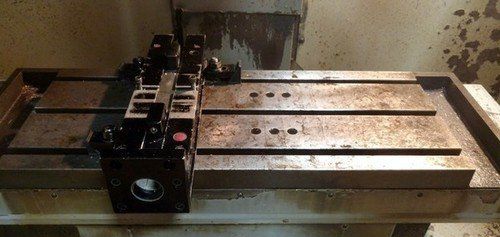

Specifications: Table Size 36" x 12" Max Table Load 500 Lbs X Axis Travel 16" Y Axis Travel 12" Z Axis Travel 10" Spindle Nose to Table Top 4" - 14" Spindle Taper CT40 Spindle Motor 7.5 HP Spindle Speeds 6,000 RPM Rapid Traverse Rates 650 IPM Cutting Feed Rates 500 IPM Tool Stations 10 ATC Machine Weight 3,400 Lbs Machine Dimensions 78"L x 80"W x 98"H Equipped With: Haas CNC Control 3.5" Floppy Drive Coolant Pump Kit Rigid Tap New Work Light 10 Station ATC


Available Machine # Ez13982

  • Stock#:Ez13982
  • Price:Call
  • Year:2001
  • Region:Midwest
  • Condition:Used

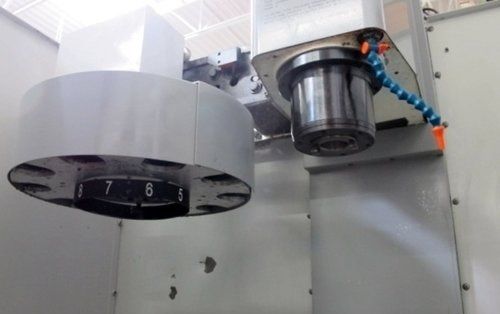

Haas Mini Mill CNC Vertical Machining Center Manufacturer: Haas Model#: Mini Mill Age: 2001 Specification: Machine Control Haas 32bit CNC Control Table Size 36" x 12" Machine Travels (X/Y/Z) 16" x 12" x 10" Spindle To Table Distance 4" - 14" Table Capacity 500 Lbs. Spindle Taper BT-40 Taper Spindle Speeds 6,000 Max RPM Rapid Traverse Rate (X/Y/Z) 600 IPM Maximum Cutting Feed Rate 500 IPM Tool Changer Style Carousel Tool Changer Capacity 10 Stations Tool Change Time 4.2 Seconds Max Tool weight 12 Lbs. Spindle Drive 7.5 HP Equipped With: Haas CNC 32-Bit CNC Control, 10-Station Carousel Tool Changer, Rigid Tapping, Visual Quick Code, Floppy Drive, Coolant System, Manuals.

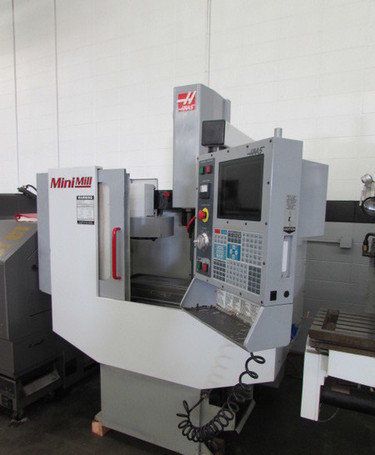

Available Machine # Ez14306

  • Stock#:Ez14306
  • Price:Call
  • Year:2001
  • Region:Midwest
  • Condition:Used

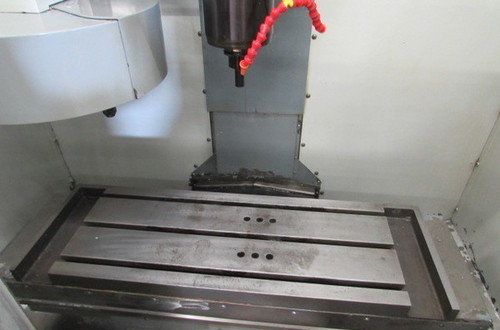

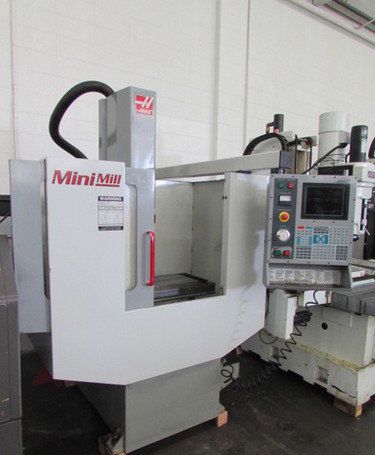

Mini Mill Age 2001 Specification Description Machine Control Haas 32bit CNC Table Size 36" x 12" Machine Travels (X/Y/Z) 16" x 12" x 10" Spindle To Table Distance 4" - 14" Table Capacity 500 Lbs. Spindle Taper Cat 40 Spindle Speeds 6,000 Max RPM Rapid Traverse Rate (X/Y/Z) 600 IPM Maximum Cutting Feed Rate 500 IPM Tool Changer Style Carousel Tool Changer Capacity 10 Stations Tool Change Time 4.2 Seconds Max Tool weight 12 Lbs. Spindle Drive 7.5 HP Equipped with: Haas 32 Bit CNC Control, Cat 40 Spindle Taper, 10 Station Automatic Tool Changer, Coolant system, Rigid Tapping, Manuals

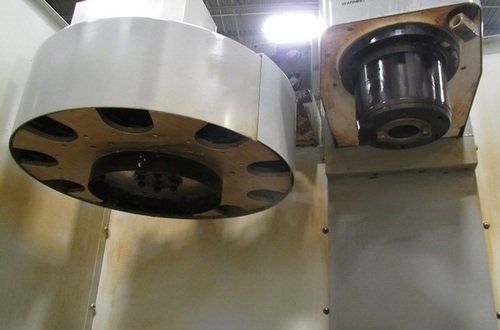

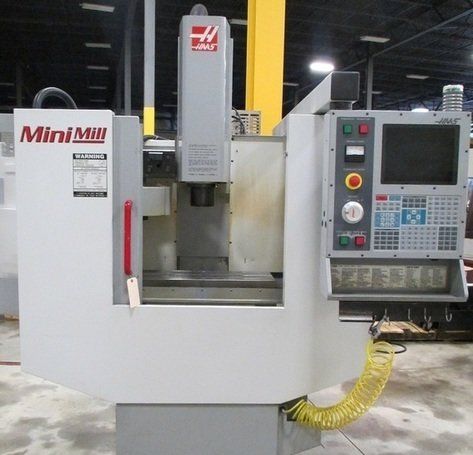

Available Machine # Ez13336

  • Stock#:Ez13336
  • Price:Call
  • Year:2001
  • Region:Northeast
  • Condition:Used

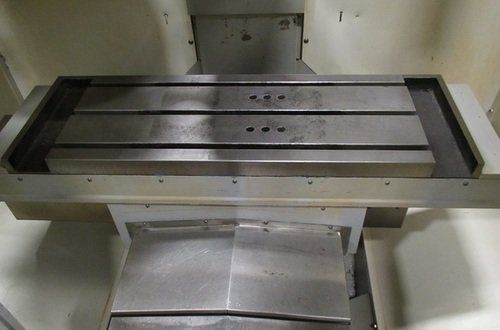

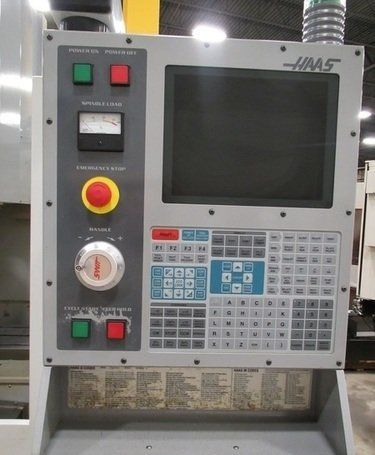

TRAVELS X-AXIS: 16" Y-AXIS: 12" Z-AXIS: 10" TABLE LENGTH (TOTAL): 36" LENGTH (WORK SURFACE): 28.75" WIDTH: 12" MAXIMUM WEIGHT ON TABLE: 500 LBS T-SLOTS T-SLOT WIDTH: .625" NUMBER OF T-SLOTS: 3 CENTER DISTANCE: 4.92" SPINDLE TAPER SIZE: # 40 TAPER SPEED: 0 – 6,000 RPM TRANSMISSION: BELT-DRIVE TORQUE (FT-LB @ RPM): 33 FT-LB @ 1,200 RPM SPINDLE MOTOR MAXIMUM RATING: 7.5 HP SPINDLE NOSE TO TABLE TOP: 4 – 14" FEEDRATES RAPIDS: 650 IPM CUTTING: 500 IPM TOOLCHANGER CAPACITY: 10 TYPE: CT-40 TOOL DIAMETER: 3.5" TOOL WEIGHT: 12 LBS GENERAL DOOR OPENING WIDTH: 24" MACHINE WEIGHT 3,400 LBS AIR REQUIRED: 4 SCFM, 100 PSI FOOTPRINT: 78" X 80" X 98" H ELECTRICS: 208 VOLTS, 3 PH, 60 CYC EQUIPPED WITH HAAS CONTROL WITH FLOPPY DISC DRIVE RIGID TAPPING COOLANT PUMP

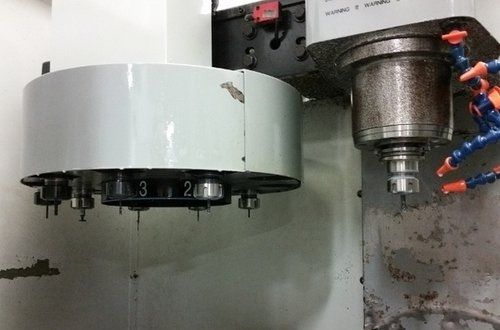

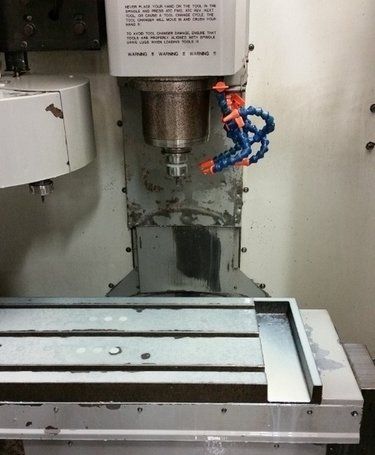

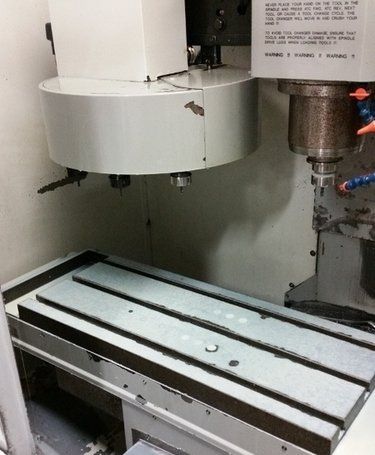

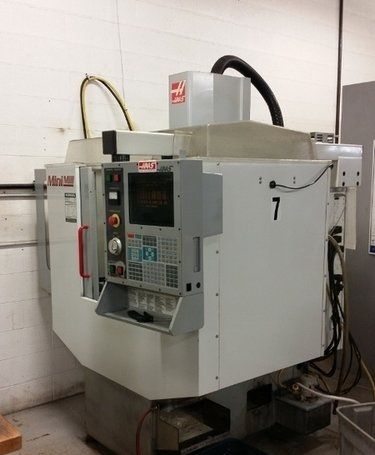

Available Machine # Ez13604

  • Stock#:Ez13604
  • Price:$19,500
  • Year:2001
  • Region:Midwest
  • Condition:Used
Specifications: Travels, 16" x 12" x 10" Table Size, 36" x 12" Spindle Taper, CT-40 Spindle Speed, 6000rpm Spindle Motor, 7.5hp Tool Changer, 10 Station Carousel Machine Dimensions, 65" x 85" x 100" (LxWxH) Machine Weight, 3,500lbs. Power, 208V-3P or 240V-1P Features: Coolant Tank/Pump Rigid Tapping Manual


Available Machine # Ez15394

  • Stock#:Ez15394
  • Price:$17,500
  • Year:2002
  • Region:Midwest
  • Condition:Used
Specifications: Table Size 36" x 12" Max Table Load 500 Lbs X Axis Travel 16" Y Axis Travel 12" Z Axis Travel 10" Spindle Nose to Table Top 4" - 14" Spindle Taper CT40 Spindle Motor 7.5 HP Spindle Speeds 6,000 RPM Rapid Traverse Rates 650 IPM Cutting Feed Rates 500 IPM Tool Stations 10 ATC Machine Weight 3,400 Lbs Machine Dimensions 78"L x 80"W x 98"H Equipped With: Haas CNC Control 3.5" Floppy Drive Coolant Pump Kit Rigid Tap 10 Station ATC

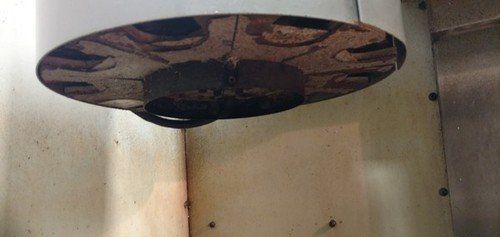

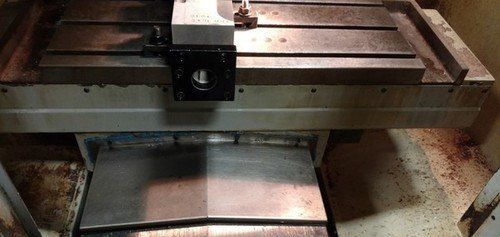

Available Machine # Ez13168

  • Stock#:Ez13168
  • Price:$22,500
  • Year:2006
  • Region:Midwest
  • Condition:Used

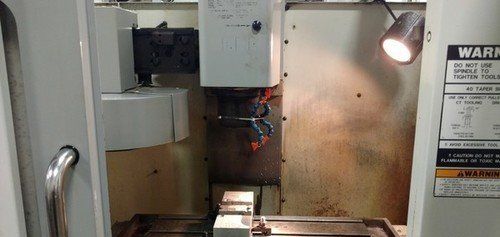

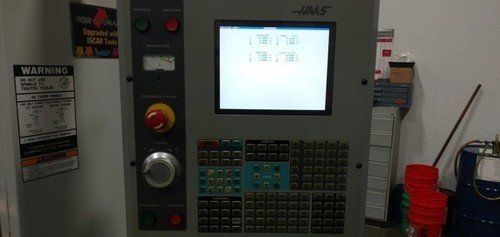

Size 36" x 12" Max Table Load 500 Lbs X Axis Travel 16" Y Axis Travel 12" Z Axis Travel 10" Spindle Nose to Table Top 4" - 14" Spindle Taper CT40 Spindle Motor 7.5 HP Spindle Speeds 6,000 RPM Rapid Traverse Rates 1,200 IPM Tool Stations 10 Machine Weight 3,400 Lbs Machine Dimensions 78"L x 80"W x 98"H Equipped With: Haas CNC Control 3.5" Floppy Drive Coolant Pump Kit Rigid Tap Work Light 10 Station ATC Auto Air Gun
