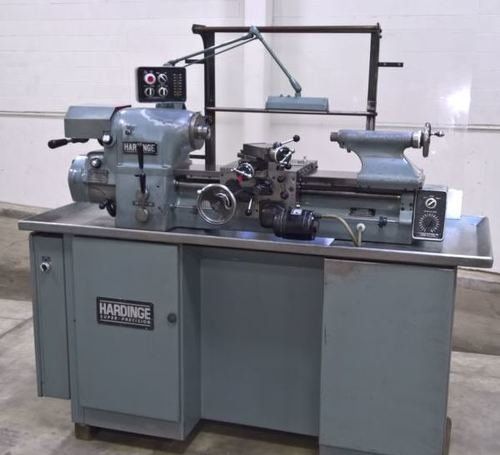

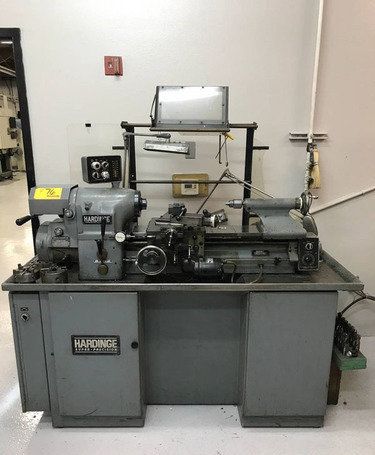

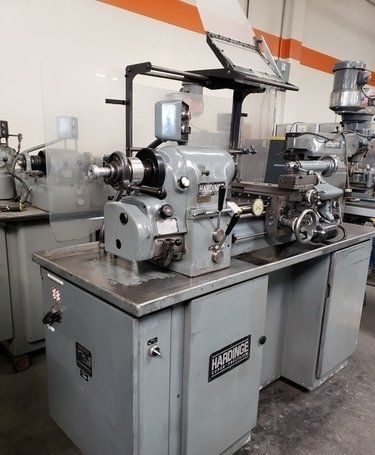

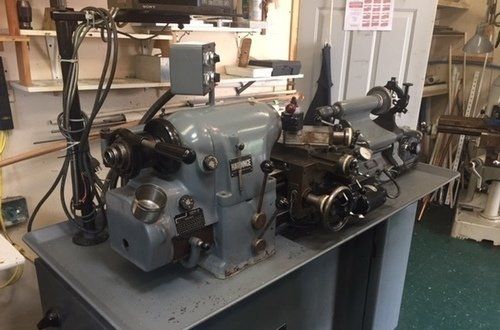

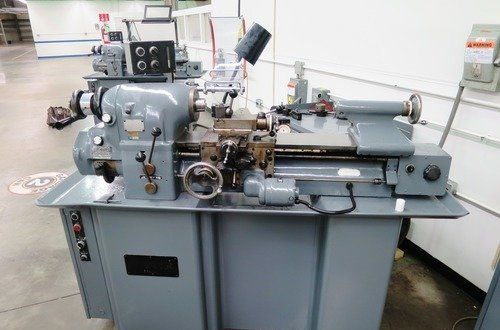

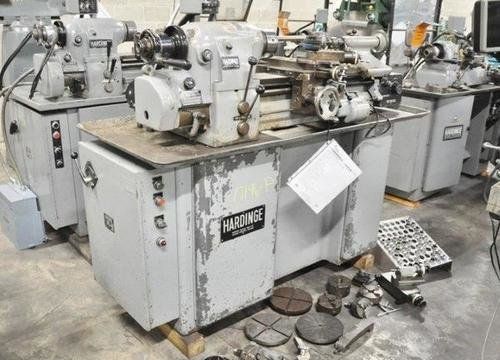

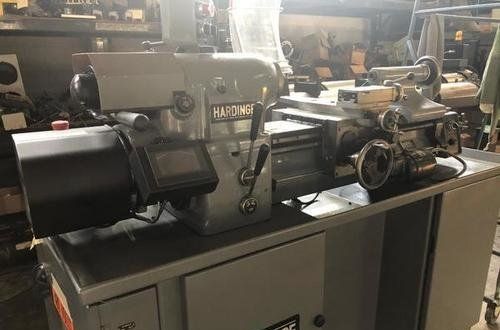

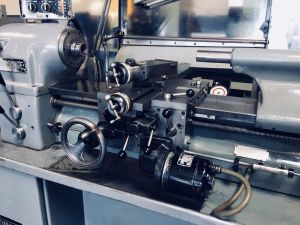

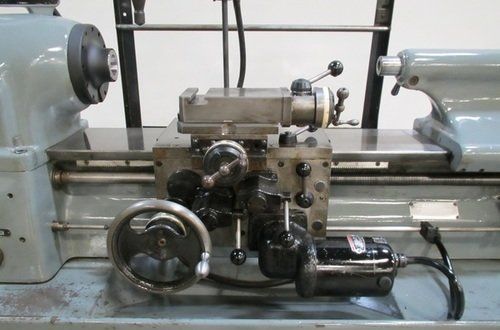

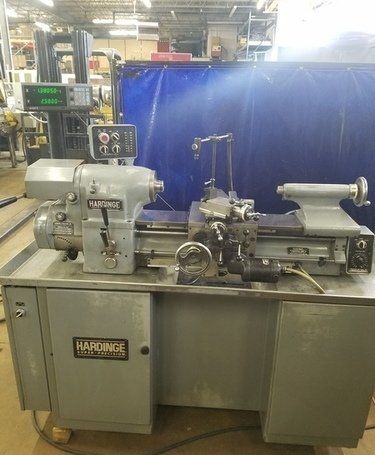

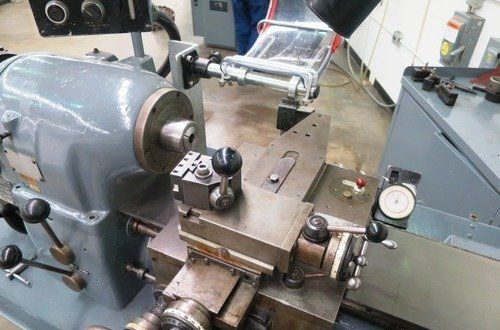

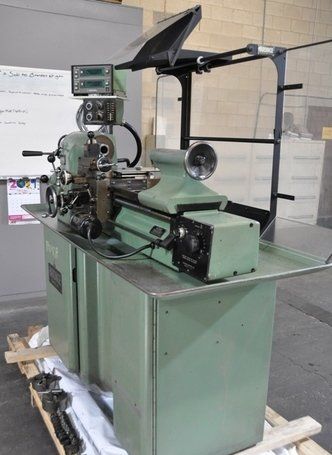

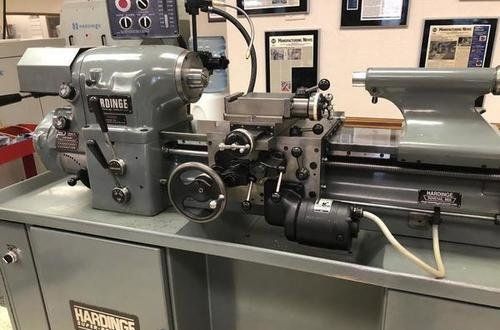

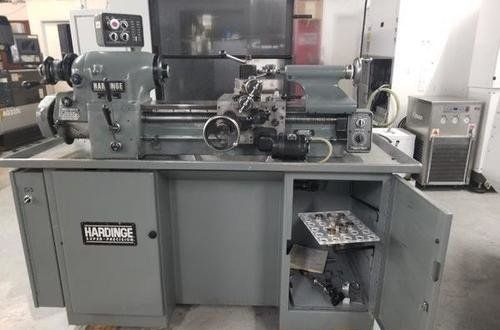

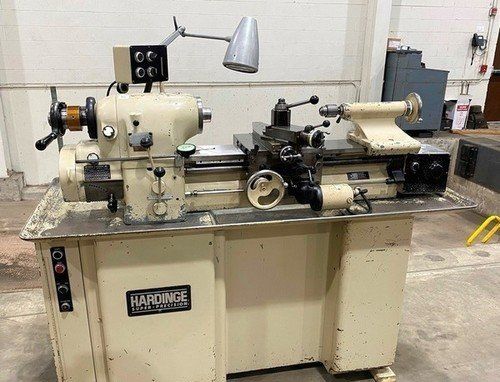

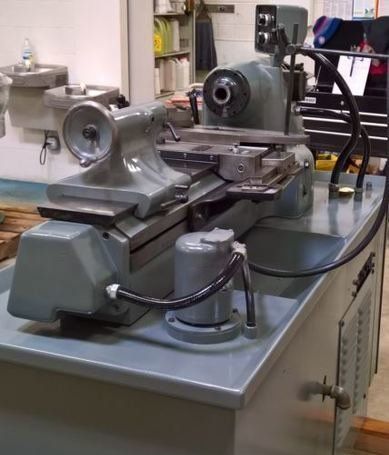

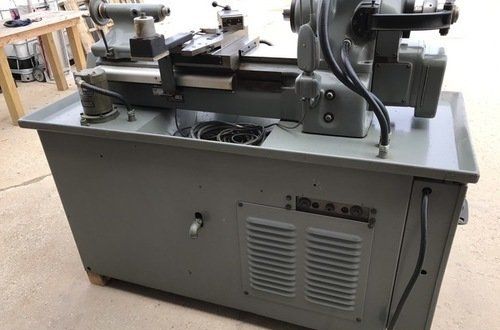

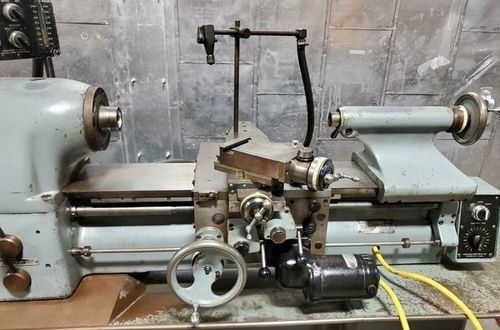

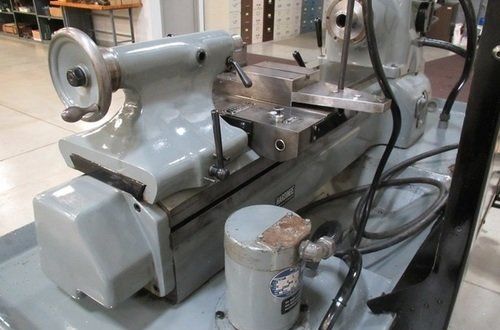

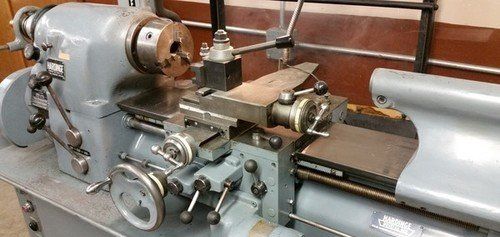

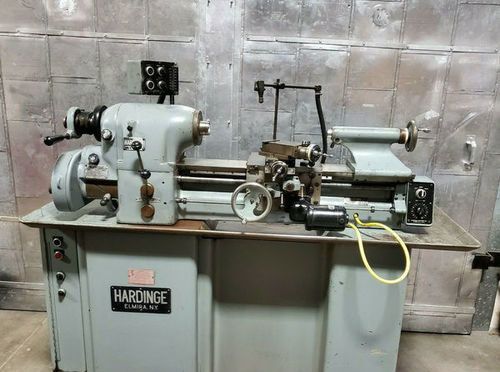

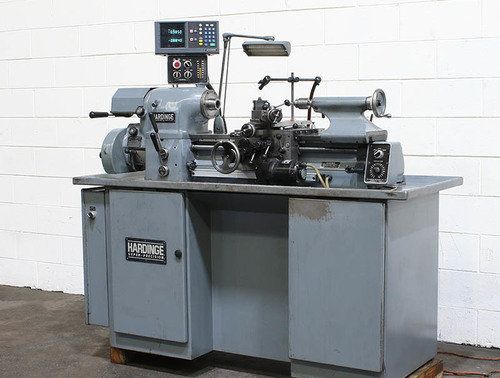

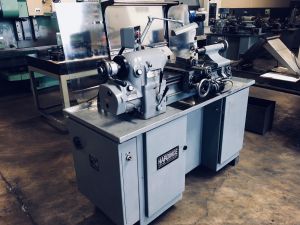

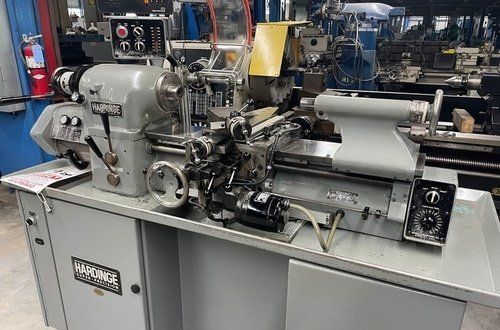

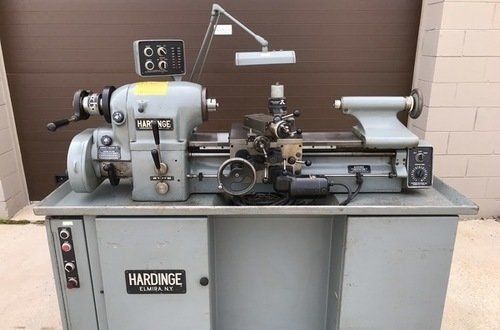

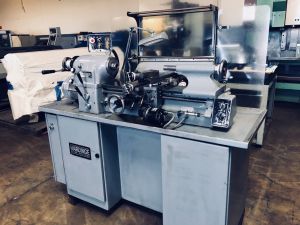

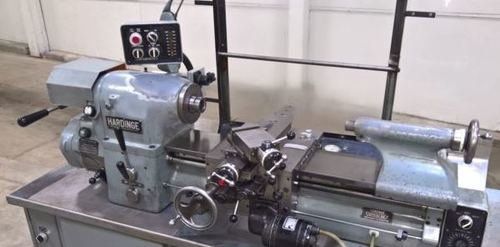

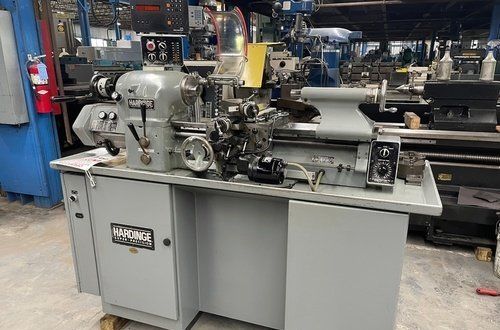

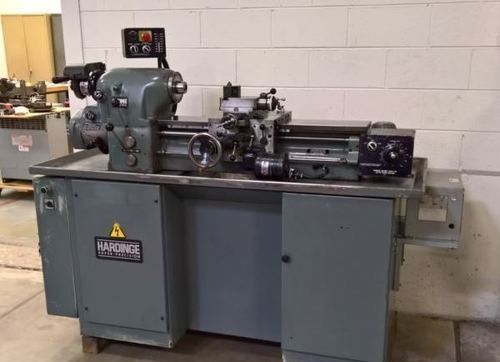

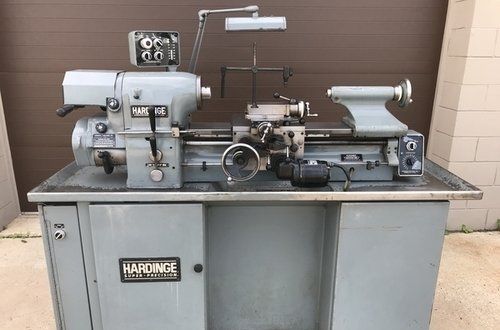

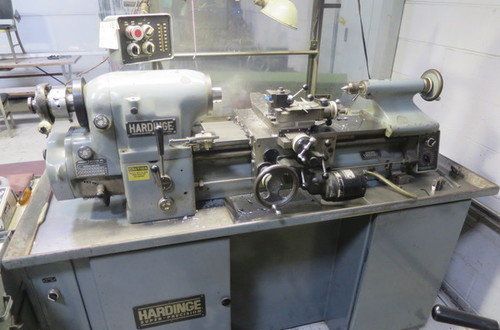

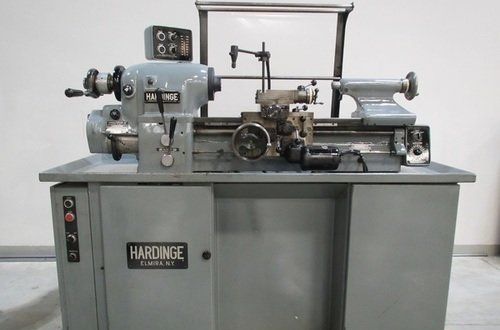

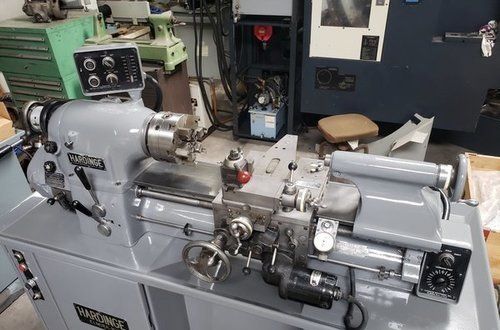

HARDINGE HLV-H TOOL ROOM LATHE

Specifications

ModelHLV-H
BrandHARDINGE
TypeCNC Lathes
Swing11 inch
MaxRPM3000 RPM
ChuckSize6 inch
Length72 inch
Width29 inch
Height62 inch
Weight1800 lbs
Tailstock5C
Power1 HP
catalogid3850
mfgHARDINGE
mpnHLV-H
titleHARDINGE HLV-H TOOL ROOM LATHE

Zero? Available Machines

Available Machine # Ez16543

  • Stock#:Ez16543
  • Price:$11,500
  • Year:1966
  • Region:Northeast
  • Condition:Used

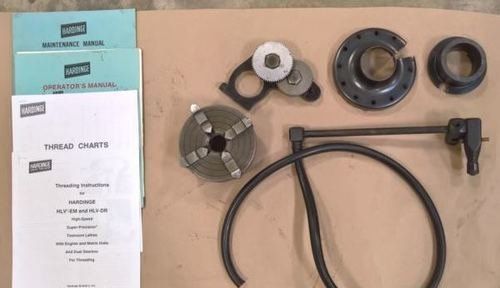

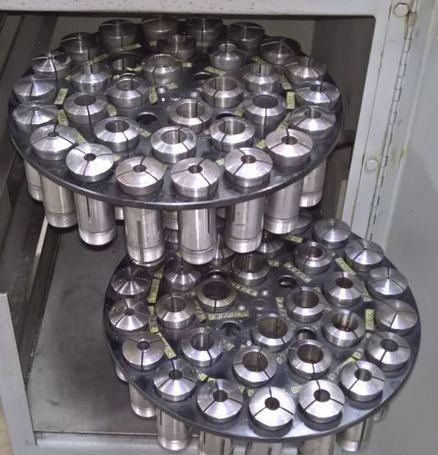

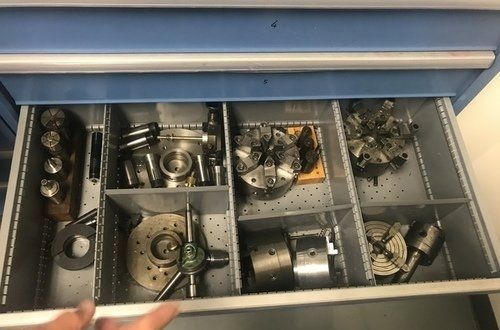

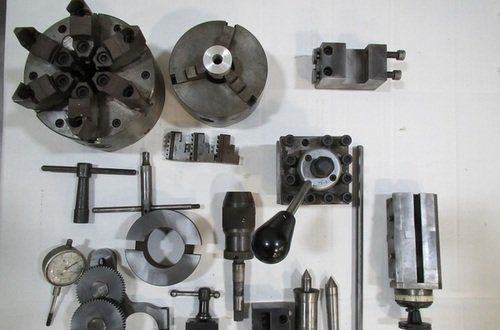

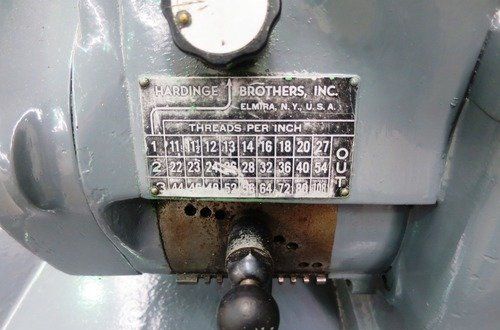

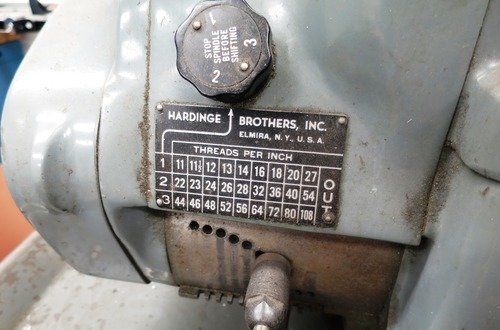

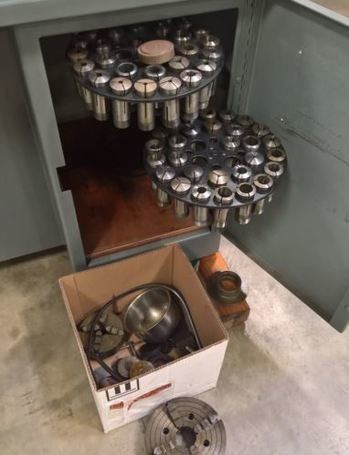

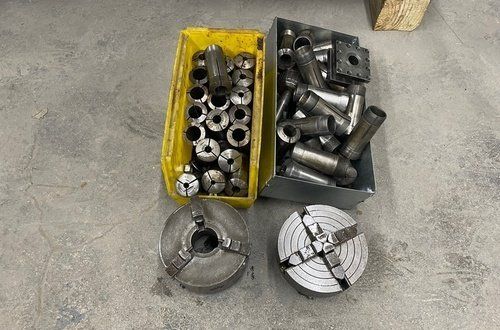

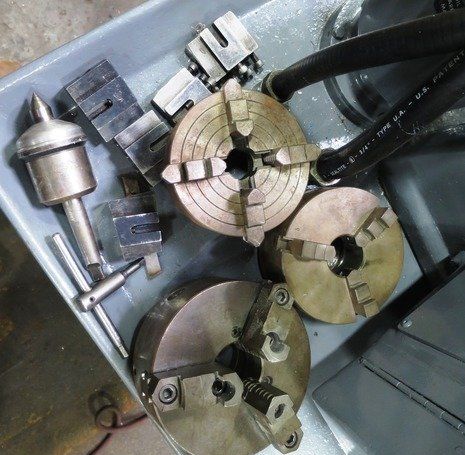

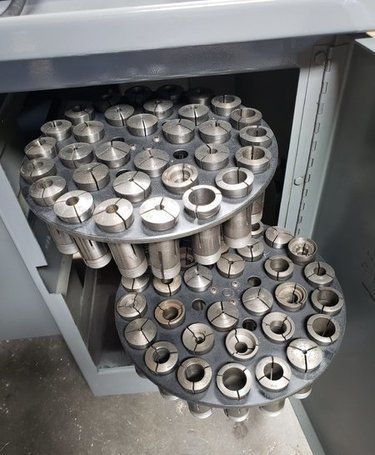

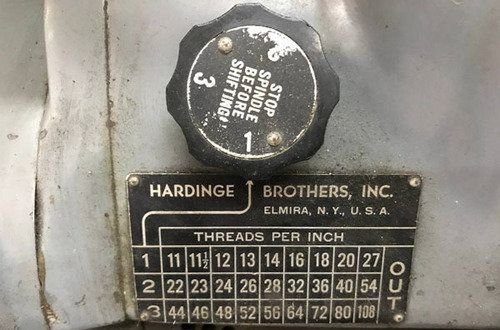

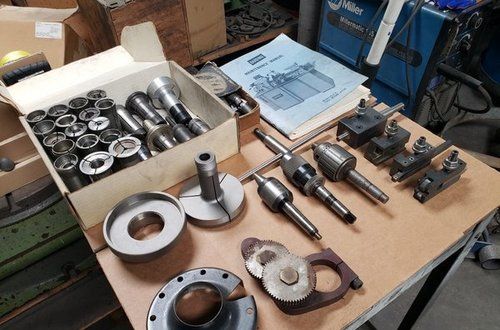

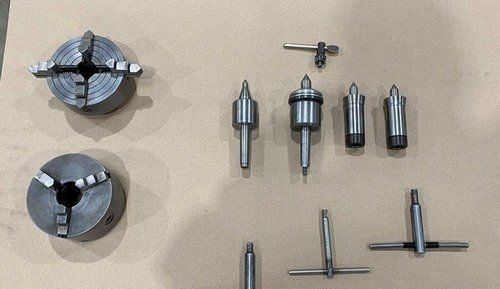

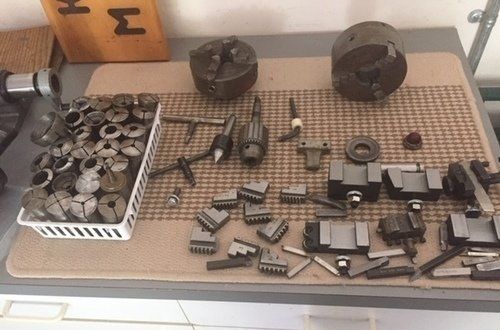

SPECIFICATIONS: Swing Over Bed: 11" Swing Over Carriage: 9" Swing Over Cross Slide: 6" Distance Between Centers: 18" Spindle Thru Hole: 1-1/4" Spindle Nose: Hardinge Taper Collet Capacity: 1-1/16" Maximum Spindle Speeds: 125 to 3000 RPM Compound Slide Travel: 3" Power Feed Range: 1/4" to 7" per Minute Tailstock Travel: 3-3/4" Taper in Tailstock: #2 Morse (27) Threads: 11 to 108 Threads per Inch EQUIPPED WITH: Quick Change Gear Box for Threading (no end quadrant gears) Collet Closure 4" 5C 4-Jaw Chuck, 4" 5C 3-Jaw Chuck 5" 3-Jaw Chuck, (2) 4" 4-Jaw Chucks (3) 9" Face Plates Radius Turning Attachment 4-Way Tool Post Quick Change Tool Post with Assorted Holders Assorted 5C Collets Taper Attachment 1-1/2 HP Main Motor, Wired for 3 Phase, 50 Cycle, 400/440 Volts Coolant Pump, Work Light 3 KVA, 60 Cycle Transformer for 240 Volt Operation (Small Enough to be Wall Mounted) Overall Size: 72" L-R x 30" F-B x 65" High


Available Machine # Ez14294

  • Stock#:Ez14294
  • Price:$17,500
  • Year:1981
  • Region:Northeast
  • Condition:Used

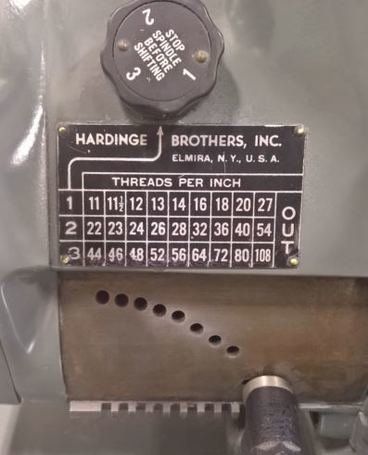

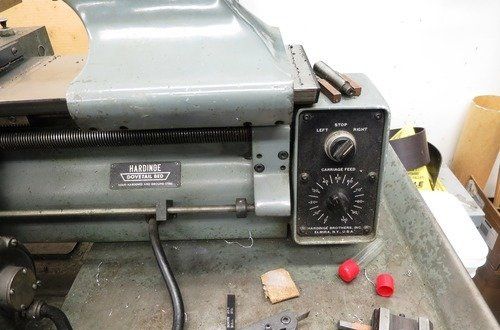

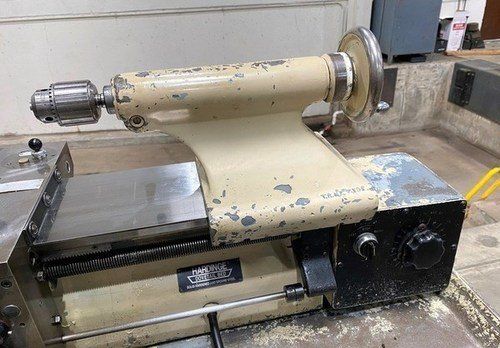

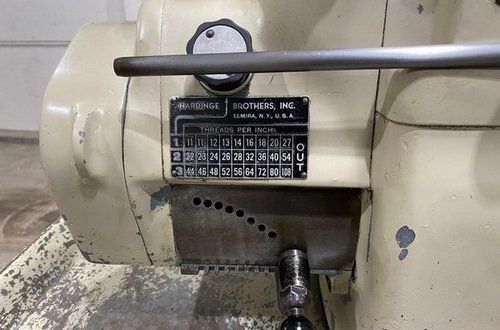

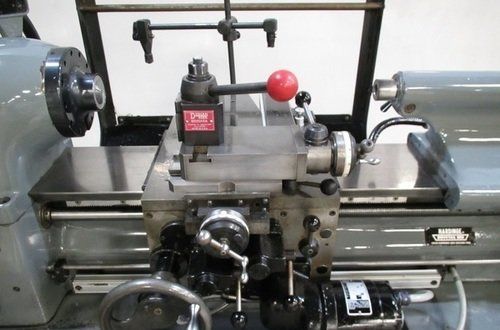

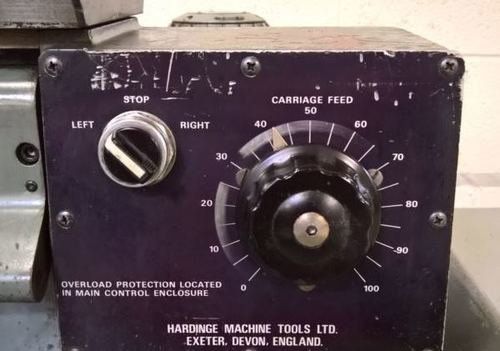

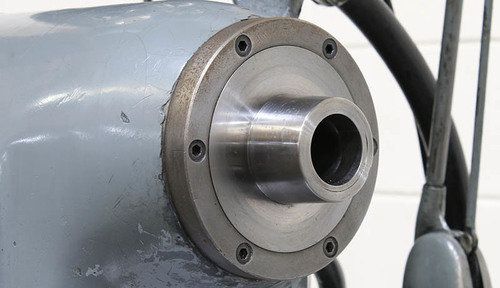

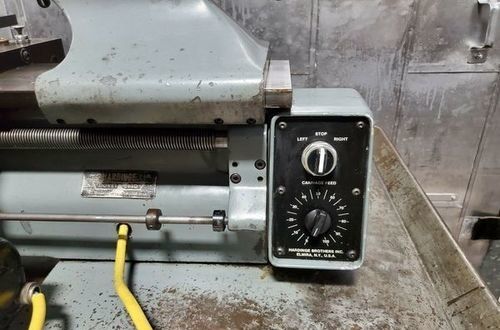

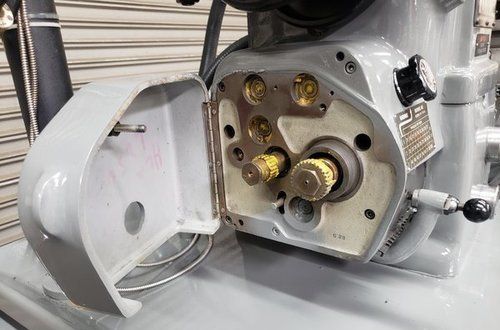

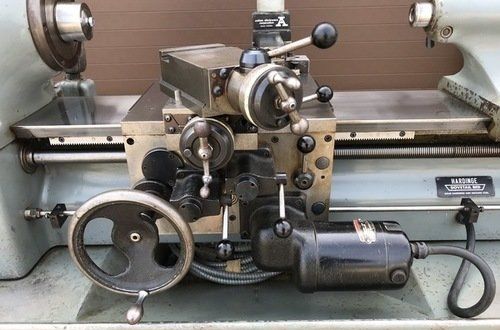

SPECIFICATIONS: Swing Over Bed: 11" Swing Over Carriage: 9" Swing Over Cross Slide: 6" Distance Between Centers: 18" Spindle Thru Hole: 1-1/4" Spindle Nose: Hardinge Tapered Spindle Speeds (Variable): 125 to 3000 RPM Spindle Construction: Preloaded Ball Bearing Compound Slide Travel: 3" Power Feed Range: 1/4 to 7 IPM Tailstock Diameter: 1-3/8" Tailstock Travel: 3-3/4" Lead Screw Diameter: 1" to 8" Thread Number of Threads: 27 Actual Threads Cut Through Gear Box: 11 to 108 Variable Speed Motor: 1 HP, 3 Phase, 230 Volts STANDARD FEATURES: Full Enclosed Headstock with Coolant Shield for Spindle Preloaded Ball Bearing Spindle Hardened & Precision Ground Taper Nose Spindle with 1-1/16" Collet Capacity Headstock Center & Drive Plate Ball Bearing Collet Closer Powerful Endless V-Belt Drive Quick Change Gear Box with (27) Changes for Precision Threading Only (5) Change Gears Completely Enclosed Carriage & Apron with Preloaded Bearings for Apron Pinion Gear Independent Electric Variable Power Feed Drive for Carriage & Cross Slide Finger Tip Snap-Up Clutches for Longitudinal & Cross Feed Preloaded Ball Bearing Lead Screw for Threading Only Automatic Lead Screw Stop with Fine Adjustable Stops Solid Hardened & Ground Steel Dovetail Bed Ways Full Bearing Tailstock with Male Center - #2 MT Built-In Coolant Facilities with Individual Motorized Pump EQUIPPED WITH: Collet Closer Wistler Magna Die Tailstock Hardinge L-18 Holder Collet Rack with Collets Work Light Coolant System Overall Dimensions: 72" L x 33" W x 60" H Approx. Weight: 1,700 Lbs.
