HARDINGE DV-59 SECOND OPERATION ENGINE LATHE

Specifications

ModelDV-59
BrandHARDINGE
TypeCNC Lathes
MaxRPM3500 RPM
Swing9 inch
Weight1550 lbs
Length67 inch
Width32 inch
Height57 inch
Power3 ph
catalogid3843
mfgHARDINGE
mpnDV-59
titleHARDINGE DV-59 SECOND OPERATION ENGINE LATHE

Zero? Available Machines

Available Machine # Ez10546

  • Stock#:Ez10546
  • Price:$3,600
  • Year:1950
  • Region:Northeast
  • Condition:Used
THREADED NOSE SPINDLE COMPOUND SLIDE REST LEVER 5C COLLET CLOSER TAILSTOCK WORKLIGHT


Available Machine # Ez10567

  • Stock#:Ez10567
  • Price:$5,940
  • Year:1953
  • Region:Northeast
  • Condition:Used

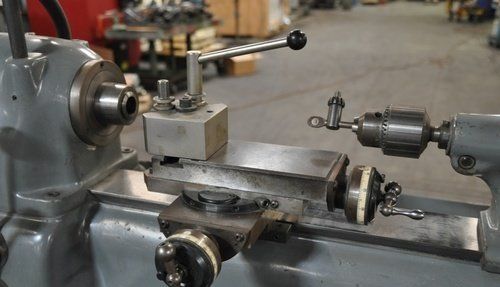

QUICK SLIDE WITH TOOL BLOCKS CAPSTAN TURRET TAILSTOCK X-Y COMPOUND SLIDE


Available Machine # Ez14298

  • Stock#:Ez14298
  • Price:$3,500
  • Year:1972
  • Region:Northeast
  • Condition:Used

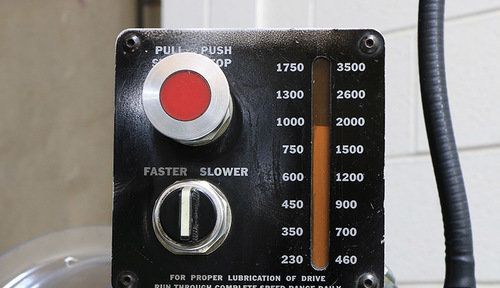

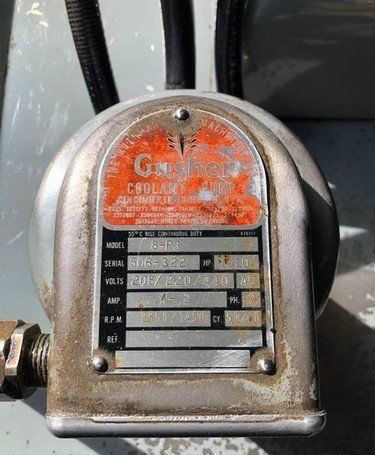

SPECIFICATIONS: Swing Over the Bed: 9" Bed Length: 30" Distance Between Centers: 17" Top Slide Travel: 4-1/4" Bottom Slide Travel: 5" Variable Spindle Speeds: 230 to 3500 RPM Diameter of Bed Turret Holes: 5/8" Hardinge Taper Spindle Nose with Internal Taper to Accept 5C Collets Spindle Hole: 1-1/4" Spindle Cap with Standard 5C Collets: 1-1/16" Round, 7/8" Hex., 3/4" Square EQUIPPED WITH: 2 Control Levers for: Start – Stop and Forward – Reverse Push Button Electric Variable Spindle Speed Change DV-59 Machine with DSM-59 Control System 6-Position Hardinge Bed Turret Attachment (1) Turret Box Tool and (1) Turret 1/2" Floating Holder Lever Type Collet Closer with (24) 5C Collets Spindle Nose Cover Guard Double Tool Quick Acting Cross Slide, 3-3/8" Wide x 12-3/4" Long (1) Adjustable Cross Slide Tool Holder Rear Mounted Chip Shield (Cracked and Broken in Places) 1/10 HP Coolant Pump, 208/220/440 Volts, 3 Phase 1 HP, 2-Speed Motor Wired for 3 Phase, 60 Hz, 230 Volts Only (2) 1 KVA Electrical Dry Type Transformers, 240/480 x 120/240 Overall Dimensions: 65" L x 29" W x 58" High (On 1-1/2" Blocks) Overall Weight: 1,000 Lbs.


Available Machine # Ez14299

  • Stock#:Ez14299
  • Price:$3,950
  • Year:1976
  • Region:Northeast
  • Condition:Used
SPECIFICATIONS: Swing Over the Bed: 9" Bed Length: 30" Distance Between Centers: 17" Top Slide Travel: 4-1/4" Bottom Slide Travel: 5" Variable Spindle Speeds: 230 to 3500 RPM Diameter of Bed Turret Holes: 5/8" Hardinge Taper Spindle Nose with Internal Taper to Accept 5C Collets Spindle Hole: 1-1/4" Spindle Cap with Standard 5C Collets: 1-1/16" Round, 7/8" Hex., 3/4" Square EQUIPPED WITH: 2 Control Levers for: Start – Stop and Forward – Reverse Push Button Electric Variable Spindle Speed Change DV-59 Machine with DSM-59 Control System 6-Position Hardinge Bed Turret Attachment (No Tooling) Lever Type Collet Closer with (8) 5C Collets Spindle Nose Cover Guard Double Tool Quick Acting Cross Slide, 3-3/8" Wide x 12-3/4" Long (1) Adjustable Cross Slide Tool Holder and (1) Cut Off Tool Holder Rear Mounted Chip Shield (Cracked and Broken in Places) 1/10 HP Coolant Pump, 208/220/440 Volts, 3 Phase 1 HP, 2-Speed Motor Wired for 3 Phase, 60 Hz, 230 Volts Only Overall Dimensions: 65" L x 29" W x 58" High (On 1-1/2" Blocks) Overall Weight: 1,000 Lbs.


Available Machine # Ez14300

  • Stock#:Ez14300
  • Price:$7,950
  • Year:1981
  • Region:Northeast
  • Condition:Used

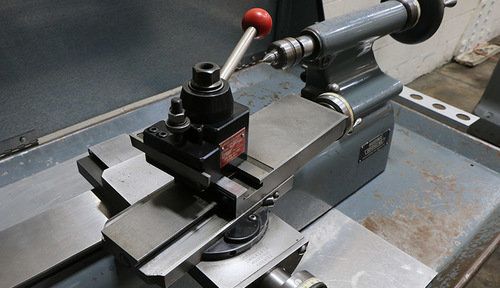

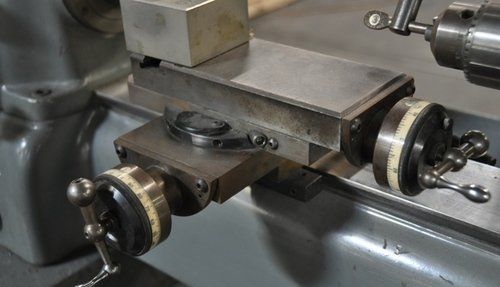

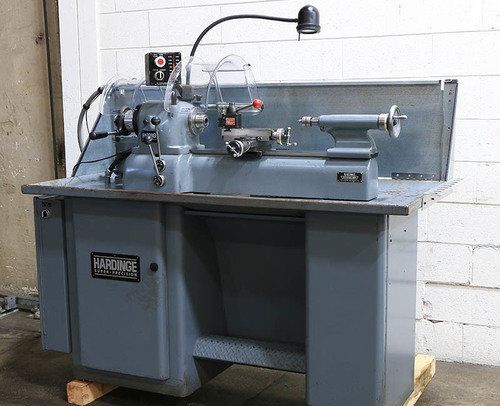

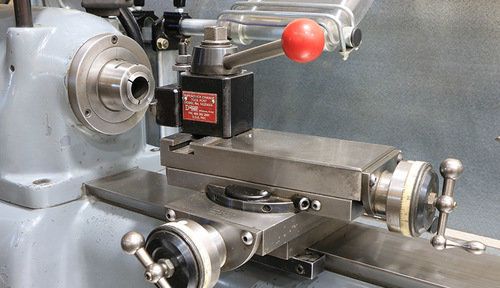

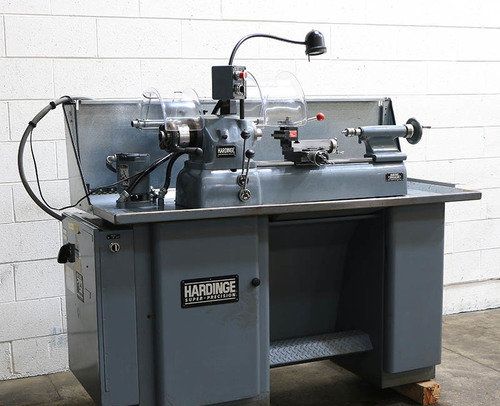

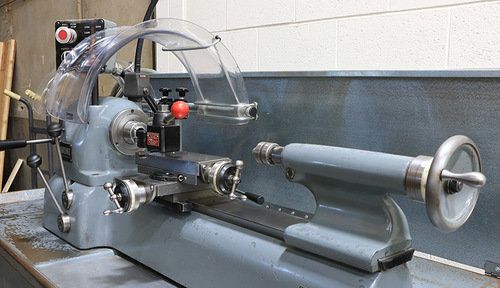

SPECIFICATIONS: Swing Over the Bed: 9" Bed Length: 30" Distance Between Centers: 17" Top Slide Travel: 4-1/4" Bottom Slide Travel: 5" Variable Spindle Speeds: 230 to 3500 RPM Hardinge Taper Spindle Nose with Internal Taper to Accept 5C Collets Spindle Hole: 1-1/4" Spindle Cap with Standard 5C Collets: 1-1/16" Round, 7/8" Hex., 3/4" Square EQUIPPED WITH: Hardinge X & Y Axis Precision Cross Slide, Model DSC 6-Position Hardinge Turret Attachment with Misc. Tooling Standard Tailstock with #2 MT Hardinge Quick Acting Cross Slide Hardinge Radius Turning Slide Quick Acting Top Slide Aloris Quick Change Toolpost with 1 Holder 3" Square Turret Toolpost Lever Type Collet Closer with 60 Hardinge 5C Collets 5" Hardinge Adjust-Tru 3-Jaw Chuck with External & Internal Gripping Jaws 3" Plain Steady Rest (2) 7" Face Plates Work Light Rear Mounted Chip Shield 3/4 HP, 2-Speed Motor, 3/60/230V Overall Dimensions: 67" L x 32" W x 60" H


Available Machine # Ez14297

  • Stock#:Ez14297
  • Price:$6,950
  • Year:1987
  • Region:Northeast
  • Condition:Used
SPECIFICATIONS: Swing Over Bed: 9" Bed Length: 28" Collet Capacity: 1-1/16" 5-C Round Collets Spindle Taper: Hardinge Taper (8) Spindle Speeds: 230 to 3900 RPM Travel of Cross Slide: 3-3/4" Travel of Turret Slide: 4" Diameter of Turret Holes: (5) 5/8" & (1) 1" 1 HP Motor, Wired 3 Phase, 230 Volts EQUIPPED WITH: Super Precision Spindle Bearings Lever Operated 5-C Collet Closer Cut-Off Slide Assorted Collets Hardinge Cabinet Stand Assorted Tooling
