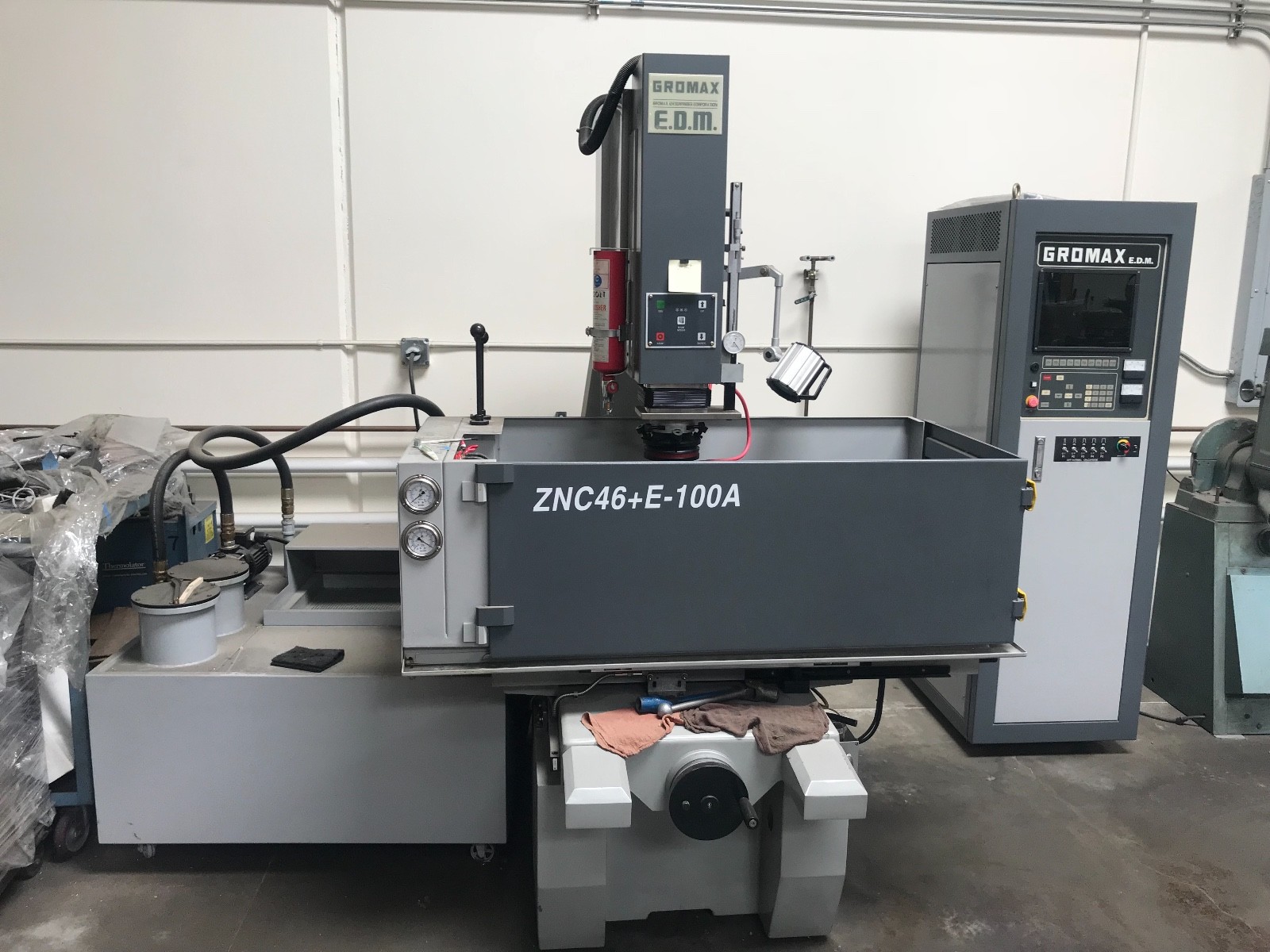

Gromax ZNC46-E100 EDM
Specifications
| Model | ZNC46-E100 |
| Brand | Gromax |
| Type | Vertical Machining Centers |
| Length | 35" |
| Width | 22" |
| Height | 79" |
| Weight | 3300 Lbs. |
| catalogid | 5641 |
| mfg | Gromax |
| mpn | ZNC46-E100 |
| title | Gromax ZNC46-E100 EDM |
| joinSig |
Zero? Available Machines
Available Machine # Ez19567 | |
| Dimensions: 27.6"x15.8" Longitudinal & Traversal Travel: 19.8"x16.0" Max. Work Piece (LxWxH): 35"x22"x16" Max. Work Piece WT: 3300 Lbs. WORK TANK Inside Dimensions: 45"x25"x16" WORK HEAD Backslide Travel: 15.5" Quill Travel: 7.25" Max. Distance Table Top to Electrode Plate Surface: 27.7" Max. Electrode Wt.: 440 Lbs. PACKING DIMENSIONS (LxWxH): 58"x57"x87" Net Weight: 3520 Lbs DIELECTRIC RESERVOIR Outside Dimensions (LxWxH): 36"x31"x27" Capacity: 79 Gal. Cartridge Filter: 2 Net Weight: 200 Lbs. Packing Dimensions (LxWxH): 44"x39"x35" GENERATOR: E100 Max. Machining: 100A Current Power Input: 10 KVA Practical Material Removal Rate w/o Wear: 0.5 In3/H Max. Material Removal Rate: 2.9 In3/H Max. Electrode Wear: 0.5% Best Surface Finishing U/Rmax: 0.3 Net Weight: 550 Lbs. Packing Dimensions: 47"x32"x79"
|
           | |
