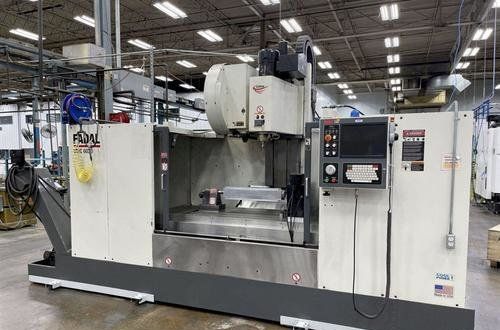

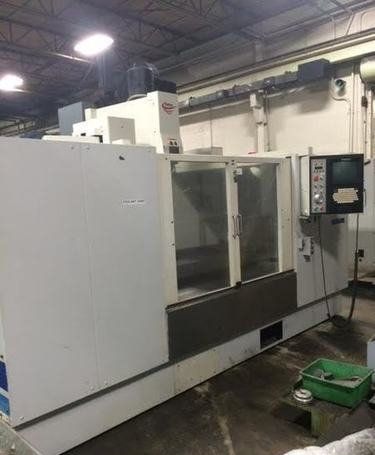

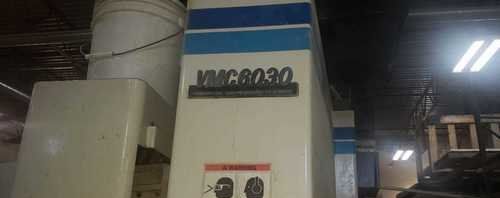

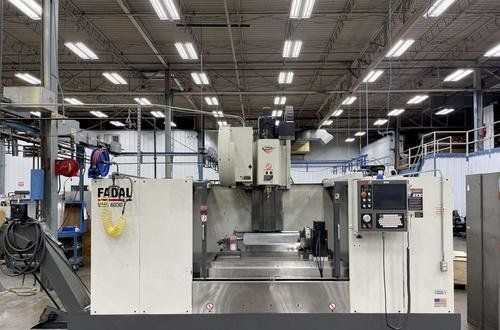

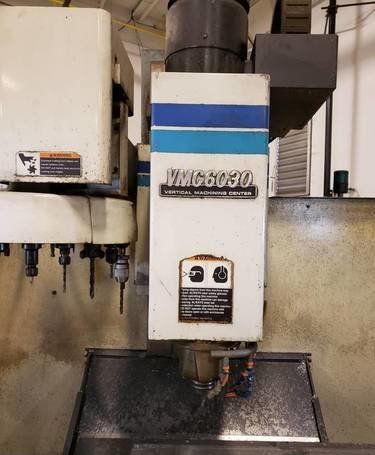

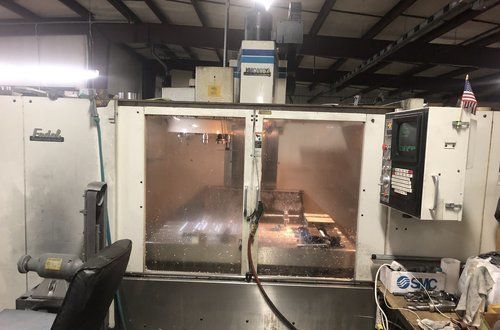

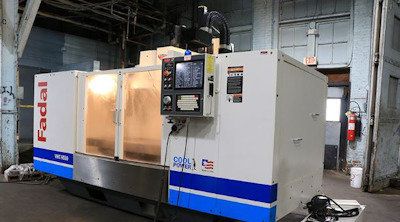

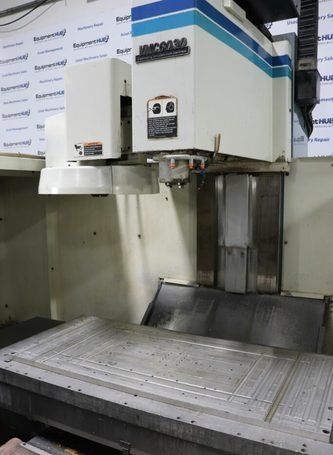

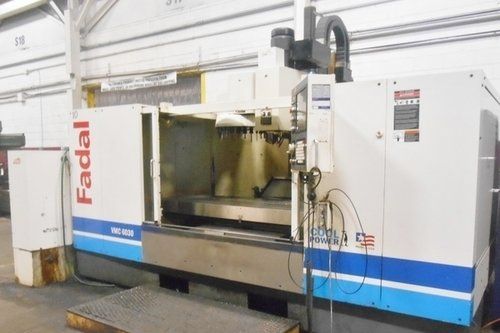

Fadal VMC-6030HT Vertical Machining Center

Specifications

ModelVMC-6030HT
BrandFADAL
TypeVertical Machining Centers

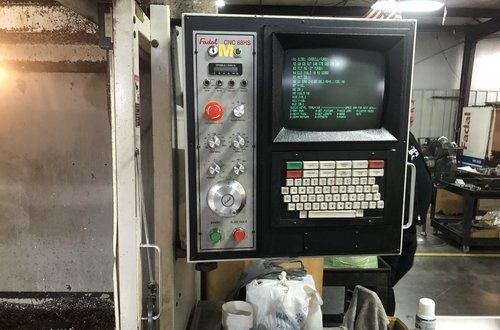

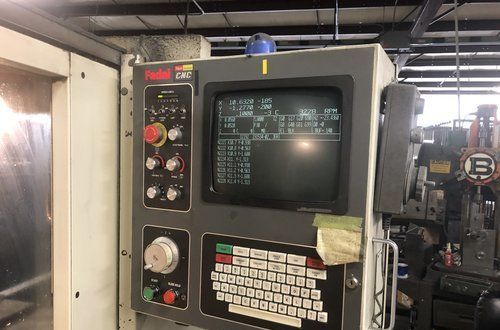

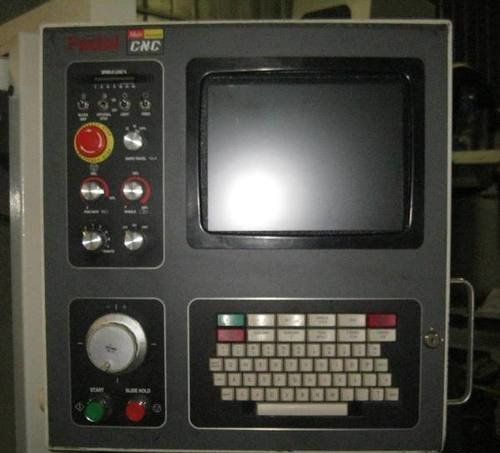

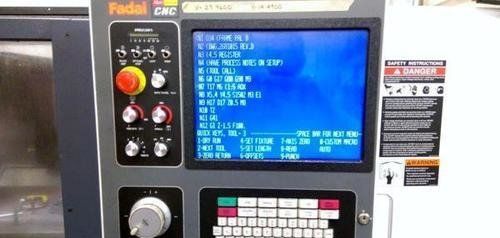

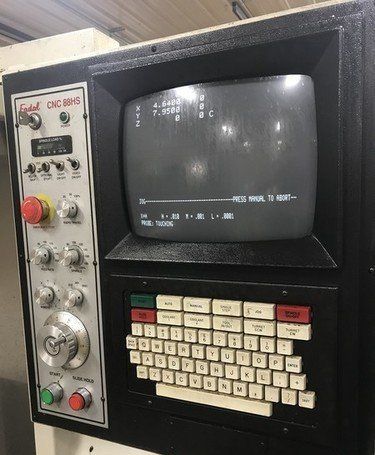

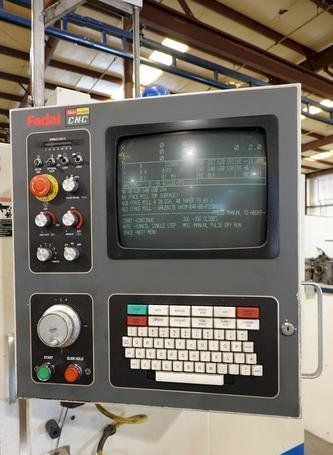

ControlCNC (FADAL 88HS)
X60 inch
Y30 inch
Z30 inch
Power22.5 HP
RPM10,000 RPM

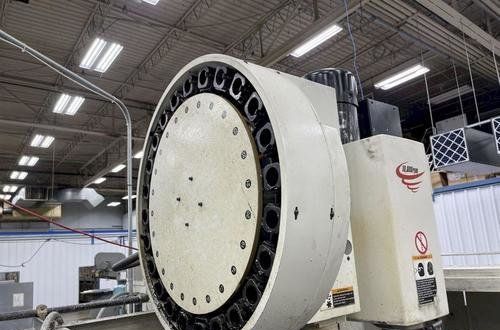

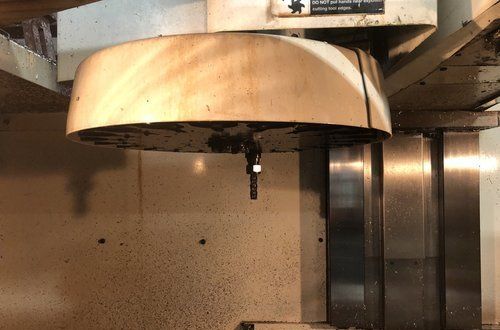

ATC21

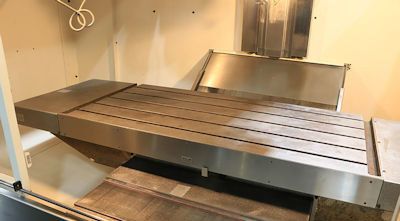

TableW30 inch
TableL62.5 inch
TaperCAT-40
Axis3
Weight17,000 lbs.
Length159 inch
Width118 inch
Height128 inch
catalogid323
mfgFADAL
mpnVMC-6030HT
titleFadal VMC-6030HT Vertical Machining Center

Zero? Available Machines

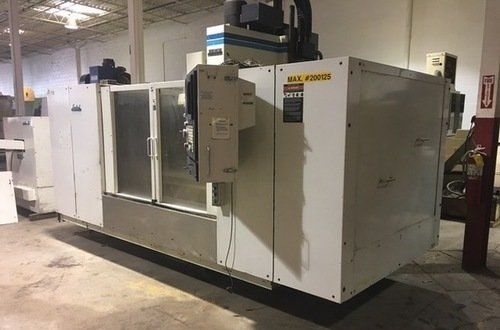

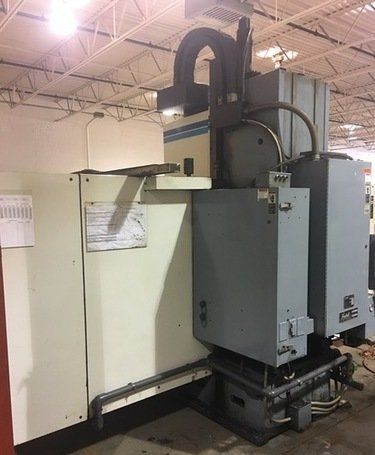

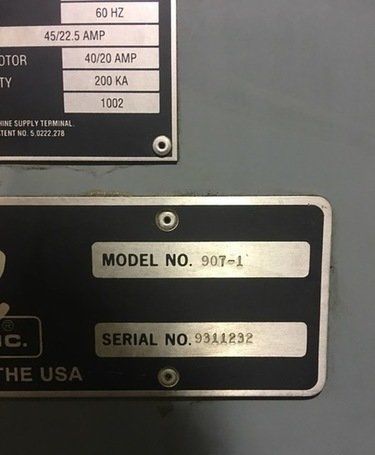

Available Machine # Ez14345

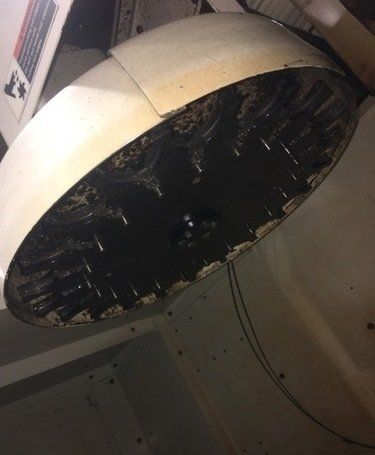

  • Stock#:Ez14345
  • Price:$24,000
  • Year:1993
  • Region:Midwest
  • Condition:Used
X 60 " Y 30 " Z 30 " # ATC 21 Table-W 31 " Table-L 62.5 " Taper CAT-40 # Axis 3 Dimensions 158"L x 103"W x 122"H Weight 17000 (LBS) Control CNC (FADAL CNC 32MP)


Available Machine # Ez16457

  • Stock#:Ez16457
  • Price:$24,500
  • Year:1994
  • Region:Midwest
  • Condition:Used

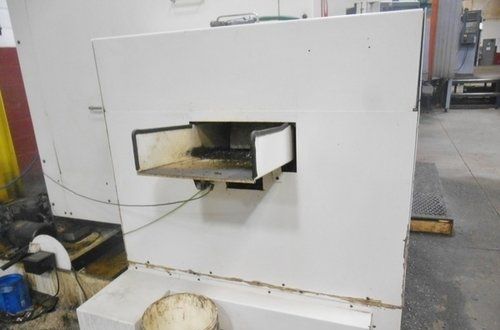

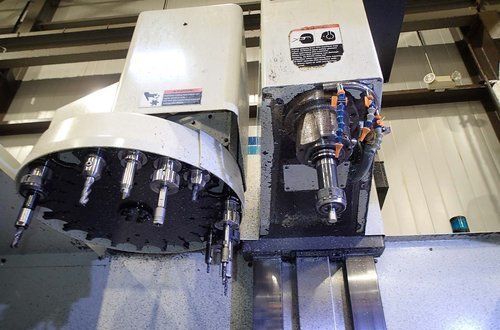

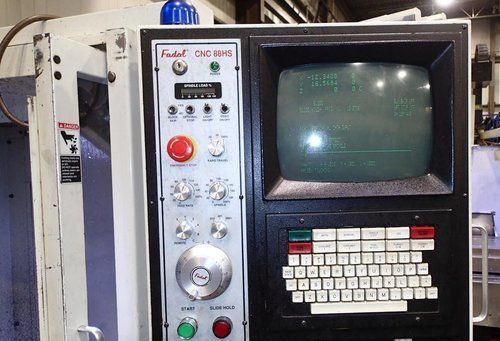

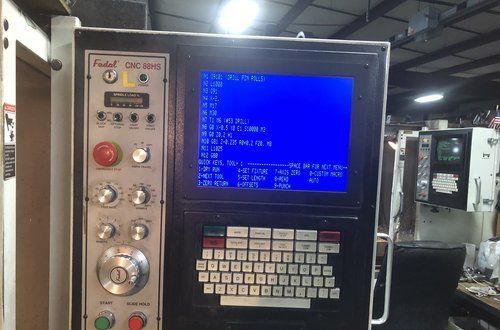

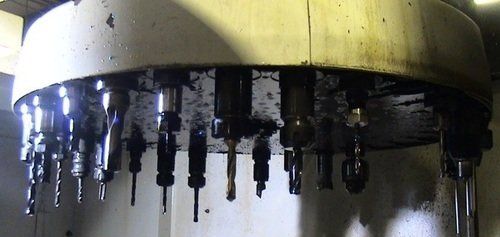

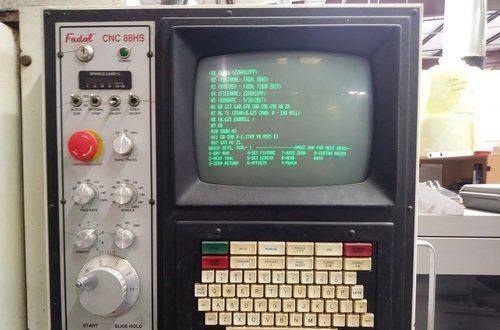

Specifications: Table Size 62.5" x 30" Table Load 4,120 Lbs X-Axis Travels 60" Y-Axis Travels 30" Z-Axis Travels 30" Spindle Speed 10,000 RPM Spindle Motor 22.5 HP Spindle Taper CAT40 Tool Changer Type Umbrella Tool Changer Stations 21 Position Dimensions: Legnth x Width x Height 158" x 103" x 122" Weight 17,000 Lbs Equipped With: Fadal 88HS CNC Control 10,000 RPM High Torque Motor Chip Conveyor Rigid Tapping Upgraded Drive Motor


Available Machine # Ez19031

  • Stock#:Ez19031
  • Price:$39,500
  • Year:2006
  • Region:West
  • Condition:Used

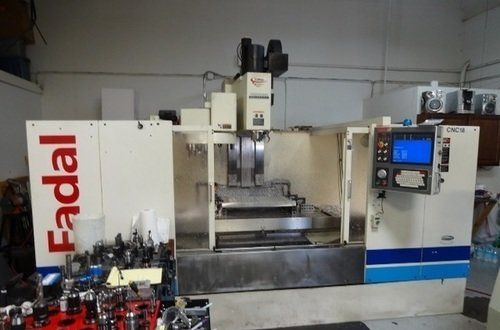

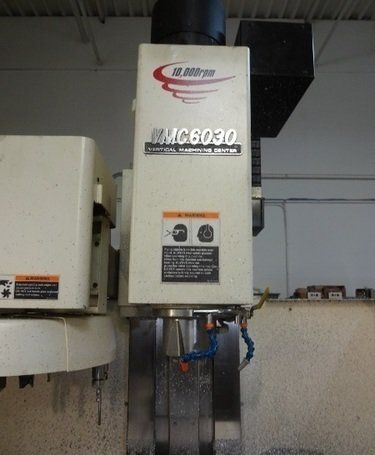

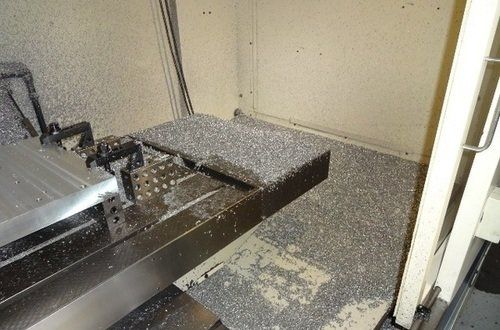

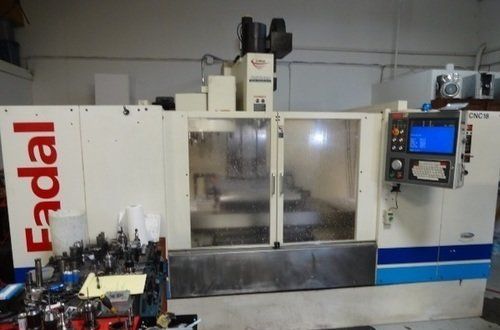

Available Machine # Ez13885

  • Stock#:Ez13885
  • Price:Call
  • Year:2012
  • Region:South
  • Condition:Used

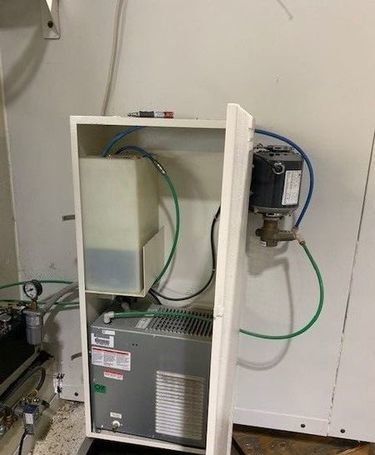

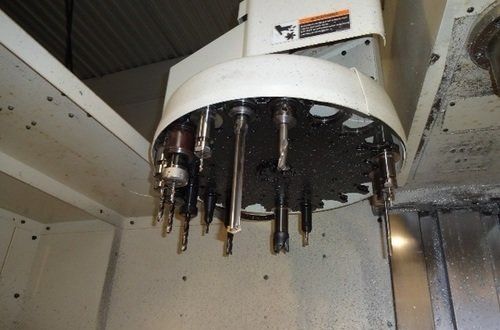

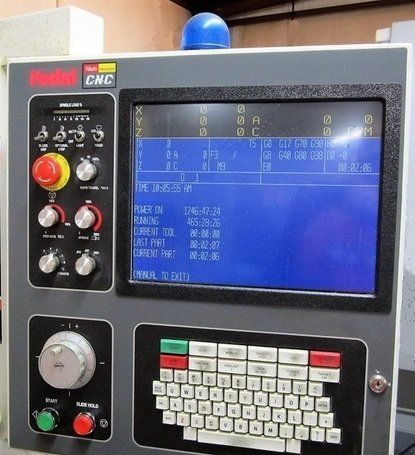

Travel: X-Axis 60" Y-Axis 30" Z-Axis 30" Table Size 62.5" x 30" Spindle Speed 40 - 10,000 RPM Spindle Taper Cat 40 Spindle Nose to Table Top 5" - 35.5" Spindle Motor 22.5 / 15 HP Tools 21 Table Load Capacity 4120 lbs. Rapid Traverse Rates 400 IPM Max Tool Diameter 3" / 6" Max Tool Length 15" Max Tool Weight 15 lbs. Machine Dimensions (L x W x H) 163" x 132" x 127" Machine Weight 17,000 lbs. FEATURES: FADAL MULTI-PROCESSOR CNC CONTROL 14" Color LCD USB Port 22.5 HP High Torque Spindle Motor 10,000 RPM Spindle Speed Fourth & Fifth Axis Interface Rigid Tapping Cool Power with Chilled Ballscrews High Torque Spindle Motor Chip Conveyor (Left Side Exit) Coolant Washdown Remote Manual Pulse Generator Blue Operating Condition Light Brushless AC Servo Motors Heavy Duty Box Way Construction Remanufactured in 2012 by Wesco Machinery


Available Machine # Ez19202

  • Stock#:Ez19202
  • Price:$10,001
  • Year:N/A
  • Region:West
  • Condition:Used
