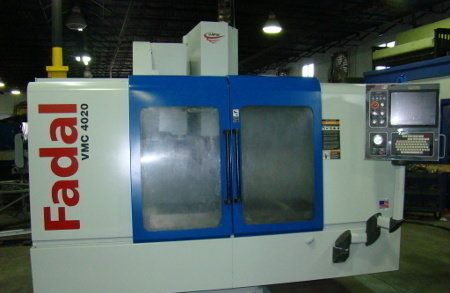

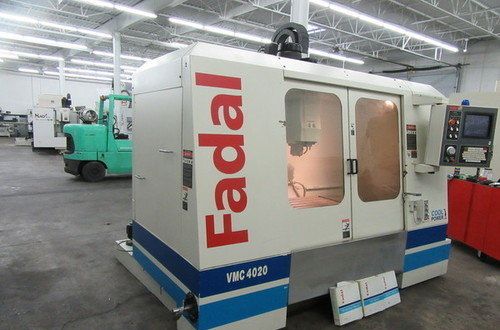

Fadal VMC-4020 906-1 Vertical Machining Center

Specifications

ModelVMC-4020
BrandFADAL
TypeVertical Machining Centers
ControlCNC (FADAL 88HS)
X40 inch
Y20 inch
Z20 inch
Power20 HP
RPM10,000 RPM
ATC21
TableW20 inch
TableL48 inch
TaperCAT-40
Axis3
Weight10,100 lbs.
Length116 inch
Width87 inch
Height95 inch
catalogid313
mfgFADAL
mpnVMC-4020
titleFadal VMC-4020 906-1 Vertical Machining Center

Zero? Available Machines

Available Machine # Ez18956

  • Stock#:Ez18956
  • Price:Call
  • Year:1993
  • Region:South
  • Condition:Used

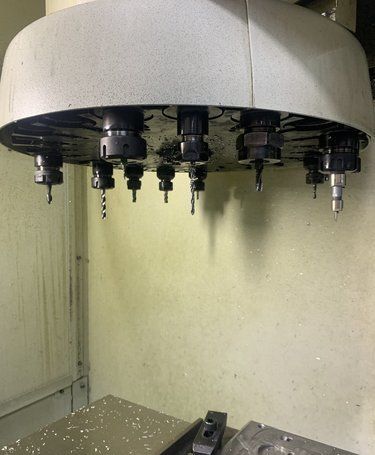

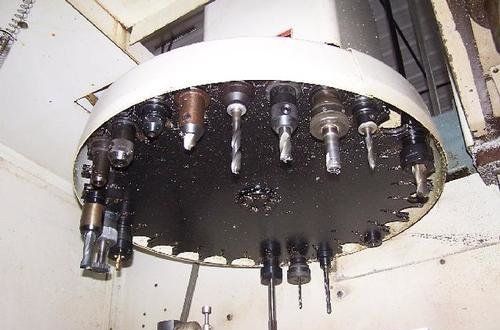

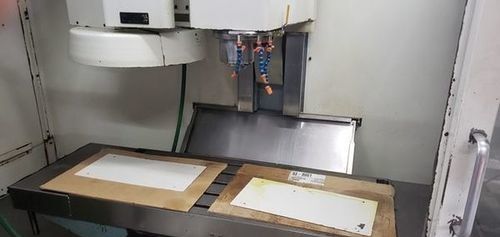

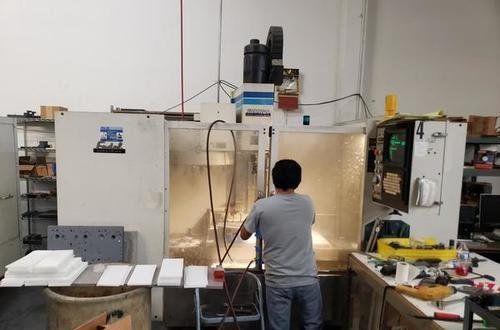

FADAL VMC-4020 CNC MACHINING CENTER, 10,000 RPM, BOX WAYS, THIS MACHINE CUT PLASTIC 90% OF THE TIME Control CNC (FADAL 88HS) FADAL VMC-4020 CNC MACHINING CENTER THIS MACHINE CUT PLASTIC 90% OF THE TIME INSTALLED NEW IN 1993 X, Y, Z TRAVELS - 40” X 20” X 20” TABLE SIZE - 48” X 20” SPINDLE NOSE TO TABLE TOP - 4” TO 24” TABLE LOAD CAPACITY - 1,500 LBS HORSEPOWER - 15 HP SPINDLE TAPER - CAT #40 RPM RANGE - 10,000 RPM TOOL CHANGER CAPACITY - 21, UMBRELLA WAY CONSTUCTION - BOX WAYS RAPID RATES FOR X&Y/Z - 700/600 IPM CNC CONTROL - FADAL CNC 88HS RIGID TAPPING MACHINE DIMENSIONS - 116” X 87” X 95” H APPROXIMATE WEIGHT - 10,500 LBS ALL SPECIFICATIONS ARE CORRECT TO THE BEST KNOWLEDGE OF THE SELLER BUT ARE NOT GUARANTEED. BUYERS ARE ENCOURAGED TO CHECK IMPORTANT CHARACTERISTICS.


Available Machine # Ez18748

  • Stock#:Ez18748
  • Price:$14,500
  • Year:1994
  • Region:South
  • Condition:Used

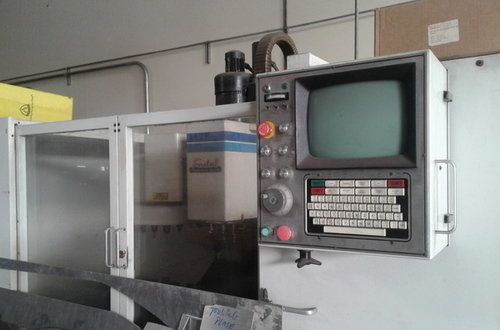

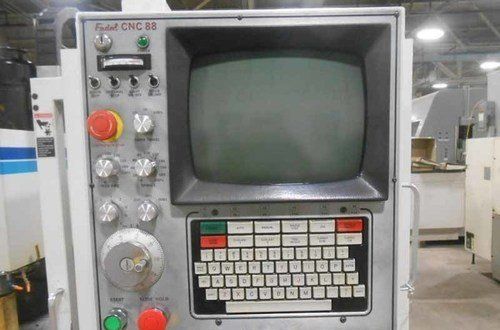

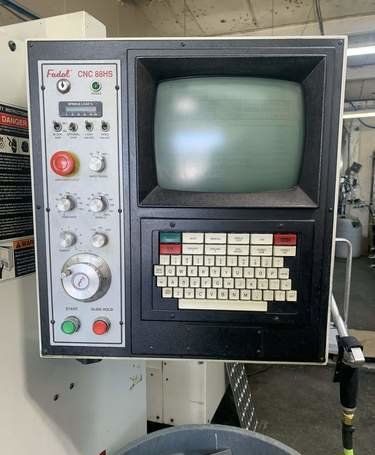

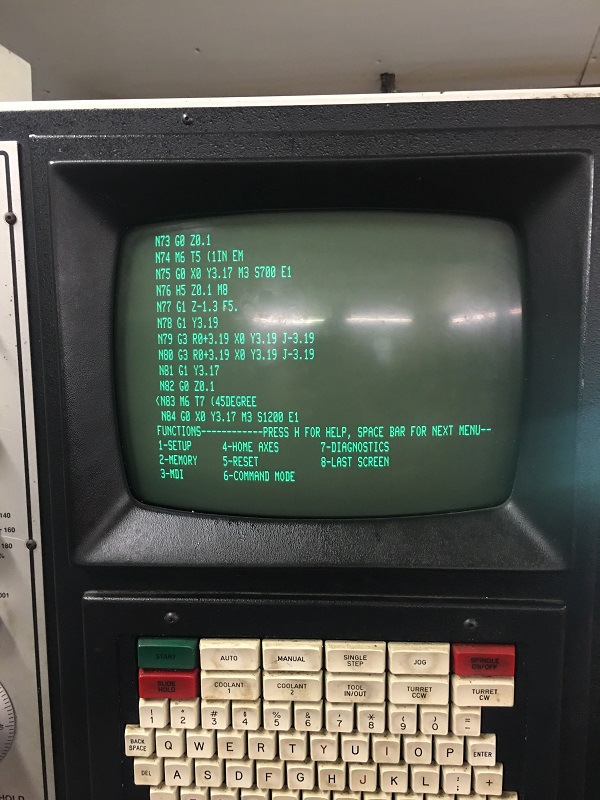

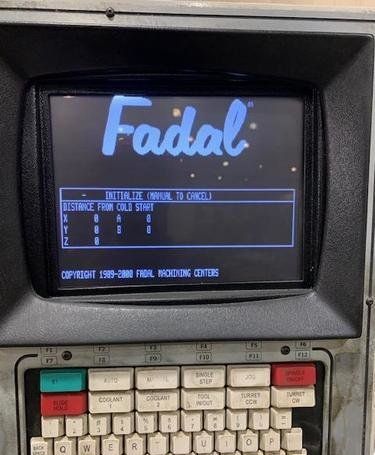

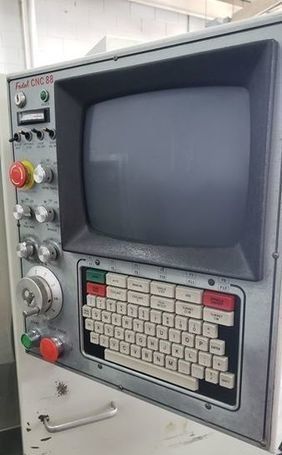

FADAL CNC 88 HS Control 9" Monocrhome CRT Box Way Construction Alpha Numeric Keyboard Full Enclosure

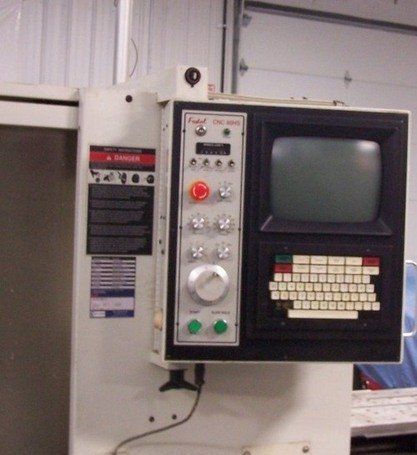

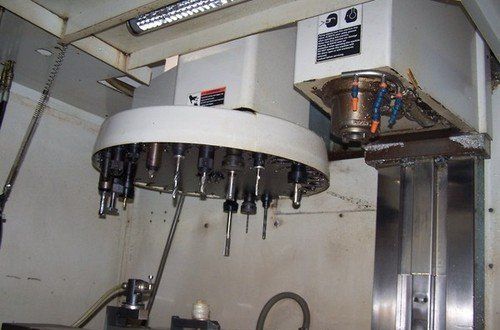

Available Machine # Ez188

  • Stock#:Ez188
  • Price:$31,500
  • Year:1995
  • Region:Midwest
  • Condition:Used

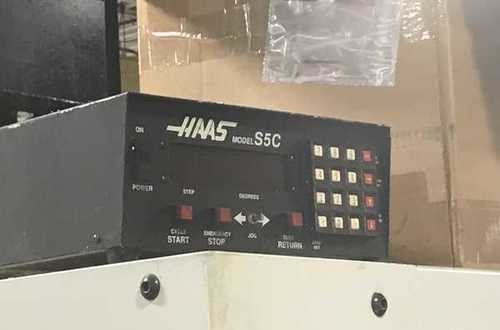

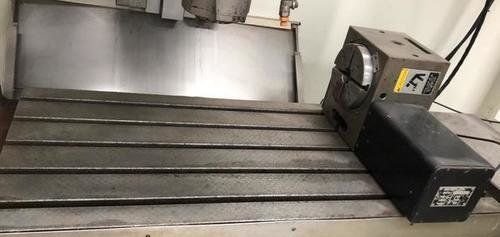

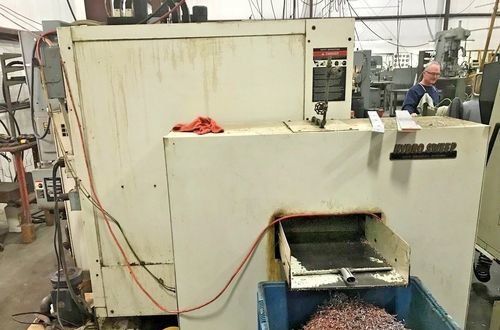

Equipped With FADAL 88HS CNC CONTROL TS-27 PROBE THROUGH SPINDLE COOLANT HYDRO SWEEP PALLET CHANGER RIGID TAPPING HIGH SPEED CPU METRIC BALL SCREWS 5C INDEXER INTERFACE 5TH AXIS PREWIRE AVAILABLE MANUALS

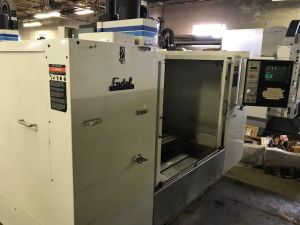

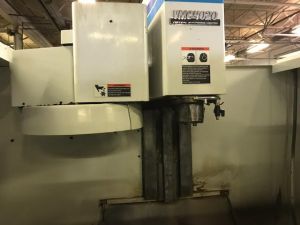

Available Machine # Ez13028

  • Stock#:Ez13028
  • Price:$17,000
  • Year:1995
  • Region:Midwest
  • Condition:Used

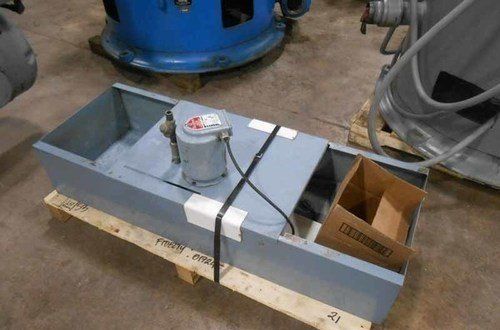

Equipped with CNC-88HS Control Coolant Tank With Extended 28" Z"


Available Machine # Ez19079

  • Stock#:Ez19079
  • Price:Call
  • Year:1996
  • Region:Midwest
  • Condition:Used

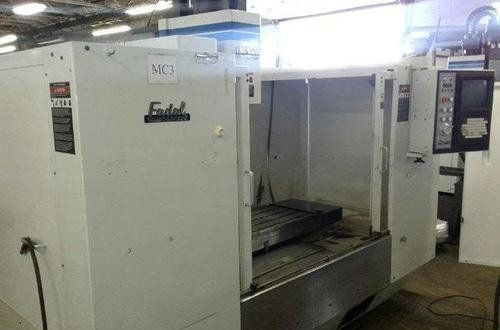

Available Machine # Ez12549

  • Stock#:Ez12549
  • Price:Call
  • Year:1996
  • Region:Midwest
  • Condition:Used
Table Size: 47.94” x 20” Rapid Traverse Rate (X/Y): 700 in/min Rapid Traverse Rate (Z): 600 in/min Cutting Feedrate (X/Y/Z): 375 in/min ATC Capacity: 21 Spindle Taper: CAT 40 Spindle Power: 15 HP Axes Travel (X/Y/Z): 40/20/20 Spindle Speed: 10,000 RPM Dimensions (Width x Depth): 116” x 87” • CNC-88HS Control • Coolant Tank


Available Machine # Ez18572

  • Stock#:Ez18572
  • Price:$31,000
  • Year:2001
  • Region:West
  • Condition:Used

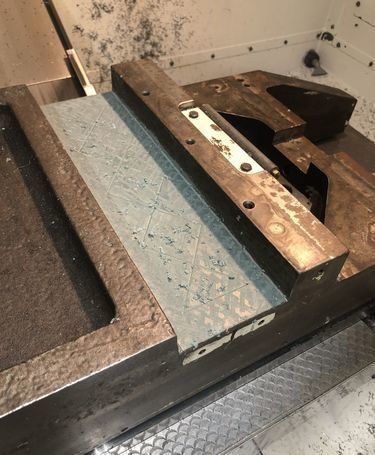

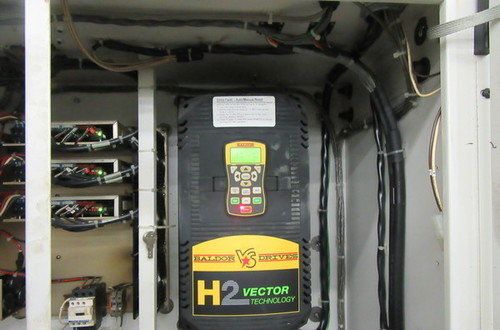

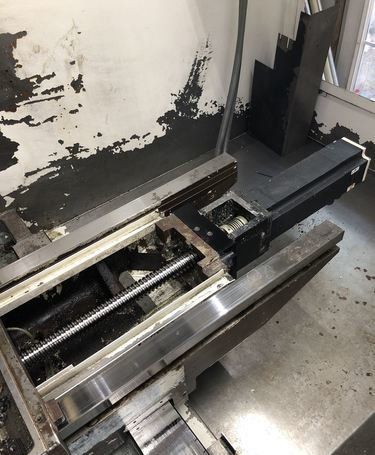

TABLE SIZE: 48" X 20" X Axis Travel: 40" Y Axis Travel: 20" Extended Z Axis Travel: 28" Spindle Speed: 10,000 Rpm Spindle Motor: 15 Hp Spindle Taper: Cat 40 Tool Changer Capacity: 21 Tools Spindle Nose To Table: 4”-24" Table Load Capacity: 1,500 Lbs Rapid Traverse Rate: 700 Ipm (X/Y) / 600 Ipm (Z) Machine Dimensions: 87" X 116" X 95" Machine Weight: 12,500 Lbs Complete with: New Turcite X,Y,Z New Gibs & Straps X,Y,Z New Spindle Motor 15 HP Rebuilt Ballscrews New Thrust Bearings X,Y,Z New X Axis Way Covers New Y Axis Rear Way Covers Rebuilt X,Y,Z Axis Motors New Invetor Newer Flood Pump New Powder Coat Painting & Decals Wired For 480 Volt


Available Machine # Ez19123

  • Stock#:Ez19123
  • Price:$24,000
  • Year:2001
  • Region:West
  • Condition:Used
TABLE SIZE: 48" X 20" X Axis Travel: 40" Y Axis Travel: 20" Z Axis Travel: 20" Spindle Speed: 10,000 Rpm Spindle Motor: 15 Hp Spindle Taper: Cat 40 Tool Changer Capacity: 21 Tools Spindle Nose To Table: 4”-24" Table Load Capacity: 1,500 Lbs Rapid Traverse Rate: 700 Ipm (X/Y) / 600 Ipm (Z) Machine Dimensions: 87" X 116" X 95" Machine Weight: 12,500 Lbs


Available Machine # Ez7931

  • Stock#:Ez7931
  • Price:Call
  • Year:2001
  • Region:South
  • Condition:Used

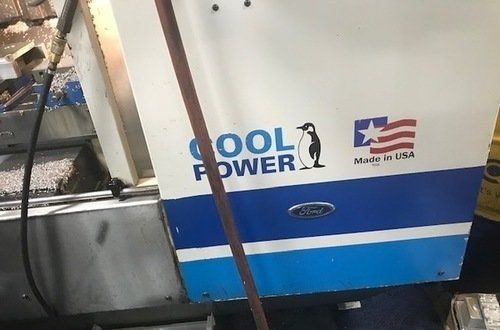

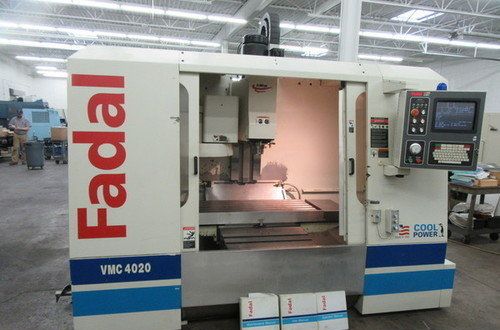

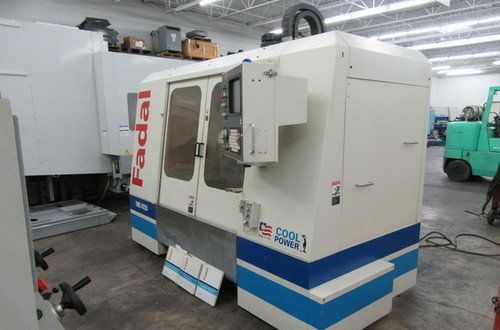

FEATURES: FADAL MICRO PROCESSOR CNC CONTROL 12" Monochrome CRT Graphic Display Blue Condition Light Cool Power with Chilled Ballscrews Heavy Duty Box Way Construction

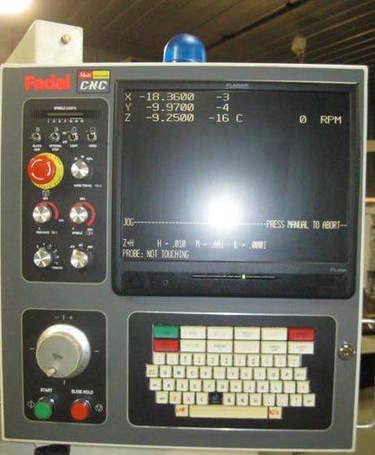

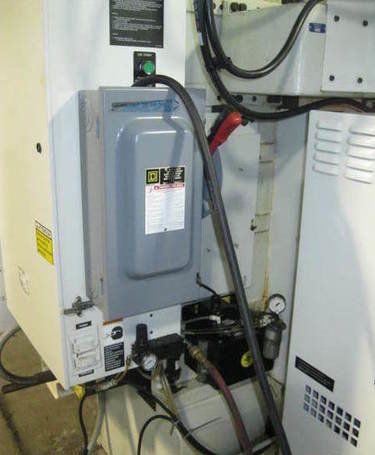

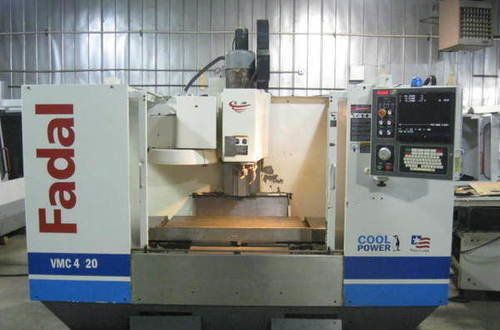

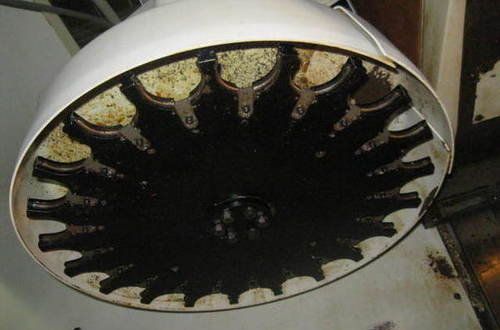

Available Machine # Ez9628

  • Stock#:Ez9628
  • Price:Call
  • Year:2004
  • Region:Northeast
  • Condition:Used

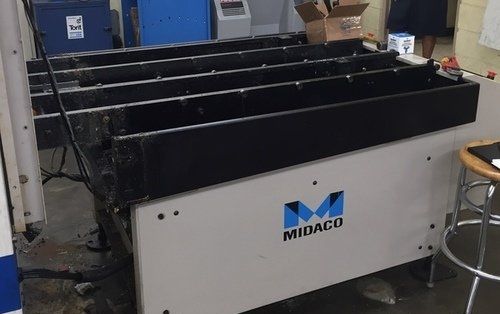

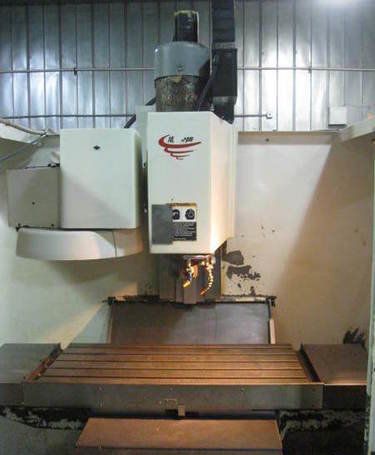

This machine was purchased with a Midaco pallet shuttle. We will consider selling it without the unit. Good running machine. Traded in for a Doosan with more travels.

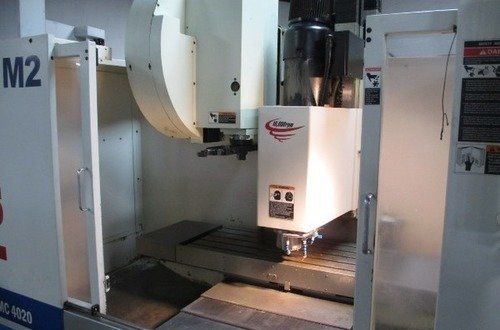

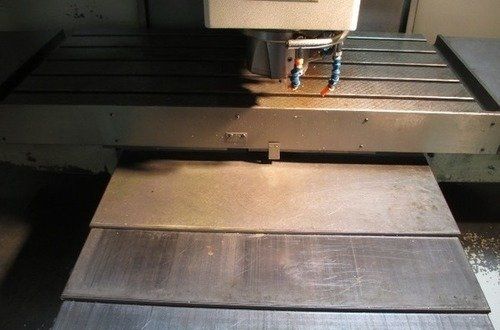

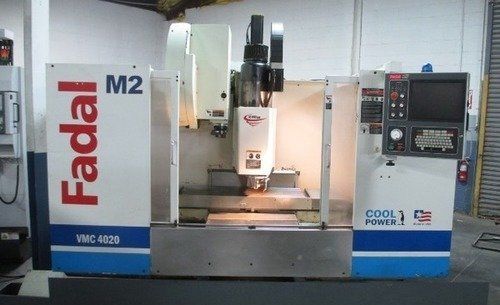

Available Machine # Ez14764

  • Stock#:Ez14764
  • Price:Call
  • Year:2005
  • Region:West
  • Condition:Used
X-Axis: 40" Y-Axis: 20" Z-Axis: 20" Table Size: 48" x 20" Table Load: 3500 Lbs. Main Motor: 22.5 HP Spindle Speed: 10,000 RPM Spindle Taper: CAT 40 Feed Rates: 400 IPM Tool Capacity: 24 ATC Equipped with (must be verified by buyer) Fadal MP/88HS CNC Control Side Mount Tool Changer Machine: 121" x 94" x 102" 11,000 lbs Coolant Pan: 149" x 11" x 15" 300 lbs


Available Machine # Ez18053

  • Stock#:Ez18053
  • Price:$35,500
  • Year:2005
  • Region:United States
  • Condition:Used

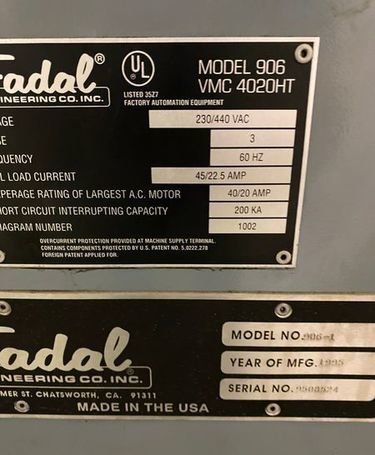

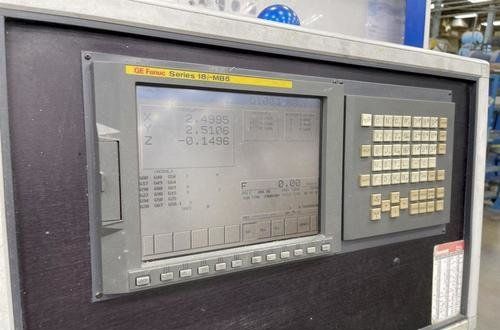

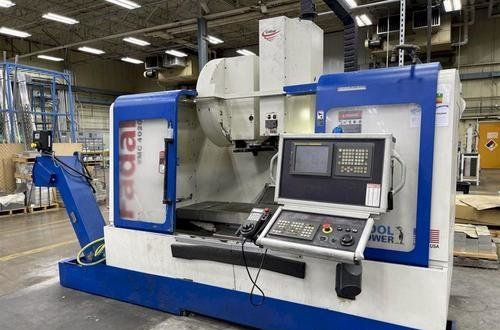

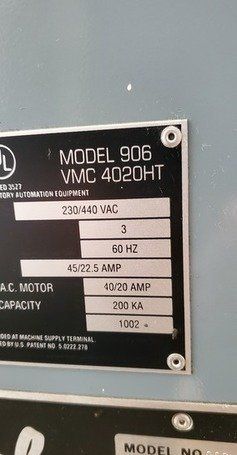

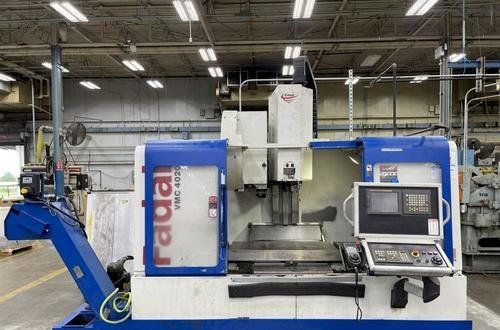

> This is a VMC-4020HT < Equipped With: Fanuc 18i-MB5 CNC Control Rigid Tap Chip Conveyor Probing Coolant Tank & Pump

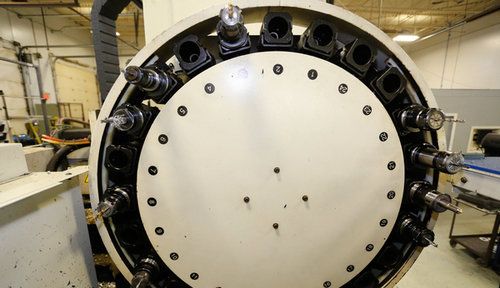

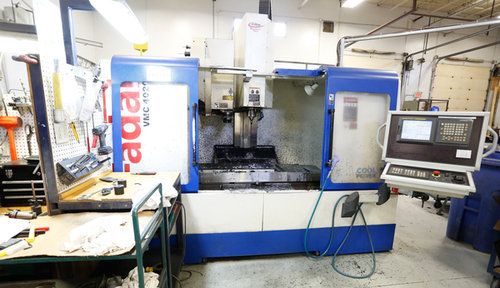

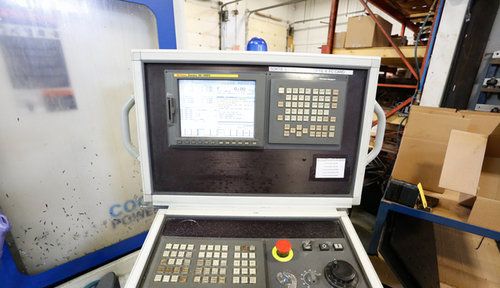

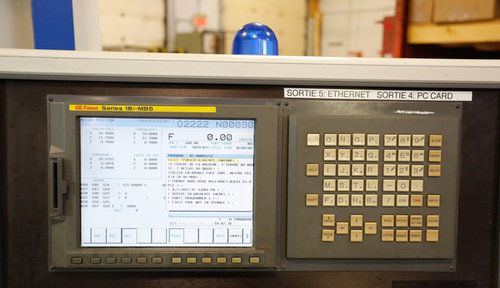

Available Machine # Ez11648

  • Stock#:Ez11648
  • Price:Call
  • Year:2005
  • Region:Midwest
  • Condition:Used
Specs: Year 2005 Control Fanuc 18i-MB5 Number of Axes 3 Max Weight On Table 3,641 lbs Table Size 48" x 20 " Travels (X) 40" Travels (Y) 20" Travels (Z) 20" Spindle Taper CAT 40 Spindle Speed 10,000 RPM ATC 24 Machine Dimensions 116" x 87" x 104" Machine Weight 10,500 lbs Equipped With: - 24 Station Side Mount Tool Changer - Fanuc 18i-MB5 CNC Control - 10, 000 RPM Spindle


Available Machine # Ez19200

  • Stock#:Ez19200
  • Price:Call
  • Year:2006
  • Region:United States
  • Condition:Used
