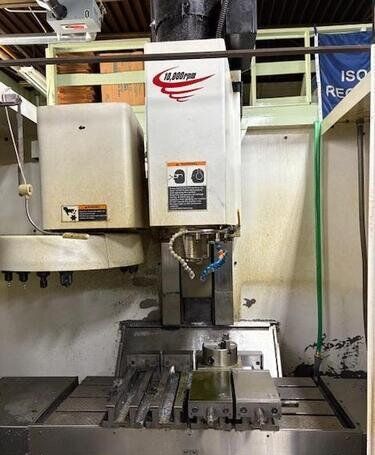

Fadal VMC-3016HT Vertical Machining Centers

Specifications

ModelVMC-3016HT
BrandFADAL
TypeVertical Machining Centers

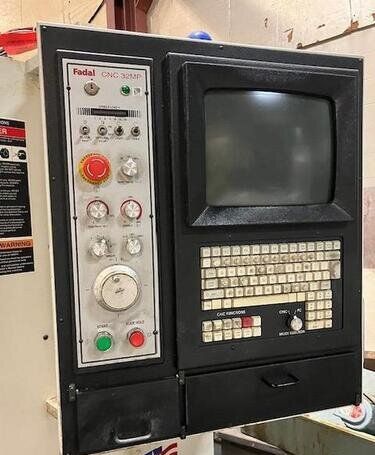

ControlCNC (FADAL 88HS Multi)
X30 inch
Y16 inch
Z20 inch
Power15 HP
RPM10000 RPM
ATC21
TableW16 inch
TableL39.5 inch
TaperCAT-40
Axis3
Weight10,000 lbs
Length116 inch
Width87 inches
Height114 inch
catalogid310
mfgFADAL
mpnVMC-3016HT
titleFadal VMC-3016HT Vertical Machining Centers

Zero? Available Machines

Available Machine # Ez17794

  • Stock#:Ez17794
  • Price:$15,000
  • Year:1996
  • Region:West
  • Condition:Used
Specification Table Size: 39" x 16" (750mm x 406mm) Floor to Table: 31" (787mm) T-Slots: (No. x Width x Span) 3 x .562" x 4.33" (3 x 14mm x 110mm) Cutting Feed Rate: .01-400 ipm (600 @ 150%) .25-10,160 (15,240 at 150%)mm/min. Rapid Feed Rate: (X/Y/Z) 900 ipm (X/Y) 700 ipm (Z) 22.8 m/min. (X,Y) 17.7 m/min (Z) Max. Weight on Table: 2,736 lbs. (1,241 kg.) Axis Drive Motor: (X/Y/Z) AC, 3,800 lbs peak thrust AC, 16.900 N* thrust Ball Screw Size: 40mm Dia. (X/Y/Z) Longitudinal (X Axis): 30" (762mm) Cross (Y Axis): 16" (406mm) Vertical (Z Axis): 20" (28" Opt.) 508mm (711mm Opt.) Spindle Nose to Table: 4"-24" (4"-32" Opt.) 102mm-610mm (102mm-813mm) Spindle Center to Column Ways: 16" (406mm) Main Motor - Automatic 2 Speed Vector: 15 HP*, 11.2 KW Opt. HT Motor - Automatic 2 Speed Vector: 22.5 HP*, 16.8 KW Torque: 160 ft-lbs, 220 ft-lbs (HT) 220 Nm/300 Nm Accuracy, Axis Positioning: ± .0002" (.0050mm) Accuracy, Axis Repeatability: ± .0001" (.0025mm) Spindle Speed: 10-10,000 rpm Spindle Orientation: Electromechanical Spindle Taper: No. 40 ATC, Number of Tools: 21 ATC, Tool Selection: Random, Bi-directional Max. Tool Diameter: 3" (4.5" w/o adjacent tools) 76mm (114mm w/o adjacent tools) Max. Tool Length: 15" 381mm Air Pressure Reqs. (Momentary): 120 psi, 15 scfm 5.5 Bar Cool Power System: Spindle, Headstock, Ballscrews Ball Screw Supports (X/Y/Z) dual ACCESSORY CHECK LIST 4TH AXIS PREWIRE CAT-40 RIGID TAPPING HIGH SPEED CPU GRAPHICS

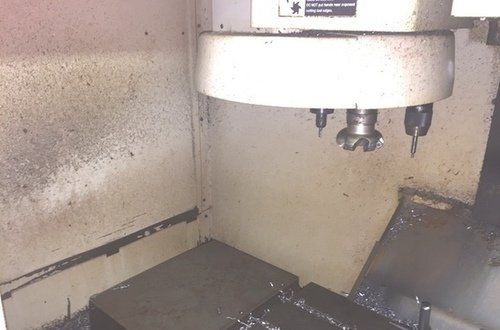

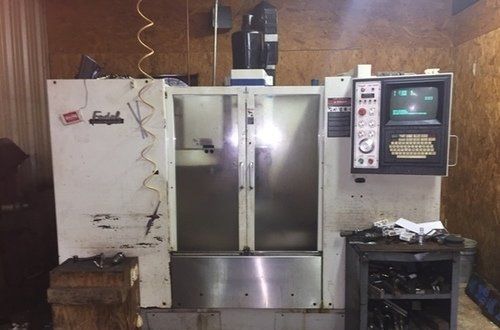

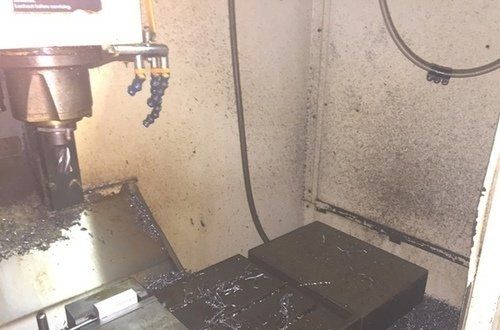

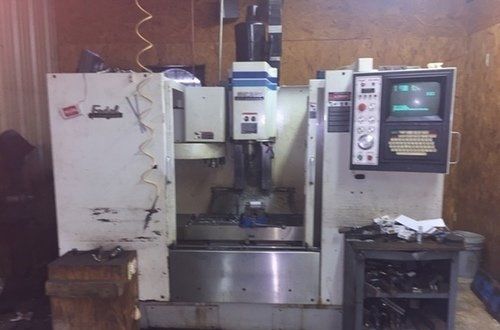

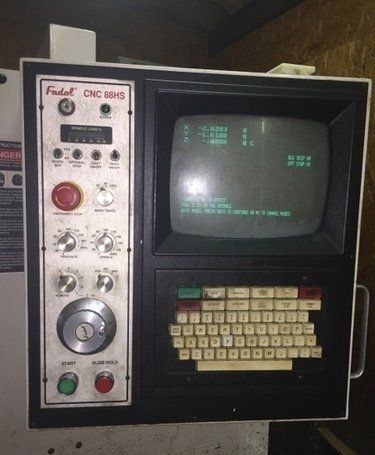

Available Machine # Ez13166

  • Stock#:Ez13166
  • Price:Call
  • Year:1996
  • Region:South
  • Condition:Used
X 30 " Y 16 " Z 20 " Power 22.5 hp RPM 10000 rpm # ATC 21 Table-W 16 " Table-L 39.5 " Taper CAT-40 # Axis 3 Control CNC (FADAL 88HS) Travel: X-Axis 30" Y-Axis 16" Z-Axis 20" Table Size 39" x 16" Spindle Speed 10 - 10,000 RPM Main Motor 22.5 HP AC Spindle Taper CAT 40 Tools 21 Spindle Nose to Table Top 4" - 24" Spindle Torque 220 ft. lbs. Table Load Capacity 2736 lbs. Rapid Traverse Rates (X&Y/Z) 700 / 600 IPM Max Tool Diameter 3" / 4.5" Max Tool Length 15" Max Tool Weight 15 lbs. Machine Dimensions (L x W x H) 98" x 77" x 103" Machine Weight 8500 lbs. FEATURES: FADAL 88HS CNC CONTROL 9" Monochrome CRT Graphic Display High Torque Spindle Motor Rigid Tapping Millimeter Ballscrews Heavy Duty Box Way Construction
