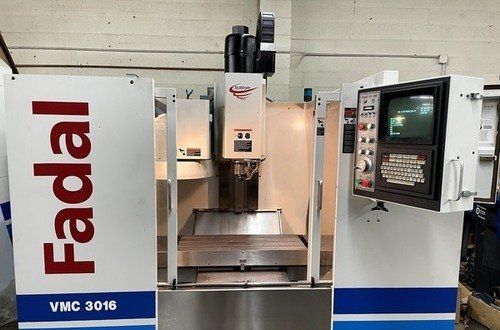

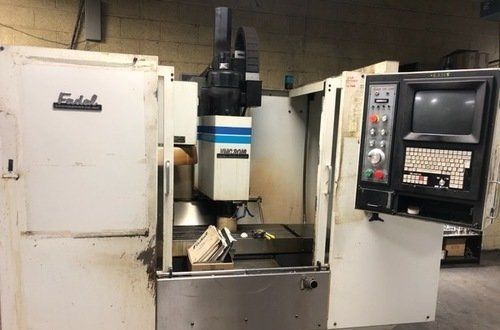

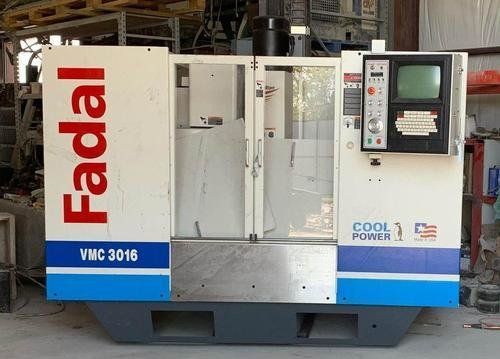

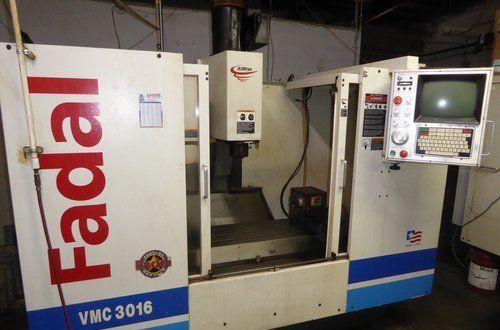

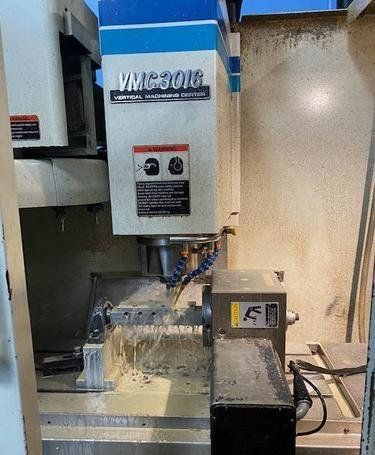

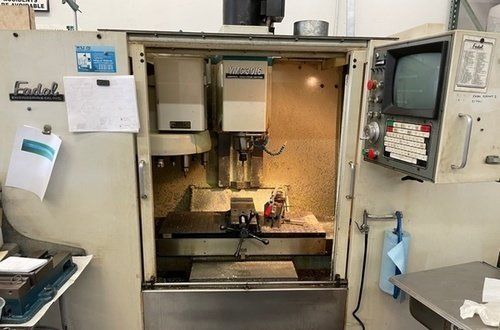

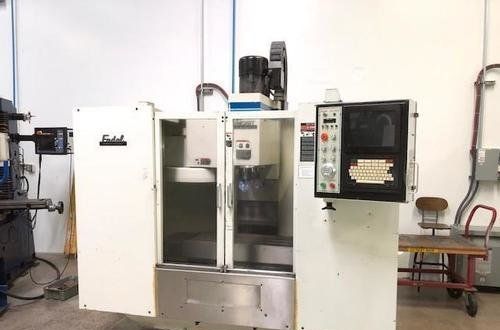

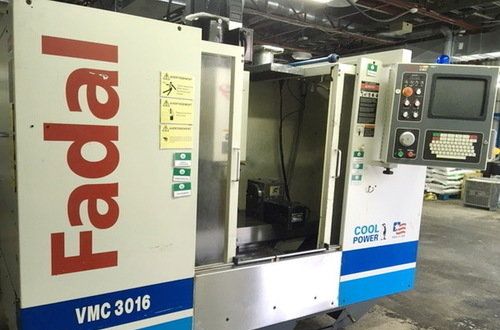

Fadal VMC-3016 Vertical Machining Center

Specifications

ModelVMC-3016
BrandFADAL
TypeVertical Machining Centers

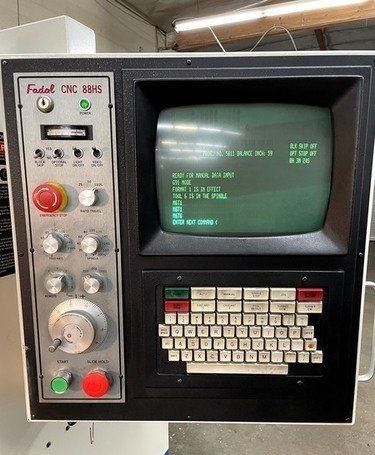

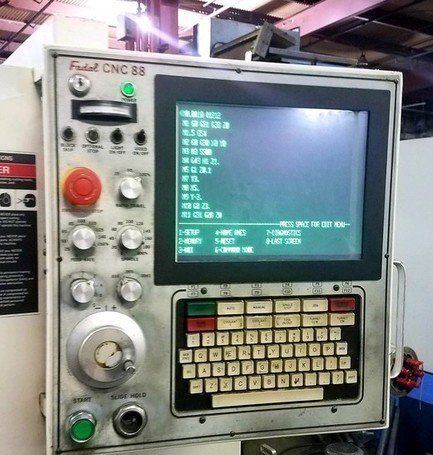

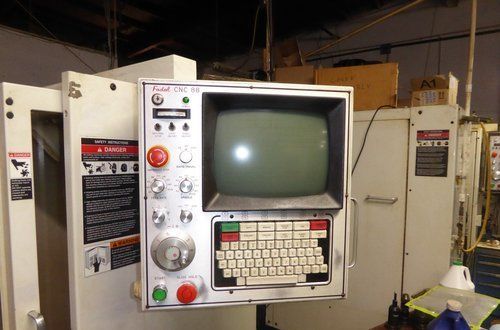

ControlCNC
X30 inch
Y16 inch
Z20 inch
Power15 HP
RPM7500 RPM
ATC21
TableW16 inch
TableL39 inch
TaperCAT-40
Weight8,500 lbs.
Length116 inch
Width87 inch
Height114 inch
catalogid309
mfgFADAL
mpnVMC-3016
titleFadal VMC-3016 Vertical Machining Center

Zero? Available Machines

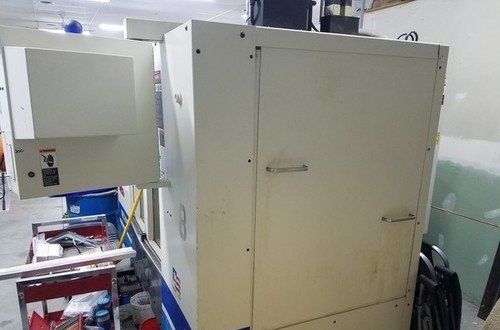

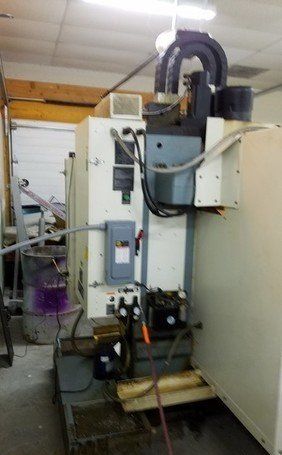

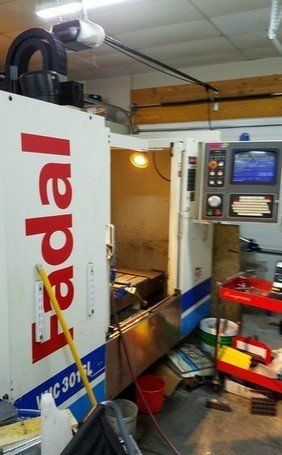

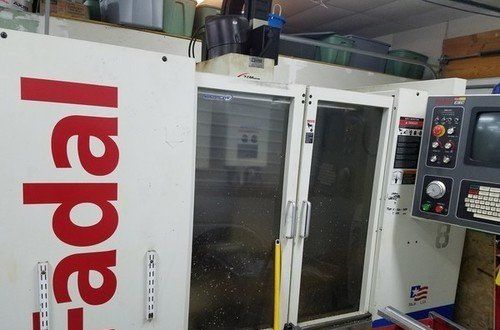

Available Machine # Ez9664

  • Stock#:Ez9664
  • Price:$23,500
  • Year:2000
  • Region:Midwest
  • Condition:Used

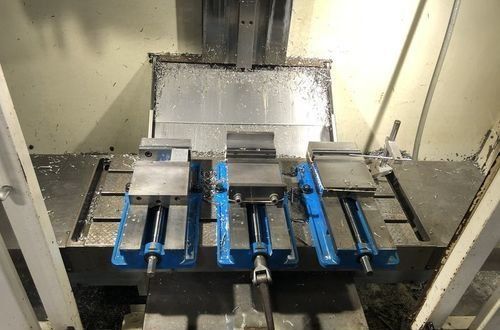

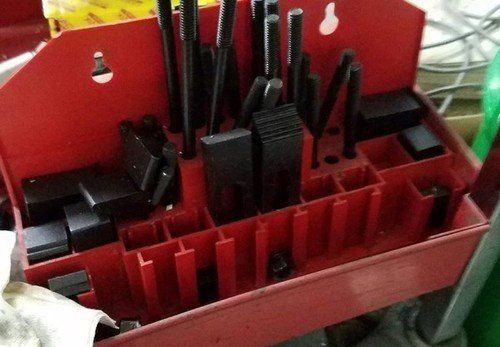

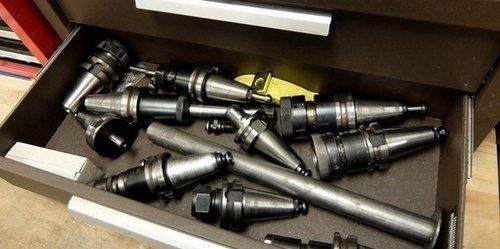

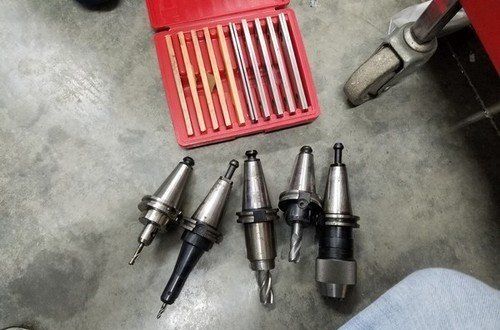

X 30 " Y 16 " Z 20 " Power 15 hp RPM 8000 rpm # ATC 21 Table-W 20 " Table-L 39 " Taper CAT-40 # Axis 3 Dimensions 116"L X 87"W X 114"H Weight 8500 Lbs Control CNC (Fadal) 2000 Fadal VMC3016 904-1L Vertical Machining Center Specifications: Control Fadal Table Size 39" x 20" Max Table Load 3,000 lbs "X" Axis Travel 30" "Y" Axis Travel 16" "Z" Axis Travel 20" Spindle Nose to Table 4" –24" Spindle Speed 8,000 RPM Spindle Motor 15 HP Spindle Taper CAT40 Tool Stations 21 ATC Carousel Machine Weight 8,500 lbs Machine Dimensions 116"L x 87"W x 114"H Equipped With: 21 Station Tool Changer Full Enclosure CT 40 USB for FADAL CNC FLASH memory upgrade connects to RS232 Kurt Vice and Tooling Included Rotary Phase Converter - 20 HP

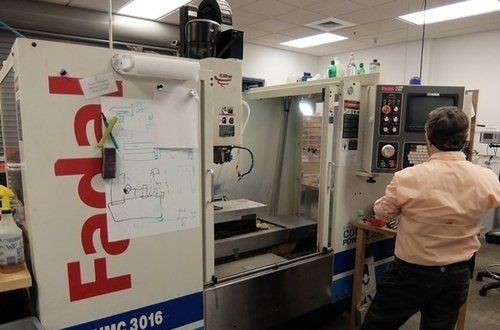

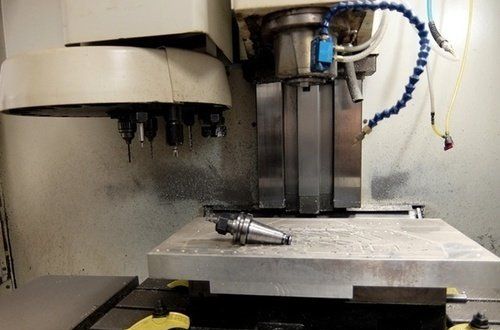

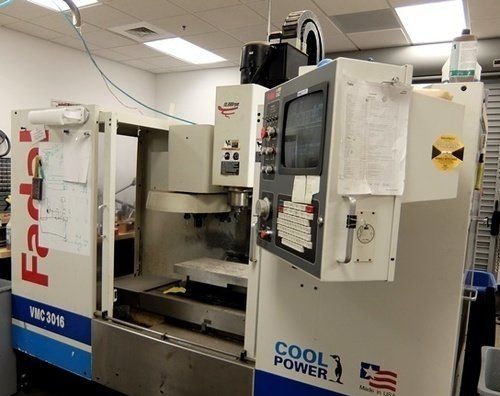

Available Machine # Ez13946

  • Stock#:Ez13946
  • Price:Call
  • Year:2000
  • Region:Northeast
  • Condition:Used

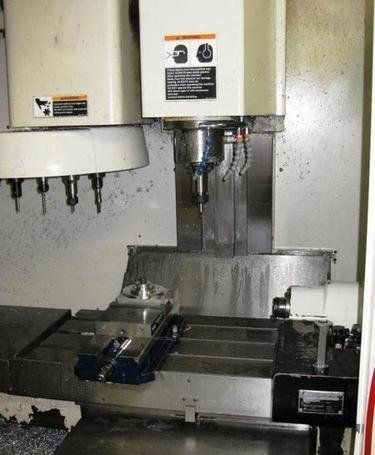

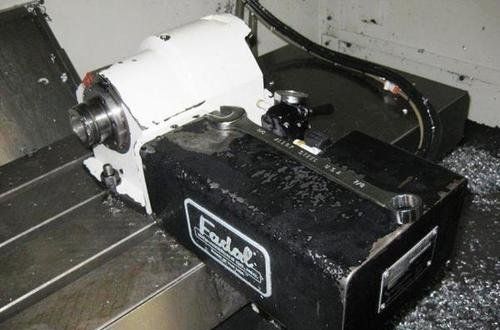

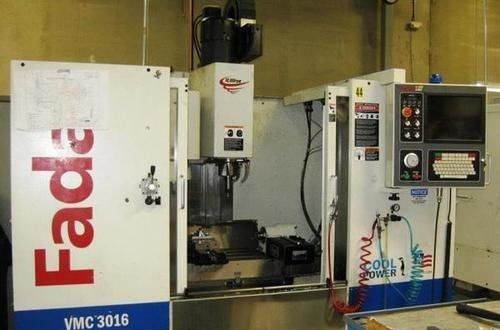

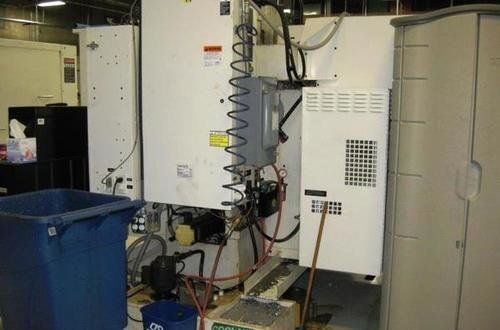

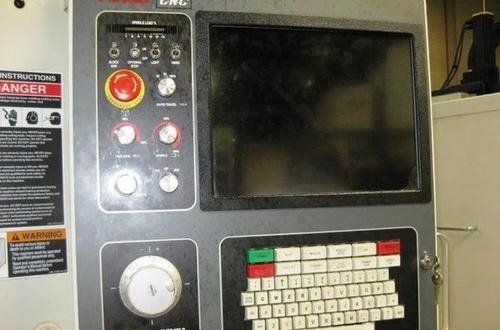

Available Machine # Ez13645

  • Stock#:Ez13645
  • Price:Call
  • Year:N/A
  • Region:West
  • Condition:Used
