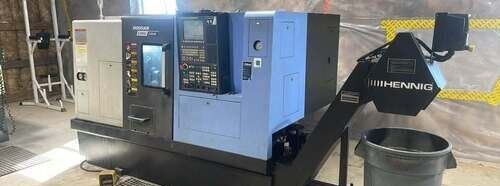

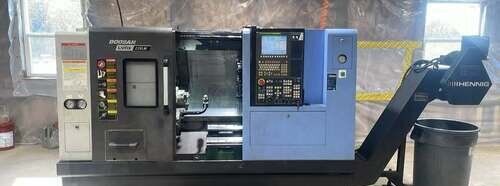

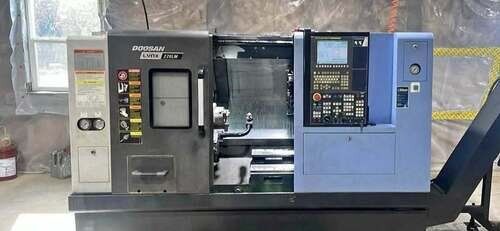

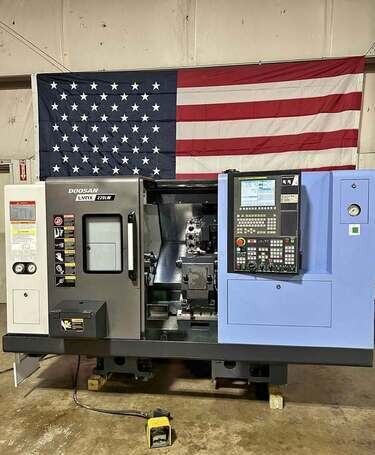

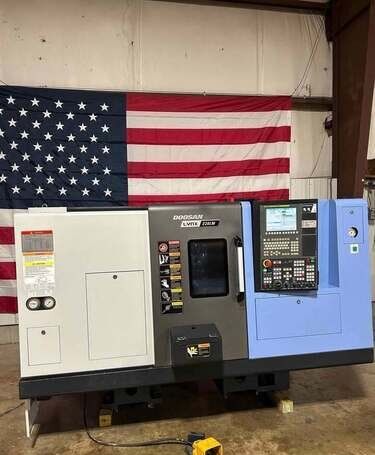

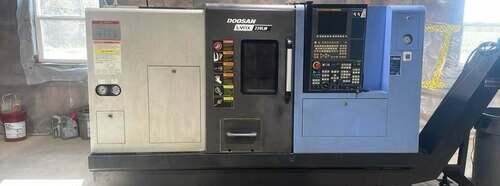

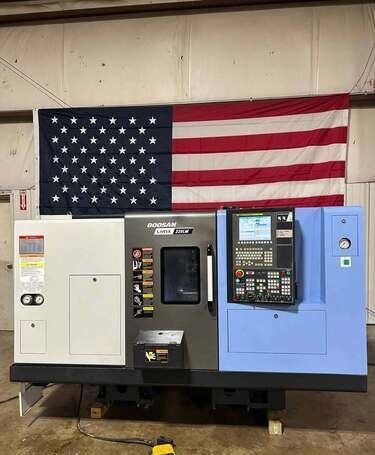

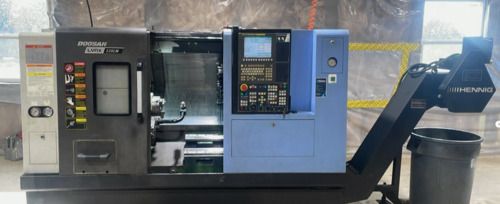

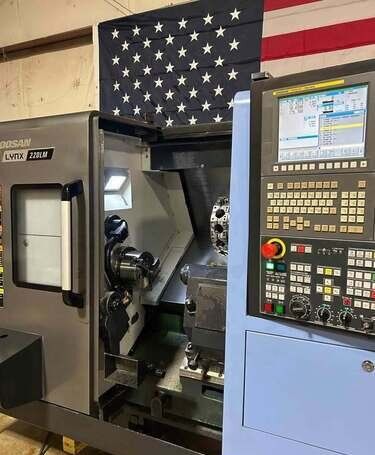

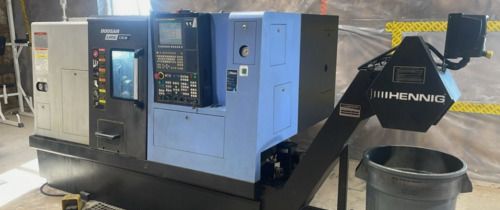

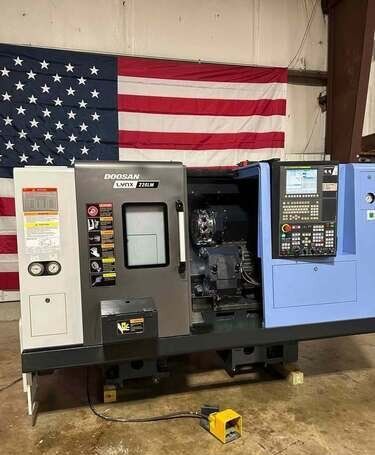

Doosan Lynx 220LMA CNC Lathes

Specifications

ModelLYNX 220LMA
BrandDOOSAN
TypeCNC Lathes
Length105 inch
Width65 inch
Height65 inch
Weight7500 lbs
ControlFanuc i series
MaxRPM6,000 RPM
Power20 hp
ChuckSize6.5 "
BarCapacity2 "
TurningDia9.84 inch
Swing20.1 inch
MachiningLength20.1 inch
LiveToolingYES
SubSpindleYES
catalogid2186
mfgDOOSAN
mpnLYNX 220LMA
titleDoosan Lynx 220LMA CNC Lathes

Zero? Available Machines

Available Machine # Ez11315

  • Stock#:Ez11315
  • Price:Call
  • Year:2009
  • Region:West
  • Condition:Used



Available Machine # Ez13402

  • Stock#:Ez13402
  • Price:Call
  • Year:N/A
  • Region:Northeast
  • Condition:Used

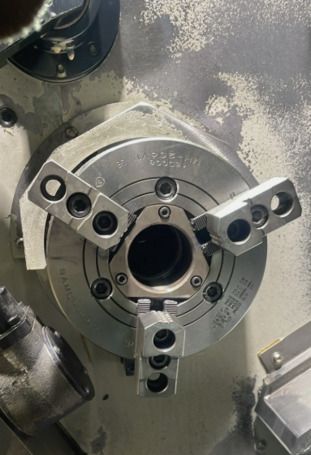

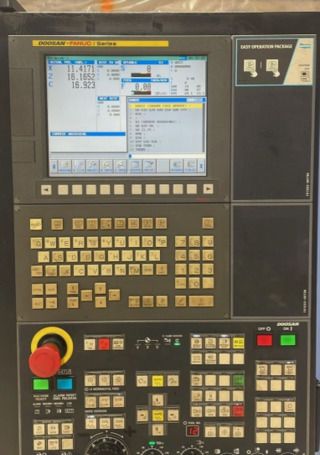

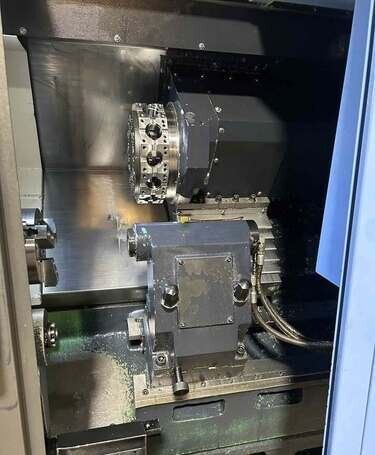

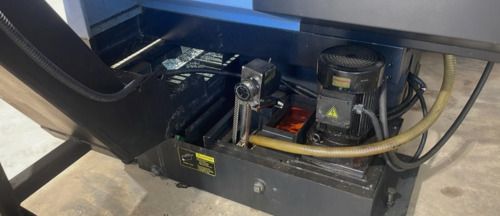

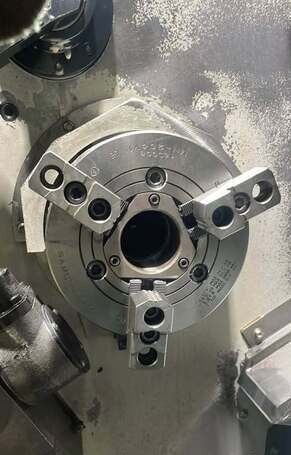

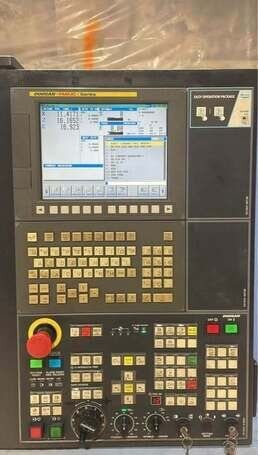

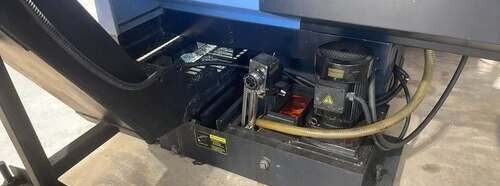

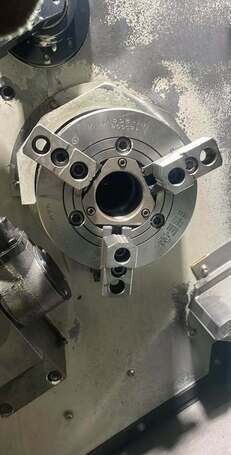

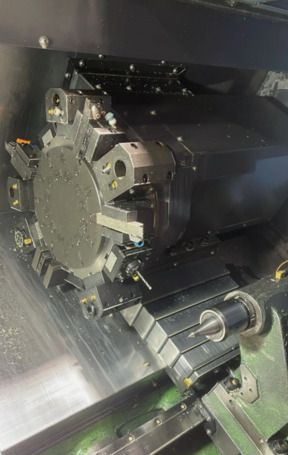

Chuck Size 6" Max Diameter Bar Capacity 2" Max Swing Over Bed / Carriage 23.2" / 6.7" Max Turning Diameter (Max / Std) 9.84" / 6.7" Max Machining Length 20.1" Main Motor 20 / 15 HP Tools 12 / 24 Spindle Speed 60 - 6000 RPM Spindle Bore 2.4" Spindle Nose A2-6 Milling Motor 5 HP Milling Speed 6000 RPM Rapid Traverse Rates (X / Z) 1181 / 1417 IPM X-Axis Travel 17.7" Z-Axis Travel 13" C-Axis Index .001 Degrees Turret Index (Single Step) 0.15 Seconds Tailstock Taper MT#4 Machine Dimensions (L x W x H) 101" x 63" x 65" Machine Weight 7275 lbs. EQUIPPED WITH: FANUC 0iT CNC CONTROL 10.4" Color LCD PC / MCIA Interface C-Axis Milling Capability 6" Samchully MH-206 Hydraulic Chuck Auto Parts Catcher Tool Presetter Tailstock with Programmable Quill Chip Conveyor (Side Exit) Mfg Date May 2010
