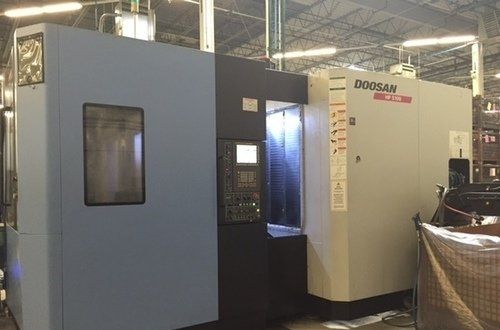

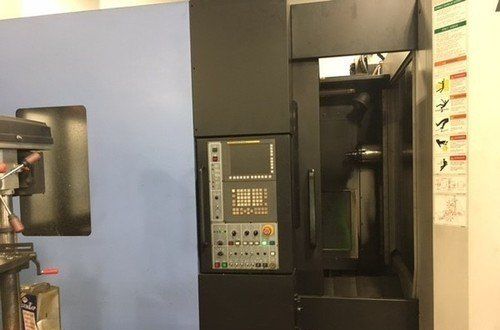

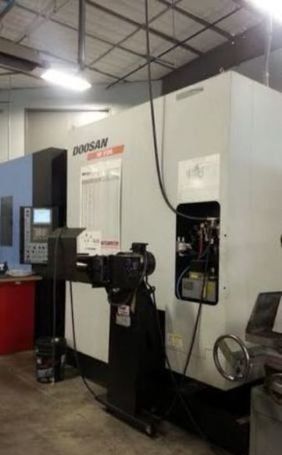

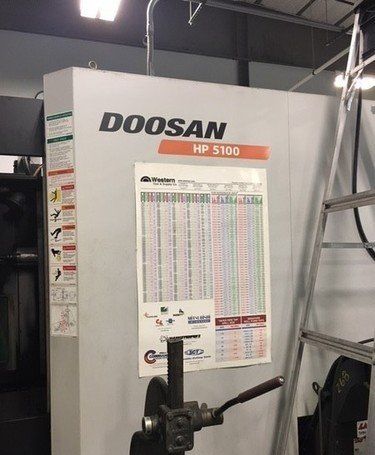

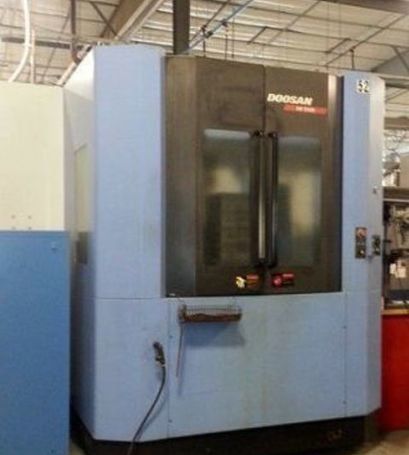

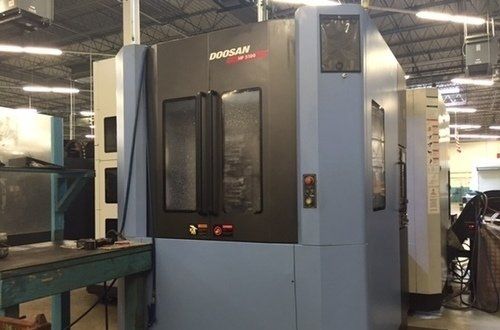

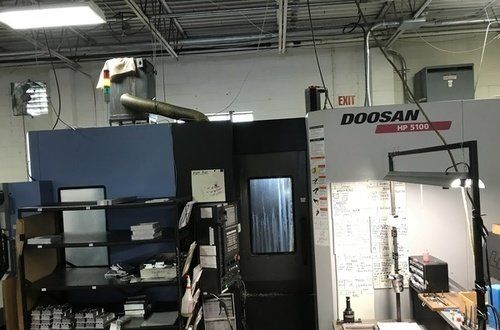

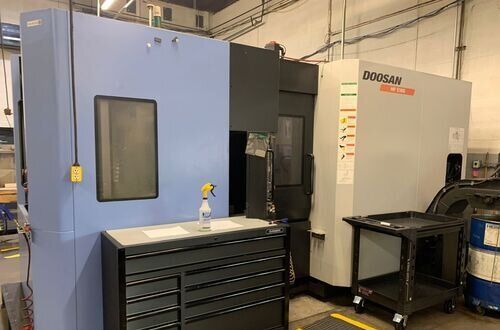

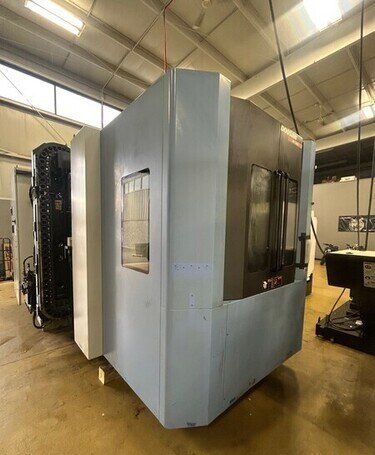

Doosan HP 5100 Horizontal Machining Centers

Specifications

ModelHP 5100
BrandDOOSAN
TypeHorizontal Machining Centers

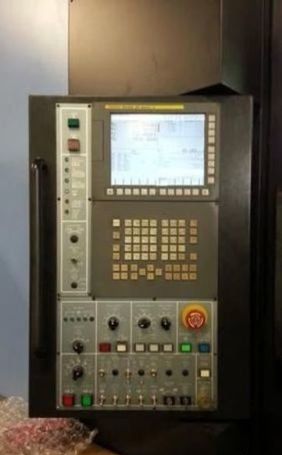

ControlCNC (Fanuc 31i-A)
X33.5 inch
Y27.6 inch
Z29.5 inch
Power30 HP
RPM14000 RPM

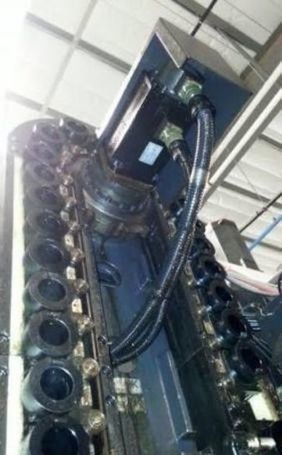

ATC120
PalletW19.7 inch
PalletL19.7 inch
TaperBT-40
Axis3
Weight17,700 Lbs
Length220 inch
Width142 inch
Height119 inch
catalogid189
mfgDOOSAN
mpnHP 5100
titleDoosan HP 5100 Horizontal Machining Centers

Zero? Available Machines

Available Machine # Ez5910

  • Stock#:Ez5910
  • Price:Call
  • Year:2010
  • Region:South
  • Condition:Used

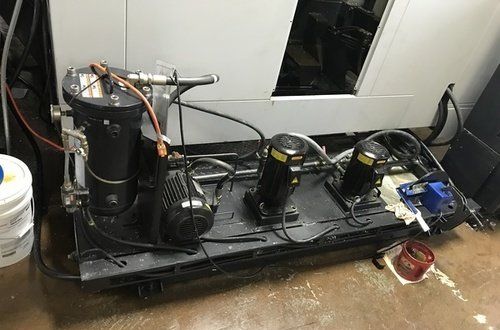

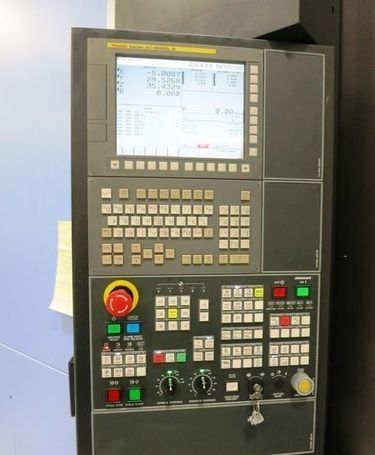

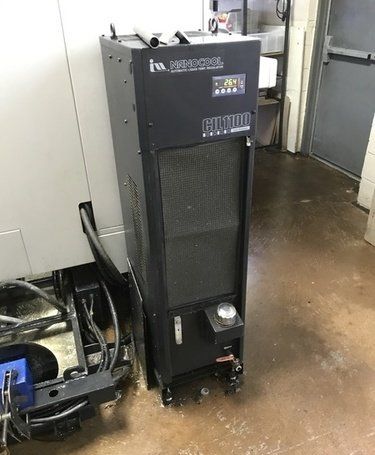

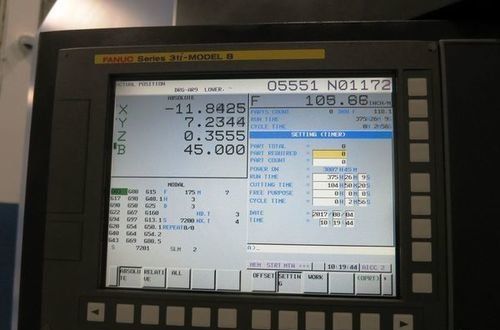

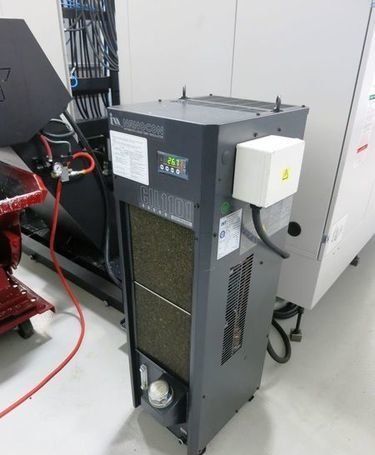

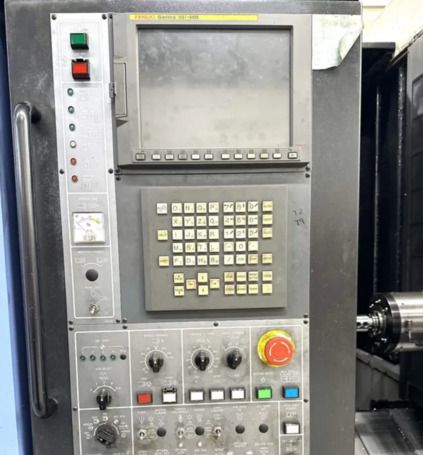

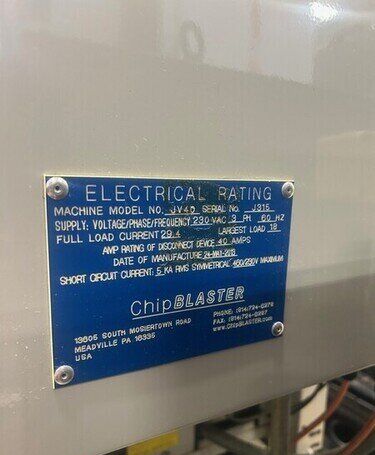

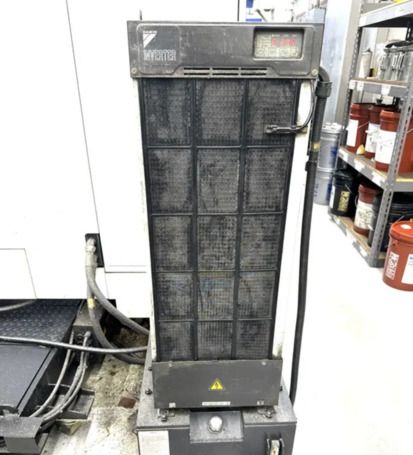

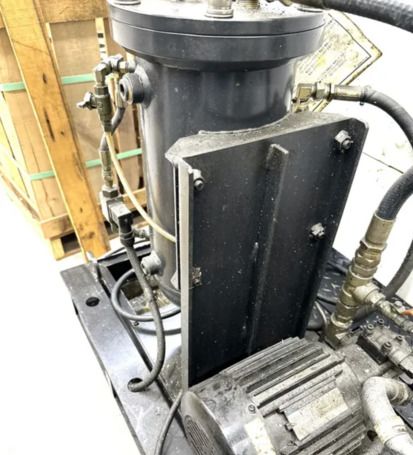

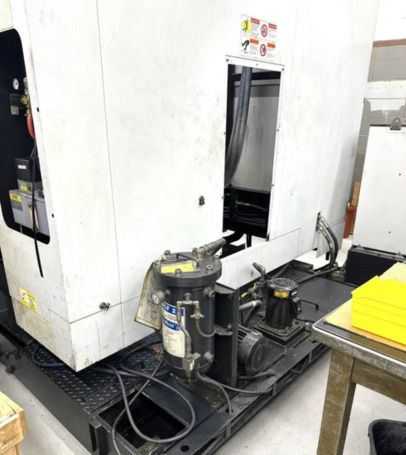

FEATURES: FANUC 31iB CNC CONTROL 10.4" Color LCD PC/MCIA Interface Circular Interpolation Custom Macro B Helical Interpolation Rigid Tapping Coolant Thru Spindle (ChipBlaster 1000 psi) Tool Life Management Spindle Chiller Unit Dual Chip Augers Manual Pulse Generator Three Color Tower Light

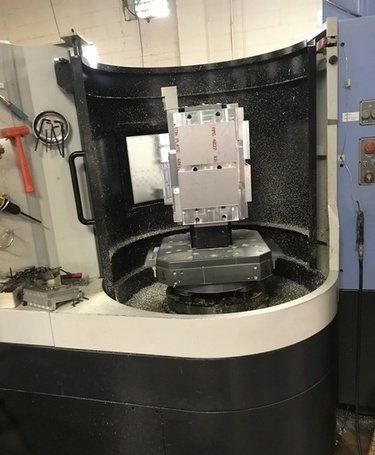

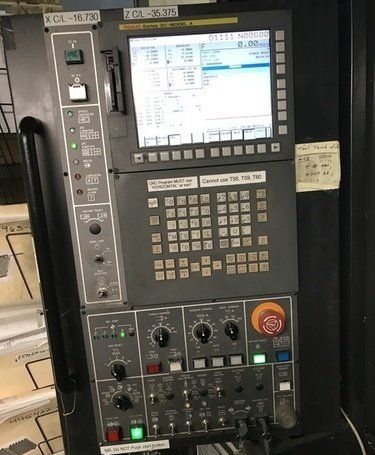

Available Machine # Ez12683

  • Stock#:Ez12683
  • Price:$209,000
  • Year:2012
  • Region:South
  • Condition:Used



Available Machine # Ez15562

  • Stock#:Ez15562
  • Price:$179,000
  • Year:2013
  • Region:Midwest
  • Condition:Used

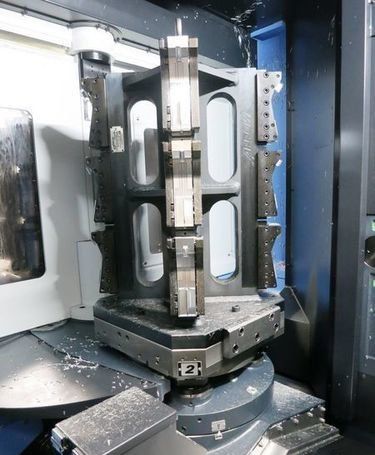

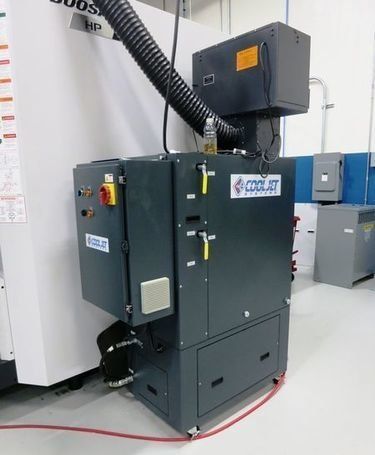

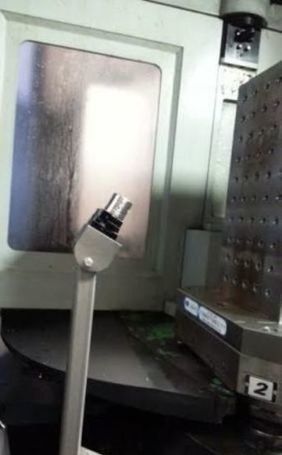

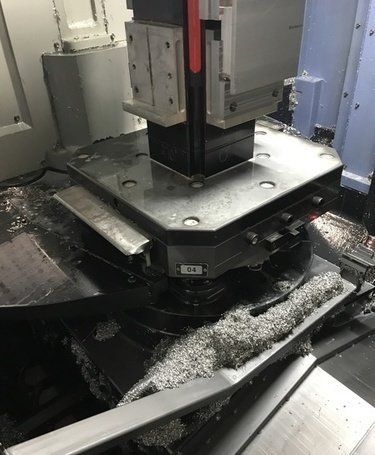

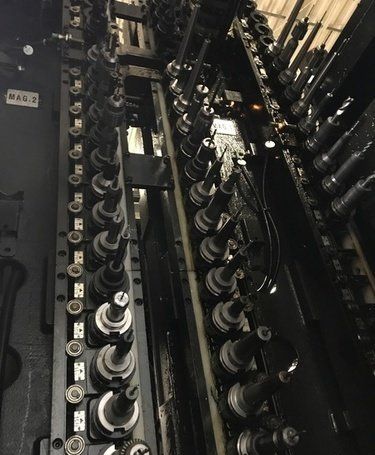

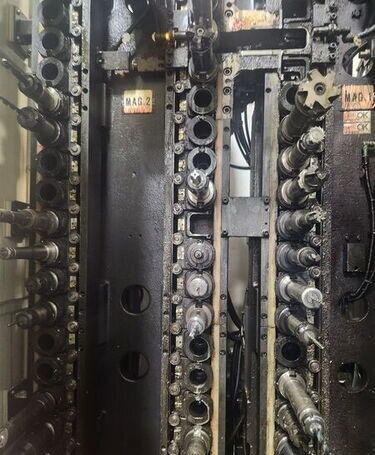

Specifications: Pallet Size 19.7" x 19.7" x (2) Max Table Load 1,100 Lbs Max Part Swing 31.5" Diameter/ 36.6" Height Indexing 1 Degree Pallet Change Time 8 Seconds X Axis Travel 33.5" Y Axis Travel 27.6" Z Axis Travel 29.5" Spindle Nose to Table top 1.9" - 29.5" Spindle Taper ISO 40 Big Plus Spindle Motor 30 HP Spindle Speed 14,000 RPM Spindle Torque 140 Ft-Lbs Automatic Tool Changer 170 Stations Rapid Traverse Rates 2,362 IPM Cutting Feed Rates 1,181 IPM Machine Weight 37,000 Lbs Machine Dimensions 220"L x 142"W x 119"H Equipped With: Fanuc 31i-A CNC Control Air Thru Spindle Spindle Orientation 230 PSI Thru Spindle Coolant Probing System Rigid Tapping Custom Macro B Cool Jet High Pressure Coolant System Manual Pulse Generator Chip Conveyor Work Light Coolant Tank & Pump All Available Manuals
