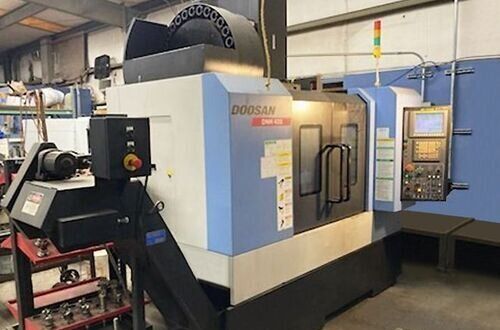

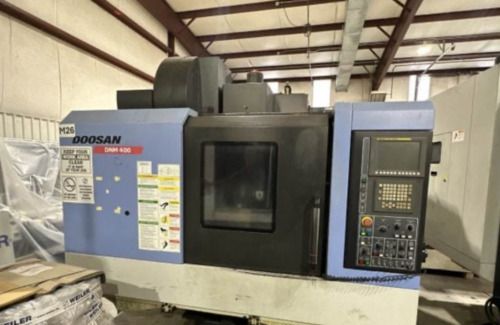

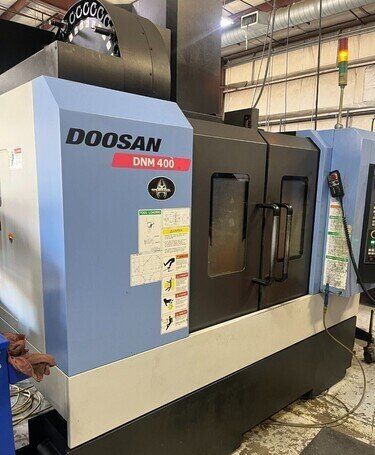

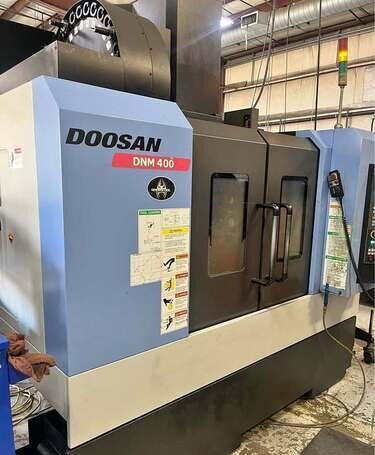

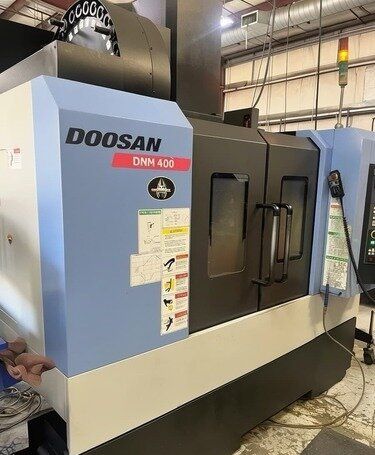

Doosan DNM 400 Vertical Machining Centers

Specifications

BrandDOOSAN
ModelDNM 400
TypeVertical Machining Centers
Lower79
X30 inch
Y17.13 inch
Z20.08 inch
RPM8000 RPM
ATC30
Upper99
TableW17.13 inch
TableL36.22 inch
TaperBT-40
Axis3

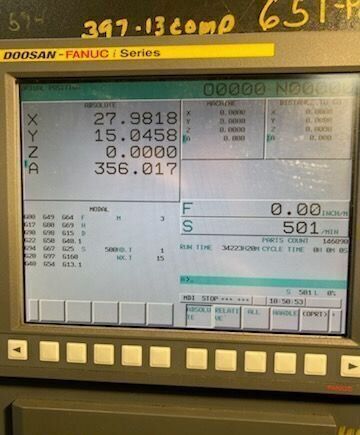

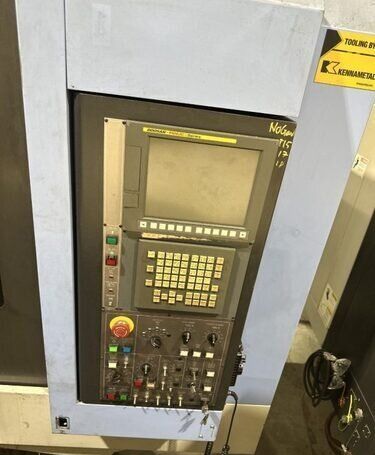

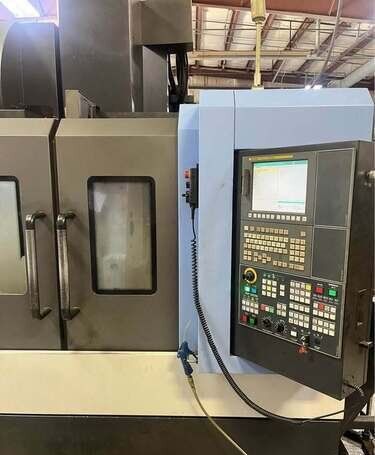

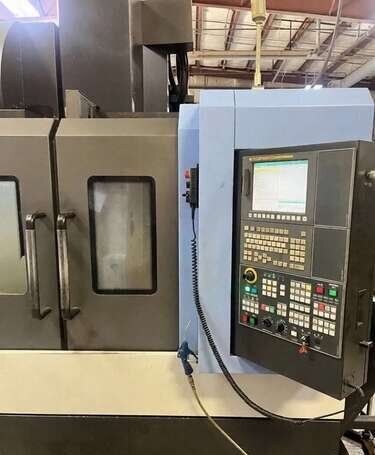

ControlCNC (Fanuc i Series)
Length103 inch
Width82 inch
Height106 inch
Weight12,125 Lbs
catalogid4378
mfgDOOSAN
mpnDNM 400
titleDoosan DNM 400 Vertical Machining Centers

Zero? Available Machines

Available Machine # Ez15024

  • Stock#:Ez15024
  • Price:$54,500
  • Year:2011
  • Region:West
  • Condition:Used

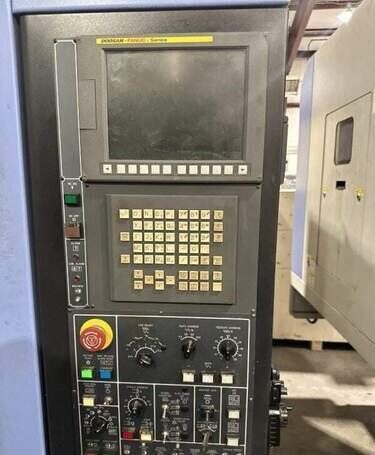

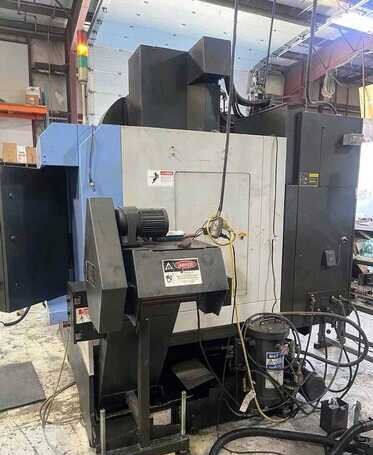

RPM 8000 rpm # ATC 30 # Axis 3 Specification from OEM Brochure (All details should be confirmed by buyer) Equipped With: Doosan Fanuc i Series CNC Control 8,000 RPM, High Torque, Big Plus, Spindle Daul Built in Screw Chip Conveyor MPG 30 Position ATC All Available Manuals Leveling Pads Coolant Pan/Chip Pan Specifications: X-axis Travel: 30.0" Y-axis Travel: 17.1" Z-axis Travel: 20.1" Distance from spindle nose to table top: 5.9"-30.5" Distance from spindle nose to column: 20.2" X-axis Rapid Traverse Rate: 1417.3 IPM Y-axis Rapid Traverse Rate: 1417.3 IPM Z-axis Rapid Traverse Rate: 1181.1 IPM Max. Cutting federate: 590.6 IPM Table size: 36.2" x 17.1" Table loading capacity: 1322.8 LBS Max. Spindle speed: 8000 RPM Spindle taper: Cat 40
