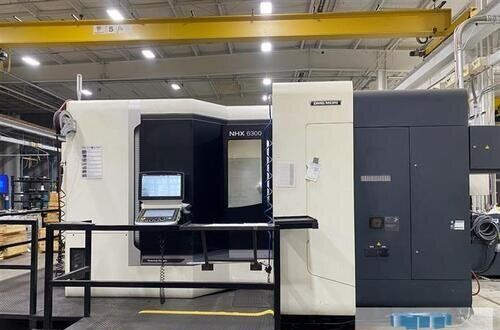

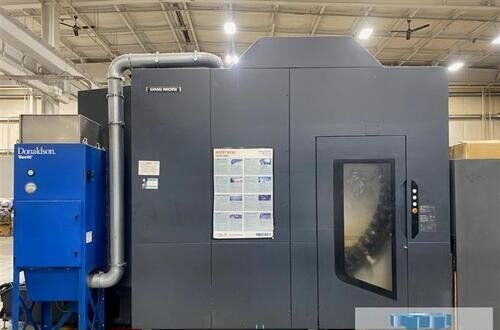

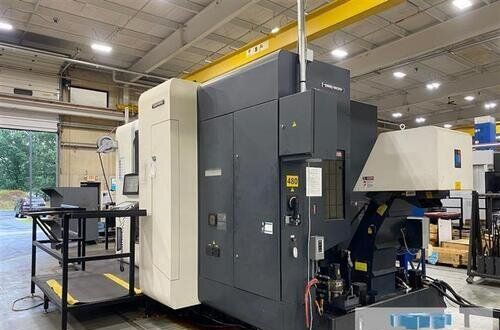

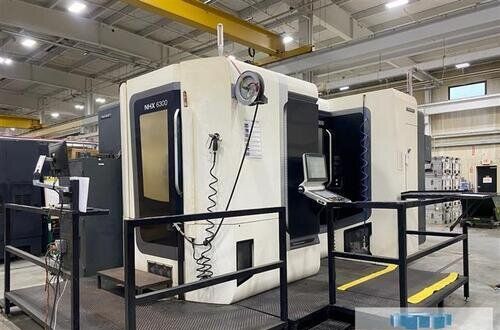

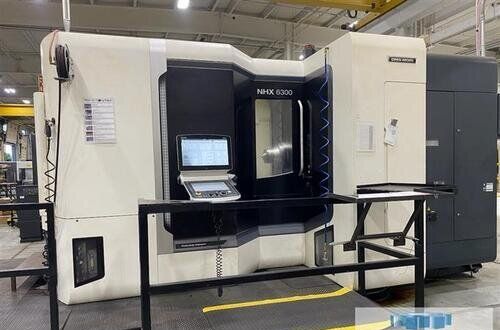

Dmg Mori NHX 6300 Horizontal Machining Centers

Specifications

BrandDMG MORI
ModelNHX 6300
TypeHorizontal Machining Centers
ControlCNC (M-730BM)
Lower49
X41 inch
Y35 inch
Z40 inch
Power50 hp
RPM8000 rpm
ATC60
PalletW24.8 inch
Upper69
PalletL24.8 inch
TaperCT50
Axis4
Dimensions230inch X 155inch X 127inch
Weight38,400 Lbs
catalogid3512
mfgDMG MORI
mpnNHX 6300
titleDmg Mori NHX 6300 Horizontal Machining Centers

Zero? Available Machines

Available Machine # Ez11093

  • Stock#:Ez11093
  • Price:Call
  • Year:2012
  • Region:Midwest
  • Condition:Used
X-TRAVEL: 41.3" Y-TRAVEL: 35.4" Z-TRAVEL: 40.6" SPINDLE SPEED: 15,000 PALLET SIZE: 24.8" x 24.8"


Available Machine # Ez11087

  • Stock#:Ez11087
  • Price:Call
  • Year:2013
  • Region:Midwest
  • Condition:Used
M-730BM (MAPPS 4) Control 120 ATC Full 4th Axis. X-TRAVEL: 41.3" Y-TRAVEL: 35.4" Z-TRAVEL: 40.6" SPINDLE SPEED: 8,000 PALLET SIZE: 24.8" x 24.8"


Available Machine # Ez9136

  • Stock#:Ez9136
  • Price:Call
  • Year:2014
  • Region:Midwest
  • Condition:Used

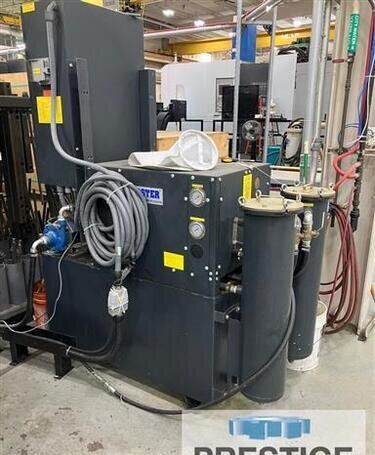

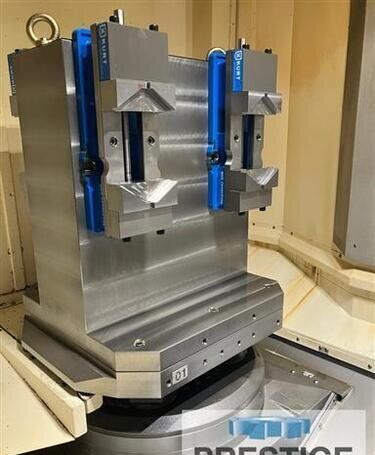

Specifications: Table Size 24.8" x 24.8" x (2) Max Table Load 3,300 Lbs. X Axis Travel 41" Y Axis Travel 35" Z Axis Travel 40" Spindle Speed 8,000 RPM Spindle Taper CT50 Spindle Motor 50/40 HP Rapid Traverse Rates 2,362 IPM Tool Storage Capacity 60 Max Tool Length 24.8" Max Tool Weight 66 Lbs Machine Weight 38,400 Lbs Machine Dimensions 230" x 155"W x 127"H Equipped With: M-730BM (MAPPS 4) CNC Control 6G Memory 200 Tool Offsets 600 Custom Macros Coordinate System Rotation Full 4th Axis Chip Conveyor Plumbed for Thru Spindle Coolant Tool Break Detection Uni-Directional Positioning Tool Pusher Manual Pulse Generator 2560M Part Storage Number of Stored Programs (1,000)
