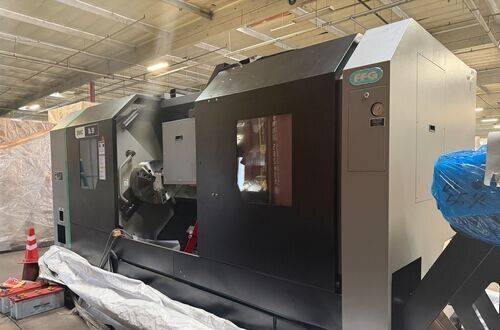

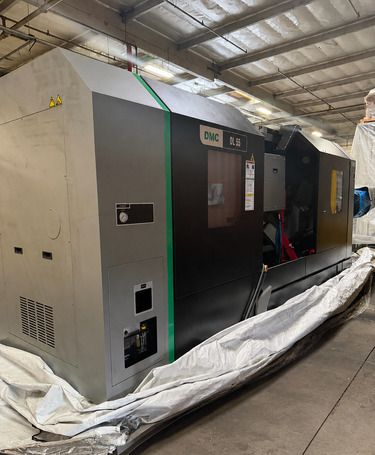

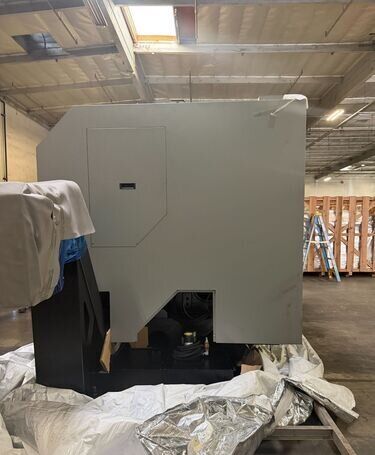

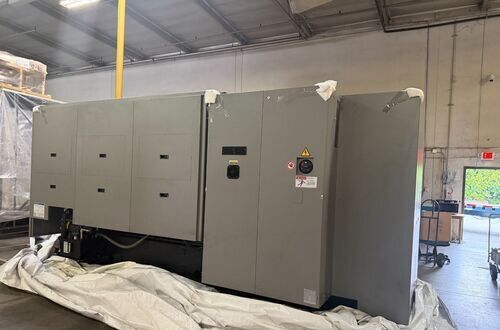

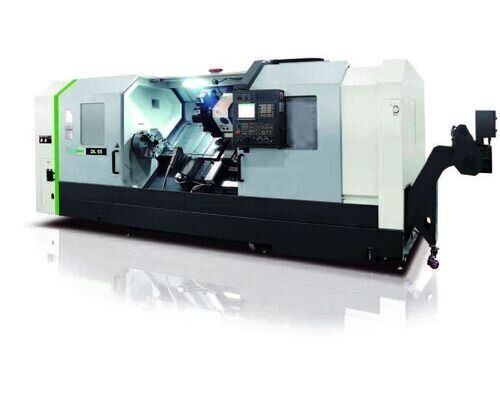

Dmc DL 55 CNC Lathe

Specifications

BrandDMC
ModelDL 55
TypeCNC Lathes
ControlCNC (Fanuc OiTD)
BarCapacity6.38 inch
Axis2
Power50 HP
MaxRPM1800 RPM
TurningDia24.8 inch
Swing30.5 inch
MachiningLength57.6 inch
TailstockYes
LiveToolingNo
SubSpindleNo
Dimensions197inchL X 86inchW
Weight20,300 Lbs
imagesnone
catalogid2240
mfgDMC
mpnDL 55
titleDmc DL 55 CNC Lathe

Zero? Available Machines

Available Machine # Ez3993

  • Stock#:Ez3993
  • Price:$167,000
  • Year:2013
  • Region:Midwest
  • Condition:Used

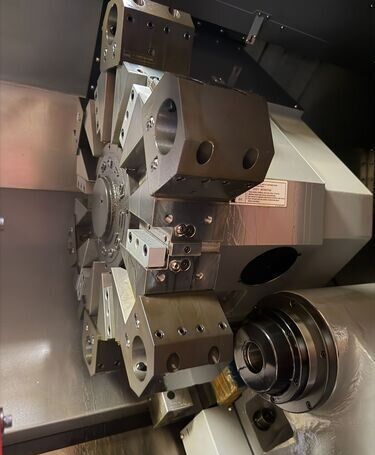

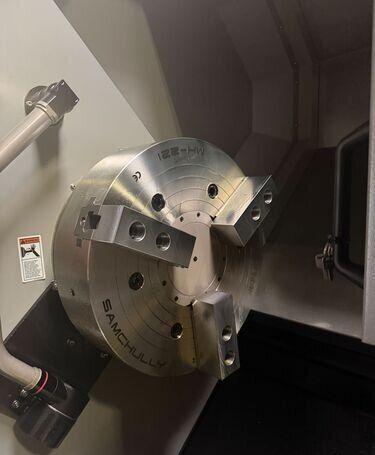

Specifications: Control Fanuc Oi-TD Max Swing Over Bed 30.5" Max Turn Diameter 24.8" Max Turn Length 57.6" Max Bar Capacity 6.38" Chuck Size 21" Spindle Nose A2-15 Spindle Bore 7.13" Spindle Motor 40/50 HP Spindle Speed 1,800 RPM X Axis Travel 13.78" Z Axis Travel 60.2" Rapid Traverse Rates 787X/707Z IPM Tool Stations 12 Tailstock Taper MT5 Tailstock Quill Diameter 6.3" Tailstock Quill Travel 5.91" Machine Weight 20,300 Lbs. Machine Dimensions 197"L 86"W Equipped With: Fanuc Oi-TD CNC Control Machine Work Light Coolant Tank & Pump Chip Conveyor Manual Q-Setter 2 Speed ZF Gear Box Tow Along Tailstock w/Programmable Hydraulic Quill Full Compliment of Tool Holders All Available Manuals
