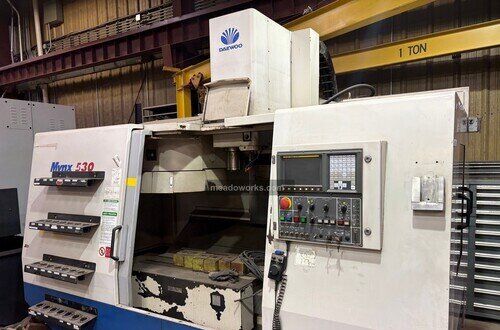

Daewoo Mynx 530 Vertical Machining Centers

Specifications

ModelMYNX 530
BrandDAEWOO
TypeVertical Machining Centers
ControlCNC (FANUC 0iM)
X32.2 inch
Y20.1 inch
Z20.1 inch
Power15 hp
RPM8000 rpm
ATC24
TableW19.7 inch
TableL39.3 inch
Taper40
Axis3
Dimensions116inch x 99inch x 108inch
Weight13,000 lbs
Length116 inch
Width99 inch
Height108 inch
catalogid1993
mfgDAEWOO
mpnMYNX 530
titleDaewoo Mynx 530 Vertical Machining Centers

Zero? Available Machines

Available Machine # Ez14140

  • Stock#:Ez14140
  • Price:$24,500
  • Year:2001
  • Region:Midwest
  • Condition:Used
X 32 " Y 20.1 " Z 20.1 " Power 15 hp RPM 8000 rpm # ATC 24 Table-W 19.7 " Table-L 39.4 " Taper CT 40 # Axis 3 Control CNC (FANUC 0i-M) 2001 Daewoo Mynx 530 CNC Vertical Machining Center Specifications: Control Fanuc Oi-M X Axis Travel 32” Y Axis Travel 20.1” Z Axis Travel 20.1” Table Size 39.4” x 19.7” Table Load 1,760 Lbs. Spindle Nose to Table Top 5.9” – 26” Spindle Taper CT 40 Spindle Speed 8,000 RPM ATC 24 Spindle Motor 15 HP Rapid Traverse (X & Y) 945 IPM Rapid Traverse (Z ) 708 IPM Equipped With: Fanuc Oi-M CNC Control Box Ways Rigid Tap
