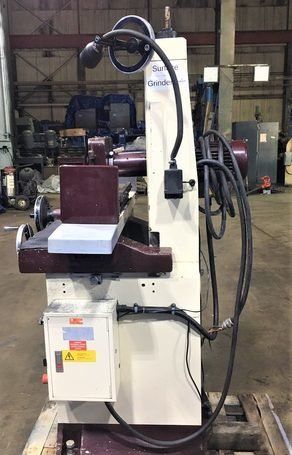

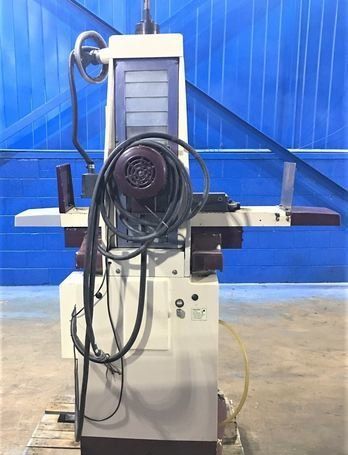

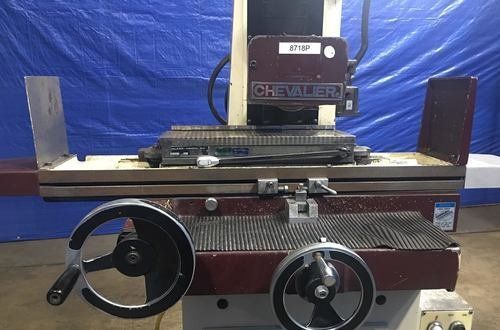

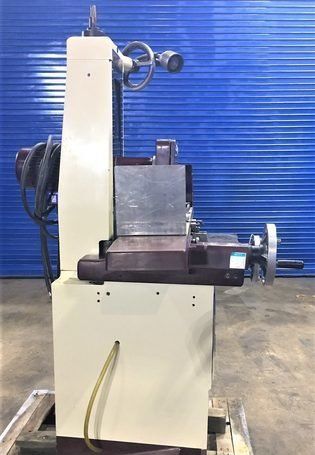

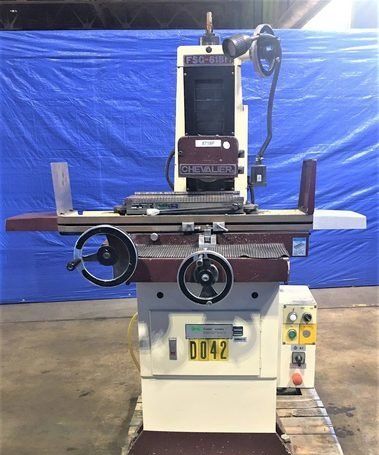

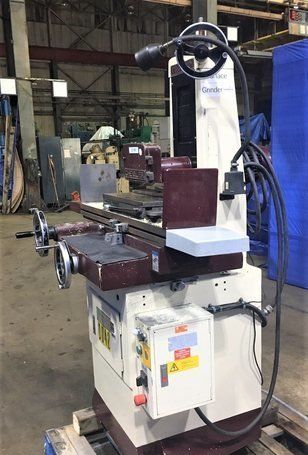

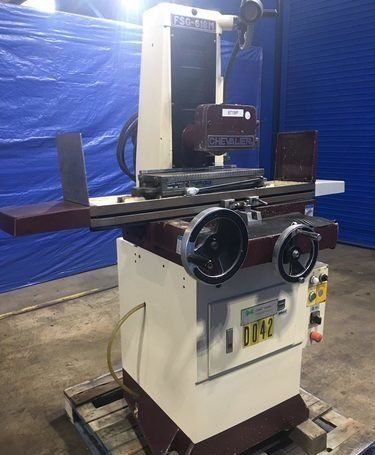

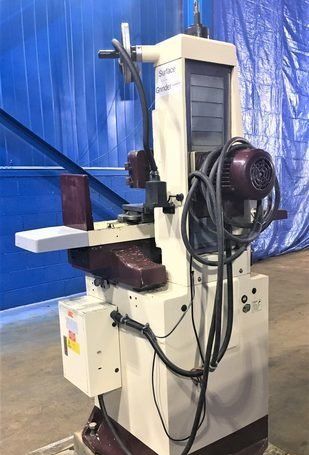

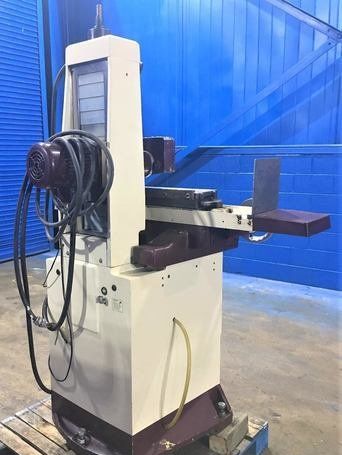

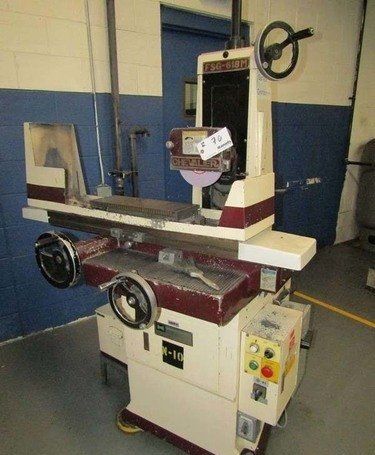

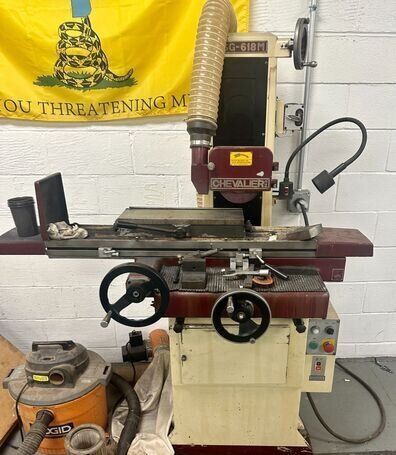

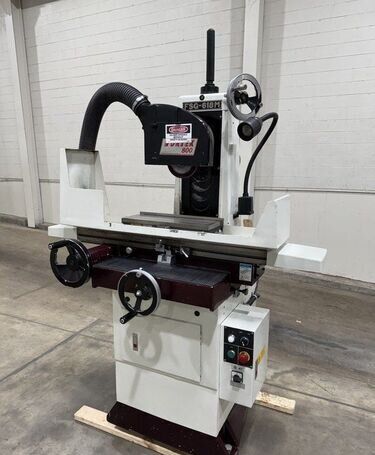

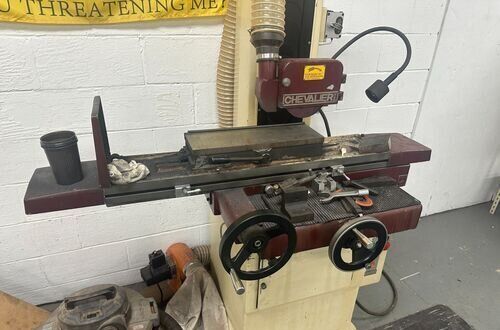

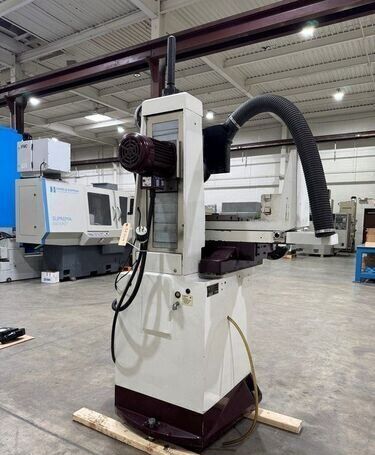

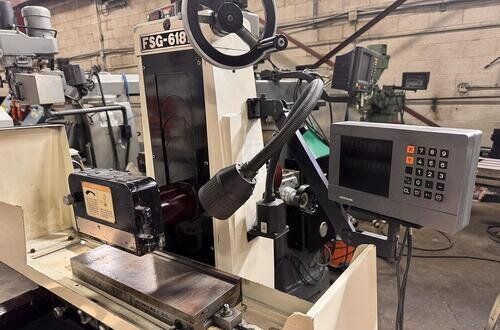

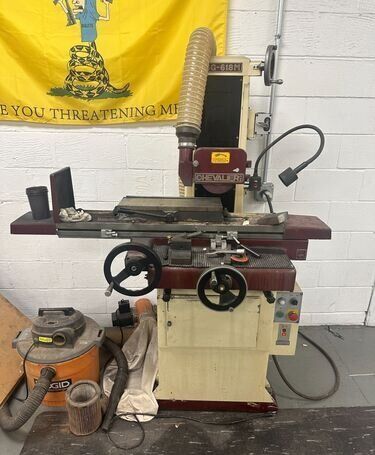

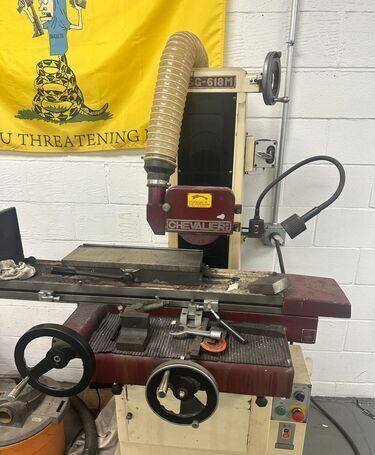

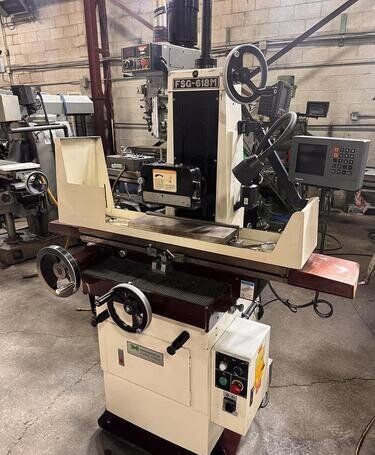

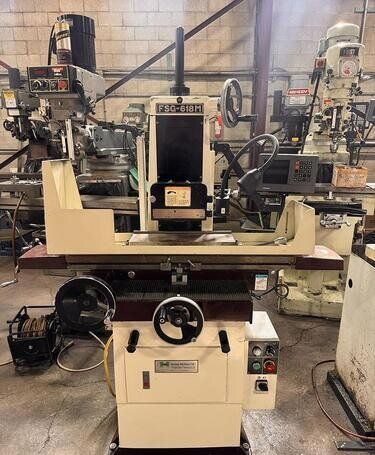

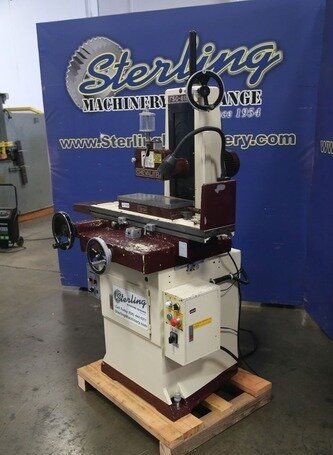

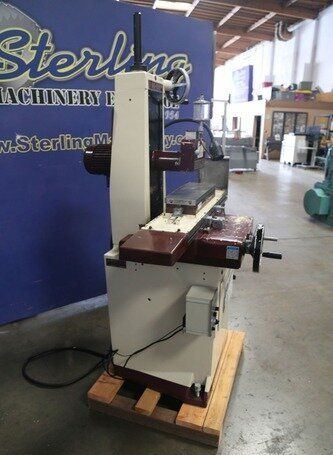

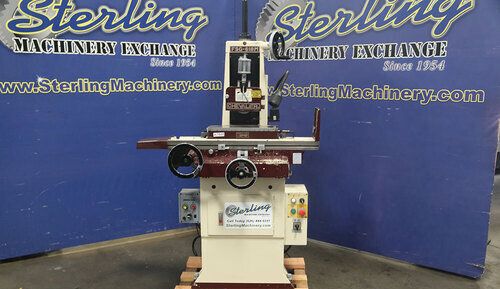

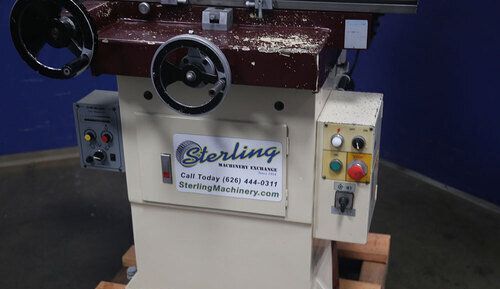

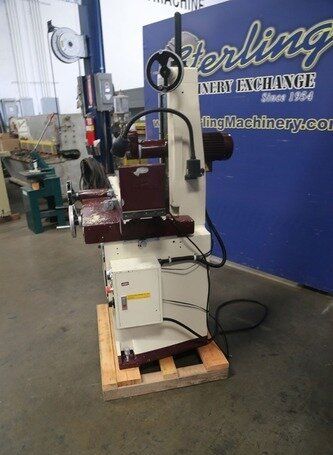

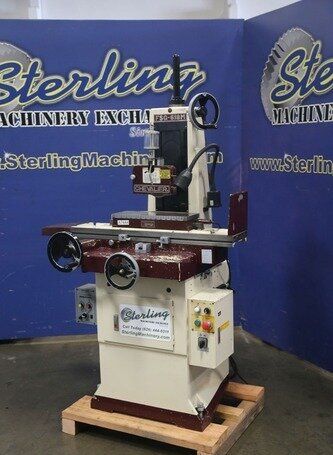

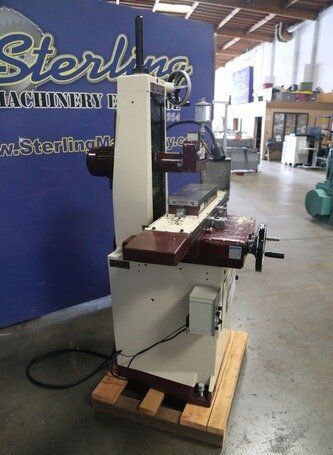

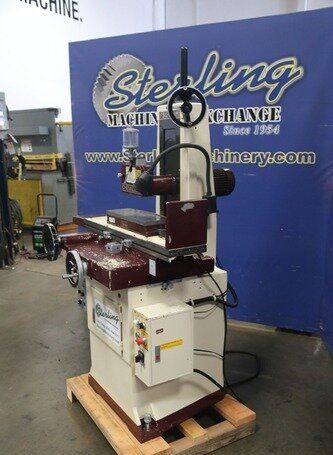

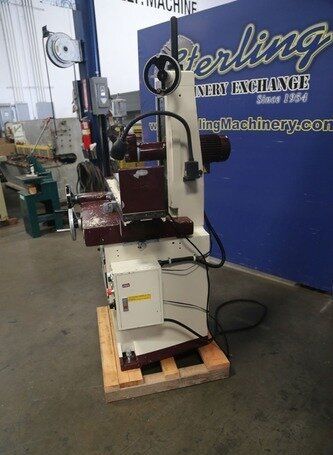

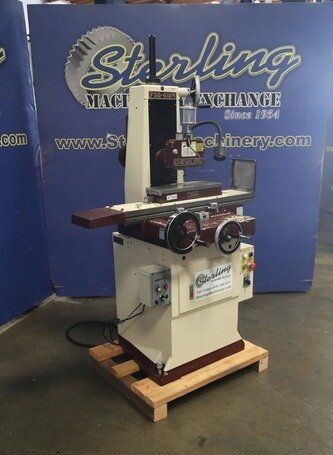

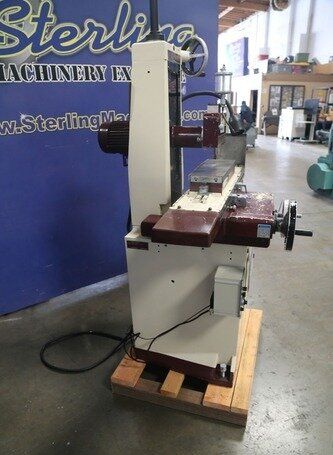

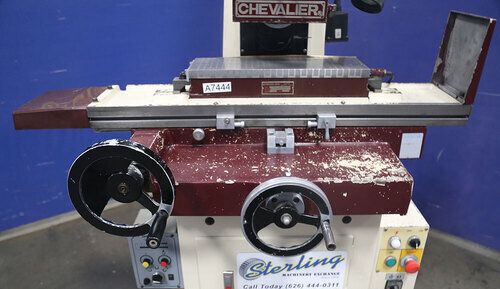

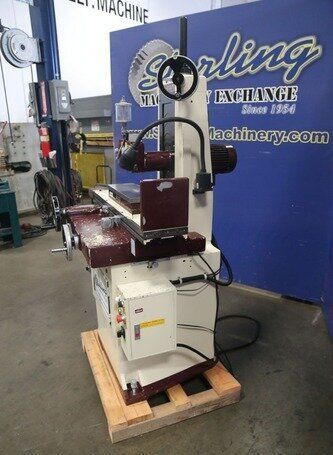

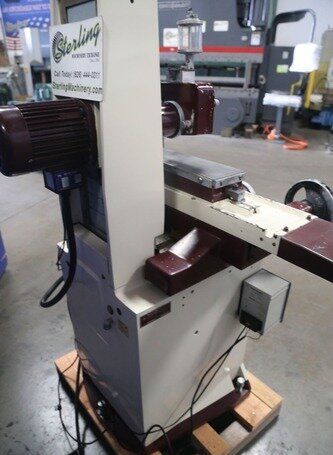

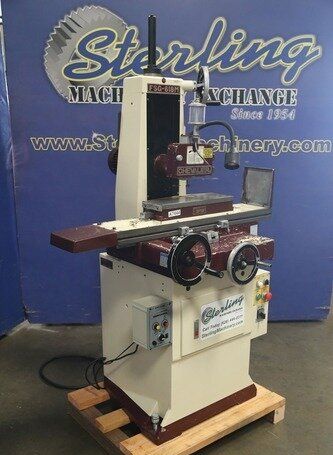

Chevalier FSG-618M Hand Feed Surface Grinder

Specifications

ModelFSG-618M
BrandChevalier
TypeVertical Machining Centers
Weight1,500 Lbs.
Length54"
Width38"
Height68"
Power1-1/4 HP
TableW5-3/4"
TableL18"

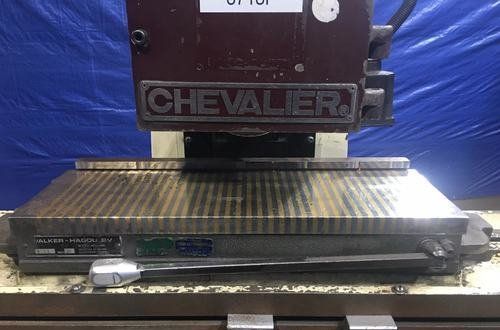

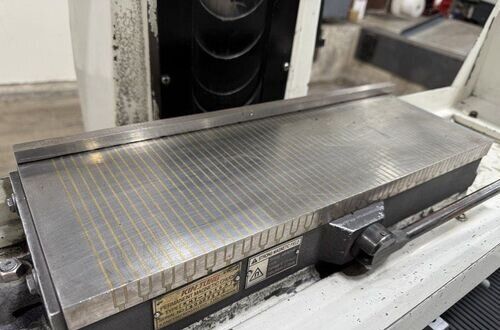

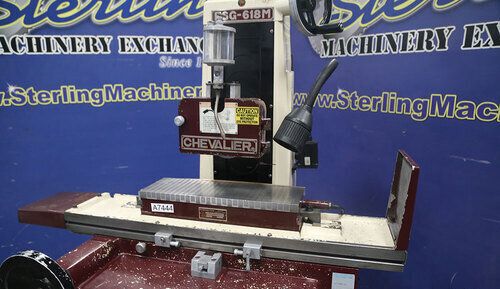

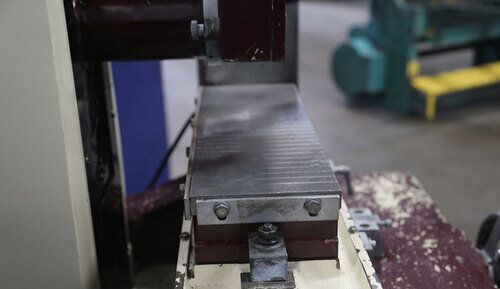

ControlO.S. Walker Fine Pole Electro Magnetic Chuck with Variable Power Microprocessor Chuck Control
catalogid4898
mfgChevalier
mpnFSG-618M
titleChevalier FSG-618M Hand Feed Surface Grinder

Zero? Available Machines

Available Machine # Ez14727

  • Stock#:Ez14727
  • Price:$4,250
  • Year:1991
  • Region:Northeast
  • Condition:Used

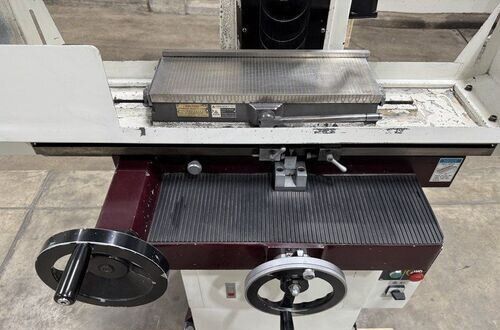

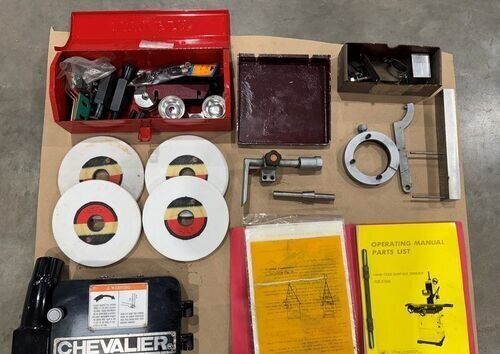

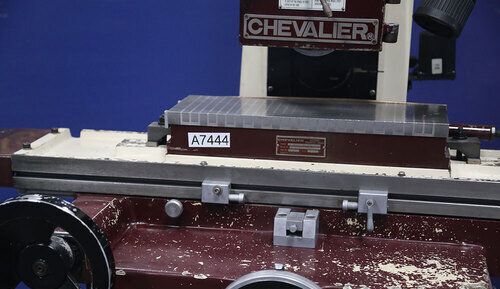

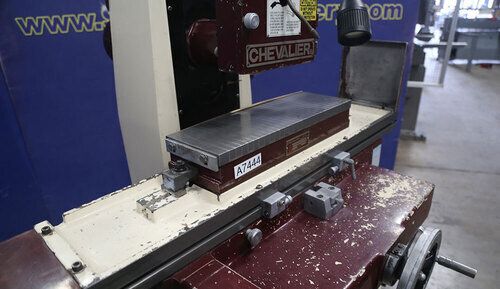

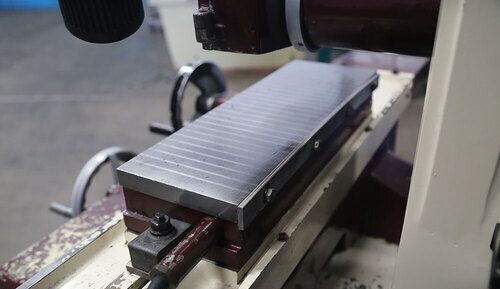

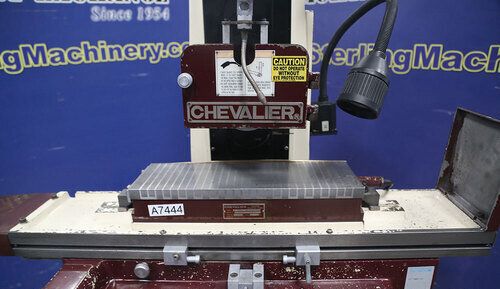

New: 1991 Model: FSG-618M Table Size: 5-3/4" x 18" Table Travel: 19" Saddle Travel: 7" Maximum Grinding Length: 18" Maximum Grinding Width: 6" Maximum Distance from Table to Center of Spindle: 18" Down Feed Hand Wheel Graduated to: .0001 Cross Feed Hand Wheel Graduated to: .0005" Grinding Wheel: 8" Dia. x 1/2" Wide x 1-1/4" Hole O.S. Walker Fine Pole Electro Magnetic Chuck with Variable Power Microprocessor Chuck Control Roller Ball Table Ways Direct Drive Spindle Motor: 1-1/4 HP, 3/60/220-440 2 Wheel Hubs 1 Shot Lube System Overall Dimensions: 54" L-R x 38" F-B x 68" H Approx. Weight: 1,500 Lbs.
