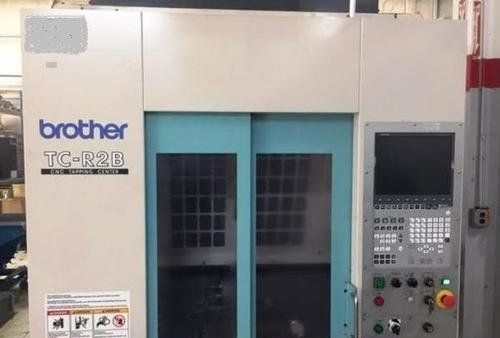

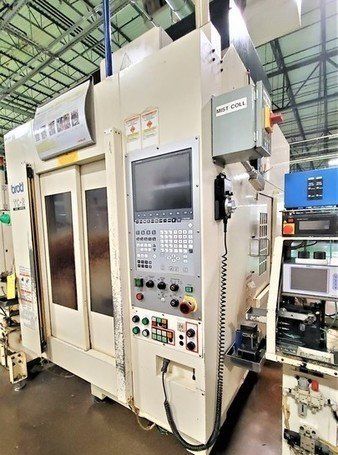

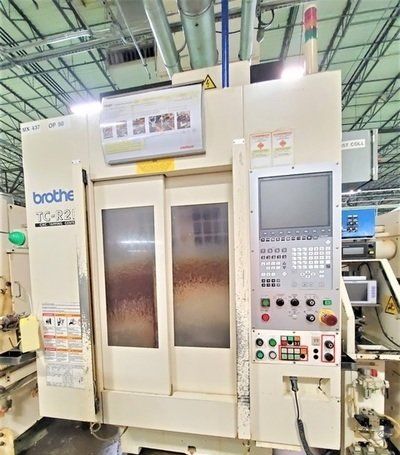

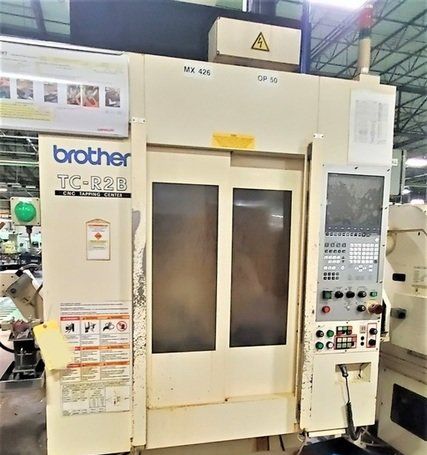

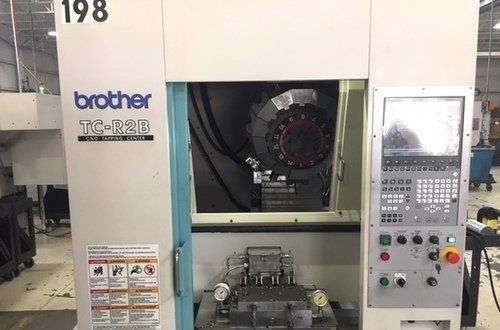

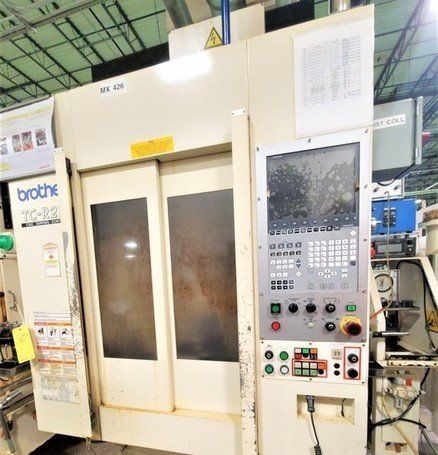

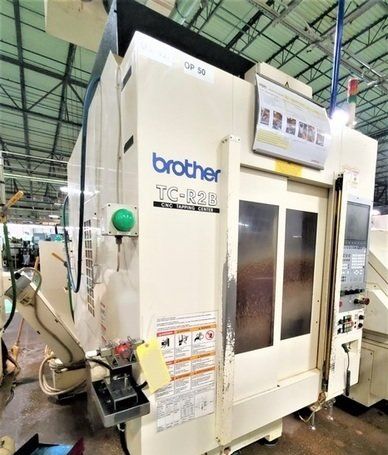

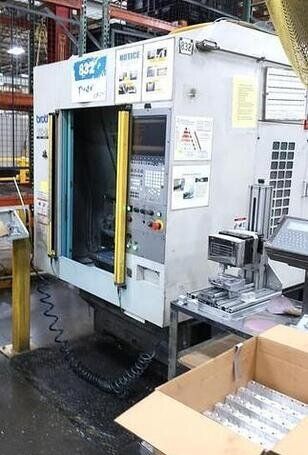

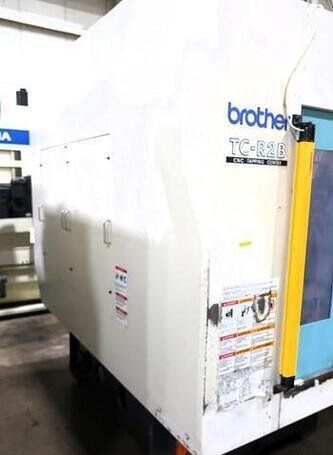

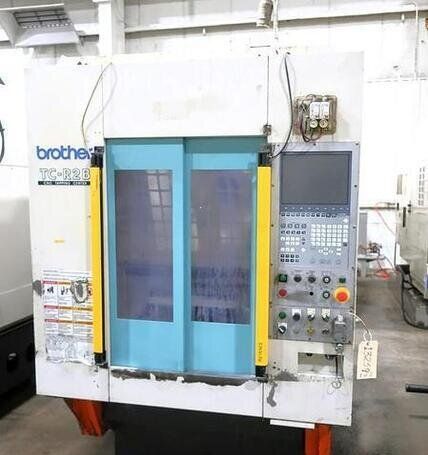

Brother TC-R2B CNC Drilling & Tapping Center Vertical Machining Center

Specifications

ModelTC-R2B
BrandBrother
TypeVertical Machining Centers
TaperBT 30

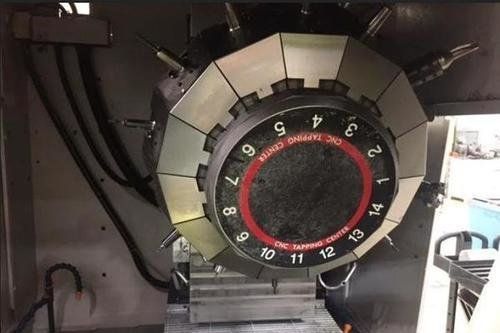

ATCDrum Type
RPM10,000 RPM
TableW23.6 inch
TableL11.8 inch
X16.5 inch
Y12.6 inch
Z12 inch
Power8.9 HP

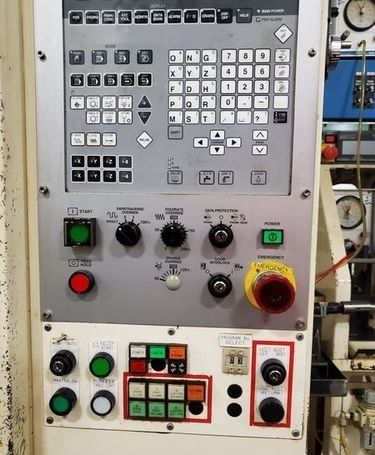

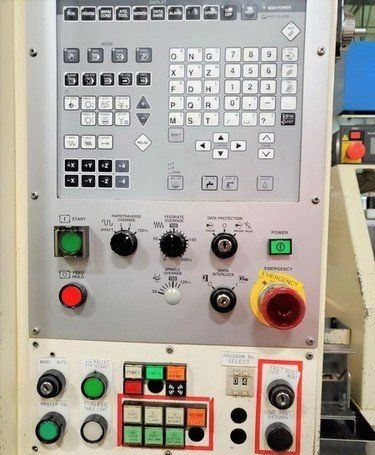

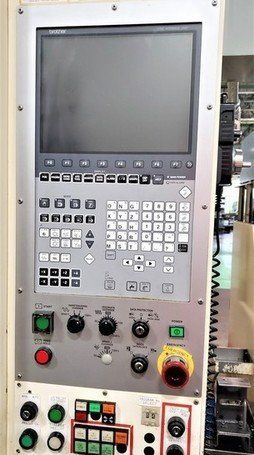

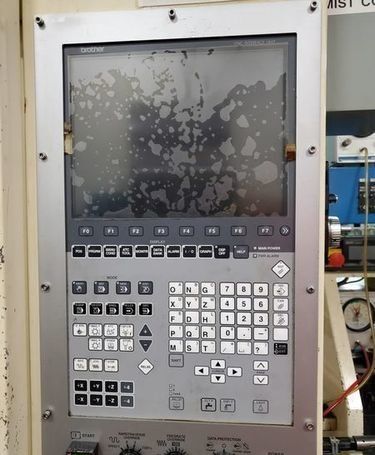

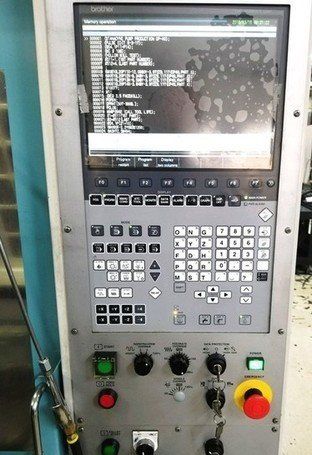

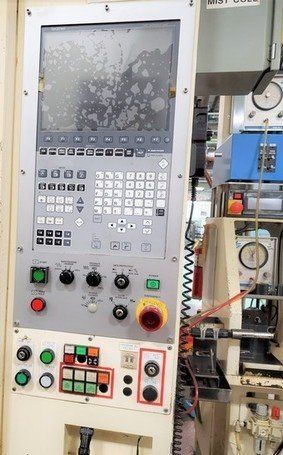

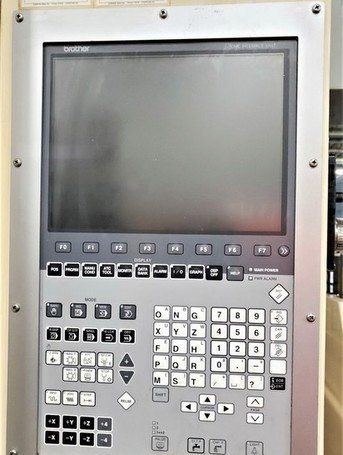

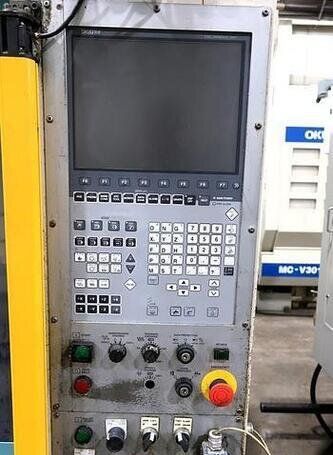

ControlBrother CNC-B00 Control
Weight5,732 lbs
catalogid3981
mfgBrother
mpnTC-R2B
titleBrother TC-R2B CNC Drilling & Tapping Center Vertical Machining Center

Zero? Available Machines

Available Machine # Ez11924

  • Stock#:Ez11924
  • Price:$42,500
  • Year:2010
  • Region:Midwest
  • Condition:Used

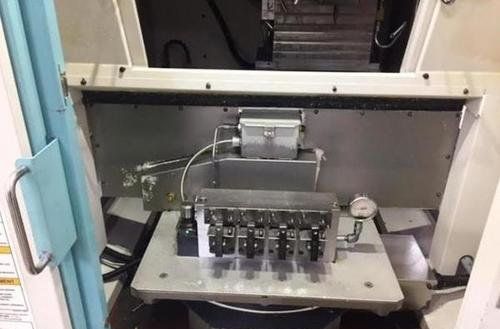

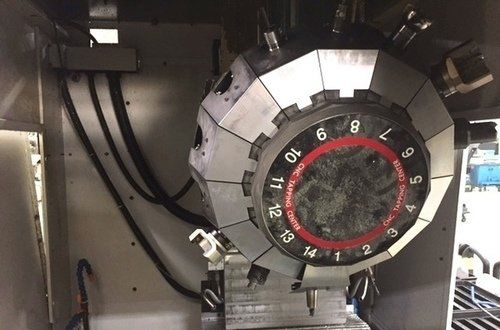

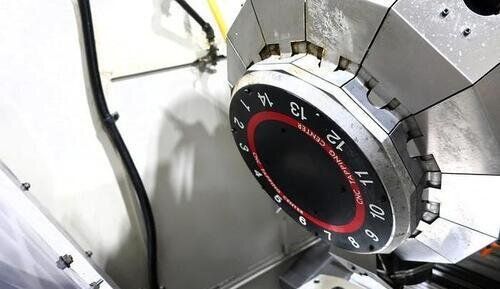

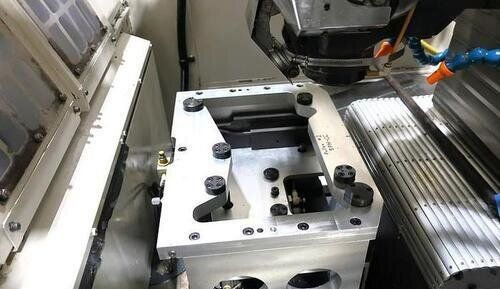

Specification: Table Size 23.6" x 11.8" X-Axis Travel 16.5" Y-Axis Travel 12.6" Z-Axis Travel 12" Table top to Spindle Nose 7.9" - 19.9" Number of Tool Stations 14 Positions Maximum Spindle Speed 10,000 RPM Spindle Taper BT-30 Tool Change Time (Chip to Chip) 1.7 Sec Rapid Traverse Rate 1969/1969/1969 IPM Rapids Machine Weight 5,732 lbs Equipped With: Brother CNC-B00 Control Quick Table (Two Surface Pallet Changer) 14 Position Turret Style Atc Manual Pulse generator


Available Machine # Ez11039

  • Stock#:Ez11039
  • Price:$74,500
  • Year:2011
  • Region:West
  • Condition:Used

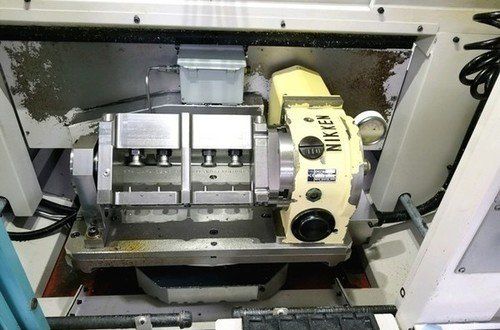

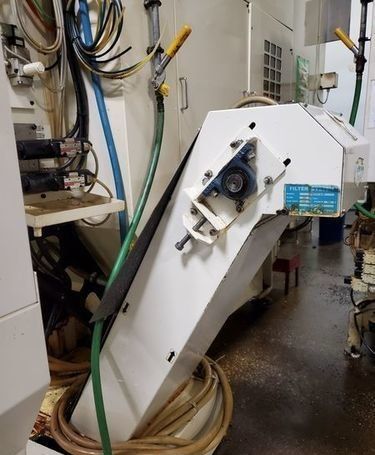

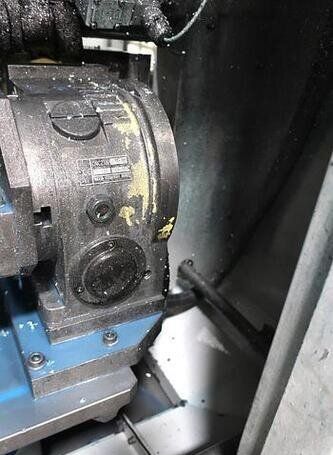

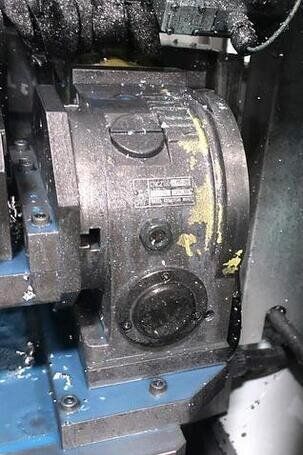

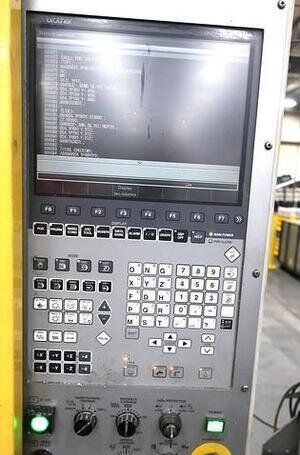

X Travel (mm/in): 420/16.5 Y Travel (mm/in): 320/12.6 Z Travel (mm/in): 305/12 Distance between Table top and Spindle (mm/in): 200-505/7.9-19.9 Table Work area size (mm/in): 600 x 300/23.6 x 11.8 (one side) Max Loading Capacity: (kg/lb) 120/265 (one side) Spindle 10,000 RPM Spindle BT 30 Drum Type ATC Traverse Rapid Traverse Rate (m/min / in/min): 50 x 50 x 50 /1,969 x 1969 Cutting Feed Rate (mm/min / inch/min): 1-10000/.04-394 X,Y 1-20,000/.04-787 Z Brother Vertical Machining Center Brother CNC-B00 Control G-Code & Conversational with RS232C BT30 Taper ATC Drum Type, 14 tools 13.5/8.9 HP Main Spindle Motor Travel 16.6" x 12.6" x 12.0" 2 Pallet Quick Table (2.8 second Pallet Change Time) 150L Flood Coolant System with Chip Shower System System Options: Chip Conveyor Ceiling Cover Blum Z-NANO with Interface (Plunger Type, table mount, Tool Length, and Tool Breakage) Manual Pulse Generator Auto Door Assembly 2 4th Axis Rotary Index Table with Interface: Yukiwa JNC170L-BQT1B (TC-R2B only) Shower Gun Work Light kit Other equipment: Amano Mist Collector Side Spindles, Trunion Fixtures and Sub Plates (2)
