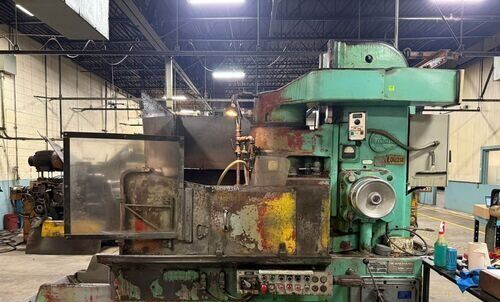

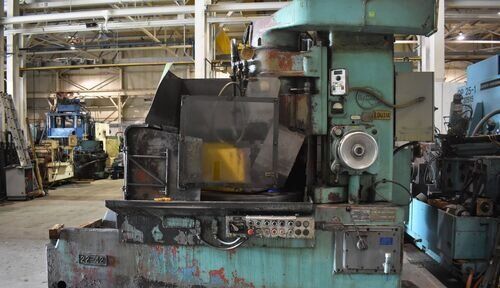

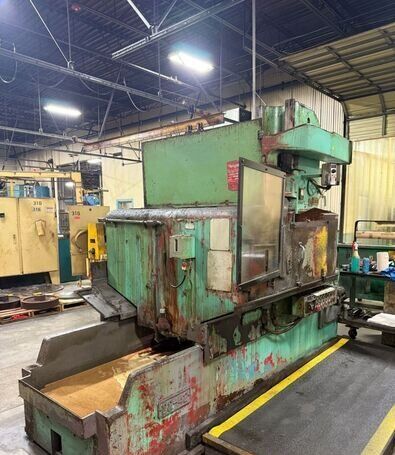

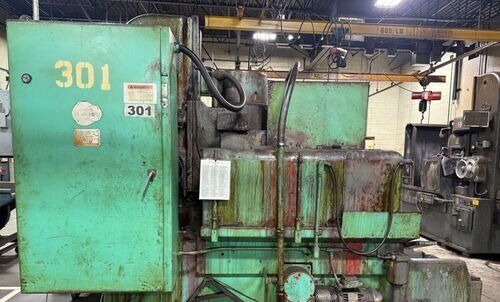

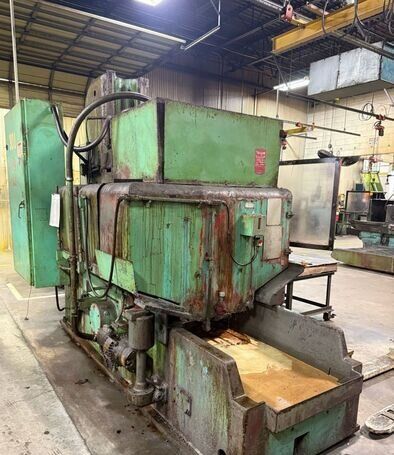

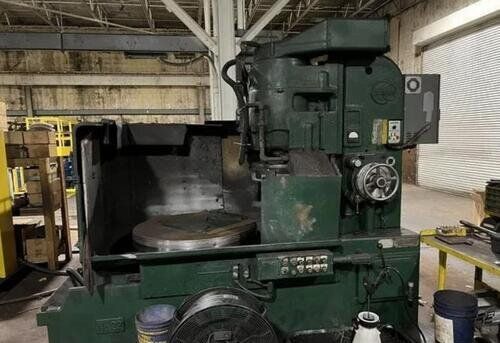

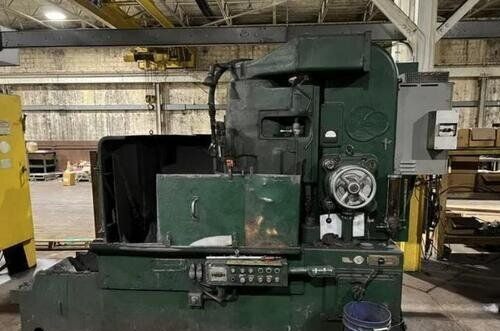

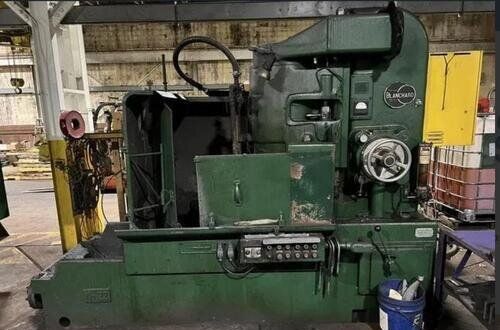

Blanchard 22-42 Rotary Surface Grinder

Specifications

Model22-42
BrandBlanchard
TypeCNC Lathes
ControlVariable Power Electro Magnetic Chuck Control
Power50 HP
Length12'
Width65"
Height104"
Weight16,000 Lbs.
MaxRPM33 RPM
ChuckSize42"
catalogid4916
mfgBlanchard
mpn22-42
titleBlanchard 22-42 Rotary Surface Grinder

Zero? Available Machines

Available Machine # Ez14787

  • Stock#:Ez14787
  • Price:$45,000
  • Year:1981
  • Region:Northeast
  • Condition:Used

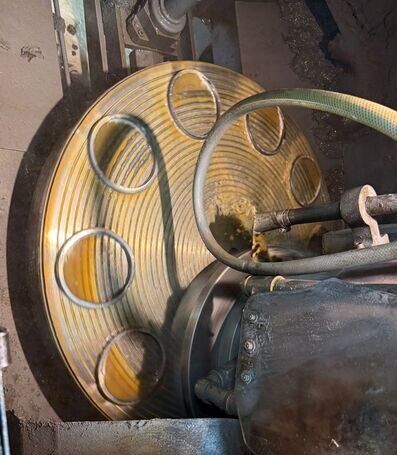

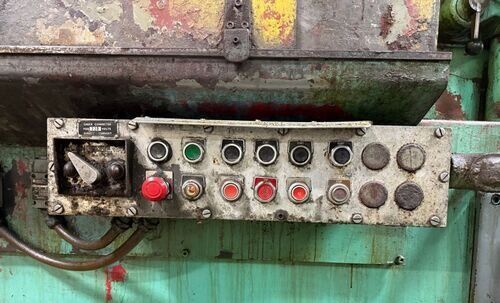

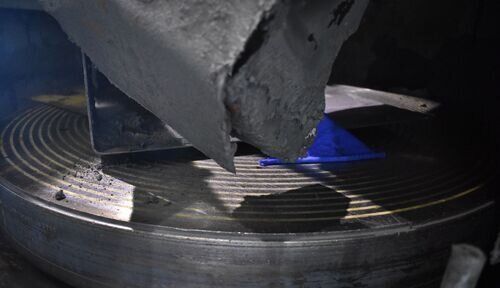

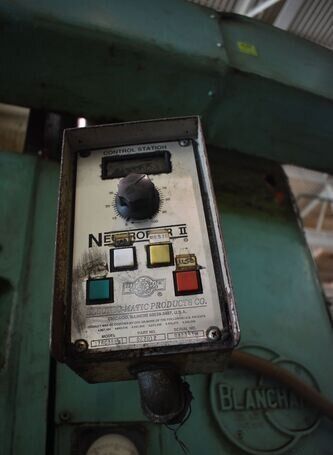

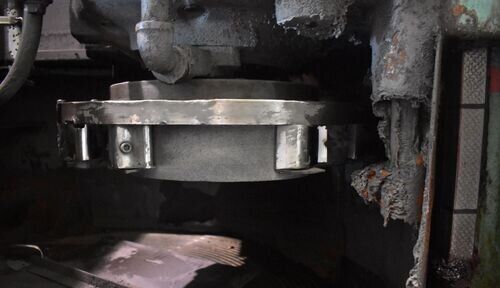

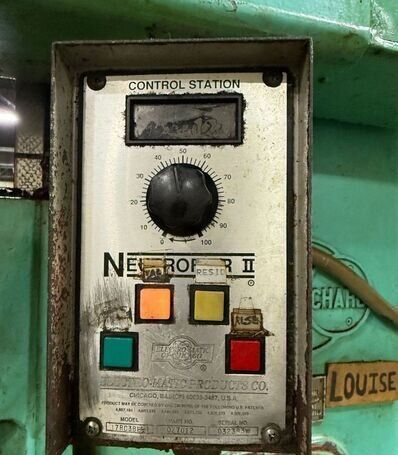

Machine Model No. 22-42 New Date: 1981 Diameter of Magnet Chuck: 42" 15/32" Chuck Life Diameter of Segmented Grinding Wheel: 22" Maximum Work Height Under New Wheel: 24" (6) Table Speeds: 6-9-12-18-25-33 RPM Chuck Job Button Automatic Down Feed to Wheel Head, (20) Feeds: .004 to .080 TPM Rapid Traverse to Wheel Head 3-Point Column Tilt Variable Power Electro Magnetic Chuck Control Trabon Lube Pump to Column Ways Bijur Auto Lube Pump to Table Ways Wet Base Machine with 2 HP External Coolant Pump, 3/208-220-440 50 HP Wheel Motor, 3/60/220-440 1 HP Table Infeed Motor, 3/60/230-460 1 HP Wheel Head Traverse Motor, 3/60/230-460 Mist Collector on Metal Stand Work Light Adjustable Wheel Dresser Arm with Diamond Dresser Machine Overall Dimensions: 12' L x 65" W x 104" H Approx. Weight: 16,000 Lbs.
