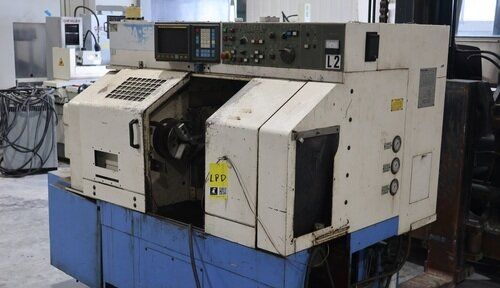

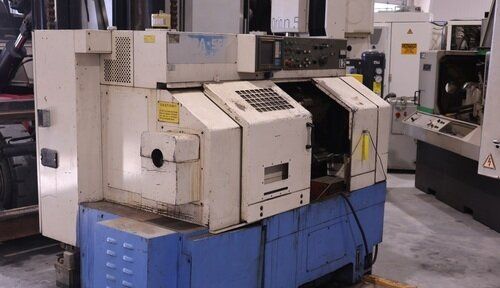

Amera Seiki TC-1 CNC Lathe

Specifications

ModelTC-1L
BrandAMERA SEIKI
TypeCNC Lathes
ControlCNC (FANUC OT)
BarCapacity1.625 inch
Axis2
Power25 hp
MaxRPM6000 RPM
TurningDia8.66 inch
Swing15.62 inch
MachiningLength23.62 inch
TailstockYes
Weight7,700 lbs.
catalogid1059
mfgAMERA SEIKI
mpnTC-1L
titleAmera Seiki TC-1 CNC Lathe

Zero? Available Machines

Available Machine # Ez16539

  • Stock#:Ez16539
  • Price:$8,500
  • Year:1995
  • Region:West
  • Condition:Used
1995 AMERA-SEIKI TC-1 CNC LATHE W/ FANUC 0T Specification DATE OF MANUFACTURE 1995 SWING OVER BED 15.78" SWING OVER CROSS SLIDE 11.02" STANDARD TURNING DIAMETER 8.66" MAXIMUM TURNING LENGTH 11.81" X AXIS TRAVEL 5.31" Z AXIS TRAVEL 13.39" RAPID TRAVERSE RATE X AXIS 394 IPM RAPID TRAVERSE RATE Z AXIS 472 IPM SPINDLE NOSE A2-6 SPINDLE BORE 2.17" MAXIMUM BAR CAPACITY 1.65" SPINDLE SPEEDS 40 - 4,500 RPM SPINDLE MOTOR 20 HP TURRET CAPACITY 8 STATIONS TAILSTOCK QUILL TAPER MT #4 TAILSTOCK QUILL DIAMETER 3.15" TAILSTOCK QUILL STROKE 2.76" APPROXIMATE DIMENSIONS 92" x 51" x 65" MACHINE WEIGHT (APPROXIMATE) 6,000 LBS
