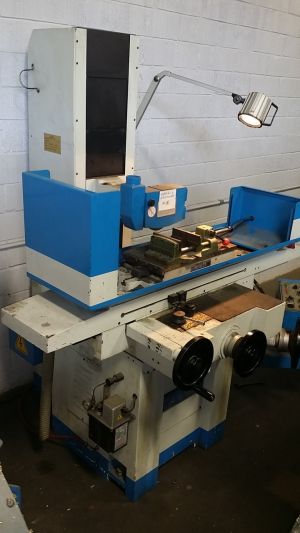

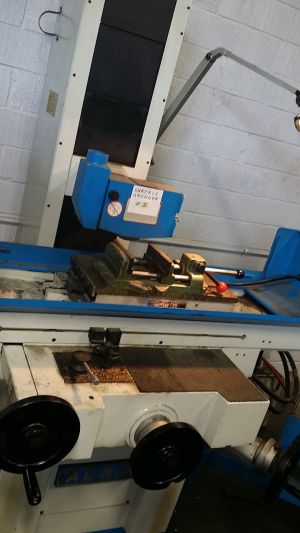

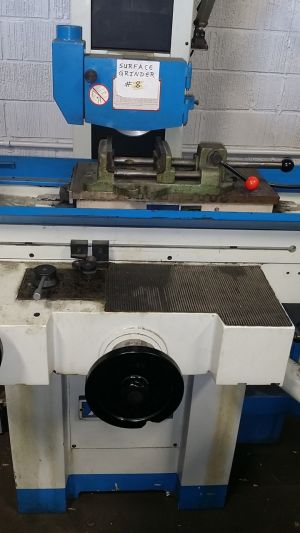

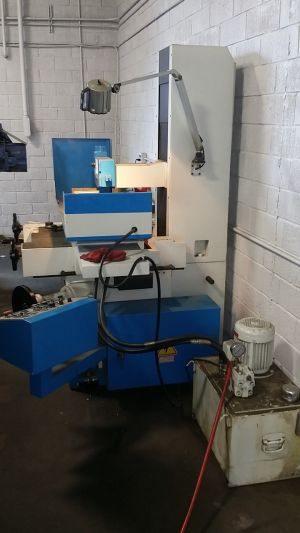

Acra 1020HS Automatic Surface Grinder

Specifications

Model1020HS
BrandAcra
TypeVertical Machining Centers
TableW10"
TableL 20"
Weight3,740 LBS
Length84"
Width59"
Height85"
catalogid5096
mfgAcra
mpn1020HS
titleAcra 1020HS Automatic Surface Grinder

Zero? Available Machines

Available Machine # Ez15801

  • Stock#:Ez15801
  • Price:$7,400
  • Year:N/A
  • Region:West
  • Condition:Used
Standard Equipment Grinding Wheel Diamond Wheel Dresser Wheel Balancing Stand Wheel Balancing Arbor Wheel Flange Leveling Screws & Plates Flange Extractor Halogen Light Specifications Table Size: 10" x 20" Max. Table Travel: 11 1/2" x 24" Max. Surface Ground 10" x 20" Dist. From Table To Spindle Center: 25" Grinding Wheel Size (Dia x Width x Bore): 8" x 1/2" x 1 1/4" Table Speed Per Minute: 16'~82' Table Guideway: F-V Auto Cross Feed Increment: 0.004"~0.5" Cross Feed On Hand Wheel (rev./gra): 0.2"/0.001" Micro Feed On Crossfeed (rev./gra): Optional 0.004"/0.00005" Micro Feed On Vertical (rev./gra): Optional 0.001"/0.00005" Rapid Power Head Elevation: Optional Auto Down Feed (Optional): Step Motor 0.0001"~0.0999"/Time Vertical Feed On Hand Wheel (rev/gra): 0.05"/0.0002" Grinding Wheel Speed: 3500 RPM Spindle Motor: 2 HP Hydraulic Pump Motor: 1HP Auto Cross Feed Motor: 1/5 HP Rapid Head Elevation Motor (Optional): 1/5 HP Table Load: 550 LBS Net Weight: 3,320 LBS Shipping Weight: 3,740 LBS Dimension (L x W x H): 84" x 59" x 85"
