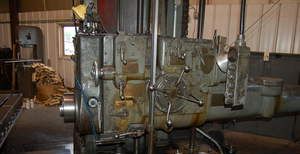

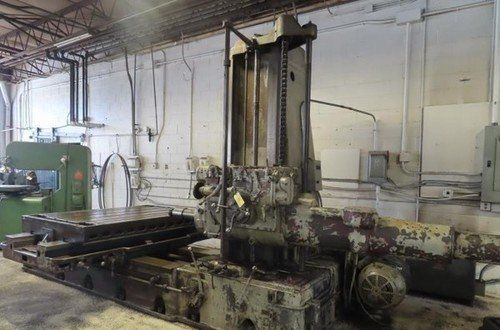

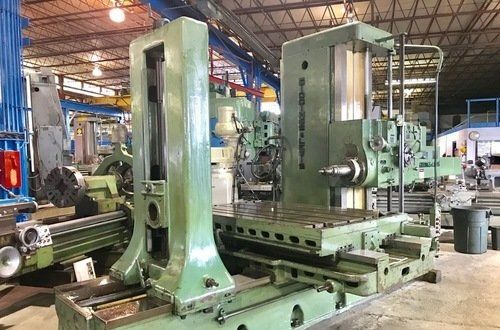

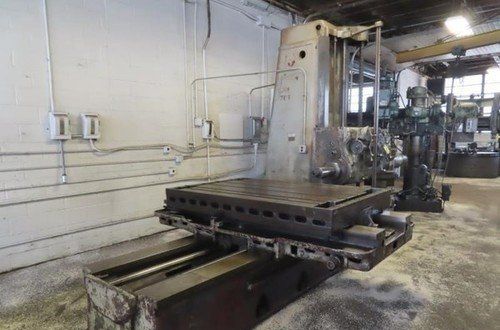

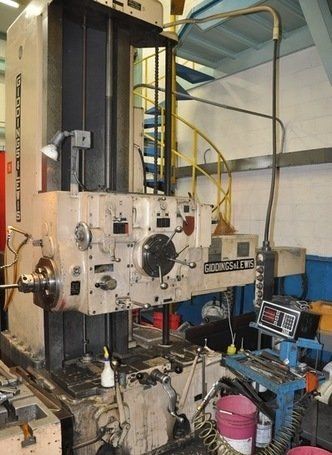

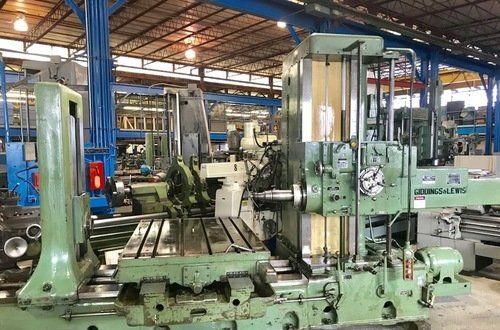

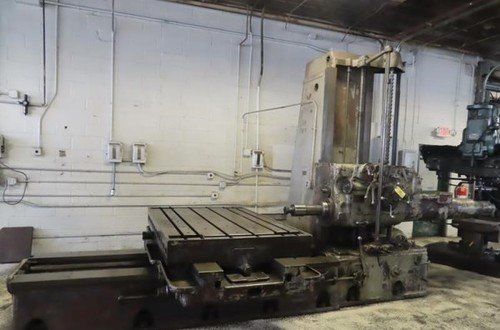

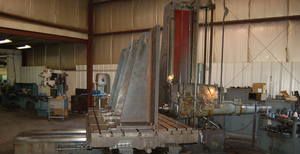

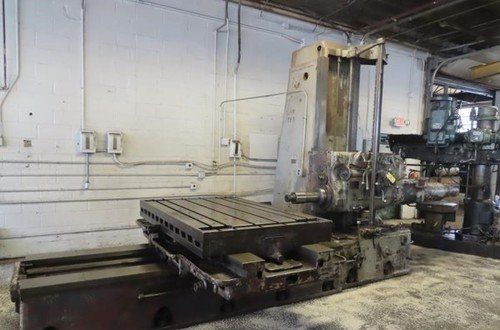

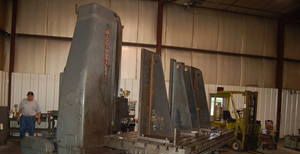

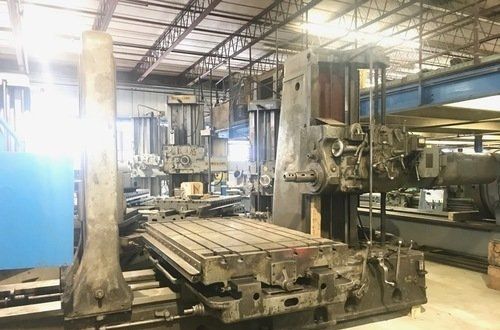

5 inch 350T GIDDINGS & LEWIS HORIZONTAL BORING MILL

Specifications

Model350T
BrandGIDDINGS & LEWIS
TypeHorizontal Machining Centers
catalogid5133
mfgGIDDINGS & LEWIS
mpn350T
title5 inch 350T GIDDINGS & LEWIS HORIZONTAL BORING MILL

Zero? Available Machines

Available Machine # Ez16541

  • Stock#:Ez16541
  • Price:$24,500
  • Year:1947
  • Region:Northeast
  • Condition:Used

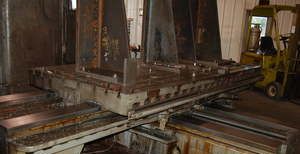

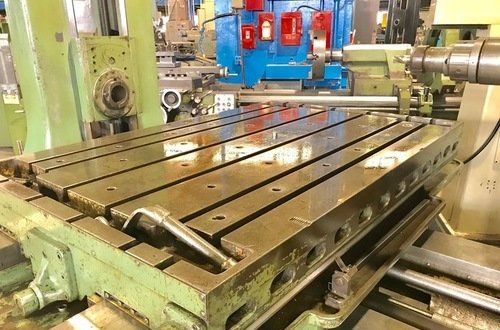

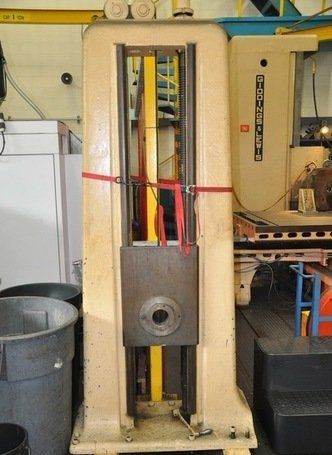

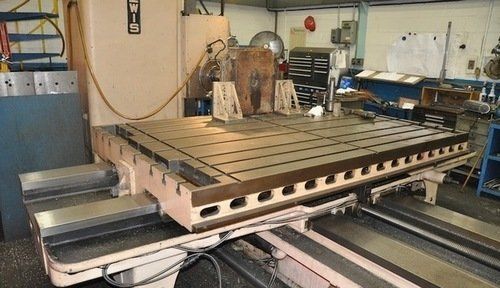

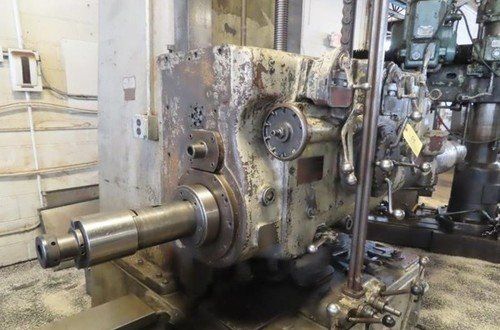

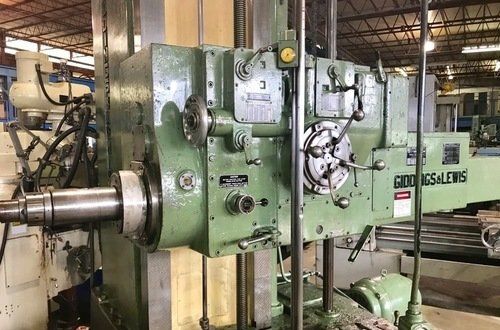

SPECIFICATIONS: Main Spindle Diameter: 5" Auxiliary Spindle Diameter: 2" Main Spindle Taper: #6 Morse Auxiliary Spindle Diameter: #4 Morse (18) Main Spindle Feeds: 0.005" to 0.250" IPR (18) Auxiliary Spindle Feeds: 0.001" to 0.062" IPR (18) Table, Saddle, Vertical Head Feeds: 0.5 to 25 IPM Travels: Table X-72", Vertical Head Y-72", Saddle 61" Main Spindle Travel: 36", Auxiliary Spindle Travel: 9" Table Size: 48" x 86" Table Has: (6) 1" T Slots 86" Length & (3) 1" Key Slots 48" Length (40) 1" Dia. Holes Across Top of Table (36) Main Spindle Speeds: 8.3 to 500 RPM (36) Auxiliary Spindle Speeds: 33 to 2000 RPM Thru Hole in Outboard Support: 6-1/4" Max. EQUIPPED WITH: Soft Column, Table and Saddle Ways All in Good Condition Power Feed and Rapid Traverse to All Axes (1) Manual Hand Crank for All Axes (1) Spindle Taper Keeper Wedge AcuRite III 2-Axis Digital Readout, Inch – Metric Manual Clamping of All Axes External Coolant Pump – NO Tank or Pan 25 HP Main Motor Wired for 3 Phase 60 Hz, 220 / 440 Volts, Presently 440 Volts Overall Size: Machine can be Trucked Assembled as One Piece 104" Wide (Can be turned on the truck to be legal width.) x 254" Long x 130" High x 37,300 Lbs. Tailstock: 42" L-R x 23" F-B x 100" High x 2,000 lbs. (Can be removed and laid over for shipping.)
