4 inch GIDDINGS & LEWIS 70A-DP4-T Fraser TABLE TYPE HORIZONTAL BORING MILL

Specifications

Model70A-DP4-T Fraser
BrandGIDDINGS & LEWIS
TypeCNC Lathes
Weight23,500 Lbs.
Length200"
Width88"
Height128"
MaxRPM10 to 1300 RPM
Power20 HP Main Motor, 3 Phase, 50 Cycle, 440 Volts 1-1/2 HP Hydraulic Pump Motor, 3 Phase, 50 Cycle, 440 Volts
catalogid4745
mfgGIDDINGS & LEWIS
mpn70A-DP4-T Fraser
title4 inch GIDDINGS & LEWIS 70A-DP4-T Fraser TABLE TYPE HORIZONTAL BORING MILL
joinSig

Zero? Available Machines

Available Machine # Ez14218

  • Stock#:Ez14218
  • Price:$32,500
  • Year:1969
  • Region:Northeast
  • Condition:Used

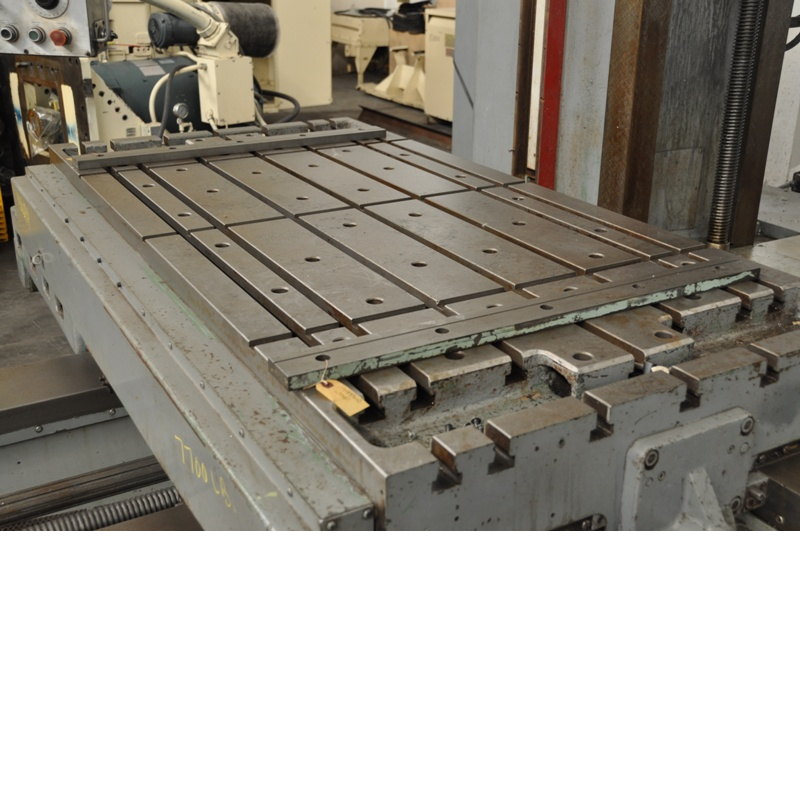

Specifications: Table Size: 36" x 74" with (7) 13/16" Tee Slots & (3) 3/4" Key Slots Table Travel: Approx. 72" Saddle Travel: Approx. 60" Head Vertical Travel: 55" Spindle Travel: 28" Spindle Speeds: 10 to 1300 RPM Spindle Taper: #50 with Power Draw Bolt Spindle Feeds: .002 to .250 TPR Milling Feeds: .040 to 120 IPM Pendant Control (2) Floor Mounted Table Outrigger Supports: 111" L x 14" W x 8-1/2" H Hard Bed & Table Ways Soft Vertical Ways 20 HP Main Motor, 3 Phase, 50 Cycle, 440 Volts 1-1/2 HP Hydraulic Pump Motor, 3 Phase, 50 Cycle, 440 Volts
